1989 FJ62 Owner's Manual

Cover Page 1

TOYOTA

1989 Owner's Manual

For your safety and comfort,
read carefully and keep in the vehicle.

LAND CRUISER

cruisercult.com

page-0-01

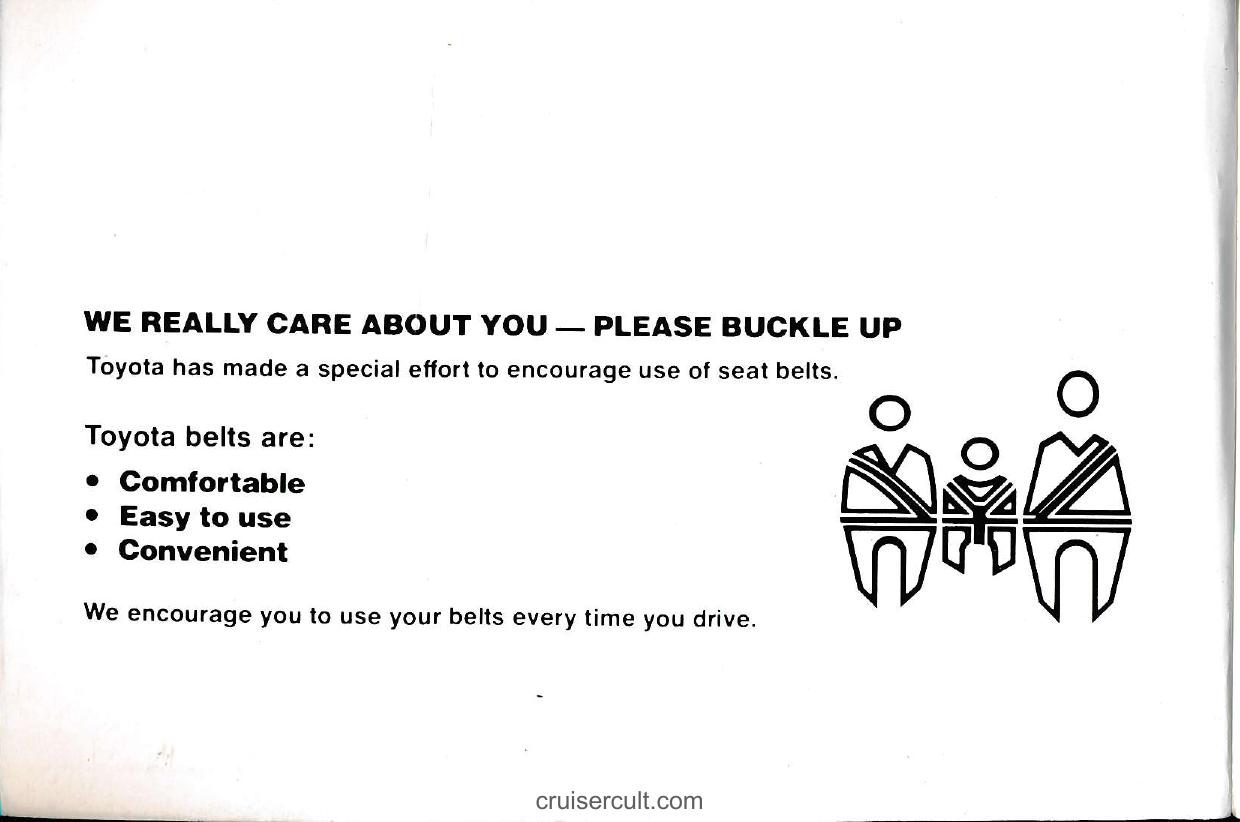

Cover Page 2

WE REALLY CARE ABOUT YOU — PLEASE BUCKLE UP

Toyota has made a special effort to encourage use of seat belts.

Toyota belts are: - Comfortable - Easy to use - Convenient

We encourage you to use your belts every time you drive.

cruisercult.com

page-0-02

Cover Page 3

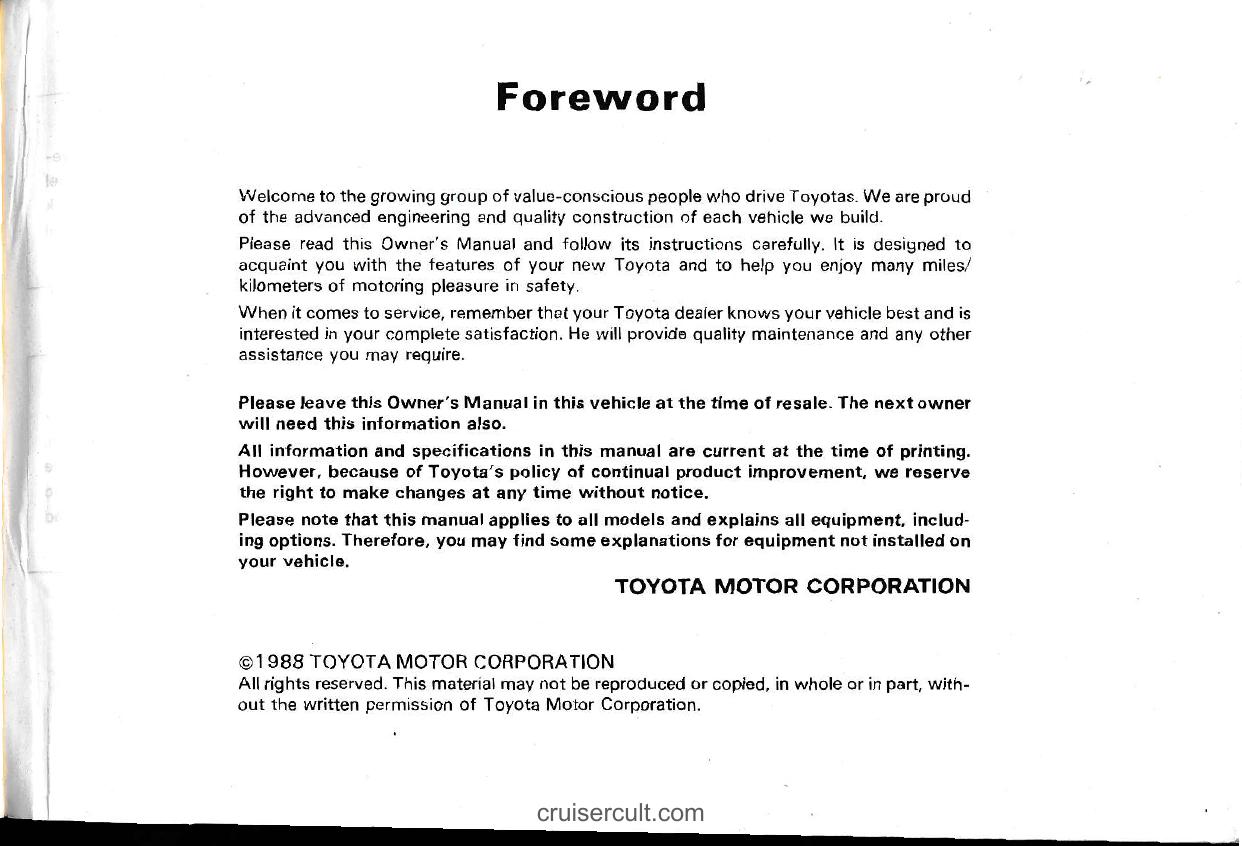

Foreword

Welcome to the growing group of value-conscious people who drive Toyotas. We are proud of the advanced engineering and quality construction of each vehicle we build.

Please read this Owner's Manual and follow its instructions carefully. It is designed to acquaint you with the features of your new Toyota and to help you enjoy many miles/ kilometers of motoring pleasure in safety.

When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete satisfaction. He will provide quality maintenance and any other assistance you may require.

Please leave this Owner's Manual in this vehicle at the time of resale. The next owner will need this information also.

All information and specifications in this manual are current at the time of printing. However, because of Toyota's policy of continual product improvement, we reserve the right to make changes at any time without notice.

Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

TOYOTA MOTOR CORPORATION

cruisercult.com

page-0-03

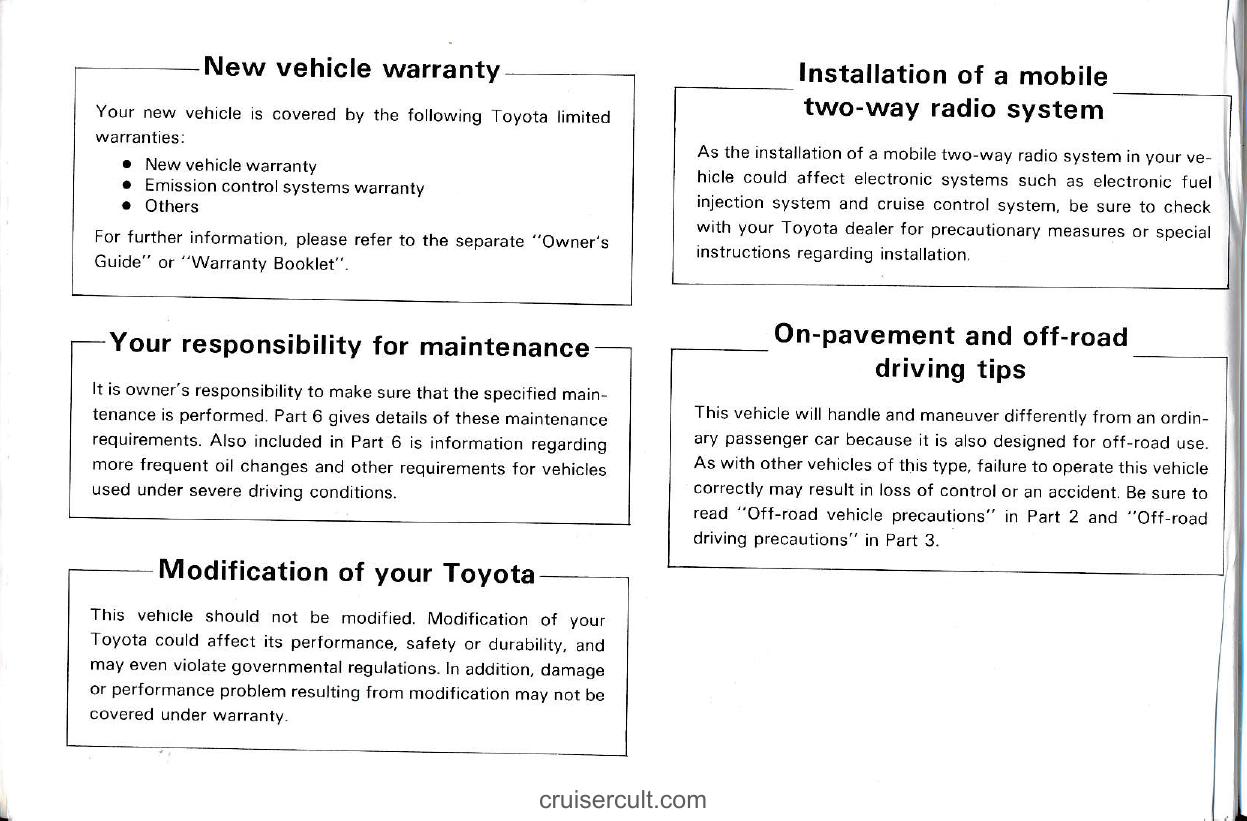

Cover Page 4

New vehicle warranty

Your new vehicle is covered by the following Toyota limited warranties:

New vehicle warranty
Emission control systems warranty
Others

For further information, please refer to the separate "Owner's Guide" or "Warranty Booklet".

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect electronic systems such as electronic fuel injection system and cruise control system, be sure to check with your Toyota dealer for precautionary measures or special instructions regarding installation.

Your responsibility for maintenance

It is owner's responsibility to make sure that the specified maintenance is performed. Part 6 gives details of these maintenance requirements. Also included in Part 6 is information regarding more frequent oil changes and other requirements for vehicles used under severe driving conditions.

On-pavement and off-road driving tips

This vehicle will handle and maneuver differently from an ordinary passenger car because it is also designed for off-road use. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or an accident. Be sure to read "Off-road vehicle precautions" in Part 2 and "Off-road driving precautions" in Part 3.

Modification of your Toyota

This vehicle should not be modified. Modification of your Toyota could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problem resulting from modification may not be covered under warranty.

cruisercult.com

page-0-04

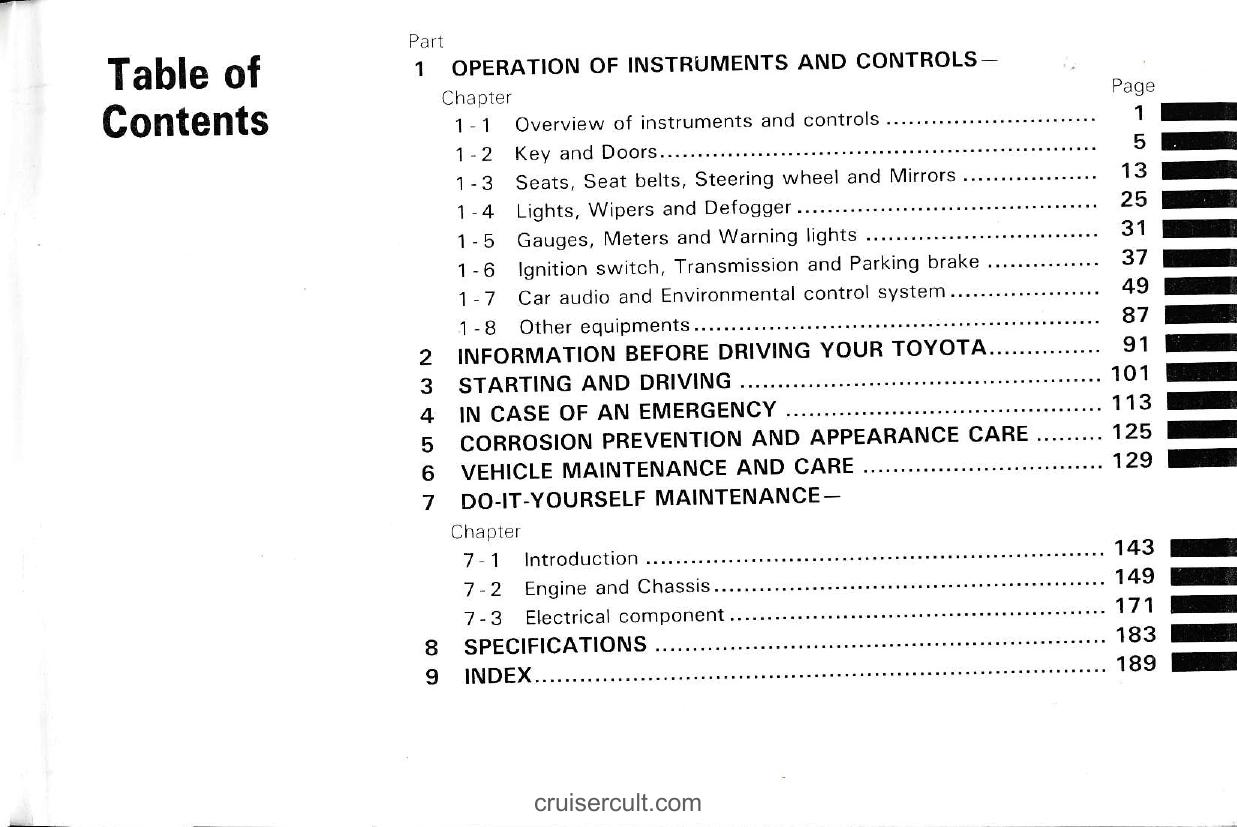

Cover Page 5

1-1. Overview of instruments and controls (page 1)
1-2. Key and Doors (page 5)
1-3. Seats, Seat belts, Steering wheel and Mirrors (page 13)
1-4. Lights, Wipers and Defogger (page 25)

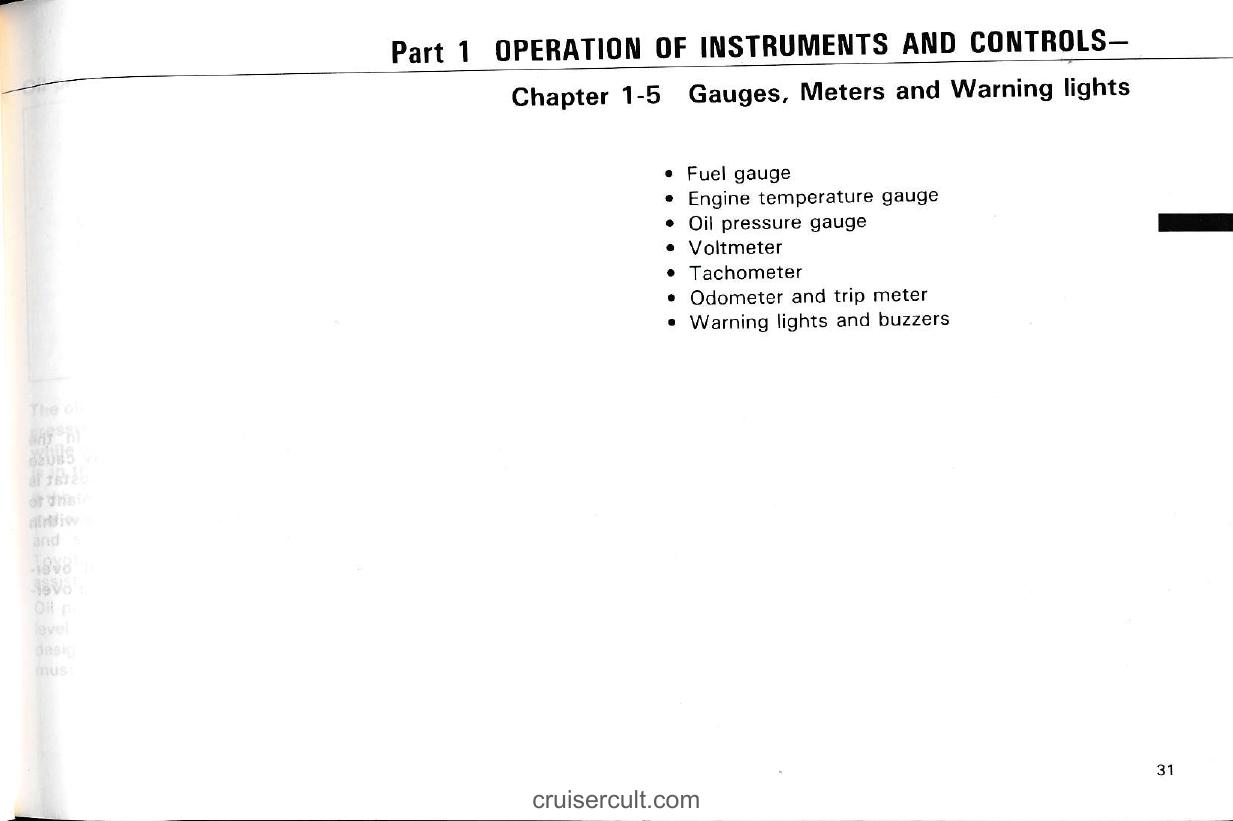

1-5. Gauges, Meters and Warning lights (page 31)

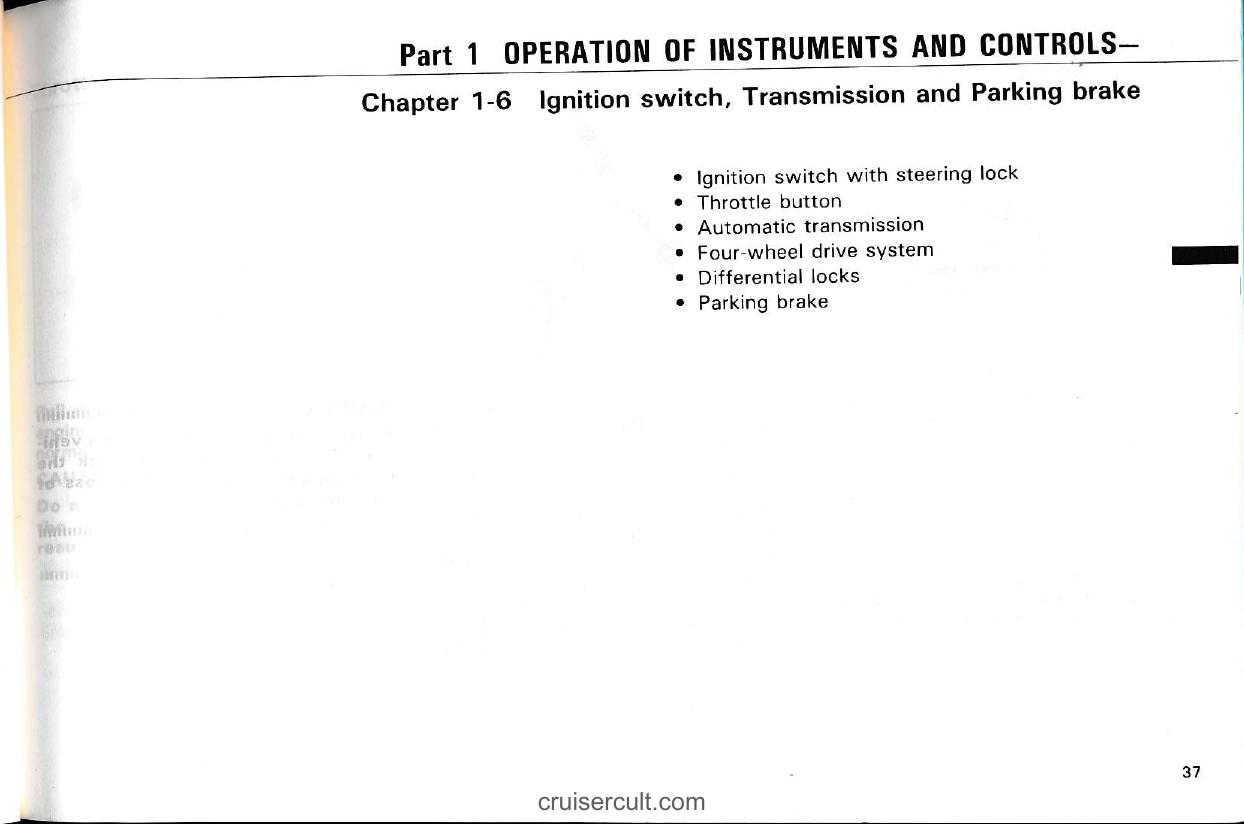

1-6. Ignition switch, Transmission and Parking brake (page 37)

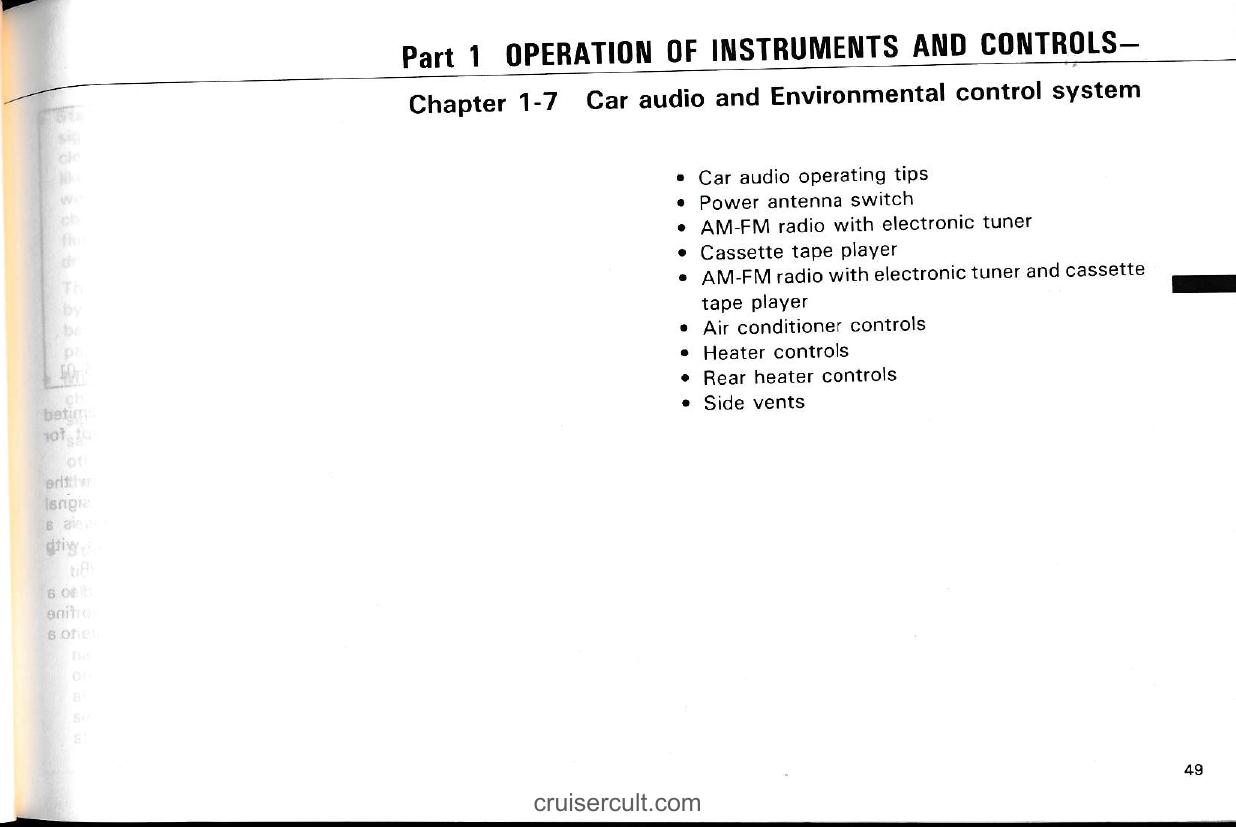

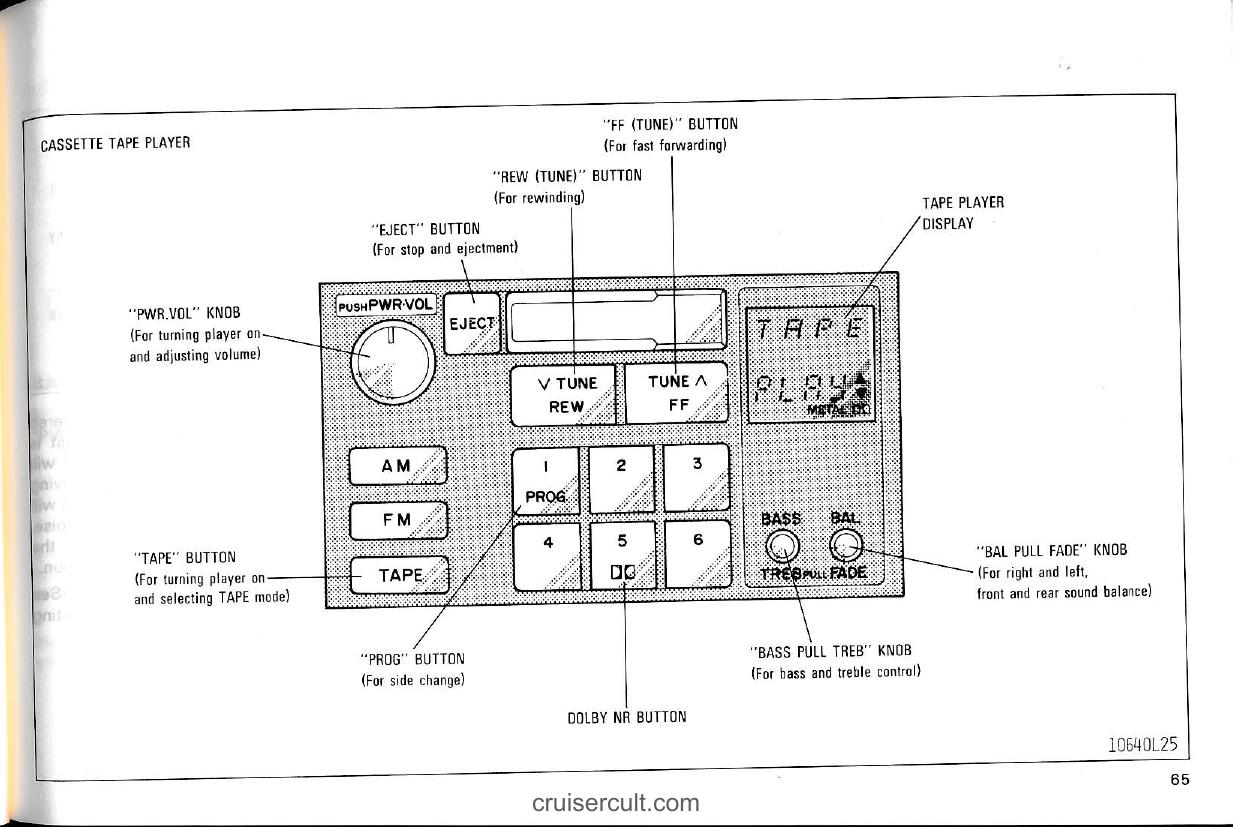

1-7. Car audio and Environmental control system (page 49)

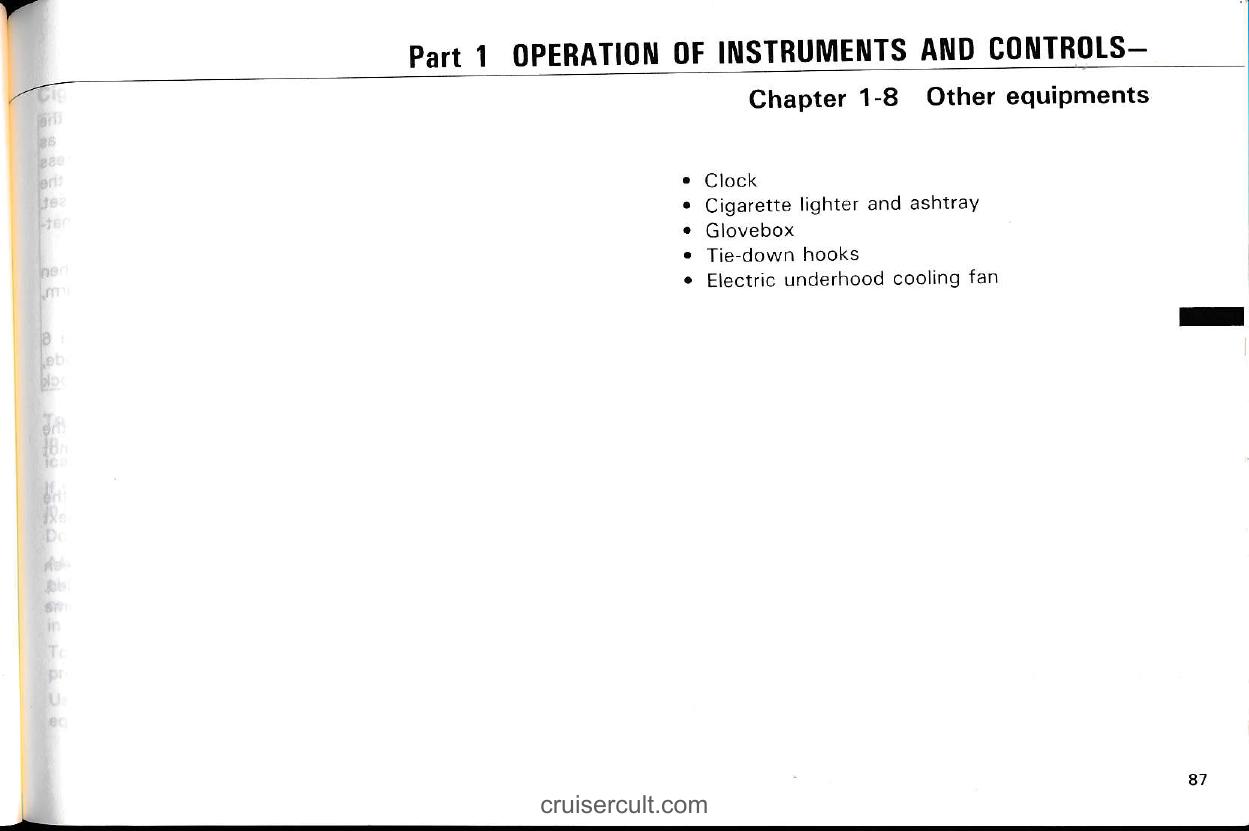

1-8. Other equipments (page 87)

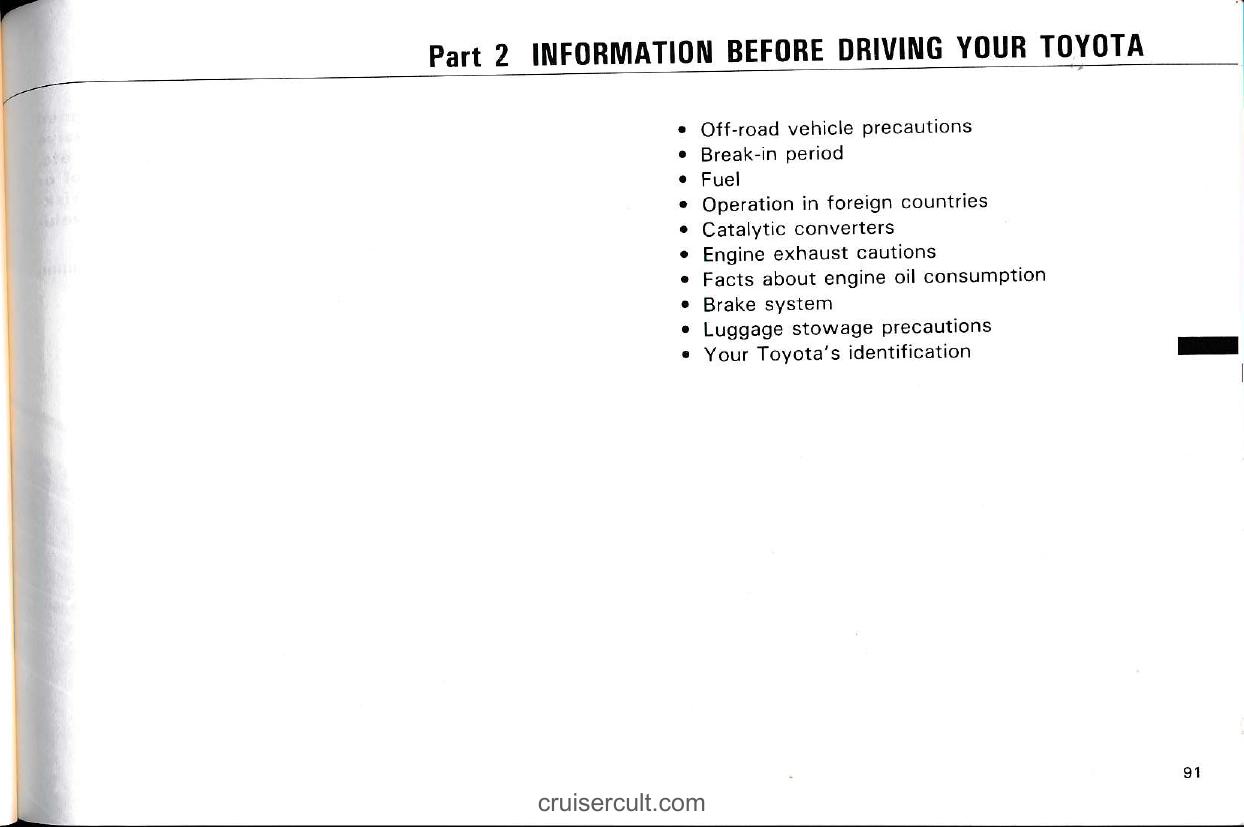

Part 2: Information Before Driving Your Toyota (page 91)

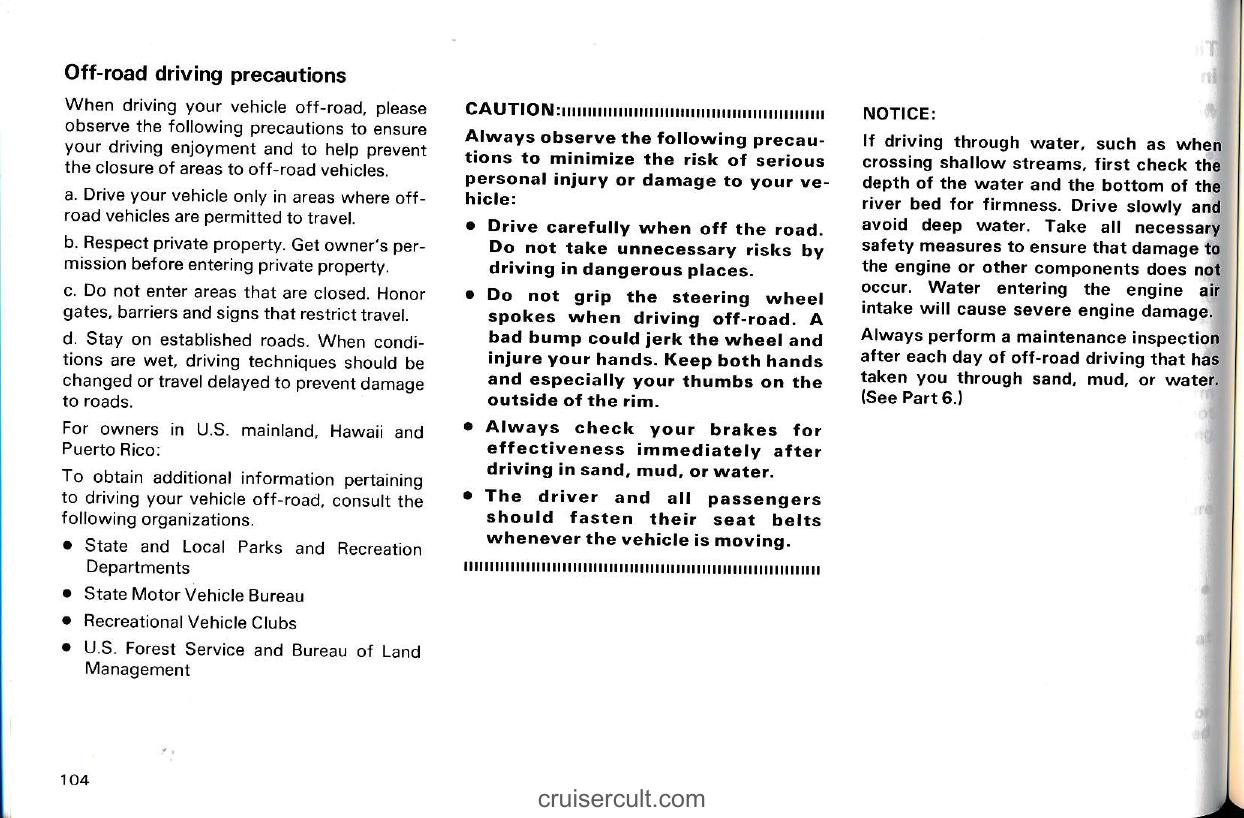

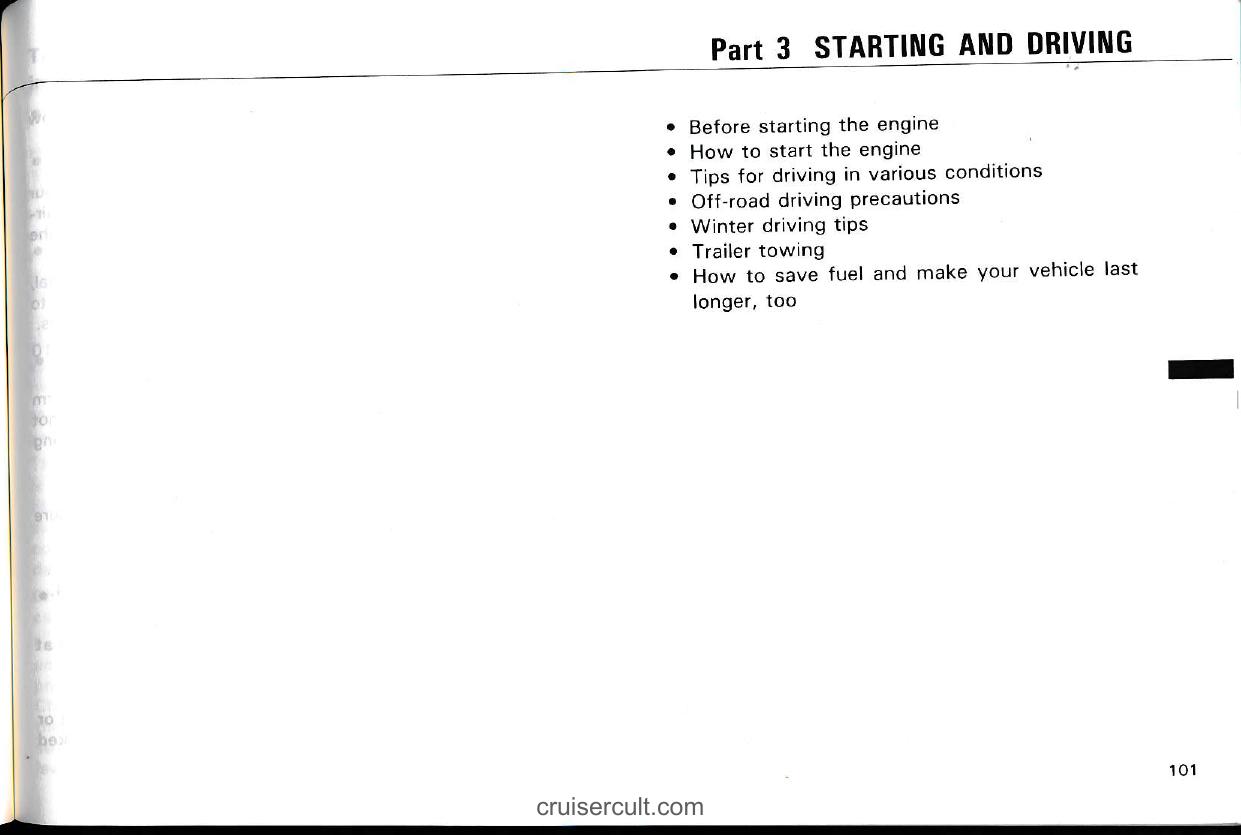

Part 3: Starting and Driving (page 101)

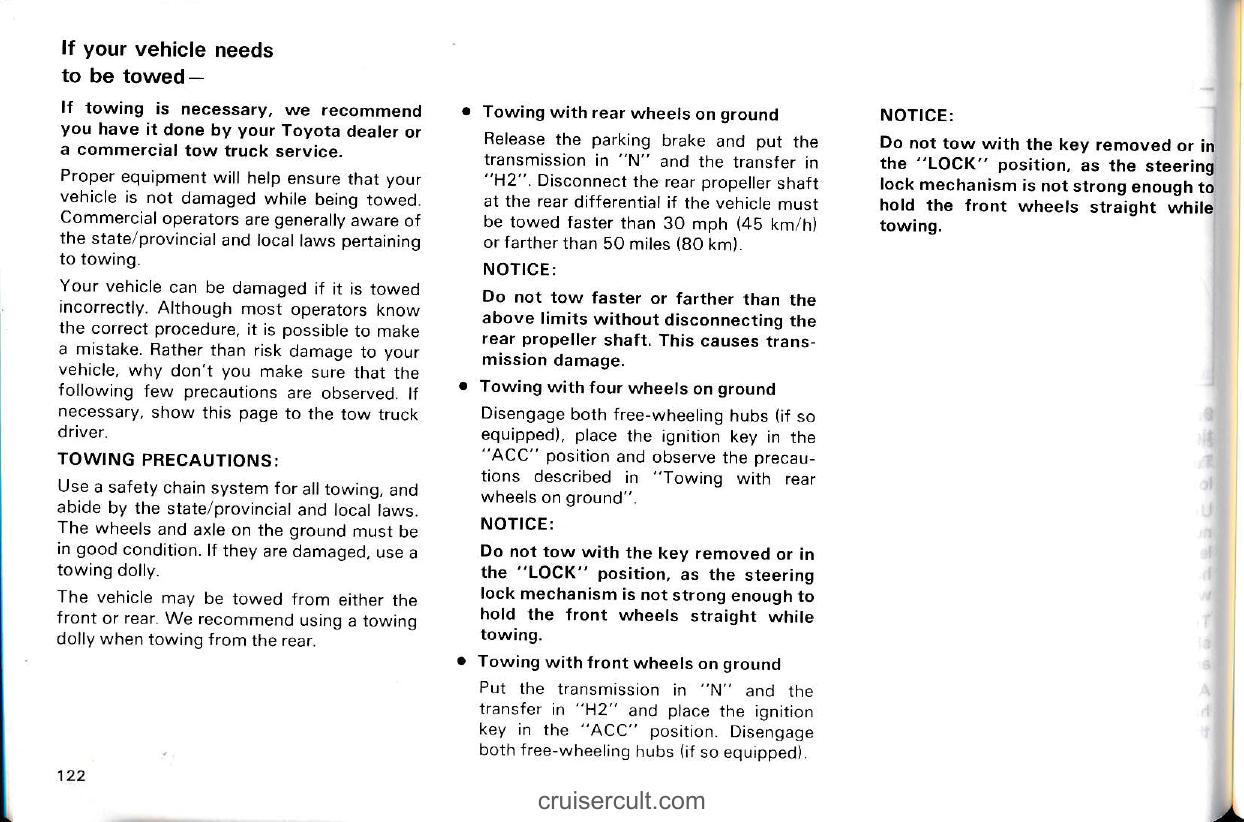

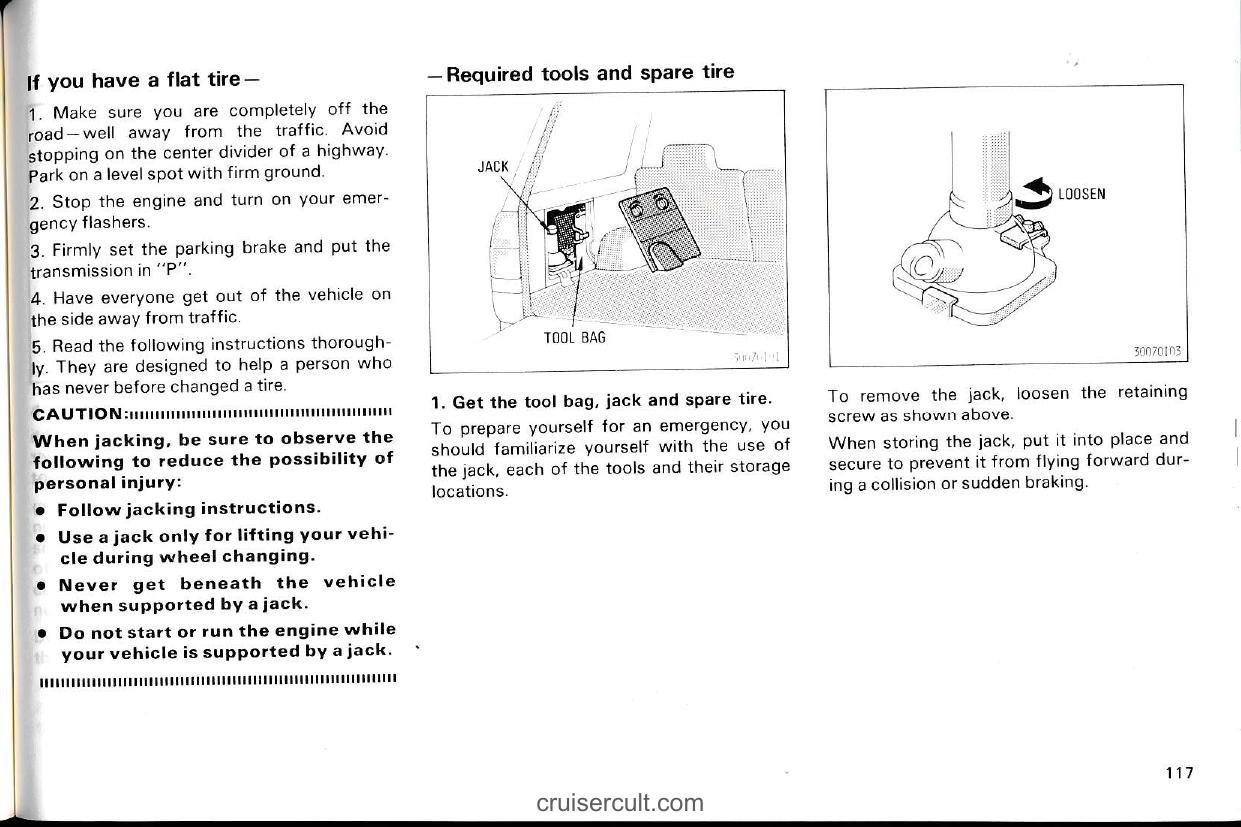

Part 4: In Case of an Emergency (page 113)

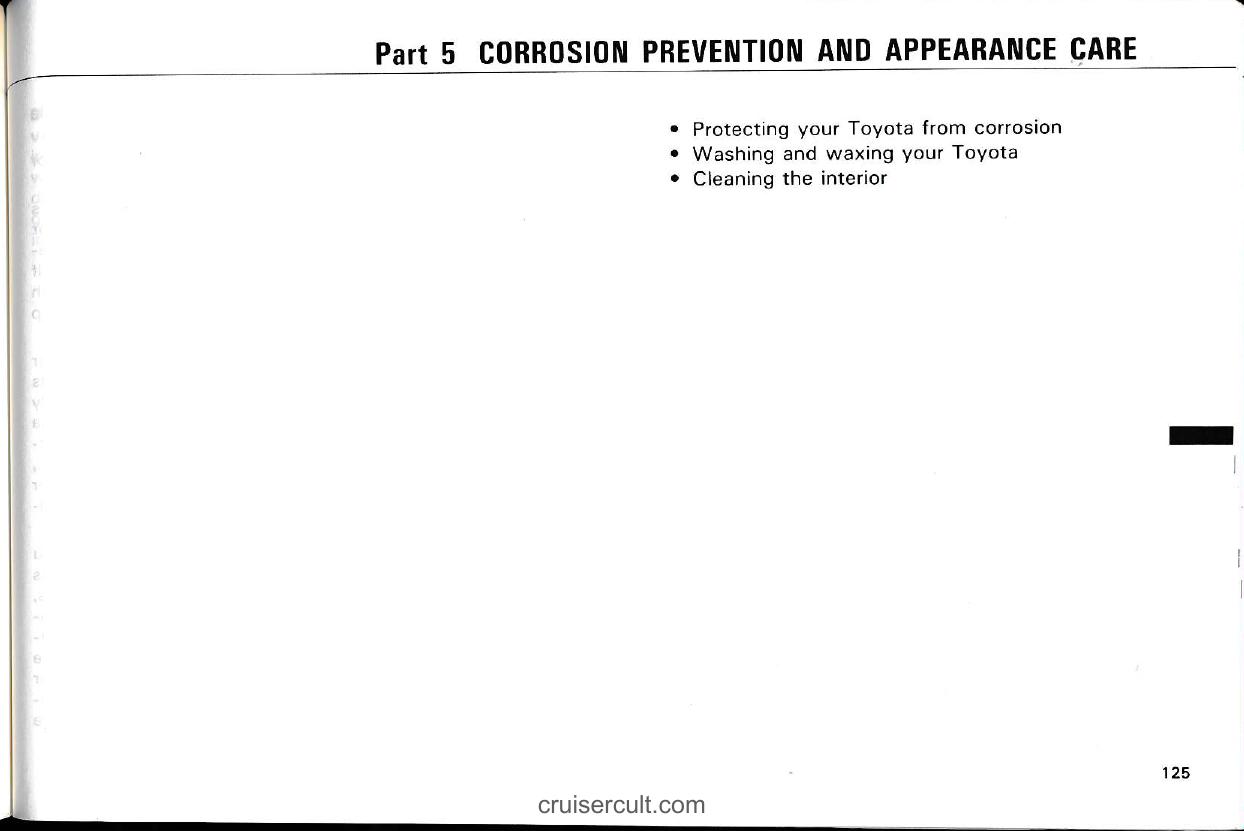

Part 5: Corrosion Prevention and Appearance Care (page 125)

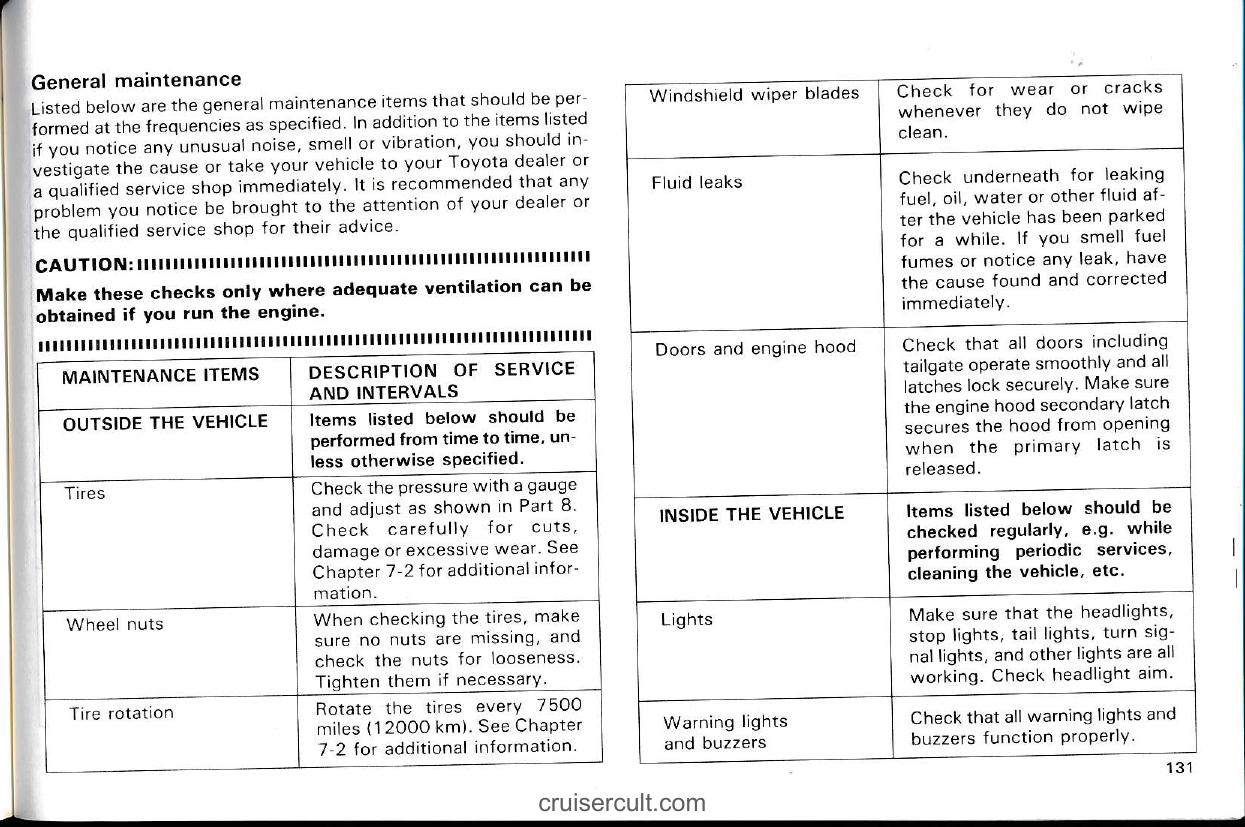

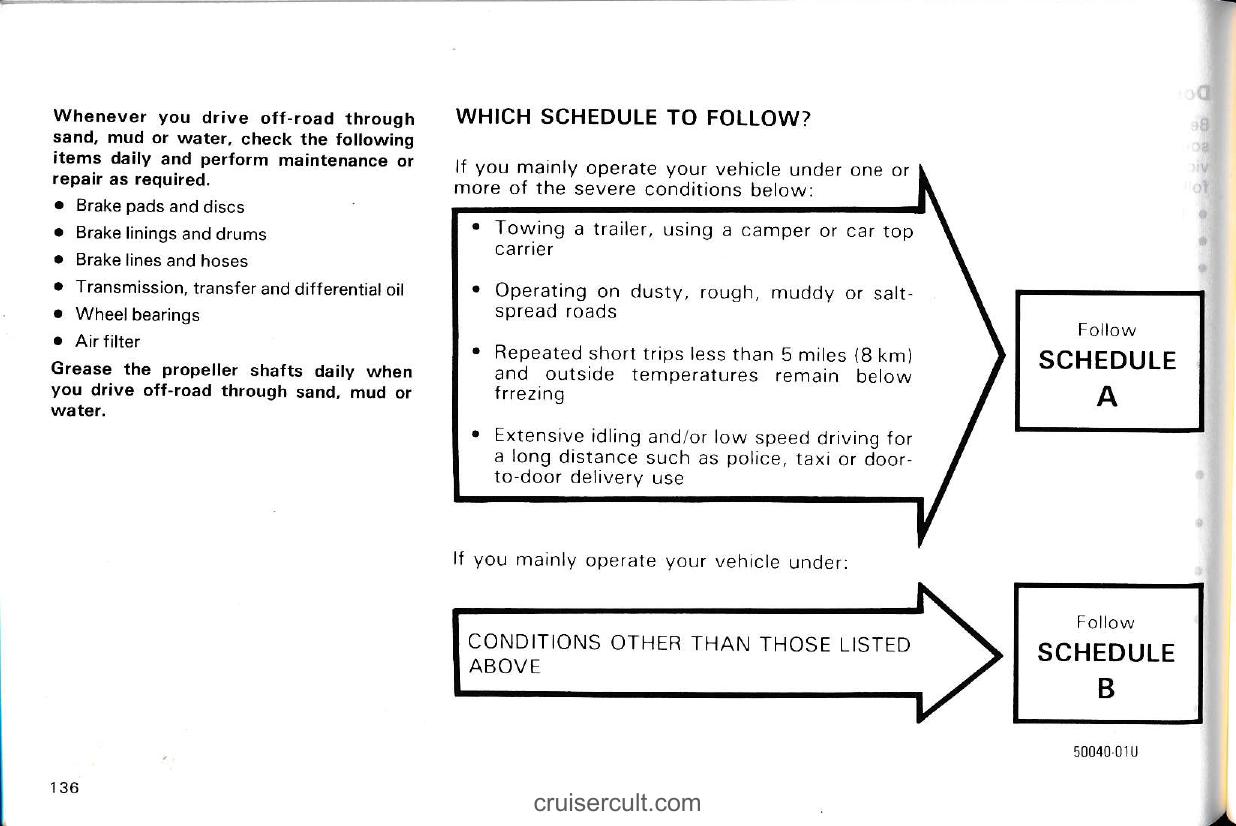

Part 6: Vehicle Maintenance and Care (page 129)

Part 7: Do-It-Yourself Maintenance

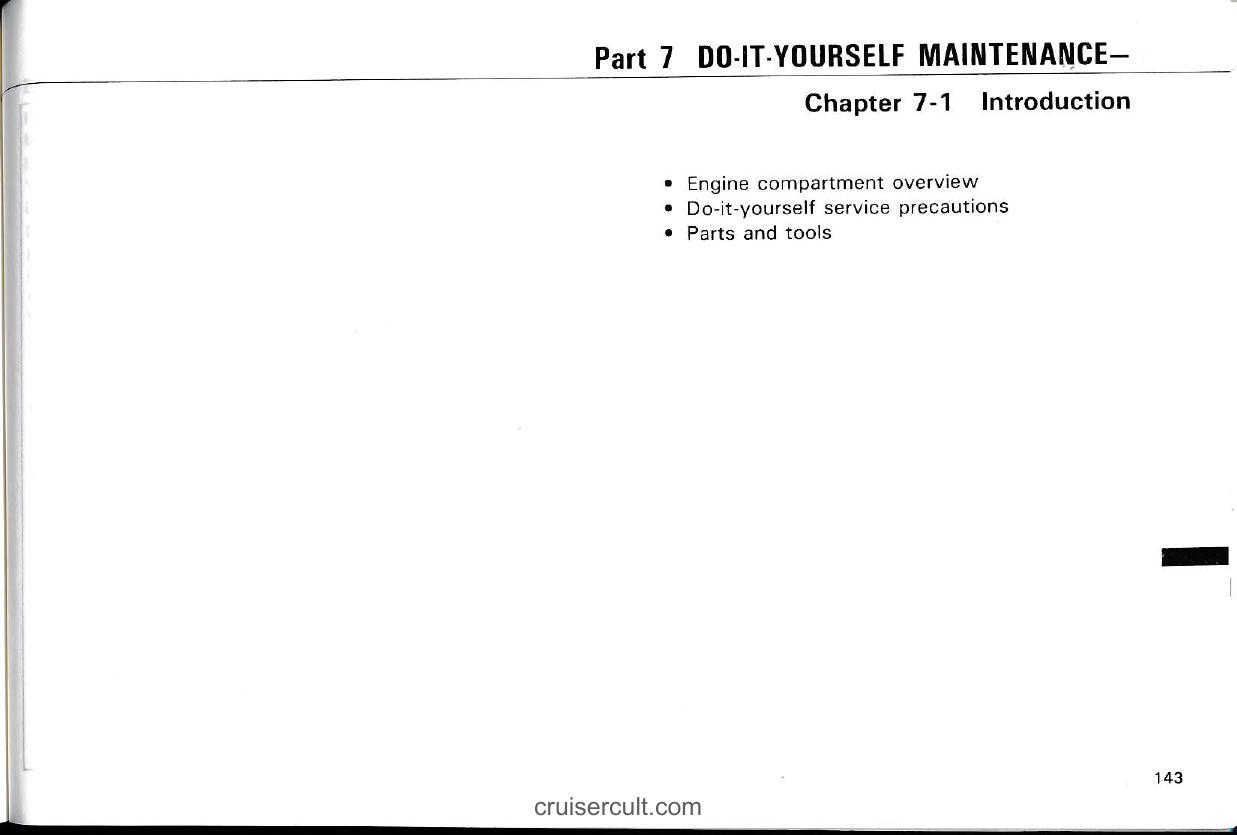

7-1. Introduction (page 143)

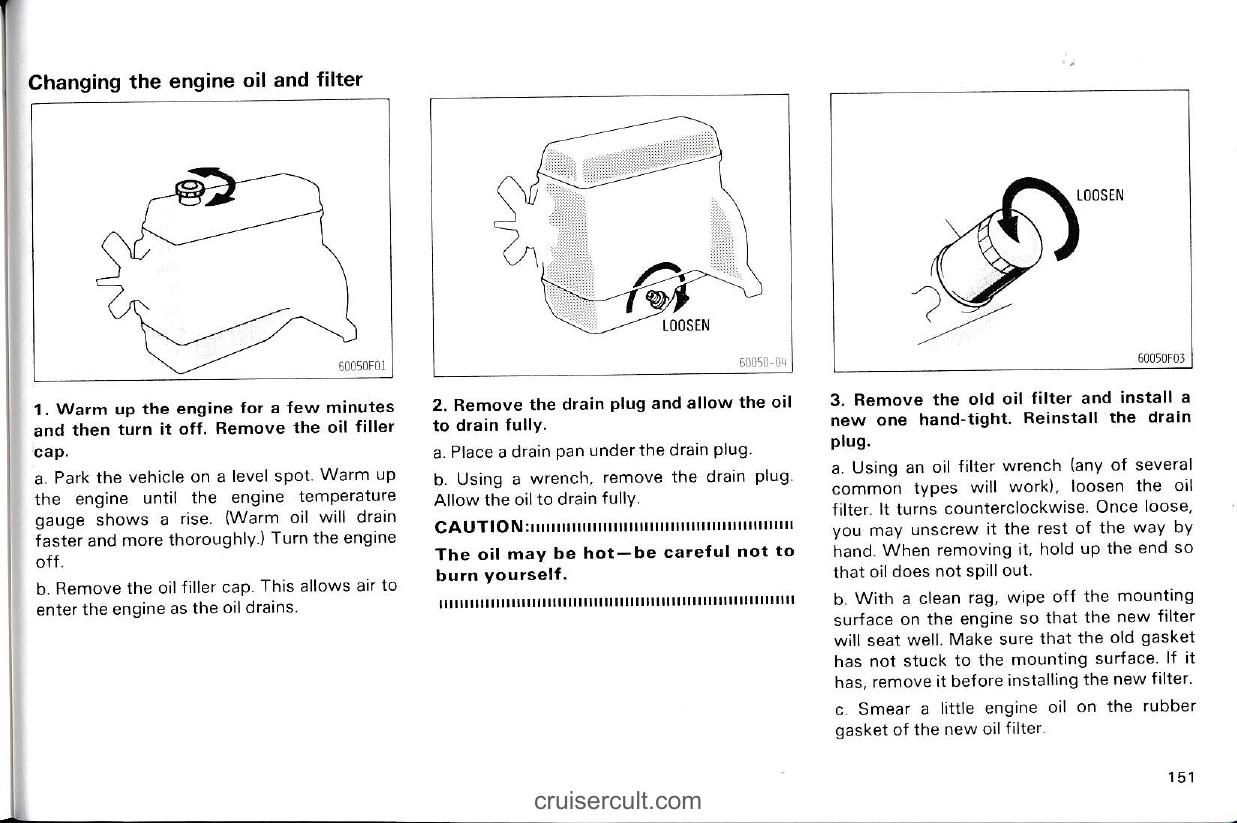

7-2. Engine and Chassis (page 149)

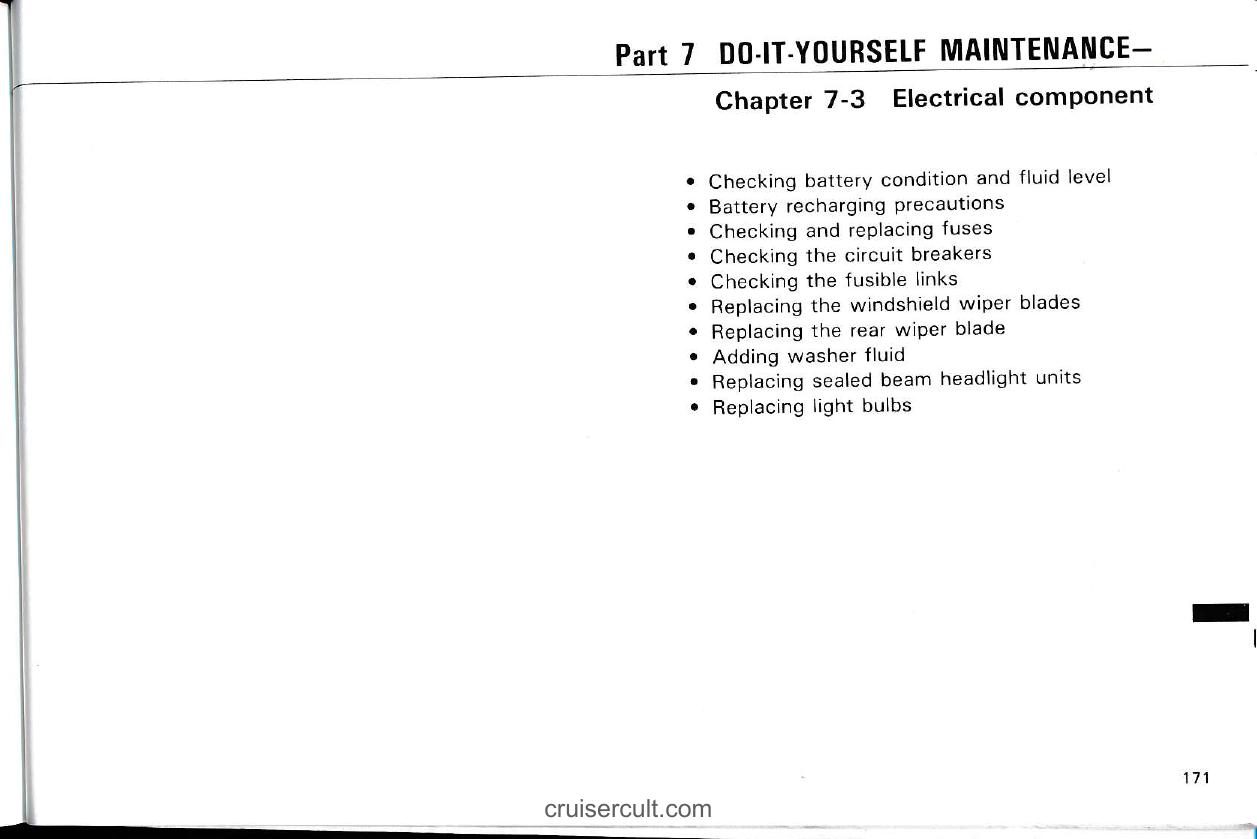

7-3. Electrical component (page 171)

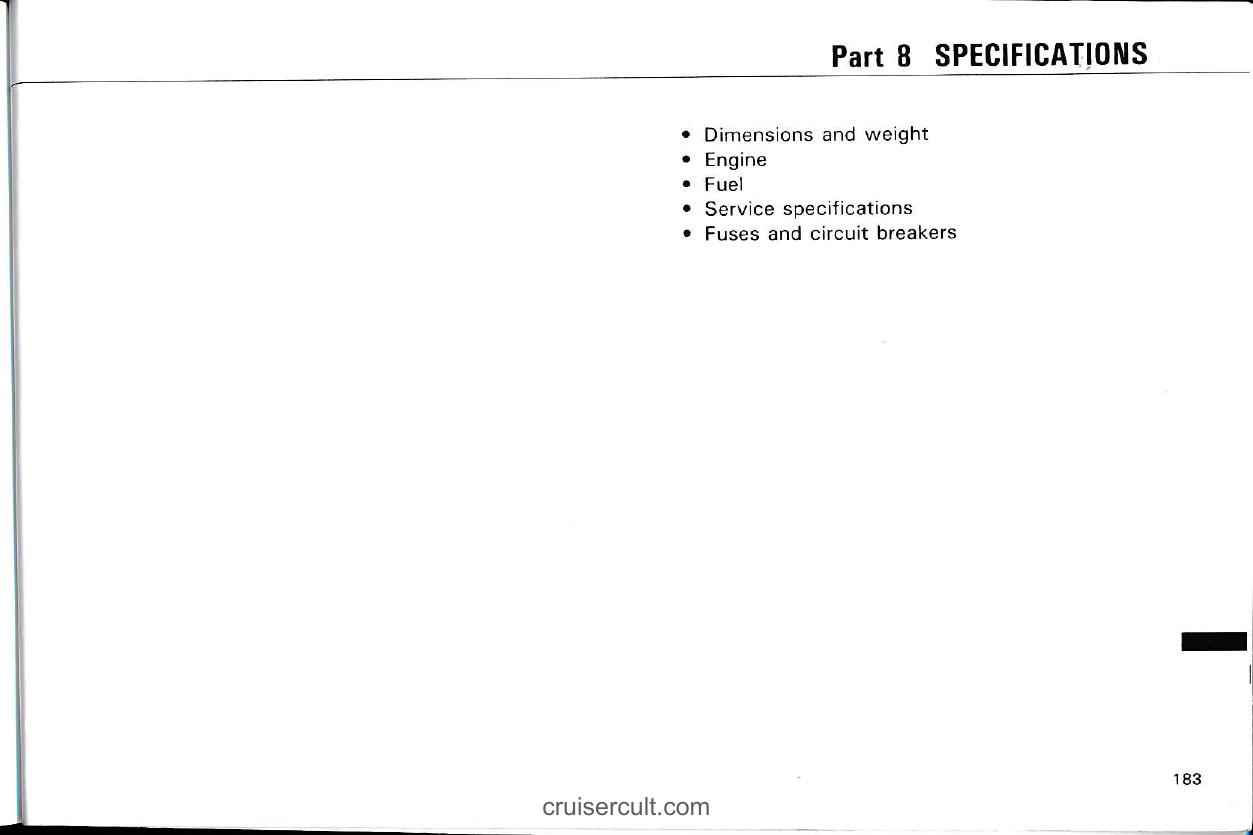

Part 8: Specifications (page 183)

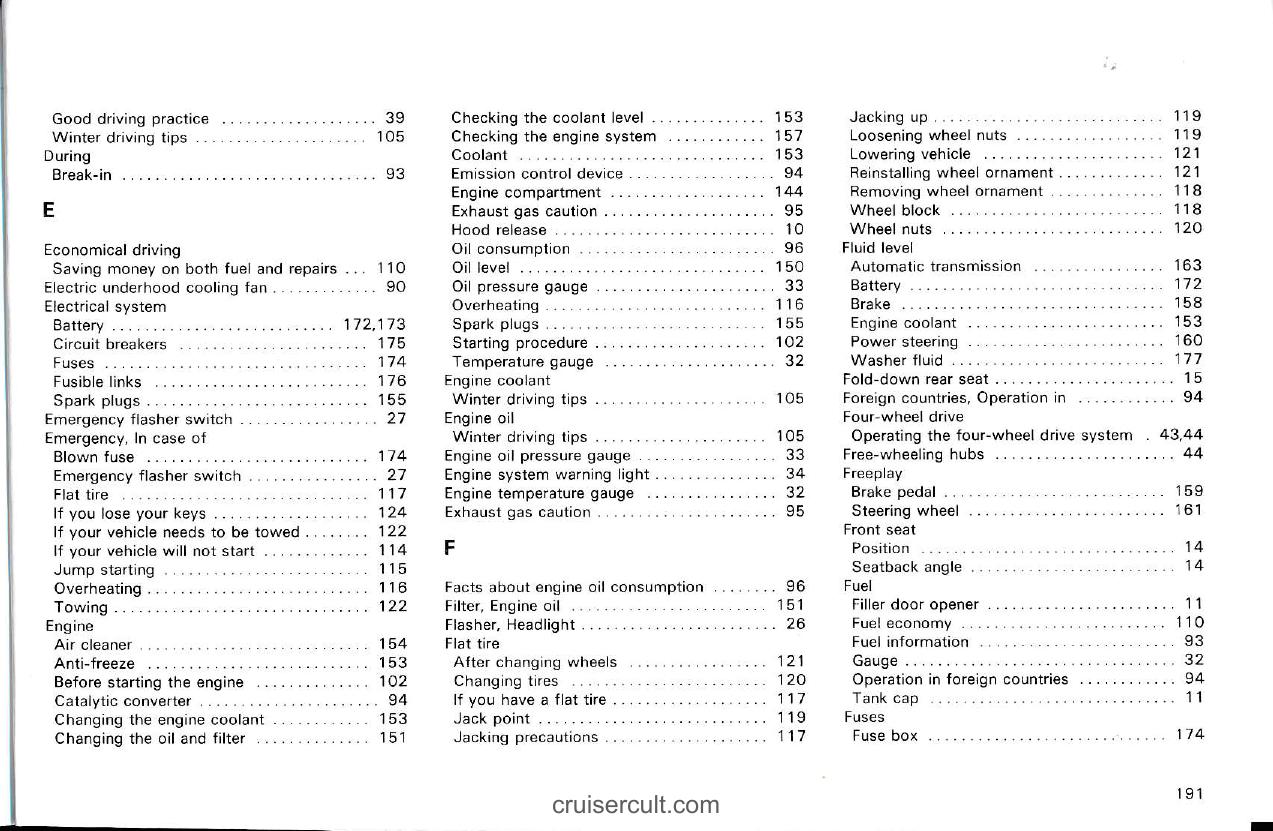

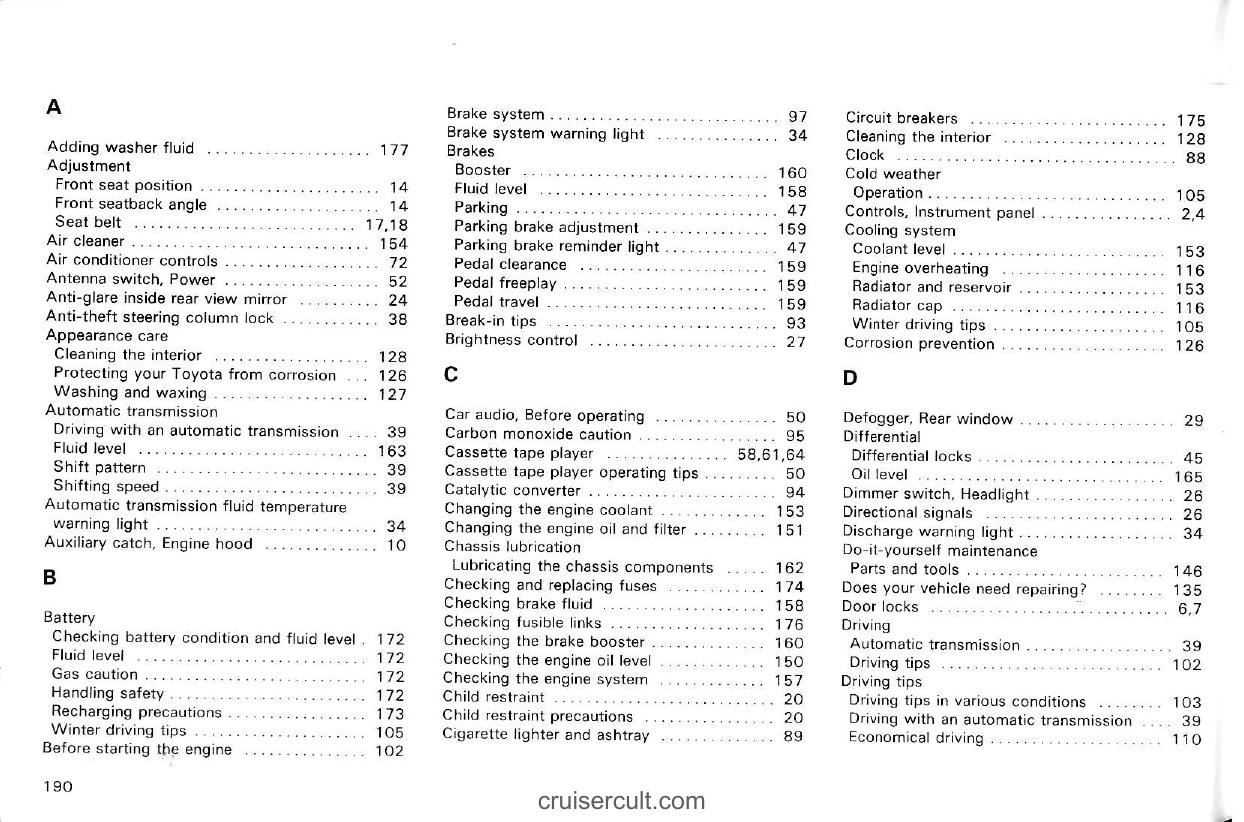

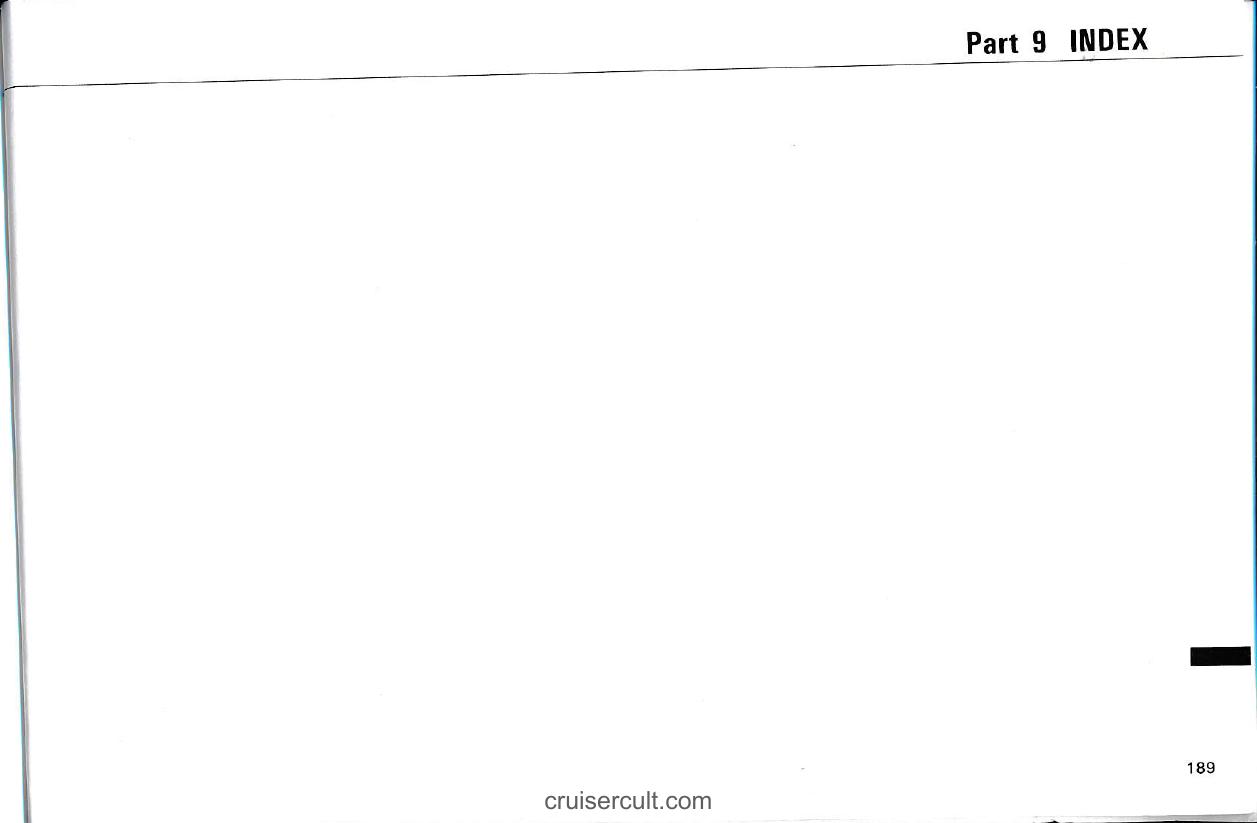

Part 9: Index (page 189)

page-0-05

Cover Page 6

cruisercult.com

page-0-06

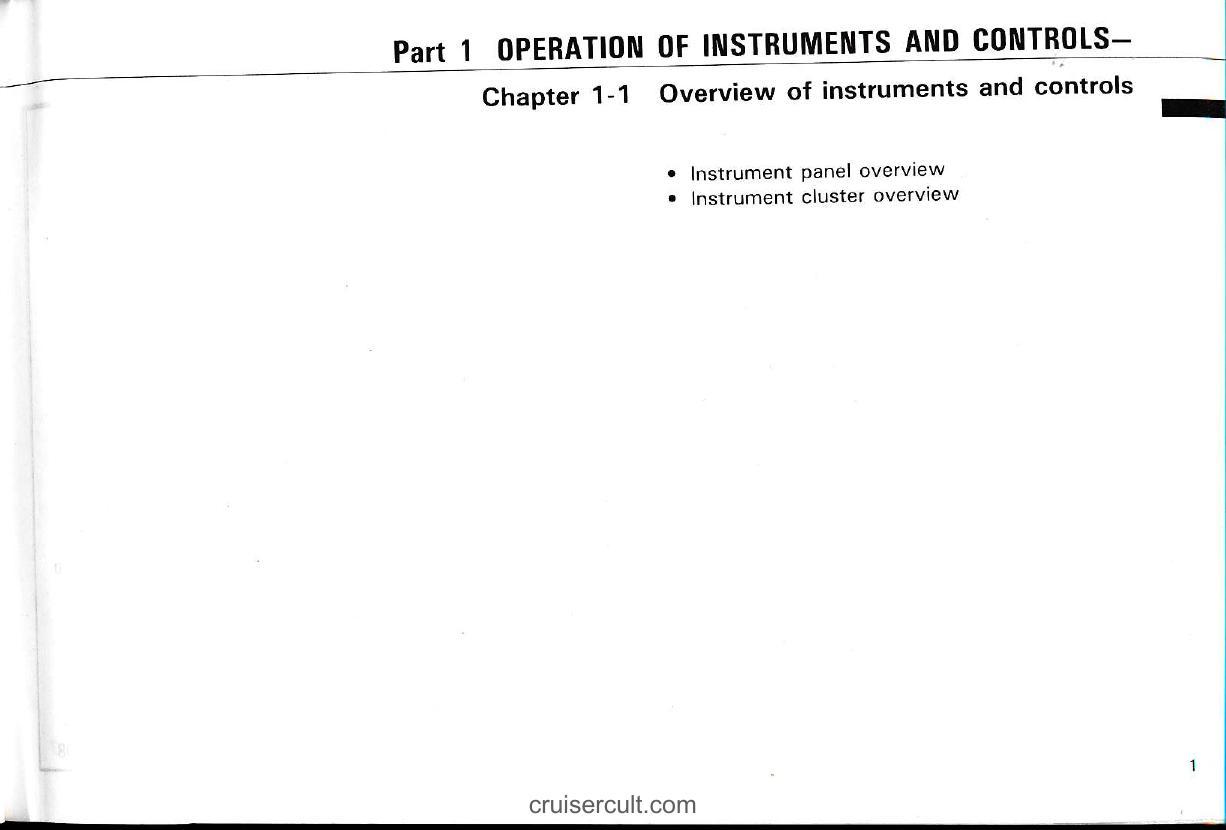

Page 1

Part 1 OPERATION OF INSTRUMENTS AND CONTROLS—

Chapter 1-1 Overview of instruments and controls

Instrument panel overview
Instrument cluster overview

cruisercult.com

1

Page 2

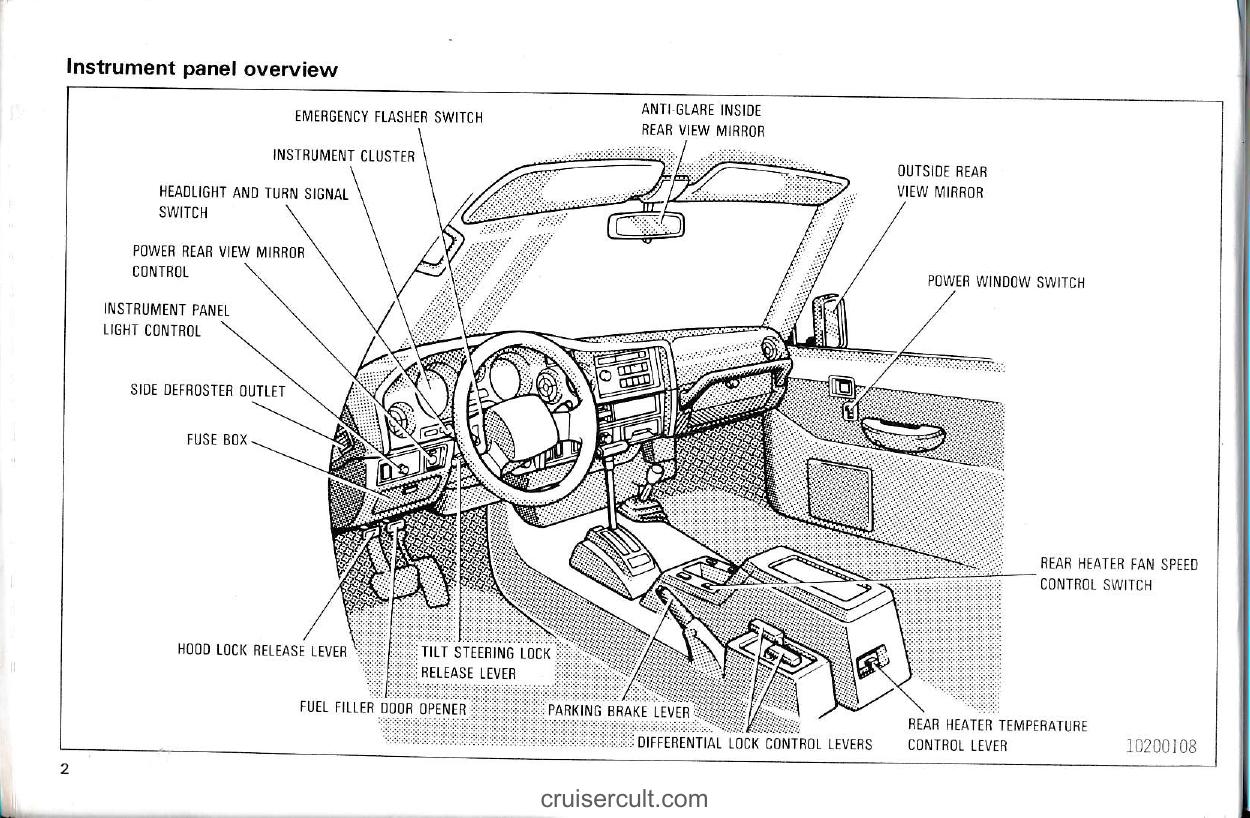

Instrument panel overview

EMERGENCY FLASHER SWITCH
ANTI-GLARE INSIDE REAR VIEW MIRROR
OUTSIDE REAR VIEW MIRROR
INSTRUMENT CLUSTER

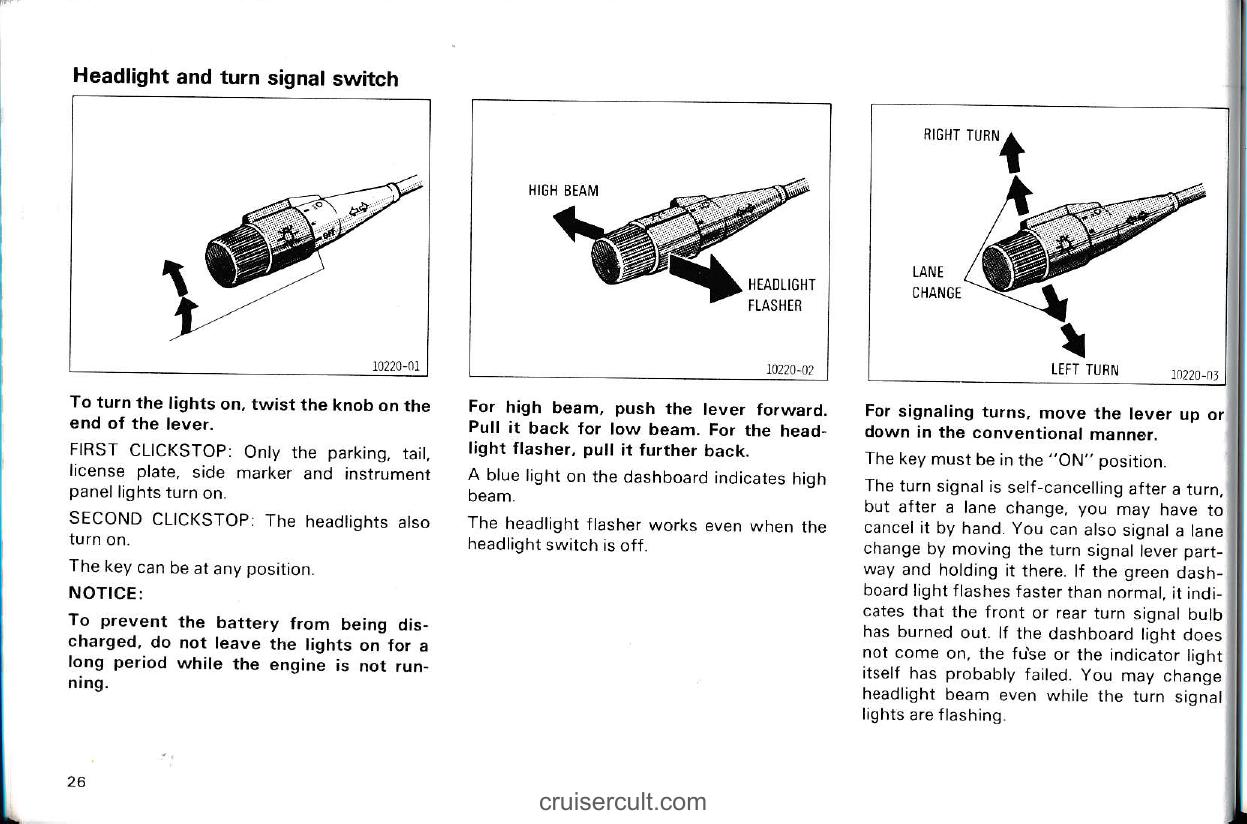

HEADLIGHT AND TURN SIGNAL SWITCH

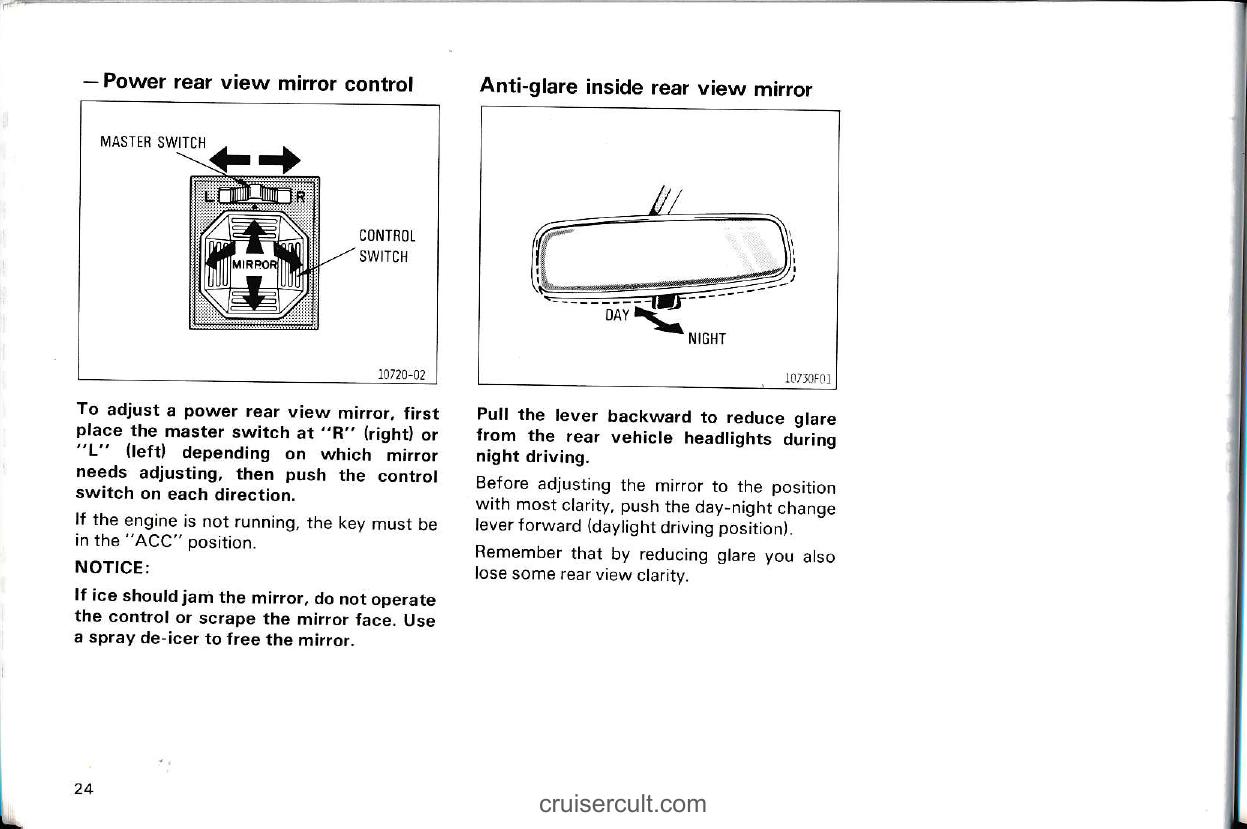

POWER REAR VIEW MIRROR CONTROL
POWER WINDOW SWITCH
INSTRUMENT PANEL LIGHT CONTROL
SIDE DEFROSTER OUTLET
FUSE BOX
HOOD LOCK RELEASE LEVER
TILT STEERING LOCK RELEASE LEVER
FUEL FILLER DOOR OPENER
PARKING BRAKE LEVER

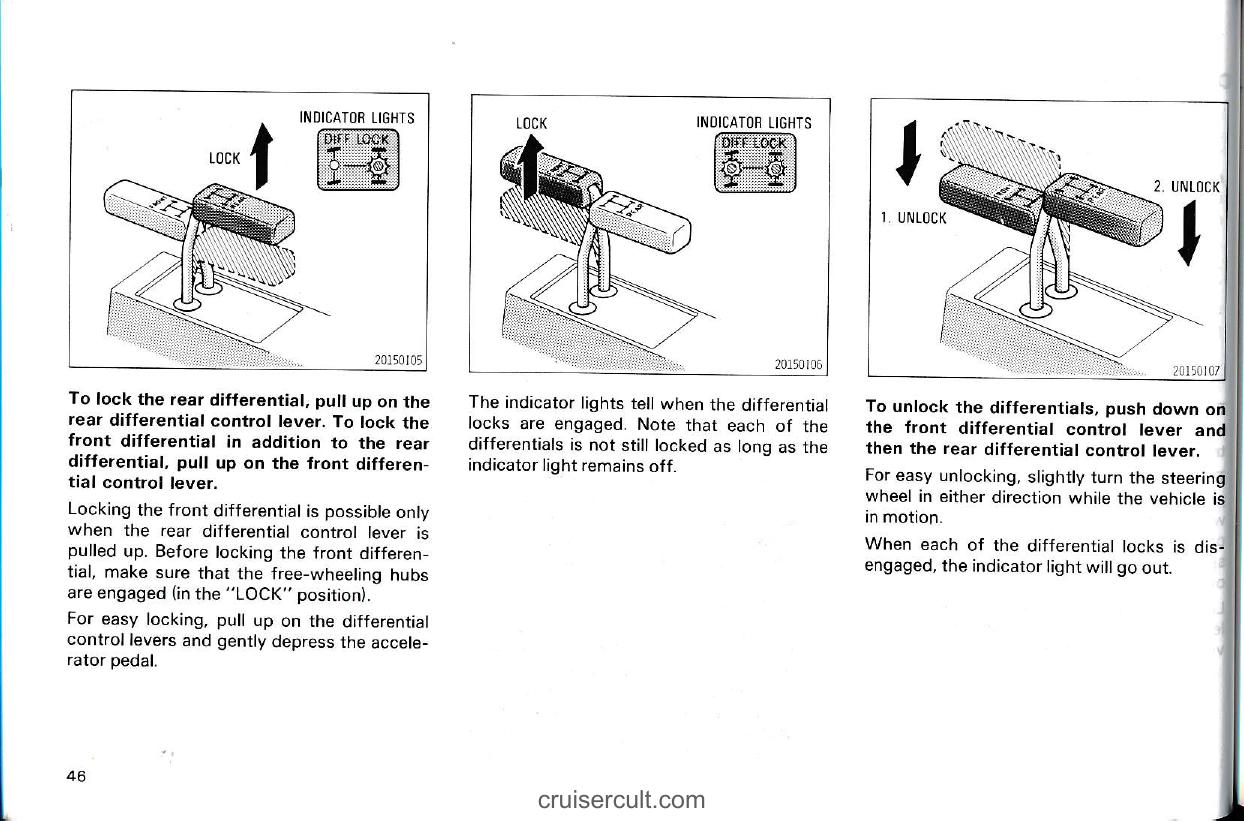

DIFFERENTIAL LOCK CONTROL LEVERS
REAR HEATER TEMPERATURE CONTROL LEVER
REAR HEATER FAN SPEED CONTROL SWITCH

10200108

2

cruisercult.com

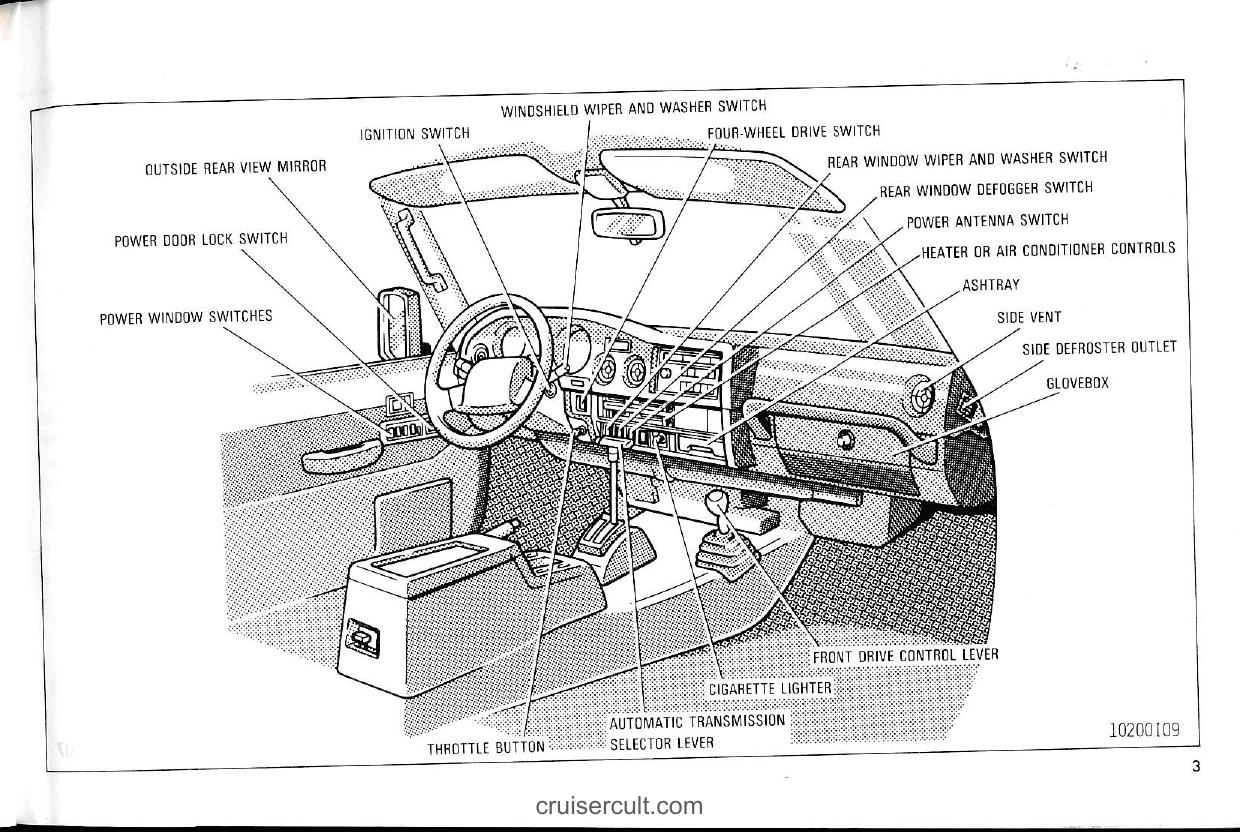

Page 3

Extracted text

OUTSIDE REAR VIEW MIRROR
POWER DOOR LOCK SWITCH
POWER WINDOW SWITCHES
IGNITION SWITCH
WINDSHIELD WIPER AND WASHER SWITCH
FOUR-WHEEL DRIVE SWITCH
REAR WINDOW WIPER AND WASHER SWITCH
REAR WINDOW DEFOGGER SWITCH
POWER ANTENNA SWITCH

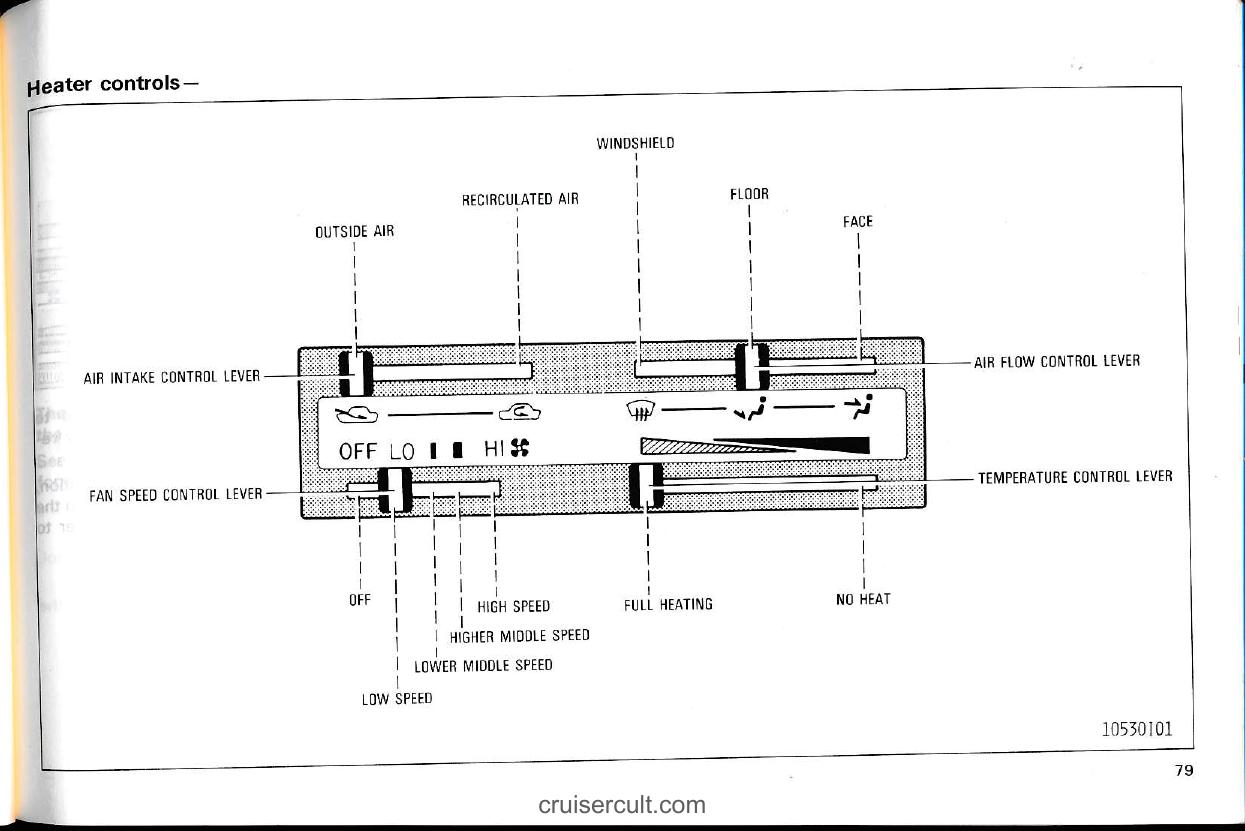

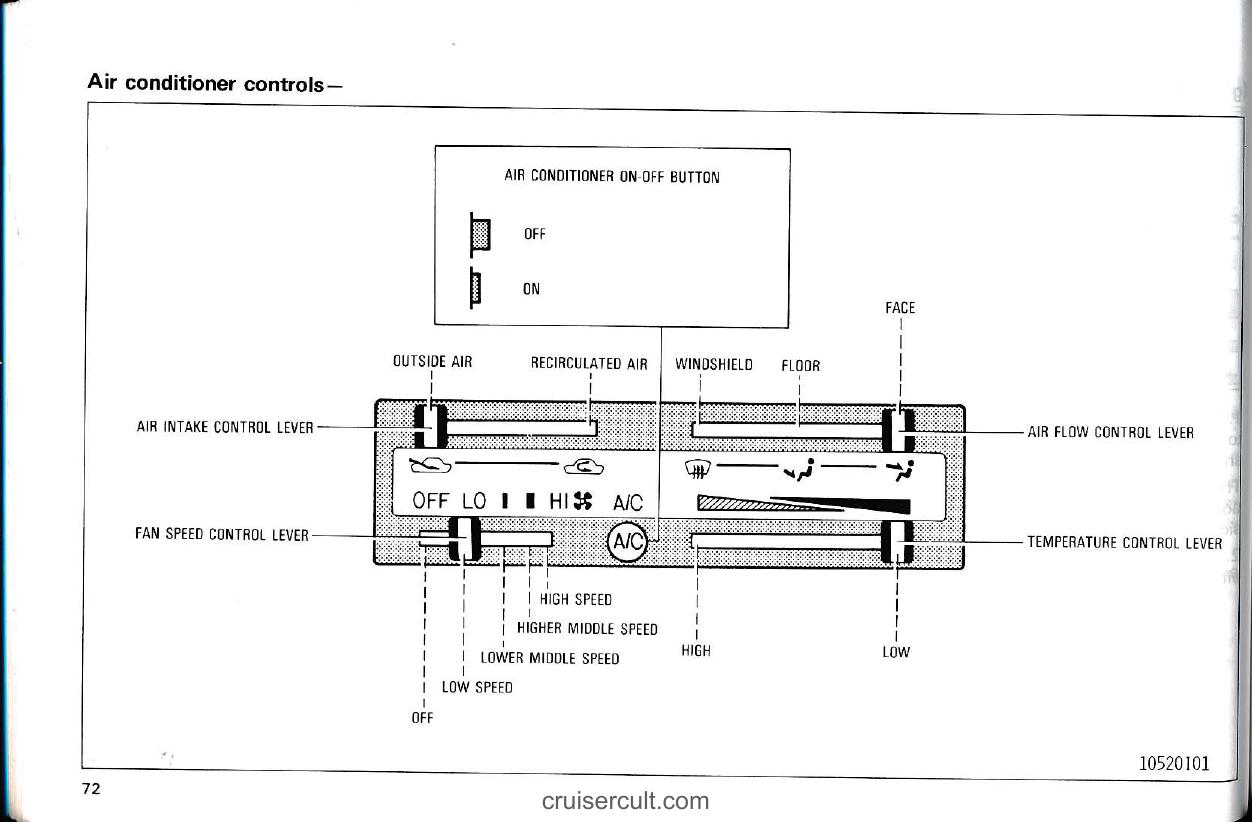

HEATER OR AIR CONDITIONER CONTROLS
ASHTRAY
SIDE VENT
SIDE DEFROSTER OUTLET
GLOVEBOX
FRONT DRIVE CONTROL LEVER
CIGARETTE LIGHTER
AUTOMATIC TRANSMISSION SELECTOR LEVER
THROTTLE BUTTON

cruisercult.com

10200109

3

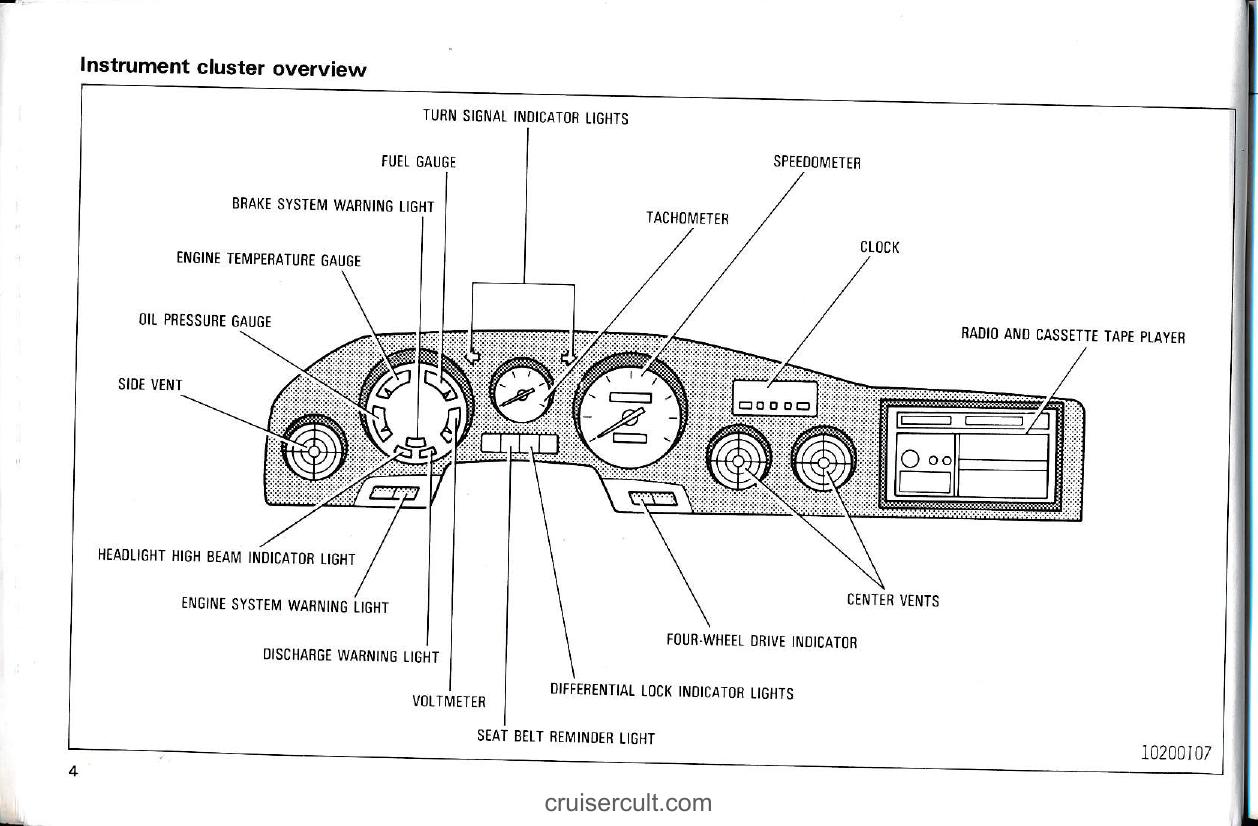

Page 4

Instrument cluster overview

TURN SIGNAL INDICATOR LIGHTS
FUEL GAUGE
SPEEDOMETER
BRAKE SYSTEM WARNING LIGHT
TACHOMETER
CLOCK
RADIO AND CASSETTE TAPE PLAYER
ENGINE TEMPERATURE GAUGE
OIL PRESSURE GAUGE
SIDE VENT
CENTER VENTS
HEADLIGHT HIGH BEAM INDICATOR LIGHT
FOUR-WHEEL DRIVE INDICATOR
ENGINE SYSTEM WARNING LIGHT
DIFFERENTIAL LOCK INDICATOR LIGHTS
DISCHARGE WARNING LIGHT
VOLTMETER
SEAT BELT REMINDER LIGHT

4

cruisercult.com

10200107

Page 5

Part 1 OPERATION OF INSTRUMENTS AND CONTROLS—

Chapter 1-2 Key and Doors

Key
Doors
Power window switches
Tailgate
Hood
Fuel tank cap

cruisercult.com

5

Page 6

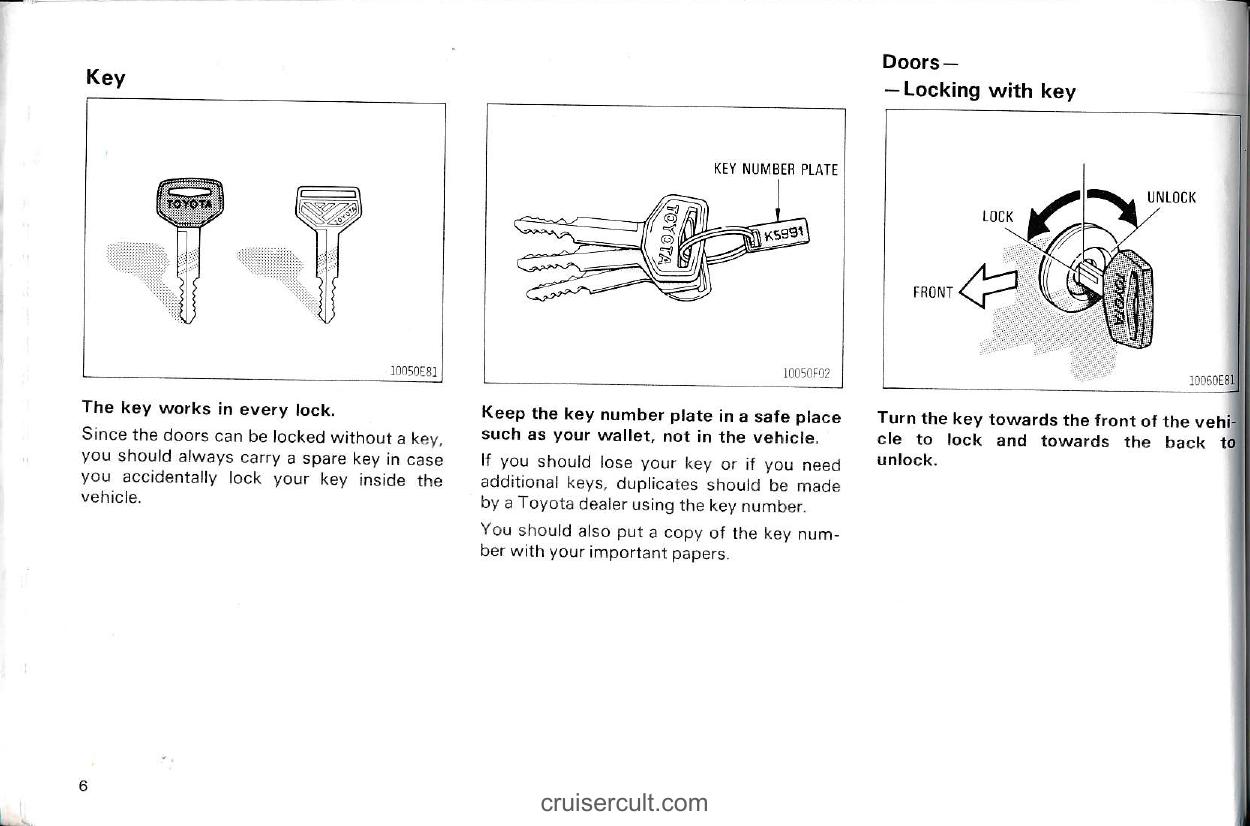

Key

The key works in every lock.

Since the doors can be locked without a key, you should always carry a spare key in case you accidentally lock your key inside the vehicle.

KEY NUMBER PLATE

Keep the key number plate in a safe place such as your wallet, not in the vehicle.

If you should lose your key or if you need additional keys, duplicates should be made by a Toyota dealer using the key number.

You should also put a copy of the key number with your important papers.

Doors — Locking with key

Turn the key towards the front of the vehicle to lock and towards the back to unlock.

LOCK
UNLOCK
FRONT

cruisercult.com

6

Page 7

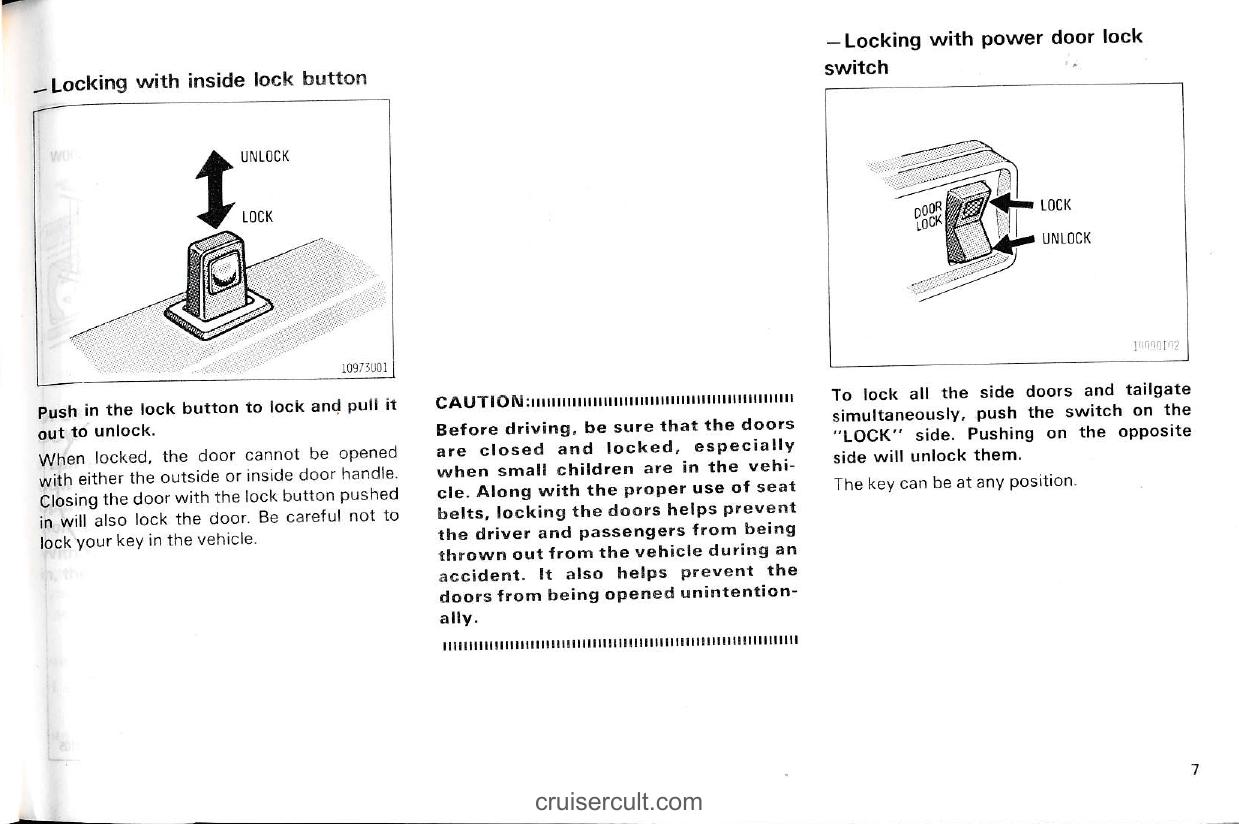

Locking with inside lock button

UNLOCK ↑ LOCK ↓

Push in the lock button to lock and pull it out to unlock.

When locked, the door cannot be opened with either the outside or inside door handle. Closing the door with the lock button pushed in will also lock the door. Be careful not to lock your key in the vehicle.

10973U01

CAUTION: Before driving, be sure that the doors are closed and locked, especially when small children are in the vehicle. Along with the proper use of seat belts, locking the doors helps prevent the driver and passengers from being thrown out from the vehicle during an accident. It also helps prevent the doors from being opened unintentionally.

Locking with power door lock switch

DOOR LOCK

LOCK → UNLOCK ←

To lock all the side doors and tailgate simultaneously, push the switch on the "LOCK" side. Pushing on the opposite side will unlock them.

The key can be at any position.

11000T92

cruisercult.com

7

Page 8

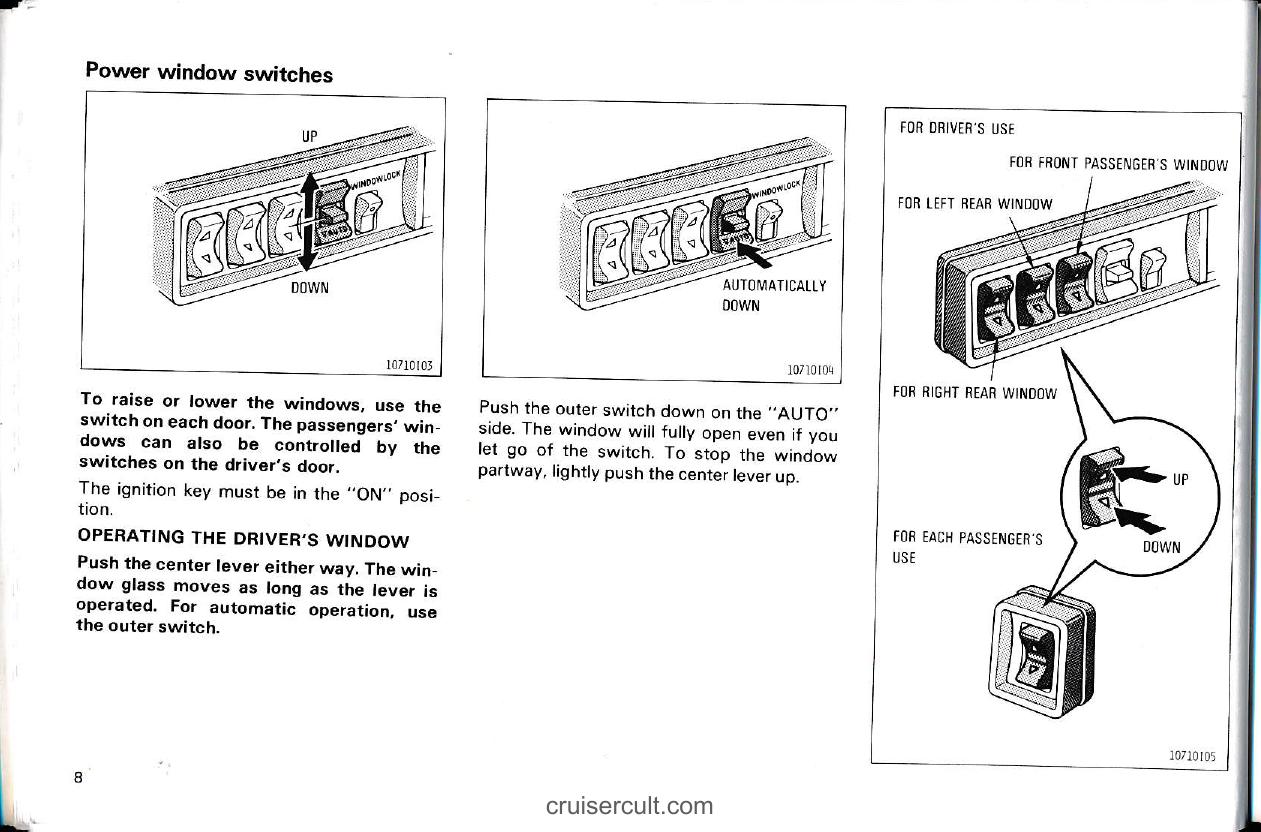

Power window switches

UP
DOWN
WINDOW LOCK

10710103

To raise or lower the windows, use the switch on each door. The passengers' windows can also be controlled by the switches on the driver's door.
The ignition key must be in the "ON" position.

OPERATING THE DRIVER'S WINDOW
Push the center lever either way. The window glass moves as long as the lever is operated. For automatic operation, use the outer switch.

10710104

Push the outer switch down on the "AUTO" side. The window will fully open even if you let go of the switch. To stop the window partway, lightly push the center lever up.

AUTOMATICALLY DOWN

FOR DRIVER'S USE

FOR FRONT PASSENGER'S WINDOW
FOR LEFT REAR WINDOW
FOR RIGHT REAR WINDOW

UP
DOWN

FOR EACH PASSENGER'S USE

10710105

8

cruisercult.com

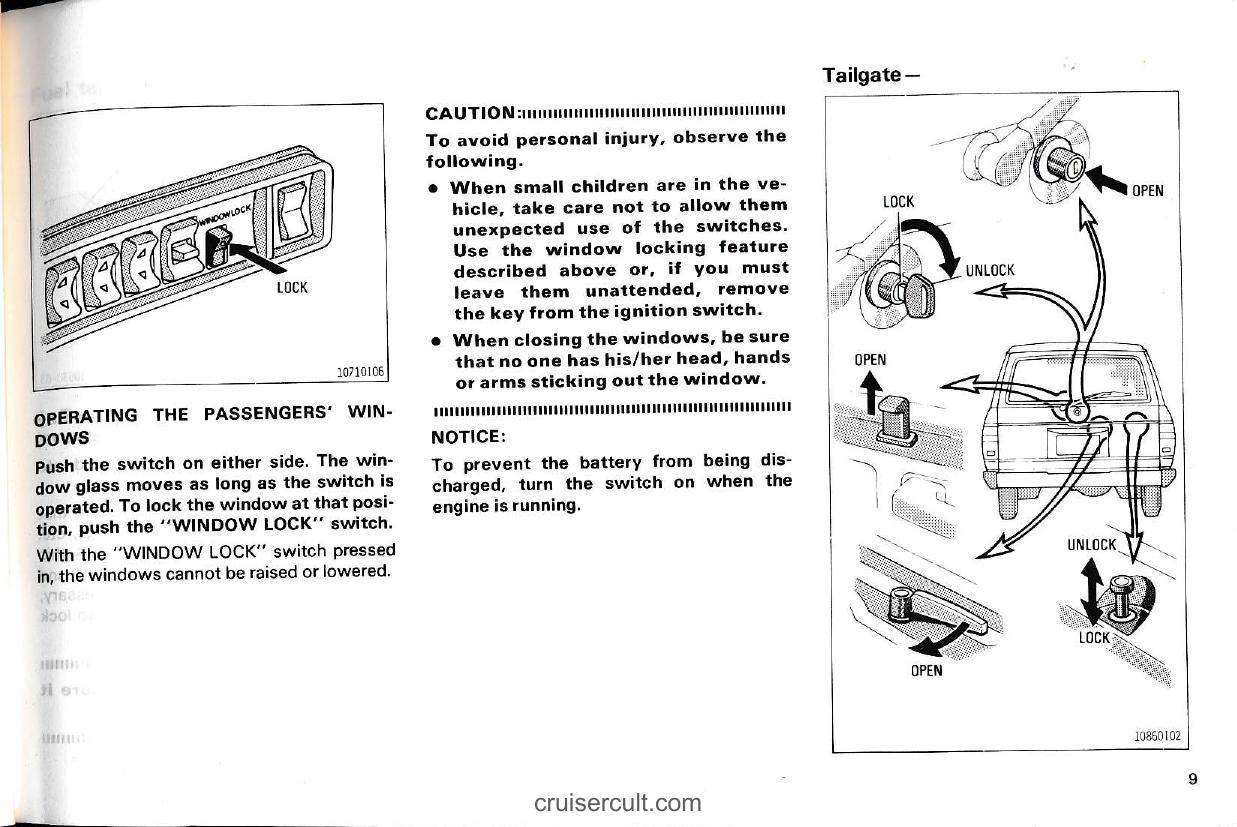

Page 9

OPERATING THE PASSENGERS' WINDOWS

Push the switch on either side. The window glass moves as long as the switch is operated. To lock the window at that position, push the "WINDOW LOCK" switch.

With the "WINDOW LOCK" switch pressed in, the windows cannot be raised or lowered.

CAUTION:

To avoid personal injury, observe the following.

When small children are in the vehicle, take care not to allow them unexpected use of the switches. Use the window locking feature described above or, if you must leave them unattended, remove the key from the ignition switch.
When closing the windows, be sure that no one has his/her head, hands or arms sticking out the window.

NOTICE:

To prevent the battery from being discharged, turn the switch on when the engine is running.

Tailgate —

LOCK
OPEN
UNLOCK
OPEN
UNLOCK
LOCK
OPEN

1070106

10850102

cruisercult.com

9

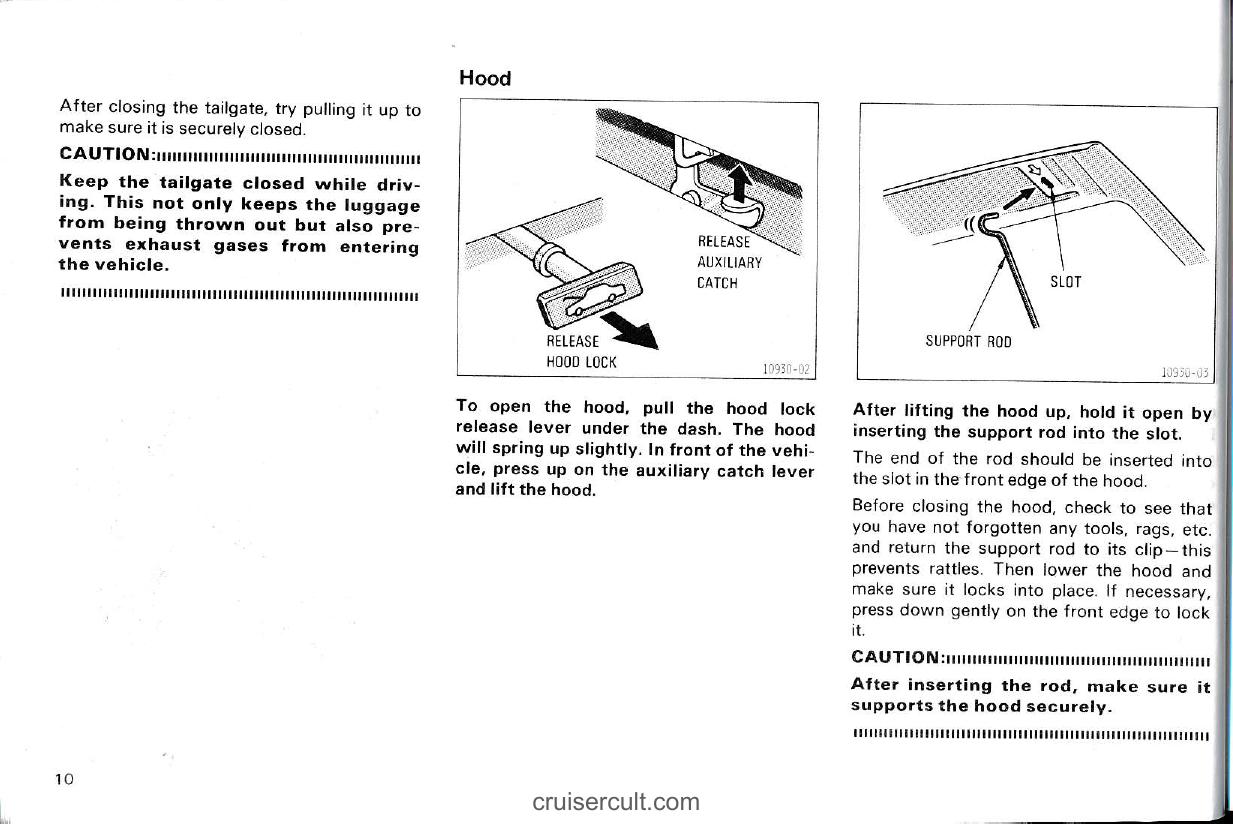

Page 10

After closing the tailgate, try pulling it up to make sure it is securely closed.

CAUTION: Keep the tailgate closed while driving. This not only keeps the luggage from being thrown out but also prevents exhaust gases from entering the vehicle.

Hood

RELEASE AUXILIARY CATCH
RELEASE HOOD LOCK

To open the hood, pull the hood lock release lever under the dash. The hood will spring up slightly. In front of the vehicle, press up on the auxiliary catch lever and lift the hood.

SLOT
SUPPORT ROD

After lifting the hood up, hold it open by inserting the support rod into the slot.

The end of the rod should be inserted into the slot in the front edge of the hood.

Before closing the hood, check to see that you have not forgotten any tools, rags, etc. and return the support rod to its clip—this prevents rattles. Then lower the hood and make sure it locks into place. If necessary, press down gently on the front edge to lock it.

CAUTION: After inserting the rod, make sure it supports the hood securely.

10

cruisercult.com

Page 11

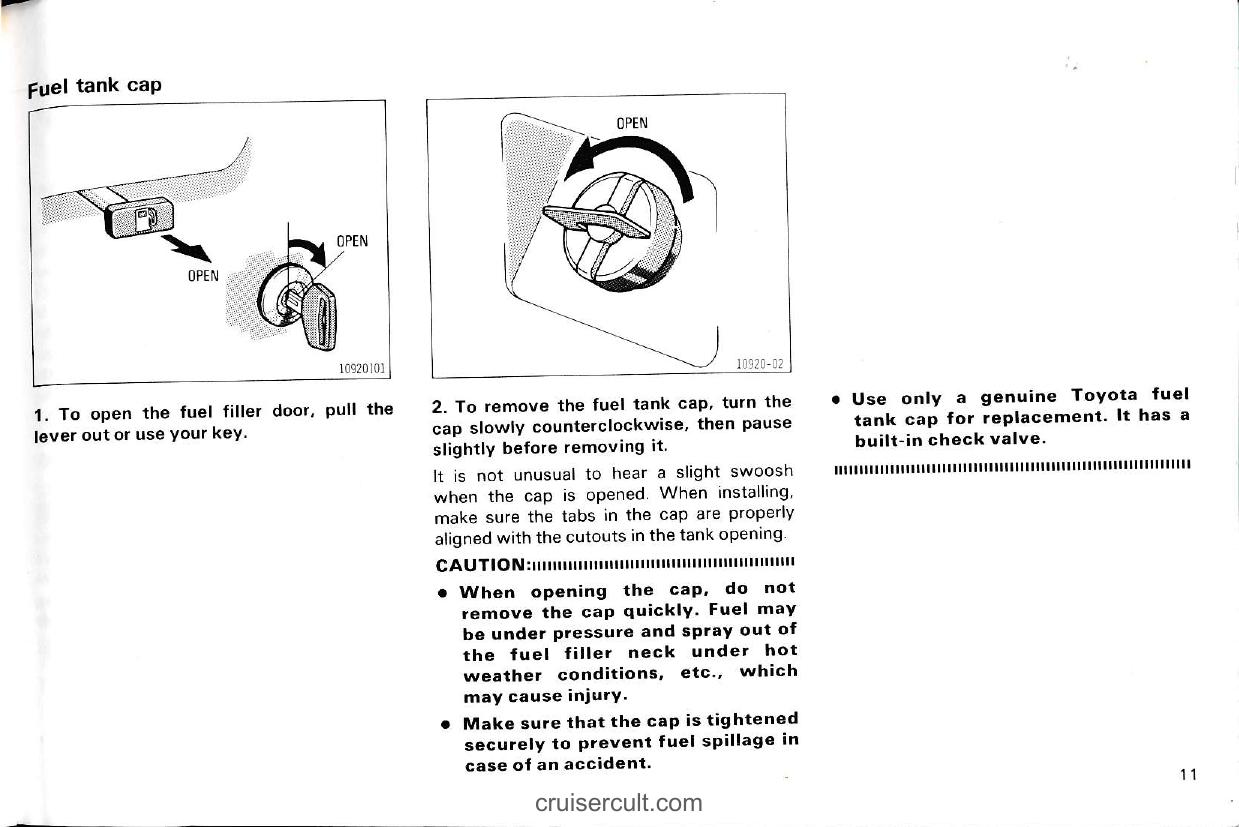

Fuel tank cap

To open the fuel filler door, pull the lever out or use your key.
10920101
To remove the fuel tank cap, turn the cap slowly counterclockwise, then pause slightly before removing it.
10920-02

It is not unusual to hear a slight swoosh when the cap is opened. When installing, make sure the tabs in the cap are properly aligned with the cutouts in the tank opening.

CAUTION: - When opening the cap, do not remove the cap quickly. Fuel may be under pressure and spray out of the fuel filler neck under hot weather conditions, etc., which may cause injury. - Make sure that the cap is tightened securely to prevent fuel spillage in case of an accident.

Use only a genuine Toyota fuel tank cap for replacement. It has a built-in check valve.

cruisercult.com

11

Page 12

12
cruisercult.com

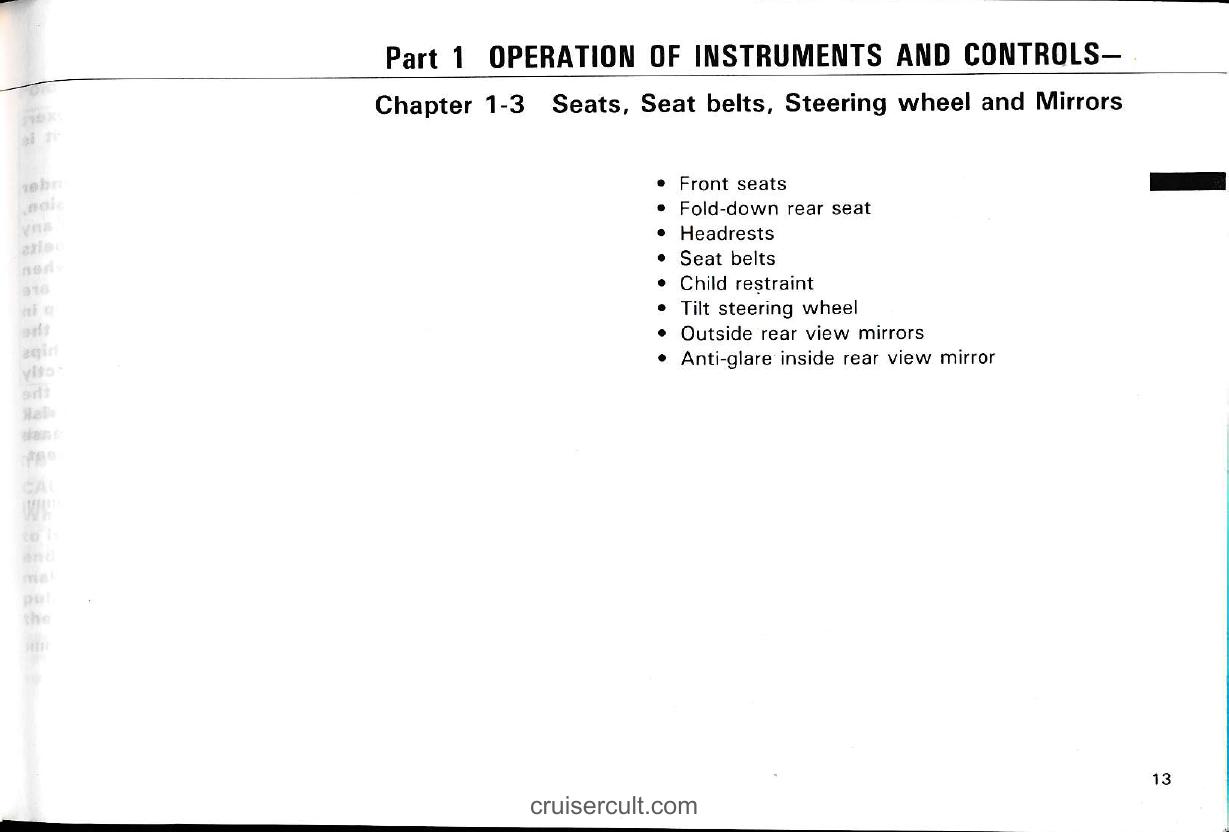

Page 13

Part 1 OPERATION OF INSTRUMENTS AND CONTROLS—

Chapter 1-3 Seats, Seat belts, Steering wheel and Mirrors

Front seats
Fold-down rear seat
Headrests
Seat belts
Child restraint

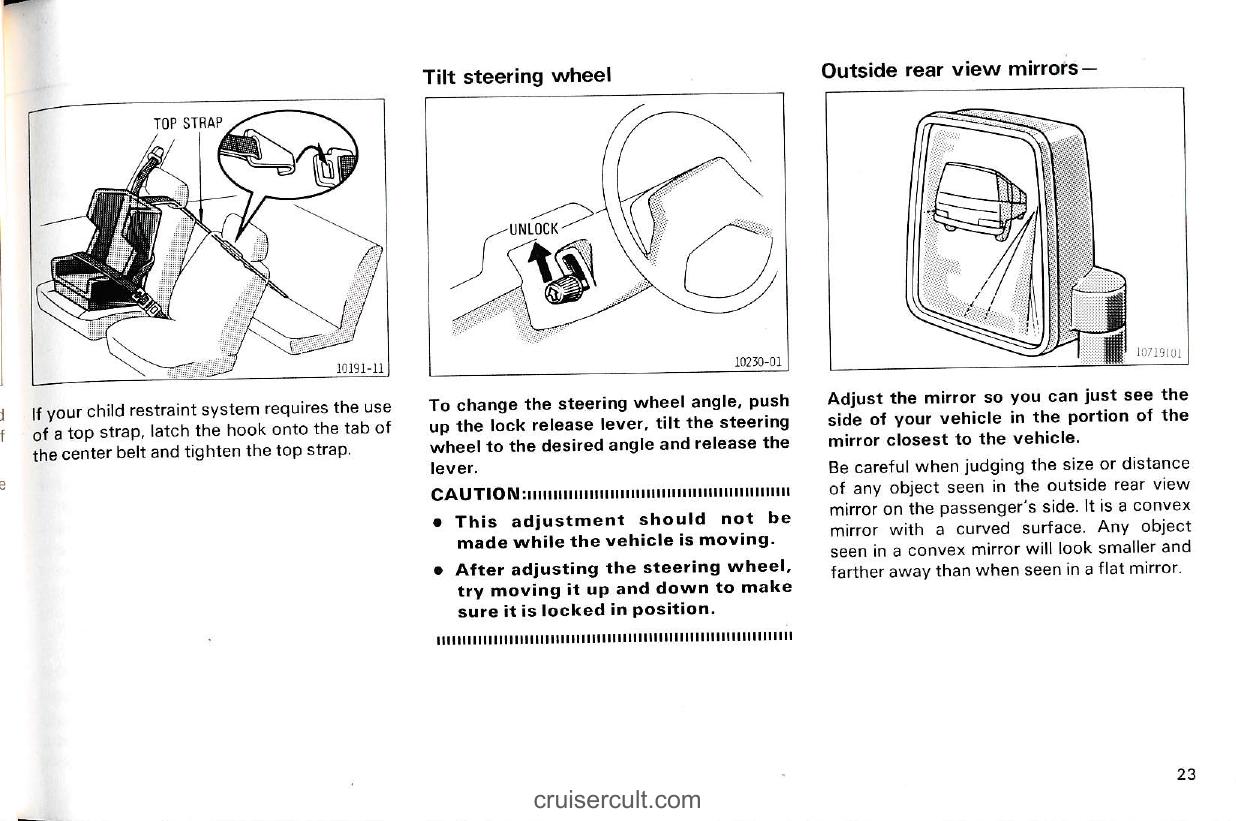

Tilt steering wheel
Outside rear view mirrors
Anti-glare inside rear view mirror

cruisercult.com

13

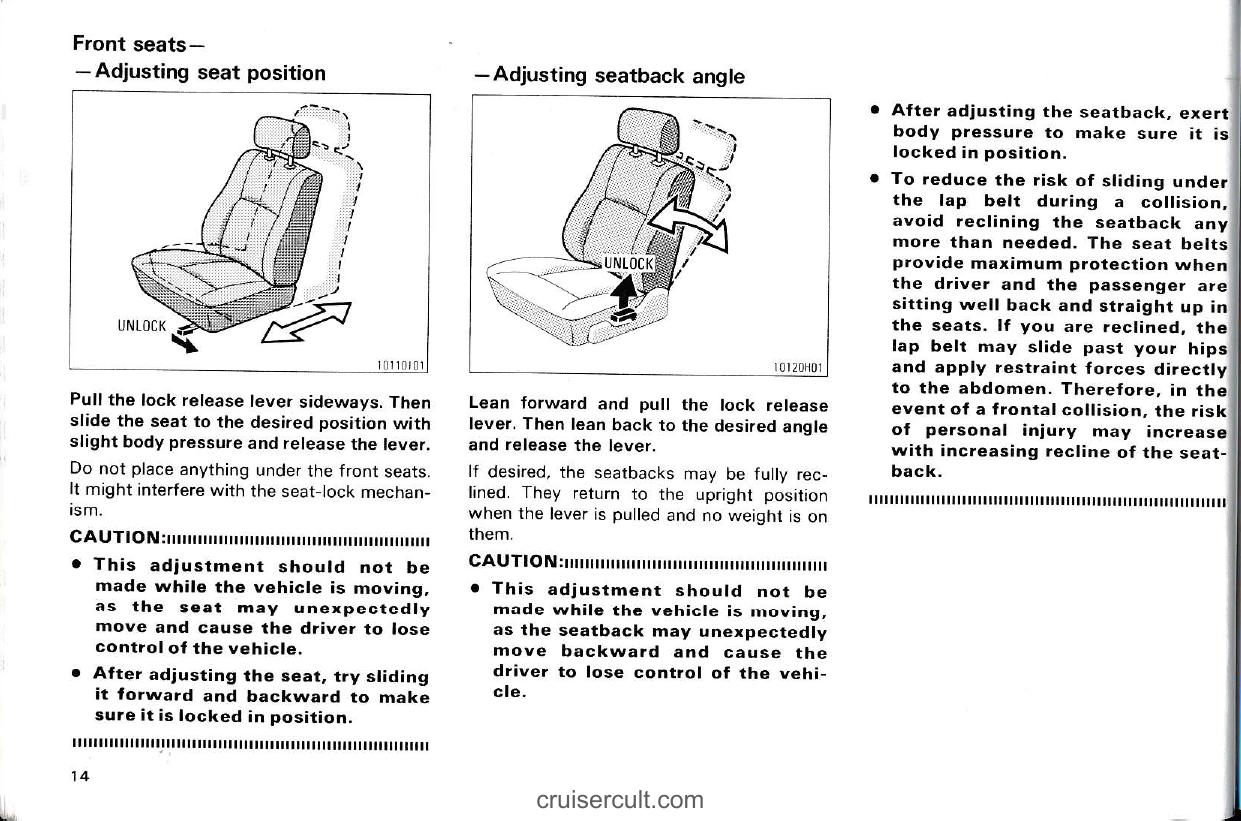

Page 14

Front seats —

Adjusting seat position

Pull the lock release lever sideways. Then slide the seat to the desired position with slight body pressure and release the lever.

Do not place anything under the front seats. It might interfere with the seat-lock mechanism.

CAUTION:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

This adjustment should not be made while the vehicle is moving, as the seat may unexpectedly move and cause the driver to lose control of the vehicle.
After adjusting the seat, try sliding it forward and backward to make sure it is locked in position.

Adjusting seatback angle

Lean forward and pull the lock release lever. Then lean back to the desired angle and release the lever.

If desired, the seatbacks may be fully reclined. They return to the upright position when the lever is pulled and no weight is on them.

CAUTION:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

This adjustment should not be made while the vehicle is moving, as the seatback may unexpectedly move backward and cause the driver to lose control of the vehicle.
After adjusting the seatback, exert body pressure to make sure it is locked in position.
To reduce the risk of sliding under the lap belt during a collision, avoid reclining the seatback any more than needed. The seat belts provide maximum protection when the driver and the passenger are sitting well back and straight up in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen. Therefore, in the event of a frontal collision, the risk of personal injury may increase with increasing recline of the seatback.

14

cruisercult.com

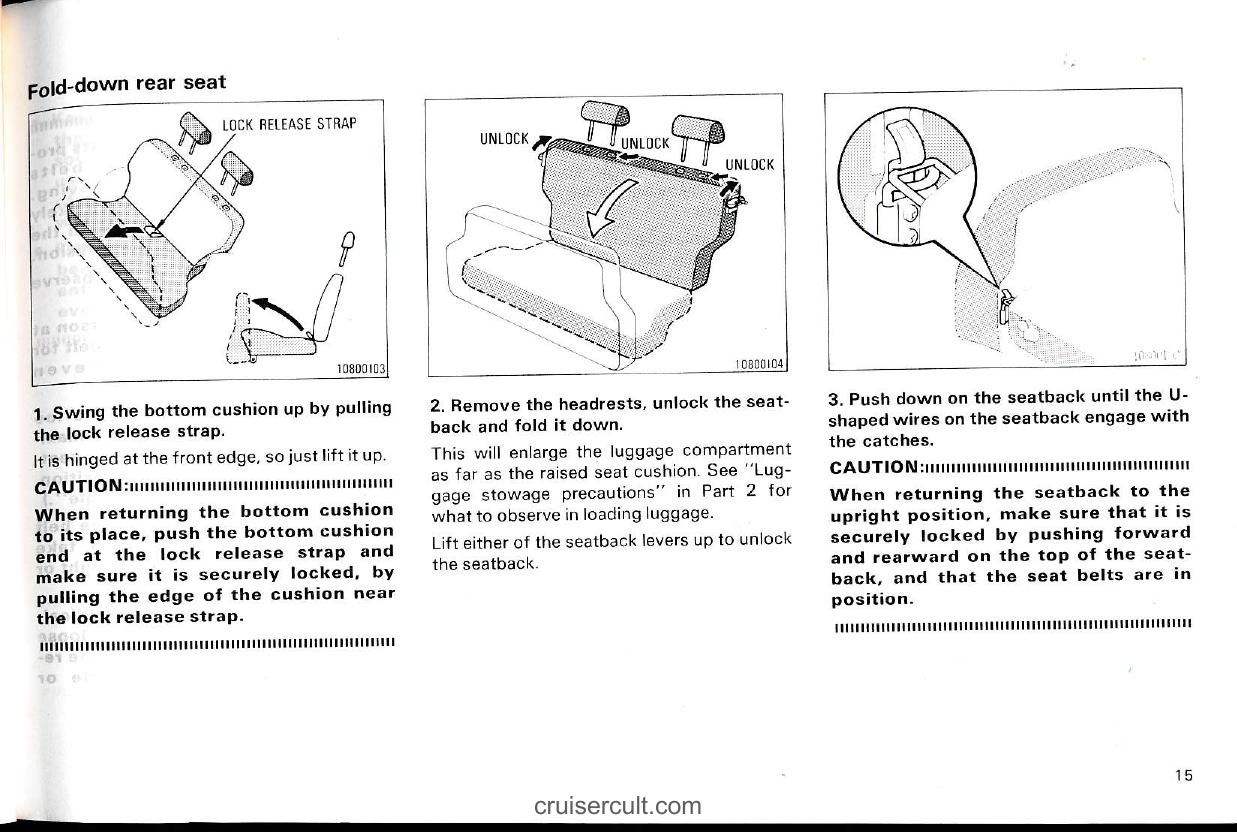

Page 15

Fold-down rear seat

LOCK RELEASE STRAP

Swing the bottom cushion up by pulling the lock release strap.

It is hinged at the front edge, so just lift it up.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

When returning the bottom cushion to its place, push the bottom cushion end at the lock release strap and make sure it is securely locked, by pulling the edge of the cushion near the lock release strap.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

10800103

Remove the headrests, unlock the seatback and fold it down.

This will enlarge the luggage compartment as far as the raised seat cushion. See "Luggage stowage precautions" in Part 2 for what to observe in loading luggage.

Lift either of the seatback levers up to unlock the seatback.

10800104

Push down on the seatback until the U-shaped wires on the seatback engage with the catches.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

When returning the seatback to the upright position, make sure that it is securely locked by pushing forward and rearward on the top of the seatback, and that the seat belts are in position.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

cruisercult.com

15

Page 16

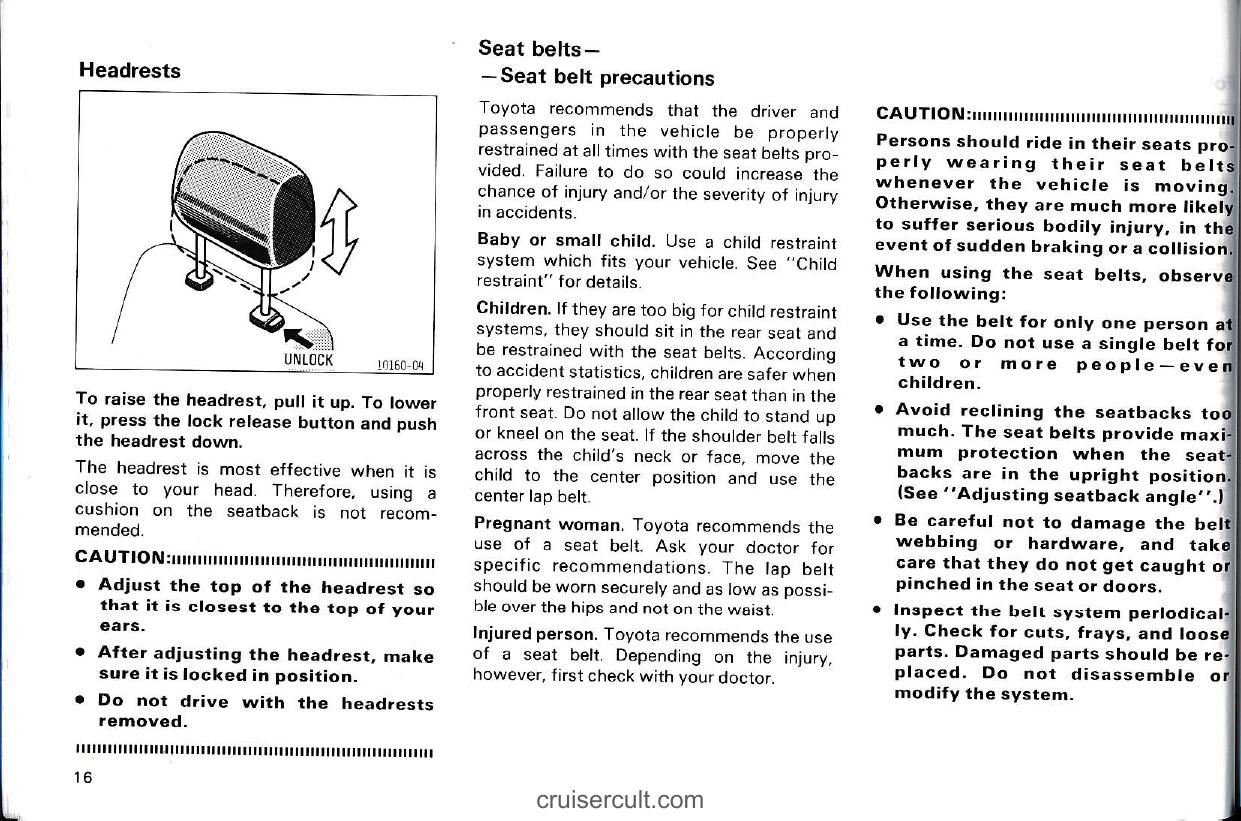

Headrests

headrest diagram

To raise the headrest, pull it up. To lower it, press the lock release button and push the headrest down.

The headrest is most effective when it is close to your head. Therefore, using a cushion on the seatback is not recommended.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Adjust the top of the headrest so that it is closest to the top of your ears.
After adjusting the headrest, make sure it is locked in position.
Do not drive with the headrests removed.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

UNLOCK 10160-04

Seat belts —

— Seat belt precautions

Toyota recommends that the driver and passengers in the vehicle be properly restrained at all times with the seat belts provided. Failure to do so could increase the chance of injury and/or the severity of injury in accidents.

Baby or small child. Use a child restraint system which fits your vehicle. See "Child restraint" for details.

Children. If they are too big for child restraint systems, they should sit in the rear seat and be restrained with the seat belts. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat. Do not allow the child to stand up or kneel on the seat. If the shoulder belt falls across the child's neck or face, move the child to the center position and use the center lap belt.

Pregnant woman. Toyota recommends the use of a seat belt. Ask your doctor for specific recommendations. The lap belt should be worn securely and as low as possible over the hips and not on the waist.

Injured person. Toyota recommends the use of a seat belt. Depending on the injury, however, first check with your doctor.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Persons should ride in their seats properly wearing their seat belts whenever the vehicle is moving. Otherwise, they are much more likely to suffer serious bodily injury, in the event of sudden braking or a collision.

When using the seat belts, observe the following:

Use the belt for only one person at a time. Do not use a single belt for two or more people—even children.
Avoid reclining the seatbacks too much. The seat belts provide maximum protection when the seatbacks are in the upright position. (See "Adjusting seatback angle".)
Be careful not to damage the belt webbing or hardware, and take care that they do not get caught or pinched in the seat or doors.
Inspect the belt system periodically. Check for cuts, frays, and loose parts. Damaged parts should be replaced. Do not disassemble or modify the system.

16

cruisercult.com

Page 17

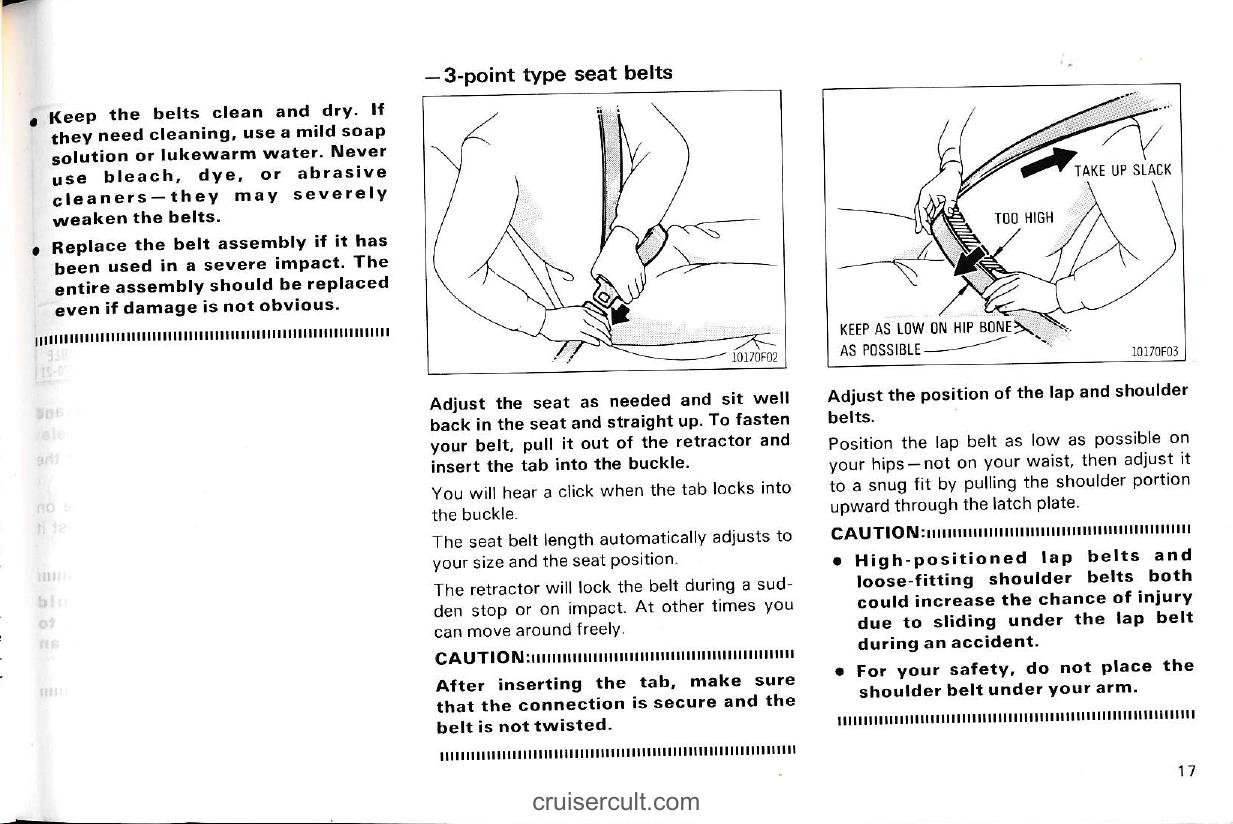

Keep the belts clean and dry. If they need cleaning, use a mild soap solution or lukewarm water. Never use bleach, dye, or abrasive cleaners—they may severely weaken the belts.
Replace the belt assembly if it has been used in a severe impact. The entire assembly should be replaced even if damage is not obvious.
3-point type seat belts

illustration 10170F02

Adjust the seat as needed and sit well back in the seat and straight up. To fasten your belt, pull it out of the retractor and insert the tab into the buckle.

You will hear a click when the tab locks into the buckle.

The seat belt length automatically adjusts to your size and the seat position.

The retractor will lock the belt during a sudden stop or on impact. At other times you can move around freely.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

After inserting the tab, make sure that the connection is secure and the belt is not twisted.

illustration 10170F03 TAKE UP SLACK →
TOO HIGH ←
KEEP AS LOW ON HIP BONE AS POSSIBLE

Adjust the position of the lap and shoulder belts.

Position the lap belt as low as possible on your hips — not on your waist, then adjust it to a snug fit by pulling the shoulder portion upward through the latch plate.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

High-positioned lap belts and loose-fitting shoulder belts both could increase the chance of injury due to sliding under the lap belt during an accident.
For your safety, do not place the shoulder belt under your arm.

cruisercult.com

17

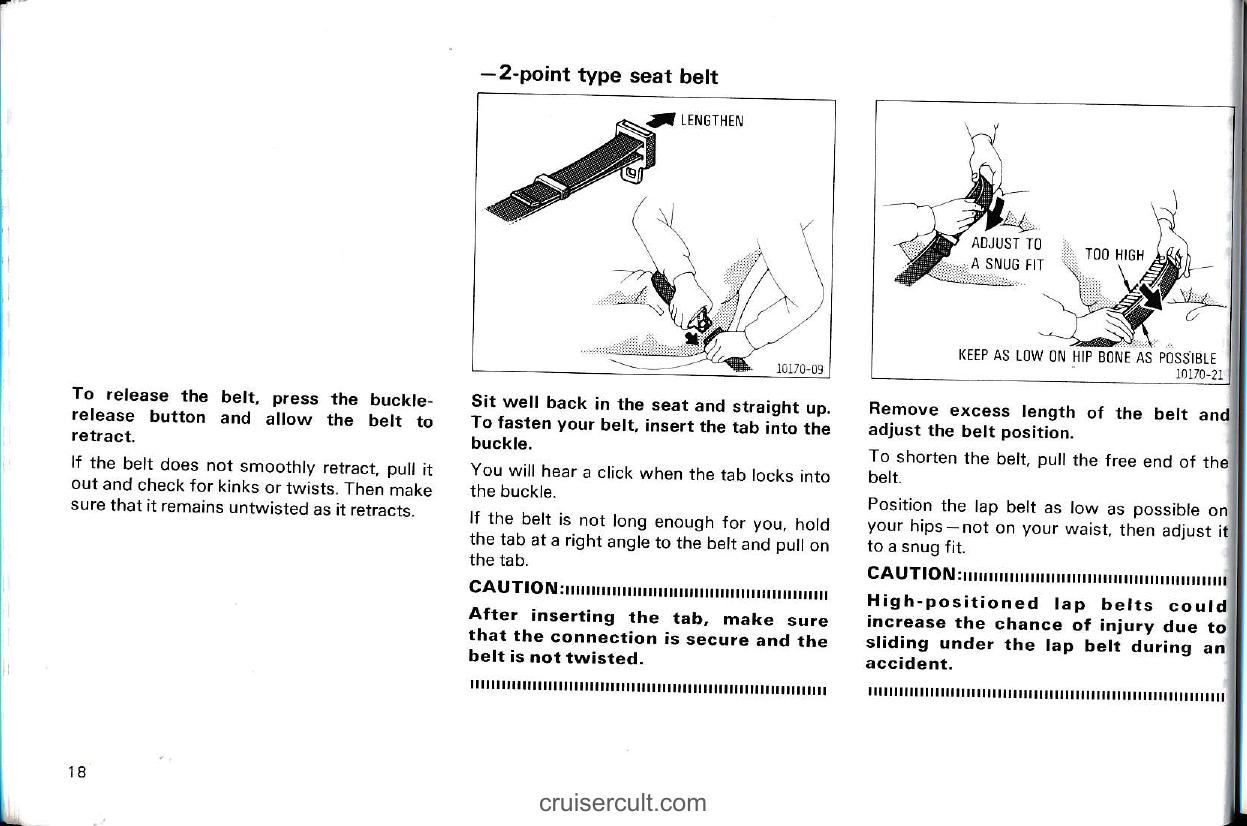

Page 18

-2-point type seat belt

(LENGTHEN)
10170-09

(ADJUST TO A SNUG FIT) (TOO HIGH)
KEEP AS LOW ON HIP BONE AS POSSIBLE
10170-21

To release the belt, press the buckle-release button and allow the belt to retract.

If the belt does not smoothly retract, pull it out and check for kinks or twists. Then make sure that it remains untwisted as it retracts.

Sit well back in the seat and straight up. To fasten your belt, insert the tab into the buckle.

You will hear a click when the tab locks into the buckle.

If the belt is not long enough for you, hold the tab at a right angle to the belt and pull on the tab.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

After inserting the tab, make sure that the connection is secure and the belt is not twisted.

Remove excess length of the belt and adjust the belt position.

To shorten the belt, pull the free end of the belt.

Position the lap belt as low as possible on your hips — not on your waist, then adjust it to a snug fit.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

High-positioned lap belts could increase the chance of injury due to sliding under the lap belt during an accident.

18

cruisercult.com

Page 19

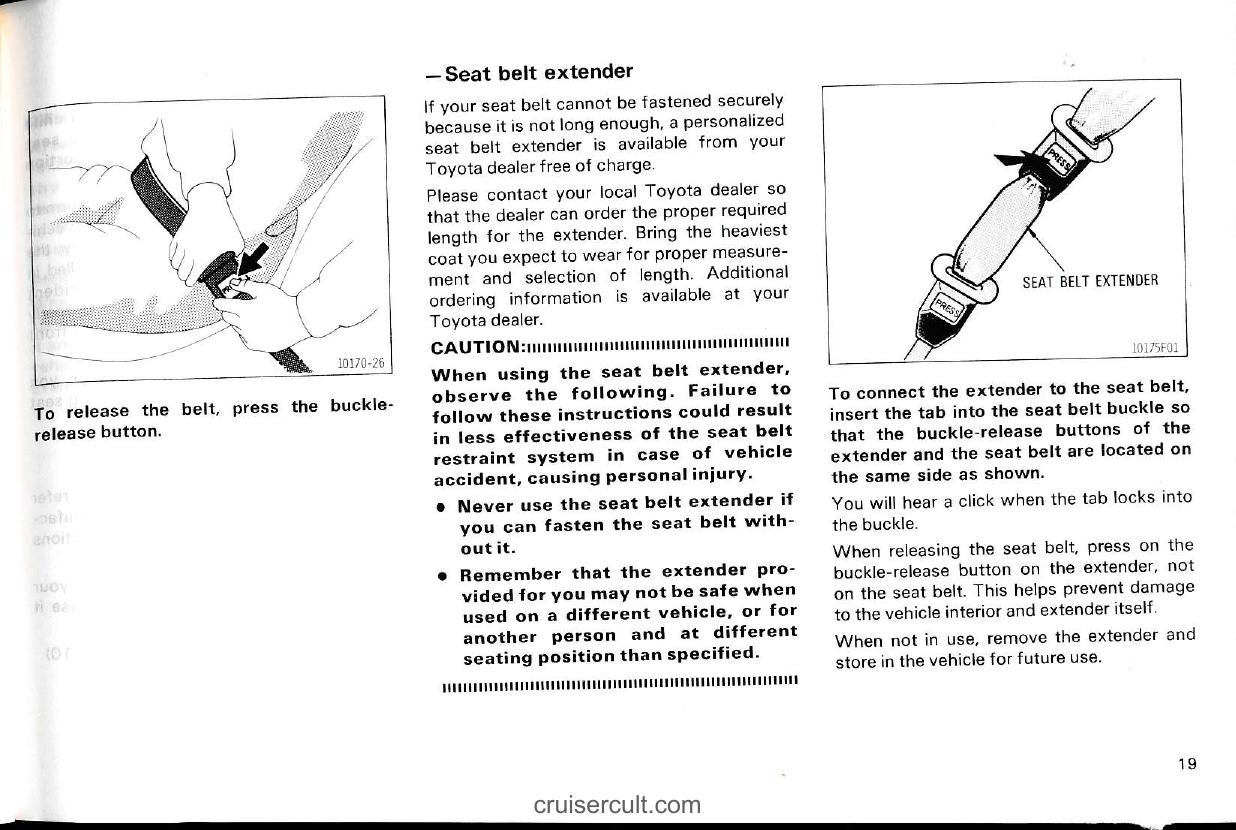

— Seat belt extender

If your seat belt cannot be fastened securely because it is not long enough, a personalized seat belt extender is available from your Toyota dealer free of charge.

Please contact your local Toyota dealer so that the dealer can order the proper required length for the extender. Bring the heaviest coat you expect to wear for proper measurement and selection of length. Additional ordering information is available at your Toyota dealer.

CAUTION::::::::::::::::::::::::::::::::::::::::::::::::

When using the seat belt extender, observe the following. Failure to follow these instructions could result in less effectiveness of the seat belt restraint system in case of vehicle accident, causing personal injury.

Never use the seat belt extender if you can fasten the seat belt without it.
Remember that the extender provided for you may not be safe when used on a different vehicle, or for another person and at different seating position than specified.

To connect the extender to the seat belt, insert the tab into the seat belt buckle so that the buckle-release buttons of the extender and the seat belt are located on the same side as shown.

You will hear a click when the tab locks into the buckle.

When releasing the seat belt, press on the buckle-release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and extender itself.

When not in use, remove the extender and store in the vehicle for future use.

To release the belt, press the buckle-release button.

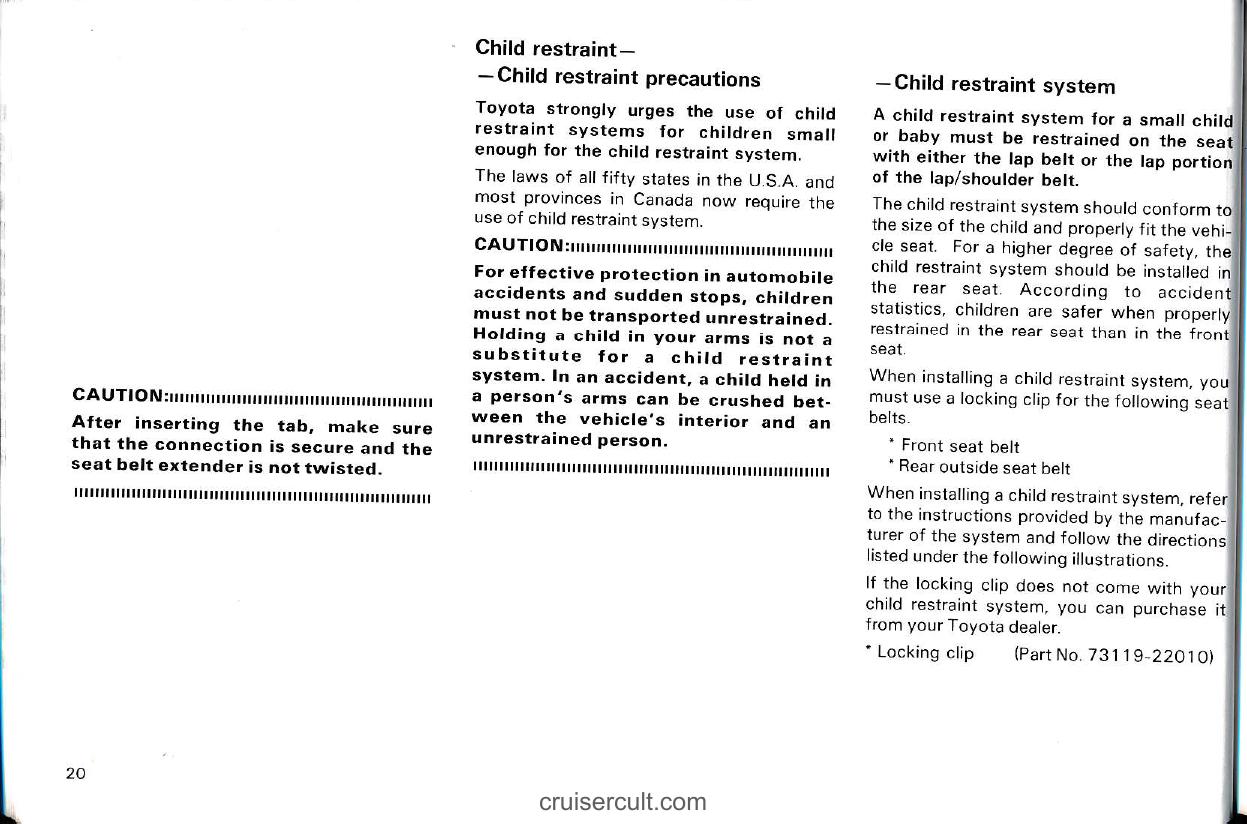

Page 20

Child restraint—

—Child restraint precautions

Toyota strongly urges the use of child restraint systems for children small enough for the child restraint system.

The laws of all fifty states in the U.S.A. and most provinces in Canada now require the use of child restraint system.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

For effective protection in automobile accidents and sudden stops, children must not be transported unrestrained. Holding a child in your arms is not a substitute for a child restraint system. In an accident, a child held in a person's arms can be crushed between the vehicle's interior and an unrestrained person.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! After inserting the tab, make sure that the connection is secure and the seat belt extender is not twisted. !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

—Child restraint system

A child restraint system for a small child or baby must be restrained on the seat with either the lap belt or the lap portion of the lap/shoulder belt.

The child restraint system should conform to the size of the child and properly fit the vehicle seat. For a higher degree of safety, the child restraint system should be installed in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat.

When installing a child restraint system, you must use a locking clip for the following seat belts.

Front seat belt
Rear outside seat belt

When installing a child restraint system, refer to the instructions provided by the manufacturer of the system and follow the directions listed under the following illustrations.

If the locking clip does not come with your child restraint system, you can purchase it from your Toyota dealer.

Locking clip (Part No. 73119-22010)

cruisercult.com

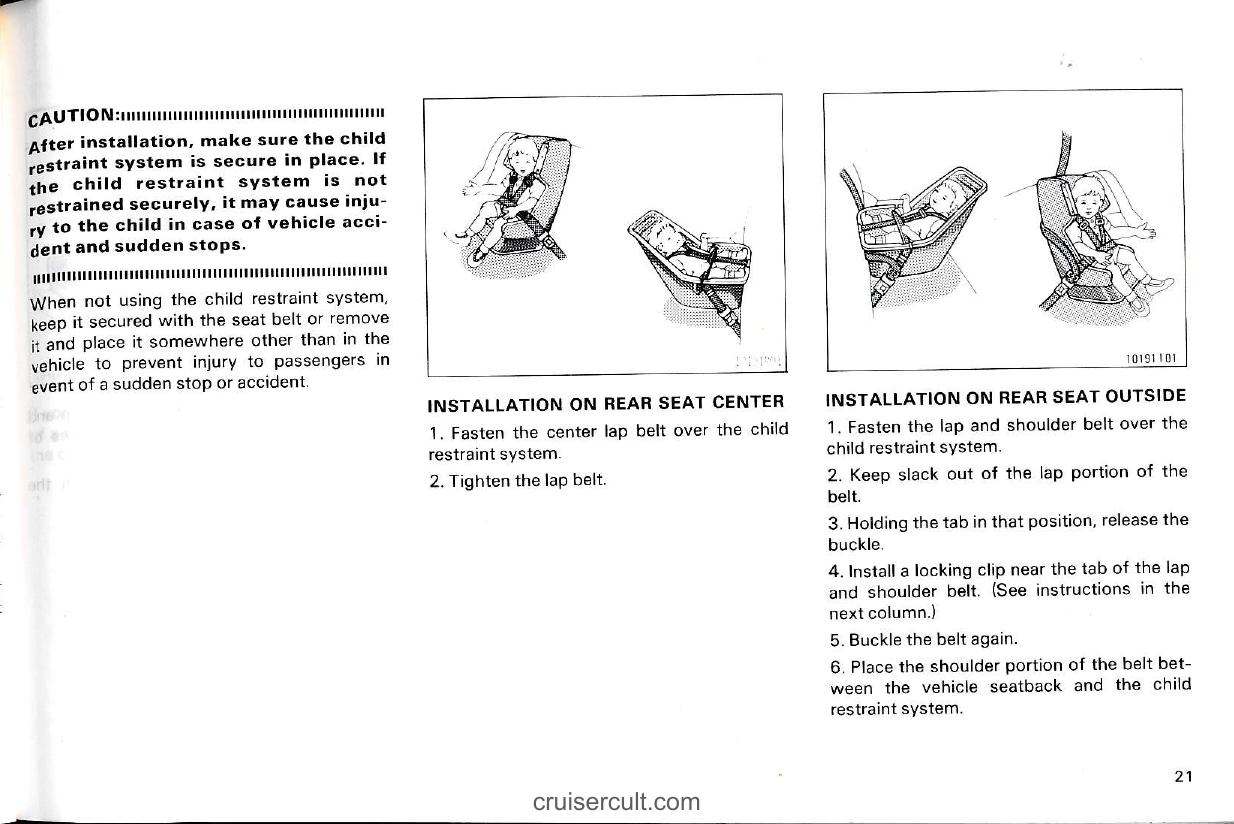

Page 21

CAUTION:.........................................................

After installation, make sure the child restraint system is secure in place. If the child restraint system is not restrained securely, it may cause injury to the child in case of vehicle accident and sudden stops.

When not using the child restraint system, keep it secured with the seat belt or remove it and place it somewhere other than in the vehicle to prevent injury to passengers in event of a sudden stop or accident.

INSTALLATION ON REAR SEAT CENTER

Fasten the center lap belt over the child restraint system.
Tighten the lap belt.

INSTALLATION ON REAR SEAT OUTSIDE

Fasten the lap and shoulder belt over the child restraint system.
Keep slack out of the lap portion of the belt.
Holding the tab in that position, release the buckle.
Install a locking clip near the tab of the lap and shoulder belt. (See instructions in the next column.)
Buckle the belt again.
Place the shoulder portion of the belt between the vehicle seatback and the child restraint system.

cruisercult.com

21

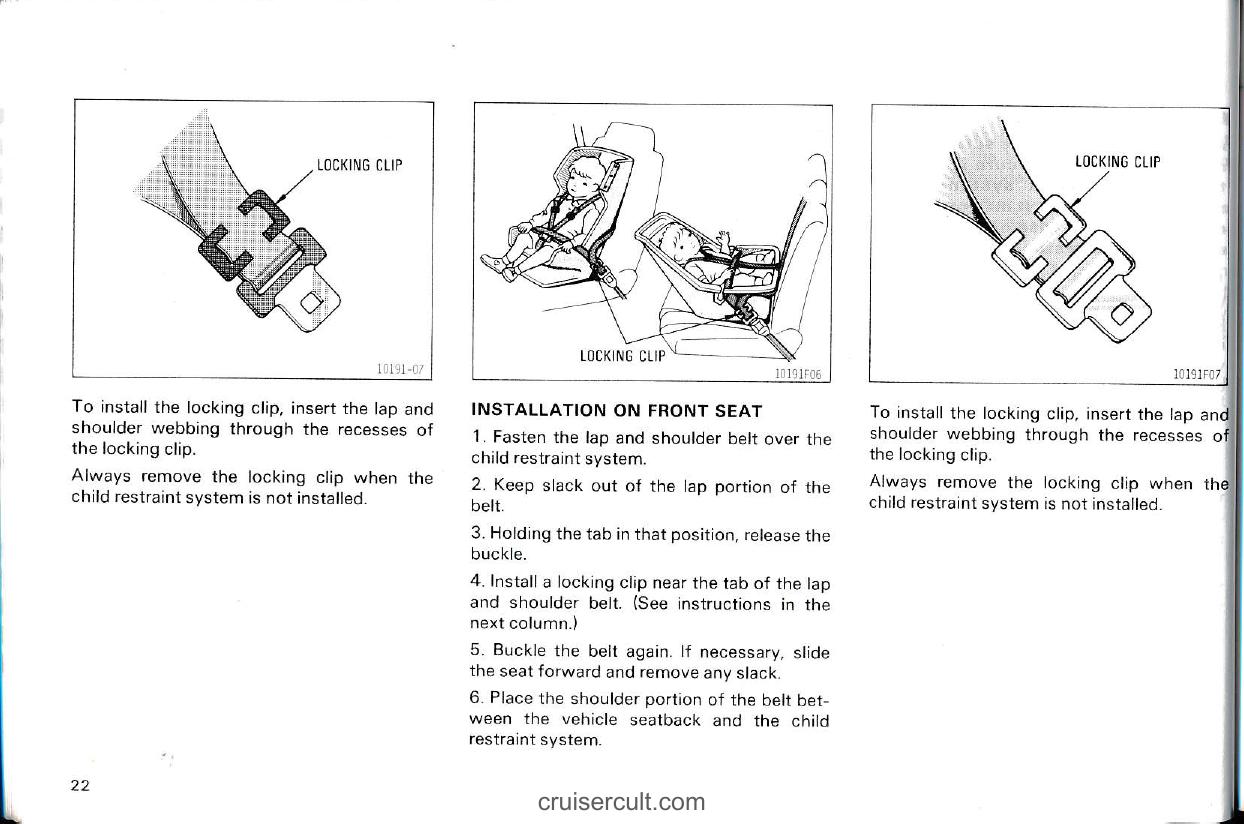

Page 22

LOCKING CLIP

To install the locking clip, insert the lap and shoulder webbing through the recesses of the locking clip.

Always remove the locking clip when the child restraint system is not installed.

INSTALLATION ON FRONT SEAT

Fasten the lap and shoulder belt over the child restraint system.
Keep slack out of the lap portion of the belt.
Holding the tab in that position, release the buckle.
Install a locking clip near the tab of the lap and shoulder belt. (See instructions in the next column.)
Buckle the belt again. If necessary, slide the seat forward and remove any slack.
Place the shoulder portion of the belt between the vehicle seatback and the child restraint system.

LOCKING CLIP

To install the locking clip, insert the lap and shoulder webbing through the recesses of the locking clip.

Always remove the locking clip when the child restraint system is not installed.

22

cruisercult.com

Page 23

TOP STRAP

If your child restraint system requires the use of a top strap, latch the hook onto the tab of the center belt and tighten the top strap.

(10191-11)

Tilt steering wheel

UNLOCK

To change the steering wheel angle, push up the lock release lever, tilt the steering wheel to the desired angle and release the lever.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

This adjustment should not be made while the vehicle is moving.
After adjusting the steering wheel, try moving it up and down to make sure it is locked in position.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

(10230-01)

Outside rear view mirrors—

Adjust the mirror so you can just see the side of your vehicle in the portion of the mirror closest to the vehicle.

Be careful when judging the size or distance of any object seen in the outside rear view mirror on the passenger's side. It is a convex mirror with a curved surface. Any object seen in a convex mirror will look smaller and farther away than when seen in a flat mirror.

(10719/01)

cruisercult.com

23

Page 24

Power rear view mirror control

diagram: master switch and control switch

MASTER SWITCH
CONTROL SWITCH
L ← R
MIRROR

To adjust a power rear view mirror, first place the master switch at "R" (right) or "L" (left) depending on which mirror needs adjusting, then push the control switch on each direction.

If the engine is not running, the key must be in the "ACC" position.

NOTICE:
If ice should jam the mirror, do not operate the control or scrape the mirror face. Use a spray de-icer to free the mirror.

Anti-glare inside rear view mirror

diagram: day / night lever

Pull the lever backward to reduce glare from the rear vehicle headlights during night driving.

Before adjusting the mirror to the position with most clarity, push the day-night change lever forward (daylight driving position).

Remember that by reducing glare you also lose some rear view clarity.

24

cruisercult.com

Page 25

Part 1 OPERATION OF INSTRUMENTS AND CONTROLS—

Chapter 1-4 Lights, Wipers and Defogger

Headlight and turn signal switch
Emergency flasher switch
Instrument panel light control
Interior light
Luggage compartment light
Windshield wiper and washer switch
Rear window wiper and washer switch
Headlight cleaner
Rear window defogger switch

cruisercult.com

25

Page 26

Headlight and turn signal switch

![10220-01]

To turn the lights on, twist the knob on the end of the lever.

FIRST CLICKSTOP: Only the parking, tail, license plate, side marker and instrument panel lights turn on.

SECOND CLICKSTOP: The headlights also turn on

The key can be at any position.

NOTICE:

To prevent the battery from being discharged, do not leave the lights on for a long period while the engine is not running.

![10220-02]

HIGH BEAM
HEADLIGHT FLASHER

For high beam, push the lever forward. Pull it back for low beam. For the headlight flasher, pull it further back.

A blue light on the dashboard indicates high beam.

The headlight flasher works even when the headlight switch is off.

![10220-03]

RIGHT TURN
LANE CHANGE
LEFT TURN

For signaling turns, move the lever up or down in the conventional manner.

The key must be in the "ON" position.

The turn signal is self-cancelling after a turn, but after a lane change, you may have to cancel it by hand. You can also signal a lane change by moving the turn signal lever part-way and holding it there. If the green dashboard light flashes faster than normal, it indicates that the front or rear turn signal bulb has burned out. If the dashboard light does not come on, the fuse or the indicator light itself has probably failed. You may change headlight beam even while the turn signal lights are flashing.

26

cruisercult.com

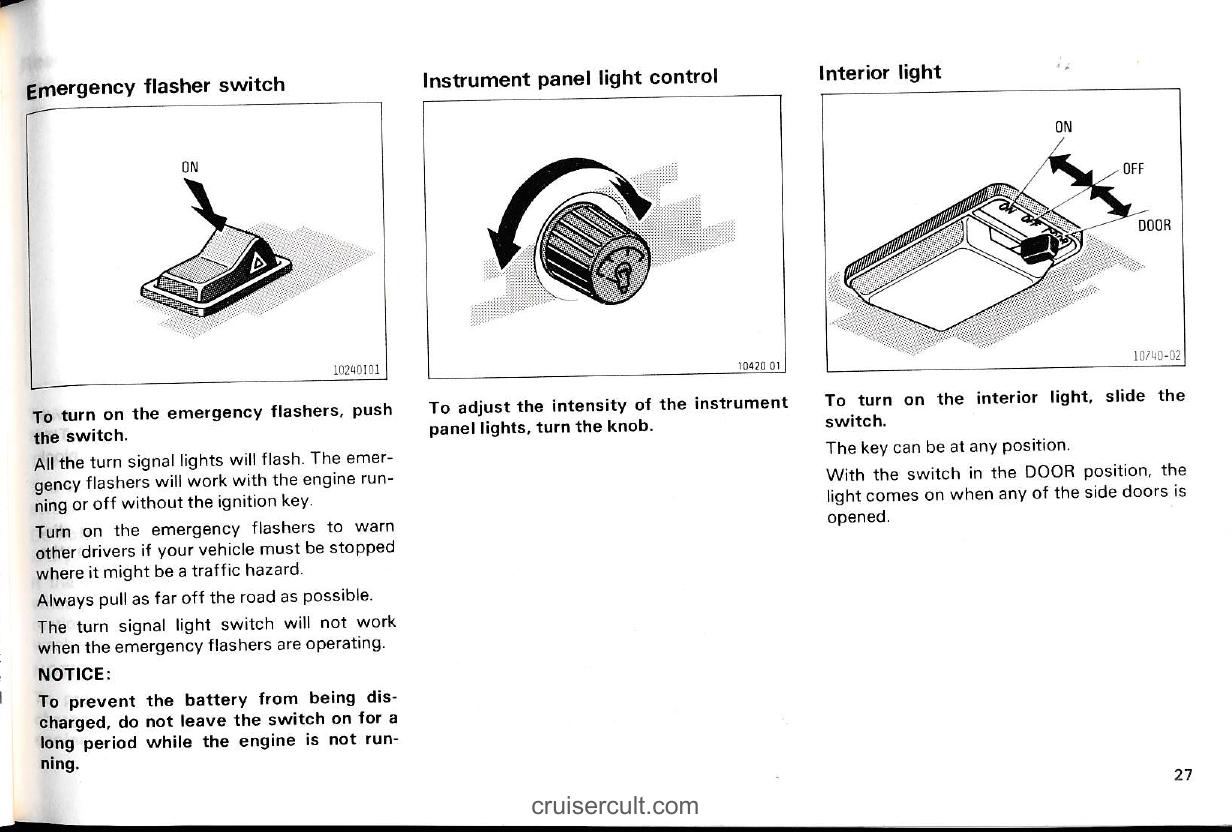

Page 27

Emergency flasher switch

To turn on the emergency flashers, push the switch.

All the turn signal lights will flash. The emergency flashers will work with the engine running or off without the ignition key.

Turn on the emergency flashers to warn other drivers if your vehicle must be stopped where it might be a traffic hazard.

Always pull as far off the road as possible.

The turn signal light switch will not work when the emergency flashers are operating.

NOTICE:

To prevent the battery from being discharged, do not leave the switch on for a long period while the engine is not running.

Instrument panel light control

knob

To adjust the intensity of the instrument panel lights, turn the knob.

Interior light

ON OFF DOOR

To turn on the interior light, slide the switch.

The key can be at any position.

With the switch in the DOOR position, the light comes on when any of the side doors is opened.

cruisercult.com

27

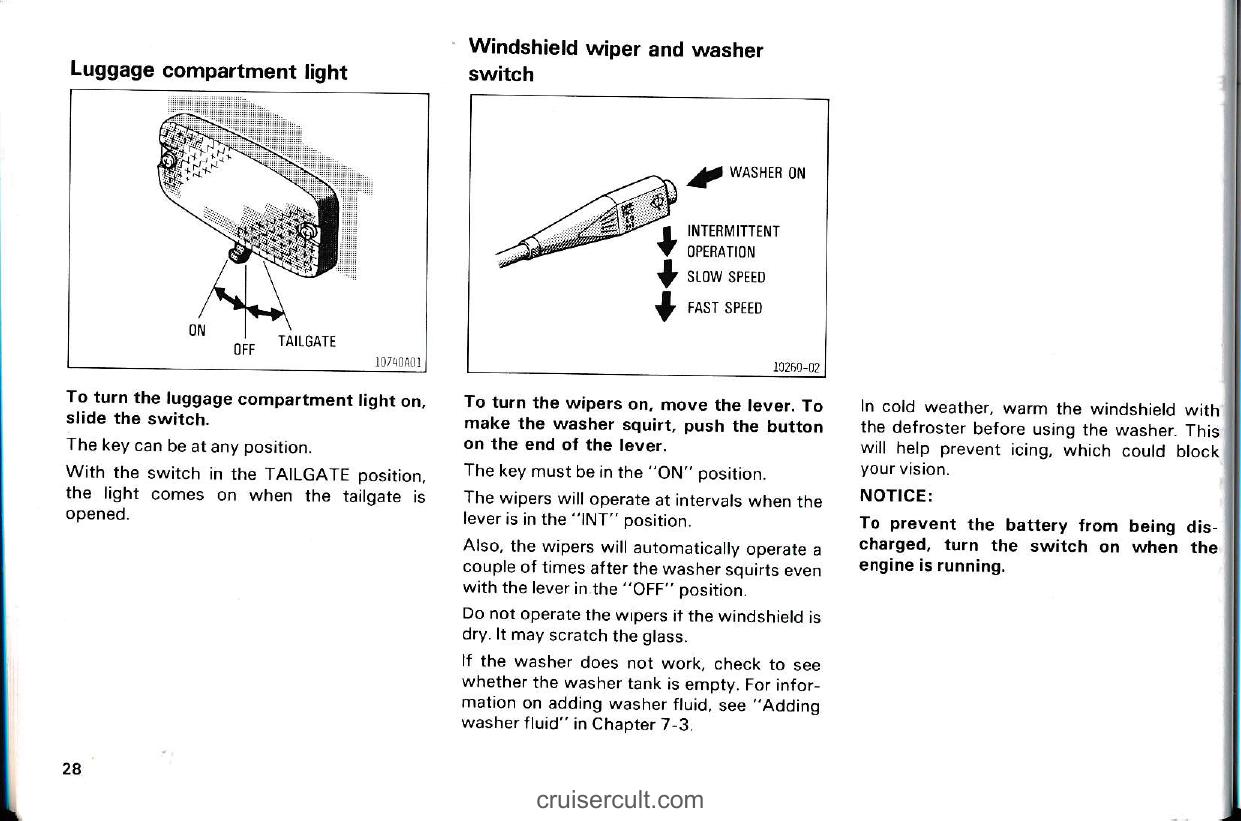

Page 28

Luggage compartment light

![diagram: luggage compartment light showing positions ON, OFF, TAILGATE]
(10740A01)

To turn the luggage compartment light on, slide the switch.

The key can be at any position.

With the switch in the TAILGATE position, the light comes on when the tailgate is opened.

Windshield wiper and washer switch

![diagram: wiper lever with arrows labeled WASHER ON, INTERMITTENT OPERATION, SLOW SPEED, FAST SPEED]
(10260-02)

To turn the wipers on, move the lever. To make the washer squirt, push the button on the end of the lever.

The key must be in the "ON" position.

The wipers will operate at intervals when the lever is in the "INT" position.

Also, the wipers will automatically operate a couple of times after the washer squirts even with the lever in the "OFF" position.

Do not operate the wipers if the windshield is dry. It may scratch the glass.

If the washer does not work, check to see whether the washer tank is empty. For information on adding washer fluid, see "Adding washer fluid" in Chapter 7-3.

In cold weather, warm the windshield with the defroster before using the washer. This will help prevent icing, which could block your vision.

NOTICE:

To prevent the battery from being discharged, turn the switch on when the engine is running.

28

cruisercult.com

Page 29

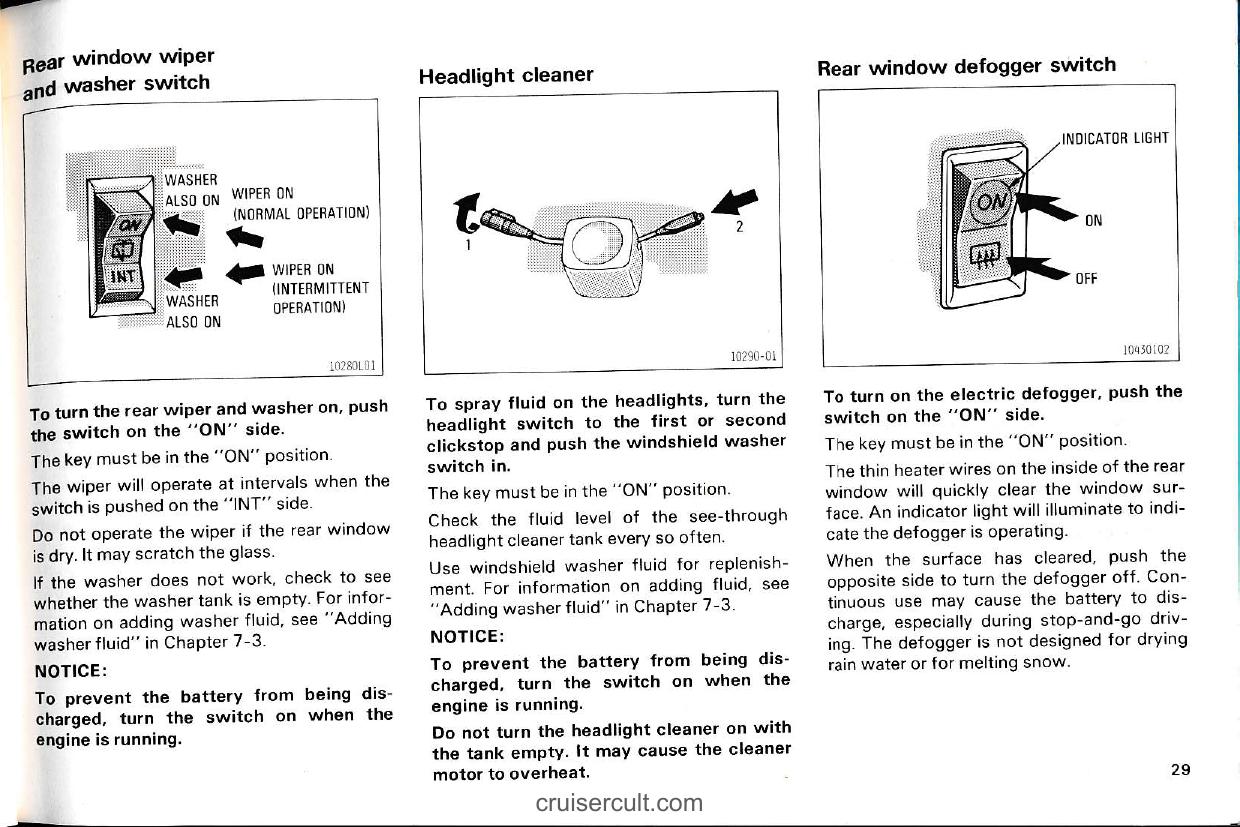

Rear window wiper and washer switch

![switch illustration: WASHER ALSO ON / WIPER ON (NORMAL OPERATION) / WASHER ALSO ON / WIPER ON (INTERMITTENT OPERATION) / INT]

To turn the rear wiper and washer on, push the switch on the "ON" side.
The key must be in the "ON" position.
The wiper will operate at intervals when the switch is pushed on the "INT" side.
Do not operate the wiper if the rear window is dry. It may scratch the glass.
If the washer does not work, check to see whether the washer tank is empty. For information on adding washer fluid, see "Adding washer fluid" in Chapter 7-3.

NOTICE:
To prevent the battery from being discharged, turn the switch on when the engine is running.

Headlight cleaner

![illustration showing turning action labeled 1 and 2]

To spray fluid on the headlights, turn the headlight switch to the first or second clickstop and push the windshield washer switch in.
The key must be in the "ON" position.
Check the fluid level of the see-through headlight cleaner tank every so often.
Use windshield washer fluid for replenishment. For information on adding fluid, see "Adding washer fluid" in Chapter 7-3.

NOTICE:
To prevent the battery from being discharged, turn the switch on when the engine is running.

Do not turn the headlight cleaner on with the tank empty. It may cause the cleaner motor to overheat.

Rear window defogger switch

![switch illustration with INDICATOR LIGHT / ON / OFF]

To turn on the electric defogger, push the switch on the "ON" side.
The key must be in the "ON" position.
The thin heater wires on the inside of the rear window will quickly clear the window surface. An indicator light will illuminate to indicate the defogger is operating.
When the surface has cleared, push the opposite side to turn the defogger off. Continuous use may cause the battery to discharge, especially during stop-and-go driving. The defogger is not designed for drying rain water or for melting snow.

cruisercult.com

Page 29

Page 30

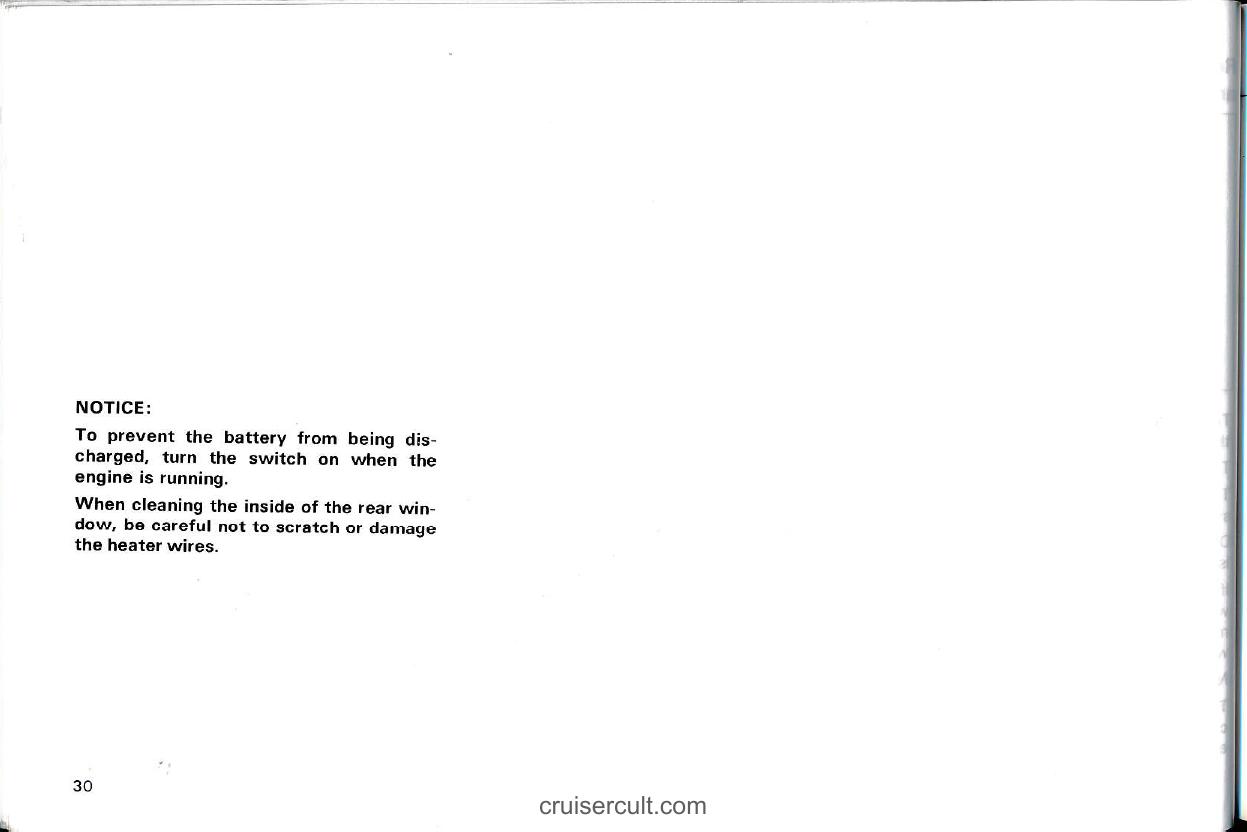

NOTICE:

To prevent the battery from being discharged, turn the switch on when the engine is running.

When cleaning the inside of the rear window, be careful not to scratch or damage the heater wires.

30

cruisercult.com

Page 31

Part 1 OPERATION OF INSTRUMENTS AND CONTROLS—

Chapter 1-5 Gauges, Meters and Warning lights

Fuel gauge
Engine temperature gauge
Oil pressure gauge
Voltmeter
Tachometer
Odometer and trip meter
Warning lights and buzzers

cruisercult.com

31

Page 32

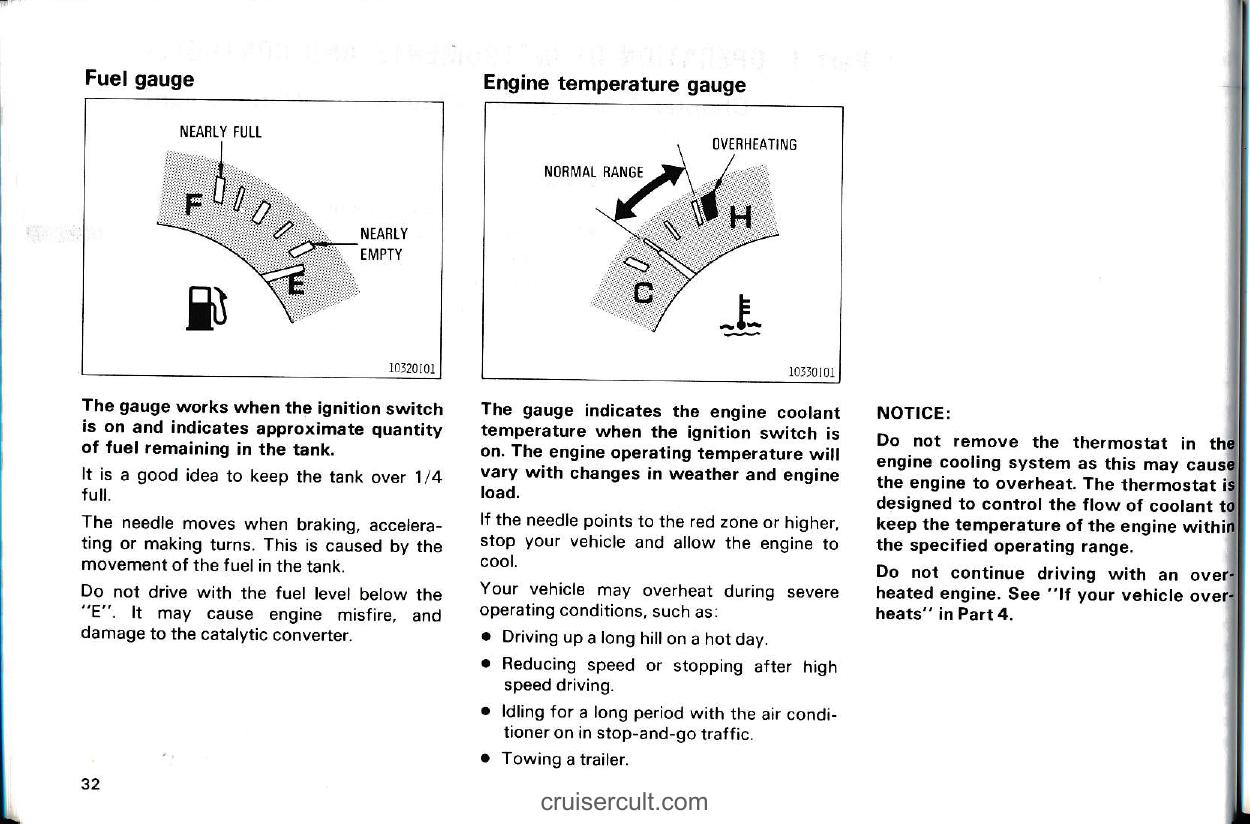

Fuel gauge

NEARLY FULL
NEARLY EMPTY

10320101

The gauge works when the ignition switch is on and indicates approximate quantity of fuel remaining in the tank.

It is a good idea to keep the tank over 1/4 full.

The needle moves when braking, accelerating or making turns. This is caused by the movement of the fuel in the tank.

Do not drive with the fuel level below the "E". It may cause engine misfire, and damage to the catalytic converter.

Engine temperature gauge

NORMAL RANGE → OVERHEATING

10330101

The gauge indicates the engine coolant temperature when the ignition switch is on. The engine operating temperature will vary with changes in weather and engine load.

If the needle points to the red zone or higher, stop your vehicle and allow the engine to cool.

Your vehicle may overheat during severe operating conditions, such as: - Driving up a long hill on a hot day. - Reducing speed or stopping after high speed driving. - Idling for a long period with the air conditioner on in stop-and-go traffic. - Towing a trailer.

NOTICE:

Do not remove the thermostat in the engine cooling system as this may cause the engine to overheat. The thermostat is designed to control the flow of coolant to keep the temperature of the engine within the specified operating range.

Do not continue driving with an overheated engine. See "If your vehicle overheats" in Part 4.

32

cruisercult.com

Page 33

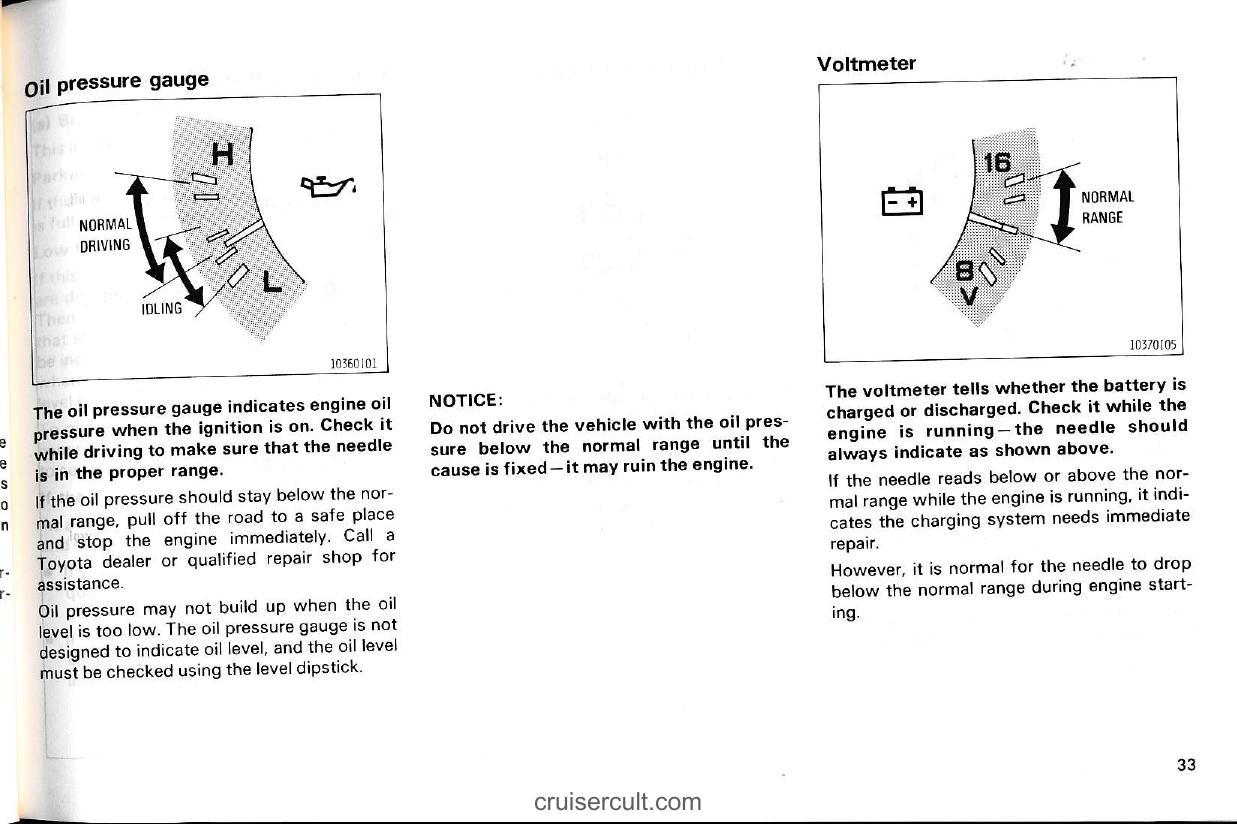

Oil pressure gauge

The oil pressure gauge indicates engine oil pressure when the ignition is on. Check it while driving to make sure that the needle is in the proper range.

If the oil pressure should stay below the normal range, pull off the road to a safe place and stop the engine immediately. Call a Toyota dealer or qualified repair shop for assistance.

Oil pressure may not build up when the oil level is too low. The oil pressure gauge is not designed to indicate oil level, and the oil level must be checked using the level dipstick.

NOTICE:

Do not drive the vehicle with the oil pressure below the normal range until the cause is fixed — it may ruin the engine.

10360101

Voltmeter

The voltmeter tells whether the battery is charged or discharged. Check it while the engine is running — the needle should always indicate as shown above.

If the needle reads below or above the normal range while the engine is running, it indicates the charging system needs immediate repair.

However, it is normal for the needle to drop below the normal range during engine starting.

10370105

cruisercult.com

33

Page 34

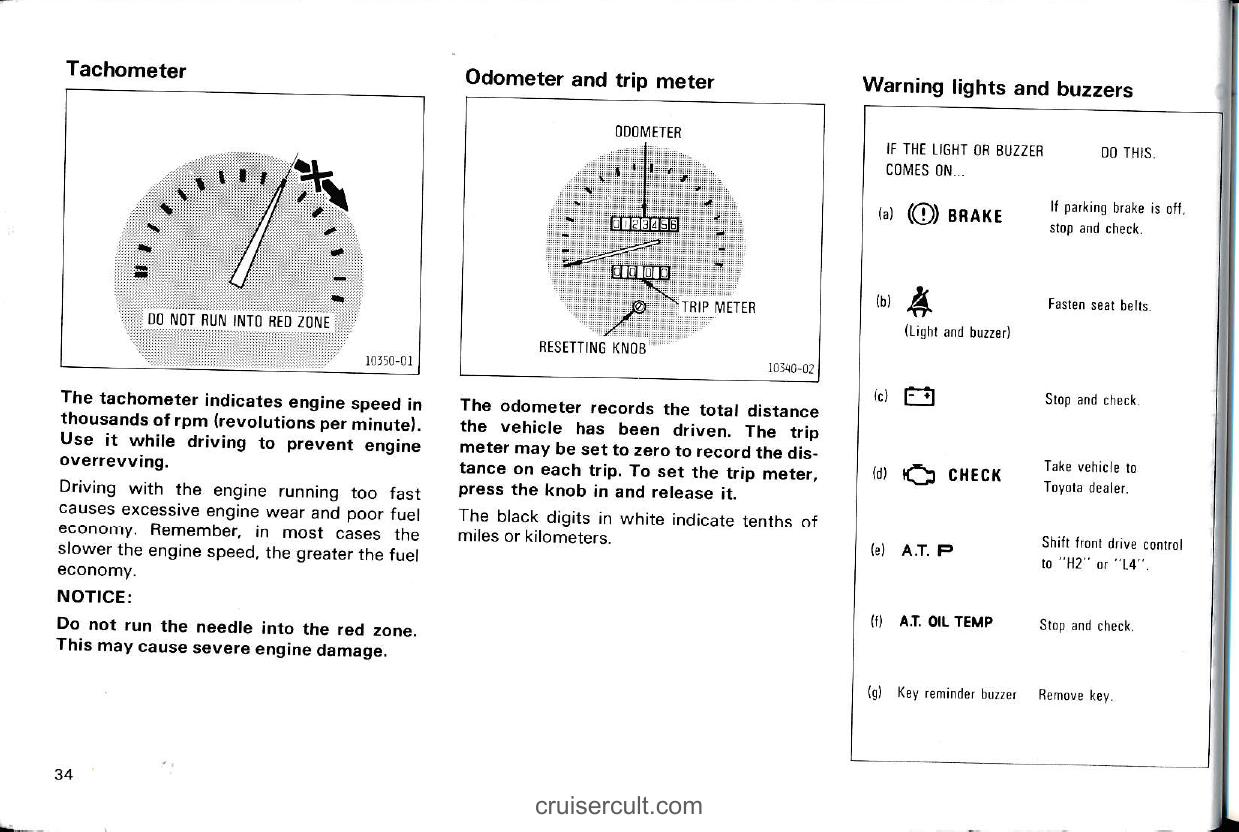

Tachometer

DO NOT RUN INTO RED ZONE

The tachometer indicates engine speed in thousands of rpm (revolutions per minute). Use it while driving to prevent engine overrevving.

Driving with the engine running too fast causes excessive engine wear and poor fuel economy. Remember, in most cases the slower the engine speed, the greater the fuel economy.

NOTICE:
Do not run the needle into the red zone.
This may cause severe engine damage.

Odometer and trip meter

ODOMETER

TRIP METER

RESETTING KNOB

The odometer records the total distance the vehicle has been driven. The trip meter may be set to zero to record the distance on each trip. To set the trip meter, press the knob in and release it.

The black digits in white indicate tenths of miles or kilometers.

Warning lights and buzzers

IF THE LIGHT OR BUZZER COMES ON... DO THIS.

(a) ( ! ) BRAKE
If parking brake is off, stop and check.

(b) (seat belt icon)
(Light and buzzer) Fasten seat belts.

(c) (battery icon)
Stop and check.

(d) (engine/check icon) CHECK
Take vehicle to Toyota dealer.

(e) A.T. P
Shift front drive control to "H2" or "L4".

(f) A.T. OIL TEMP
Stop and check.

(g) Key reminder buzzer
Remove key.

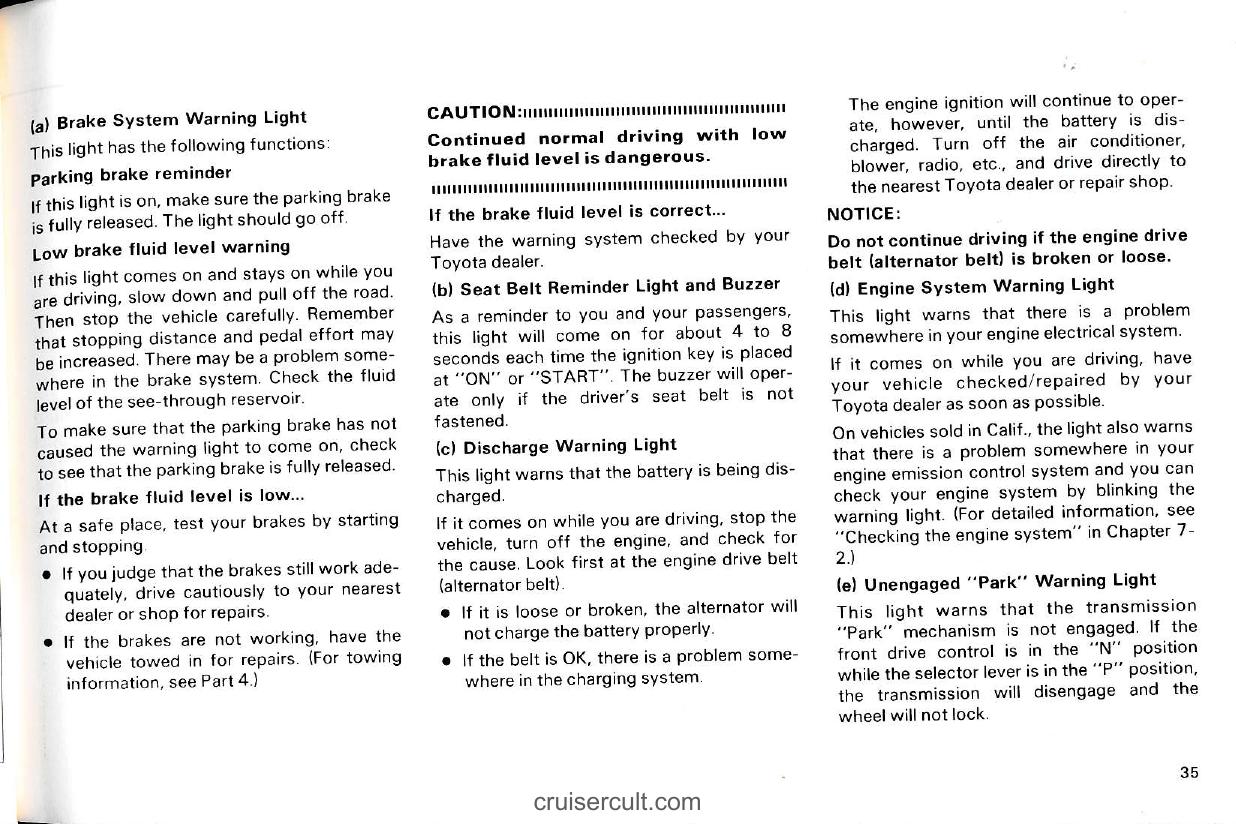

Page 35

(a) Brake System Warning Light

This light has the following functions:

Parking brake reminder

If this light is on, make sure the parking brake is fully released. The light should go off.

Low brake fluid level warning

If this light comes on and stays on while you are driving, slow down and pull off the road. Then stop the vehicle carefully. Remember that stopping distance and pedal effort may be increased. There may be a problem somewhere in the brake system. Check the fluid level of the see-through reservoir.

To make sure that the parking brake has not caused the warning light to come on, check to see that the parking brake is fully released.

If the brake fluid level is low... At a safe place, test your brakes by starting and stopping.

If you judge that the brakes still work adequately, drive cautiously to your nearest dealer or shop for repairs.
If the brakes are not working, have the vehicle towed in for repairs. (For towing information, see Part 4.)

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Continued normal driving with low brake fluid level is dangerous.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

If the brake fluid level is correct... Have the warning system checked by your Toyota dealer.

(b) Seat Belt Reminder Light and Buzzer

As a reminder to you and your passengers, this light will come on for about 4 to 8 seconds each time the ignition key is placed at "ON" or "START". The buzzer will operate only if the driver's seat belt is not fastened.

(c) Discharge Warning Light

This light warns that the battery is being discharged.

If it comes on while you are driving, stop the vehicle, turn off the engine, and check for the cause. Look first at the engine drive belt (alternator belt).

If it is loose or broken, the alternator will not charge the battery properly.
If the belt is OK, there is a problem somewhere in the charging system.

The engine ignition will continue to operate, however, until the battery is discharged. Turn off the air conditioner, blower, radio, etc., and drive directly to the nearest Toyota dealer or repair shop.

NOTICE:

Do not continue driving if the engine drive belt (alternator belt) is broken or loose.

(d) Engine System Warning Light

This light warns that there is a problem somewhere in your engine electrical system.

If it comes on while you are driving, have your vehicle checked/repaired by your Toyota dealer as soon as possible.

On vehicles sold in Calif., the light also warns that there is a problem somewhere in your engine emission control system and you can check your engine system by blinking the warning light. (For detailed information, see "Checking the engine system" in Chapter 7-2.)

(e) Unengaged "Park" Warning Light

This light warns that the transmission "Park" mechanism is not engaged. If the front drive control is in the "N" position while the selector lever is in the "P" position, the transmission will disengage and the wheel will not lock.

cruisercult.com

35

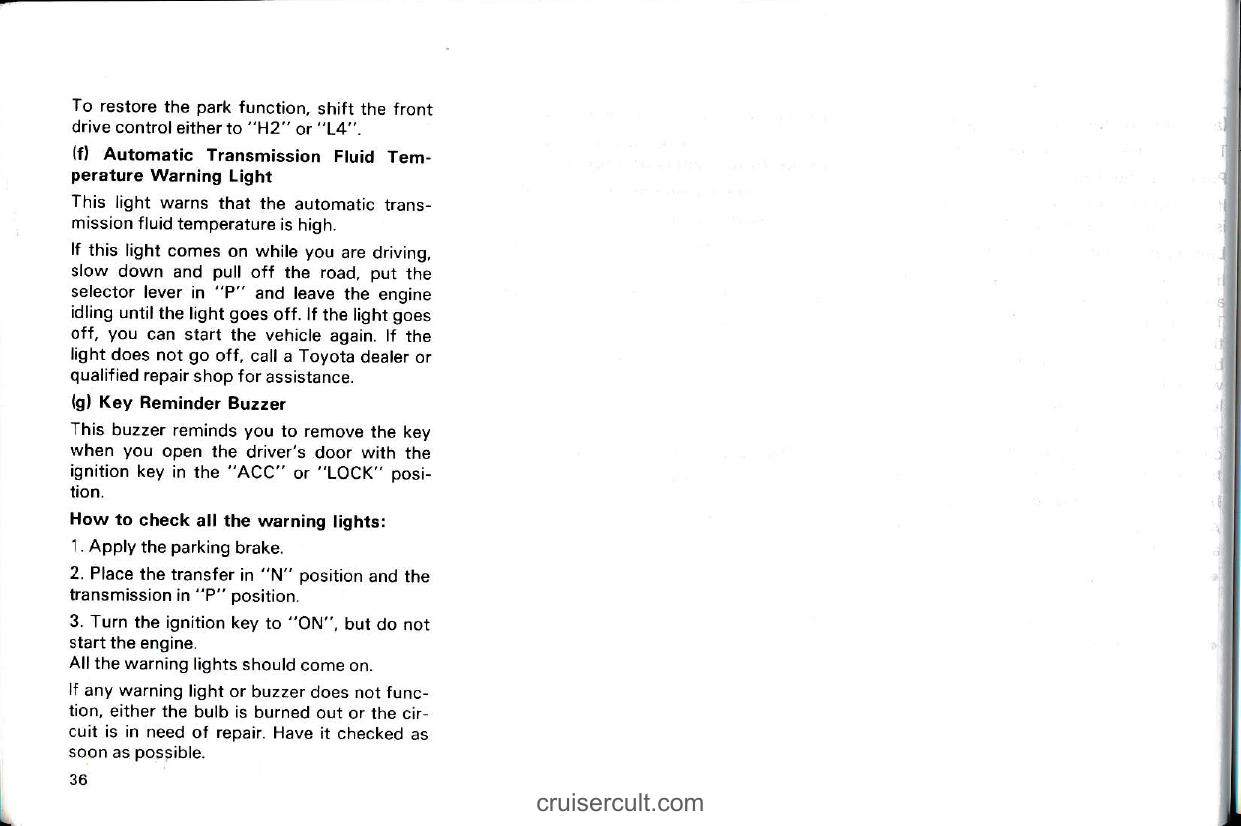

Page 36

To restore the park function, shift the front drive control either to "H2" or "L4".

(f) Automatic Transmission Fluid Temperature Warning Light

This light warns that the automatic transmission fluid temperature is high.

If this light comes on while you are driving, slow down and pull off the road, put the selector lever in "P" and leave the engine idling until the light goes off. If the light goes off, you can start the vehicle again. If the light does not go off, call a Toyota dealer or qualified repair shop for assistance.

(g) Key Reminder Buzzer

This buzzer reminds you to remove the key when you open the driver's door with the ignition key in the "ACC" or "LOCK" position.

How to check all the warning lights:

Apply the parking brake.
Place the transfer in "N" position and the transmission in "P" position.
Turn the ignition key to "ON", but do not start the engine.

All the warning lights should come on.

If any warning light or buzzer does not function, either the bulb is burned out or the circuit is in need of repair. Have it checked as soon as possible.

36

cruisercult.com

Page 37

Part 1 OPERATION OF INSTRUMENTS AND CONTROLS—

Chapter 1-6 Ignition switch, Transmission and Parking brake

Ignition switch with steering lock
Throttle button
Automatic transmission
Four-wheel drive system
Differential locks
Parking brake

cruisercult.com

37

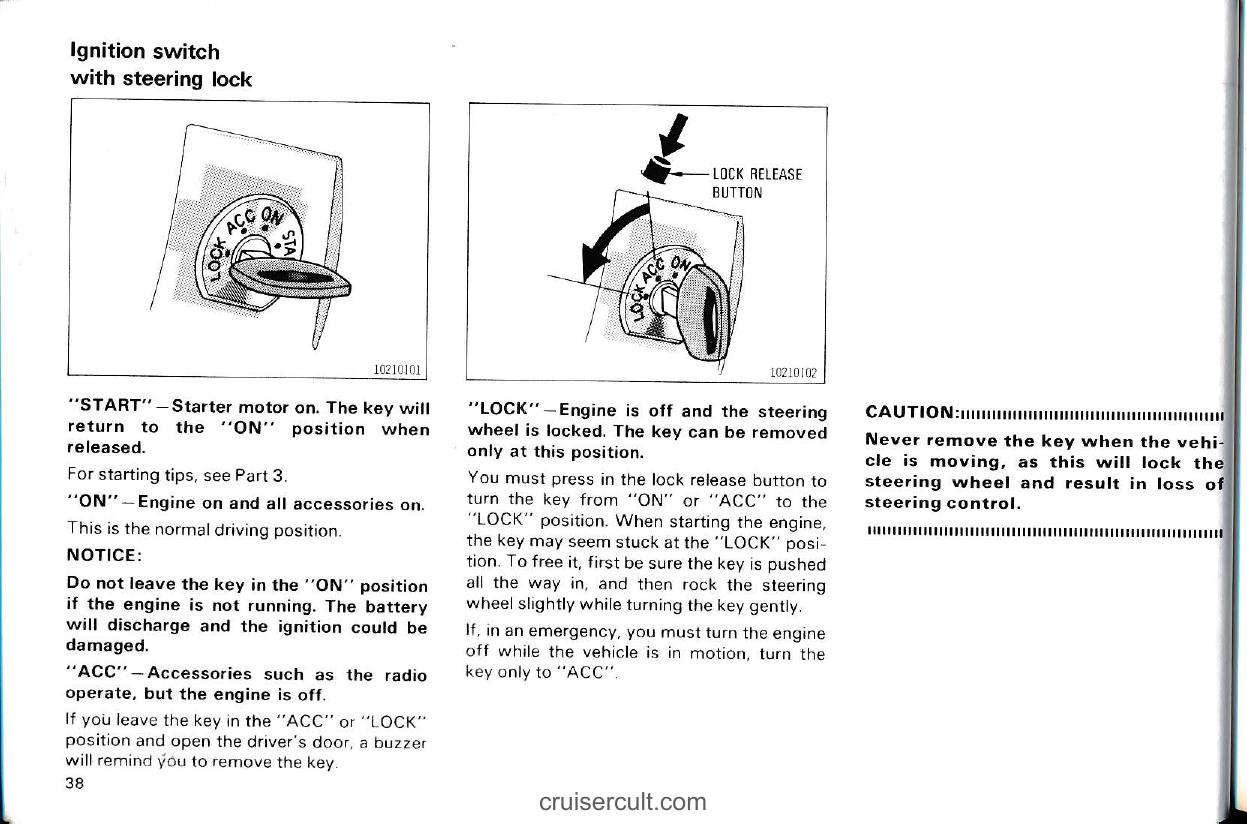

Page 38

Ignition switch with steering lock

![10210101]

"START" - Starter motor on. The key will return to the "ON" position when released.

For starting tips, see Part 3.

"ON" - Engine on and all accessories on.

This is the normal driving position.

NOTICE:

Do not leave the key in the "ON" position if the engine is not running. The battery will discharge and the ignition could be damaged.

"ACC" - Accessories such as the radio operate, but the engine is off.

If you leave the key in the "ACC" or "LOCK" position and open the driver's door, a buzzer will remind you to remove the key.

38

![LOCK RELEASE BUTTON 10210102]

"LOCK" - Engine is off and the steering wheel is locked. The key can be removed only at this position.

You must press in the lock release button to turn the key from "ON" or "ACC" to the "LOCK" position. When starting the engine, the key may seem stuck at the "LOCK" position. To free it, first be sure the key is pushed all the way in, and then rock the steering wheel slightly while turning the key gently.

If, in an emergency, you must turn the engine off while the vehicle is in motion, turn the key only to "ACC".

CAUTION:........................................................

Never remove the key when the vehicle is moving, as this will lock the steering wheel and result in loss of steering control.

........................................................

cruisercult.com

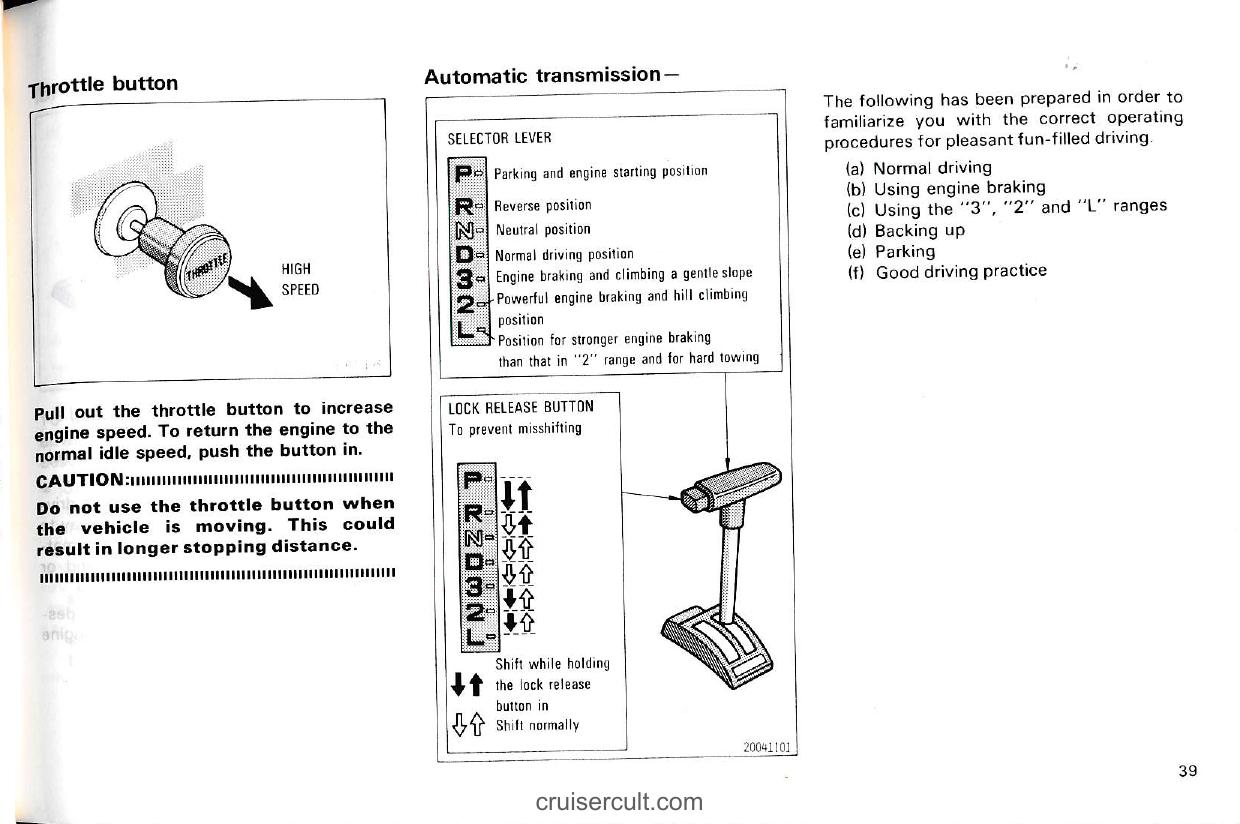

Page 39

Throttle button

![Throttle button illustration]

HIGH SPEED

Pull out the throttle button to increase engine speed. To return the engine to the normal idle speed, push the button in.

CAUTION:
Do not use the throttle button when the vehicle is moving. This could result in longer stopping distance.

Automatic transmission

SELECTOR LEVER

P: Parking and engine starting position
R: Reverse position
N: Neutral position
D: Normal driving position
3: Engine braking and climbing a gentle slope
2: Powerful engine braking and hill climbing
L: Position for stronger engine braking than that in "2" range and for hard towing

LOCK RELEASE BUTTON

To prevent misshifting

Shift while holding the lock release button in
Shift normally

20041101

The following has been prepared in order to familiarize you with the correct operating procedures for pleasant fun-filled driving.

(a) Normal driving
(b) Using engine braking
(c) Using the "3", "2" and "L" ranges
(d) Backing up
(e) Parking
(f) Good driving practice

cruisercult.com

39

Page 40

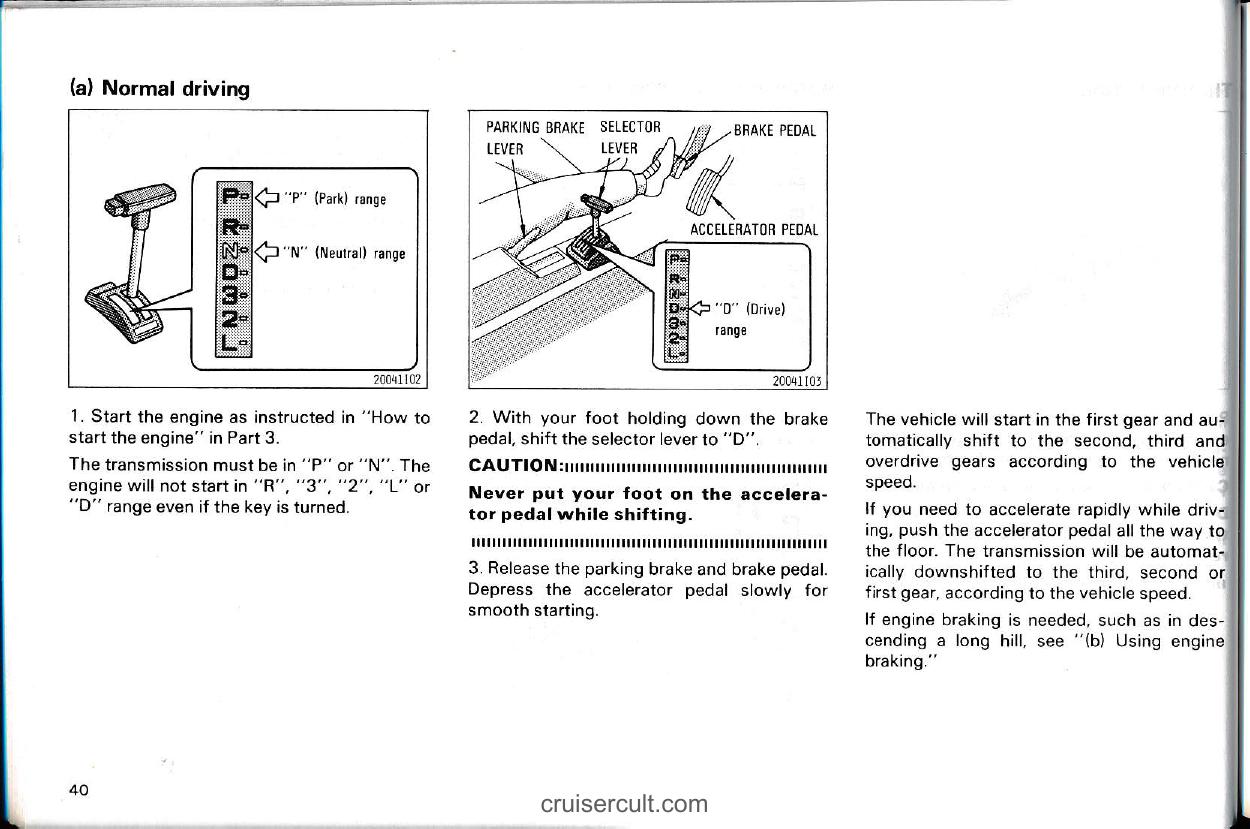

(a) Normal driving

![gear indicator diagram]

Left diagram text: - P R N D 3 2 L - "P" (Park) range - "N" (Neutral) range - 20041102

Right diagram text: - PARKING BRAKE LEVER - SELECTOR LEVER - BRAKE PEDAL - ACCELERATOR PEDAL - "D" (Drive) range - 20041103

Start the engine as instructed in "How to start the engine" in Part 3.

The transmission must be in "P" or "N". The engine will not start in "R", "3", "2", "L" or "D" range even if the key is turned.

With your foot holding down the brake pedal, shift the selector lever to "D".

CAUTION::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

Never put your foot on the accelerator pedal while shifting.

:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

Release the parking brake and brake pedal. Depress the accelerator pedal slowly for smooth starting.

The vehicle will start in the first gear and automatically shift to the second, third and overdrive gears according to the vehicle speed.

If you need to accelerate rapidly while driving, push the accelerator pedal all the way to the floor. The transmission will be automatically downshifted to the third, second or first gear, according to the vehicle speed.

If engine braking is needed, such as in descending a long hill, see "(b) Using engine braking."

40

cruisercult.com

Page 41

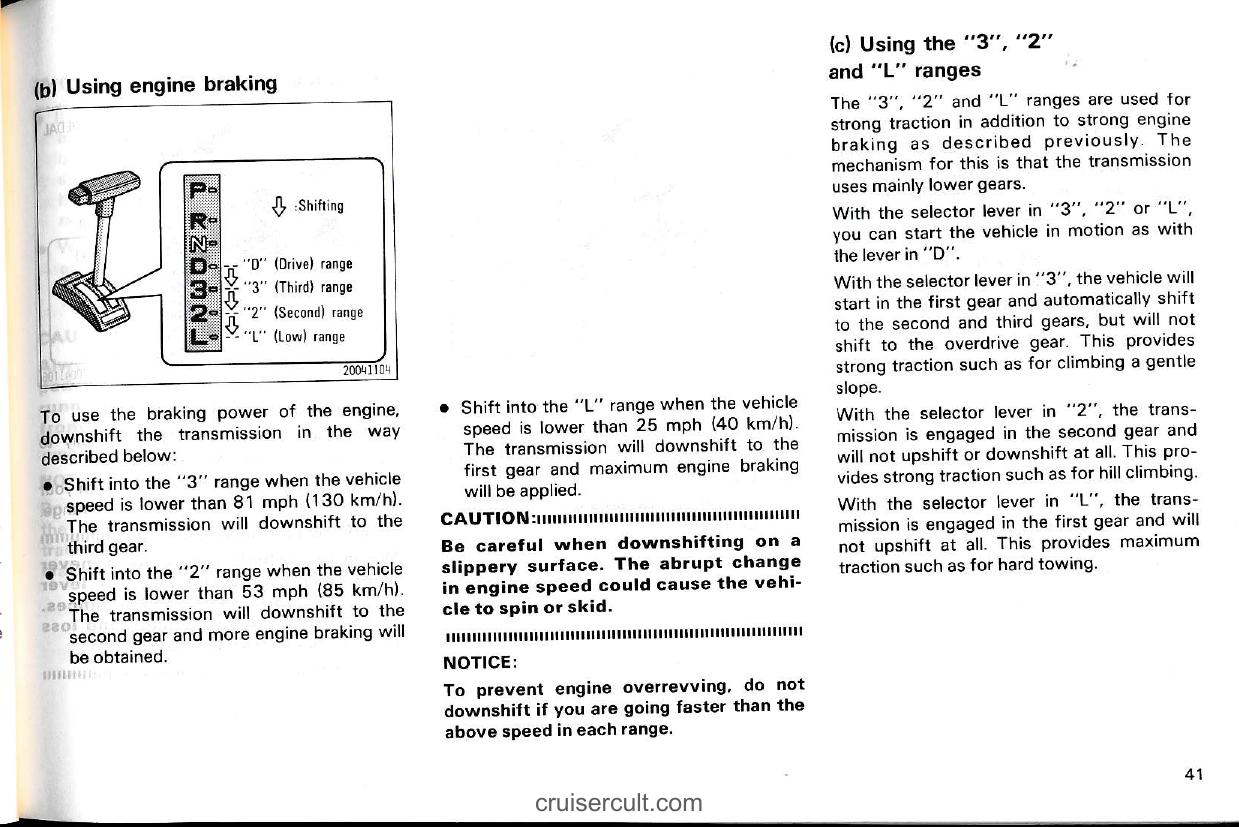

(b) Using engine braking

P R N D 3 2 L
↓ Shifting

"D" (Drive) range
"3" (Third) range
"2" (Second) range
"L" (Low) range

20041104

To use the braking power of the engine, downshift the transmission in the way described below:

Shift into the "3" range when the vehicle speed is lower than 81 mph (130 km/h). The transmission will downshift to the third gear.
Shift into the "2" range when the vehicle speed is lower than 53 mph (85 km/h). The transmission will downshift to the second gear and more engine braking will be obtained.
Shift into the "L" range when the vehicle speed is lower than 25 mph (40 km/h). The transmission will downshift to the first gear and maximum engine braking will be applied.

CAUTION:

Be careful when downshifting on a slippery surface. The abrupt change in engine speed could cause the vehicle to spin or skid.

NOTICE:

To prevent engine overrevving, do not downshift if you are going faster than the above speed in each range.

cruisercult.com

(c) Using the "3", "2" and "L" ranges

The "3", "2" and "L" ranges are used for strong traction in addition to strong engine braking as described previously. The mechanism for this is that the transmission uses mainly lower gears.

With the selector lever in "3", "2" or "L", you can start the vehicle in motion as with the lever in "D".

With the selector lever in "3", the vehicle will start in the first gear and automatically shift to the second and third gears, but will not shift to the overdrive gear. This provides strong traction such as for climbing a gentle slope.

With the selector lever in "2", the transmission is engaged in the second gear and will not upshift or downshift at all. This provides strong traction such as for hill climbing.

With the selector lever in "L", the transmission is engaged in the first gear and will not upshift at all. This provides maximum traction such as for hard towing.

41

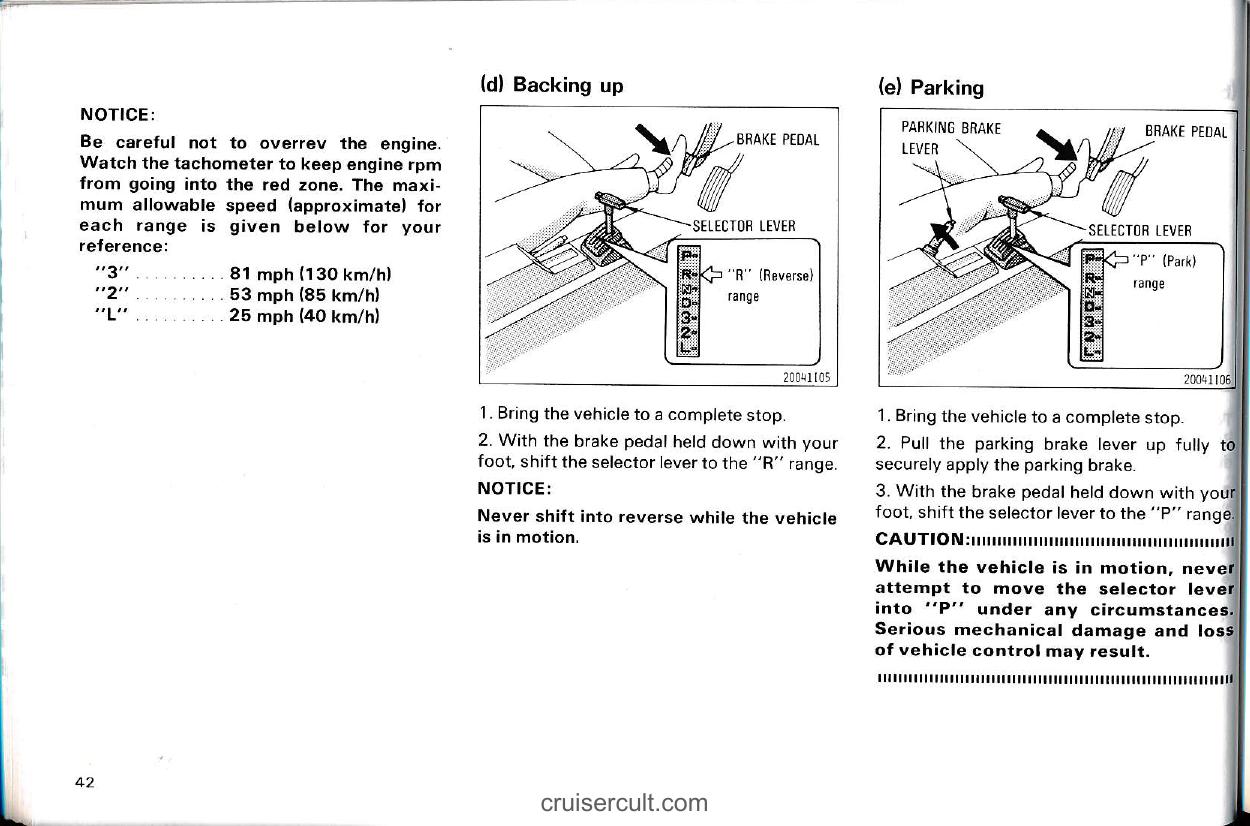

Page 42

NOTICE:

Be careful not to overrev the engine. Watch the tachometer to keep engine rpm from going into the red zone. The maximum allowable speed (approximate) for each range is given below for your reference:

"3" ........... 81 mph (130 km/h)
"2" ........... 53 mph (85 km/h)
"L" ........... 25 mph (40 km/h)

(d) Backing up

BRAKE PEDAL
SELECTOR LEVER
"R" (Reverse) range
Bring the vehicle to a complete stop.
With the brake pedal held down with your foot, shift the selector lever to the "R" range.

NOTICE:
Never shift into reverse while the vehicle is in motion.

(e) Parking

PARKING BRAKE LEVER
BRAKE PEDAL
SELECTOR LEVER
"P" (Park) range
Bring the vehicle to a complete stop.
Pull the parking brake lever up fully to securely apply the parking brake.
With the brake pedal held down with your foot, shift the selector lever to the "P" range.

CAUTION:
While the vehicle is in motion, never attempt to move the selector lever into "P" under any circumstances. Serious mechanical damage and loss of vehicle control may result.

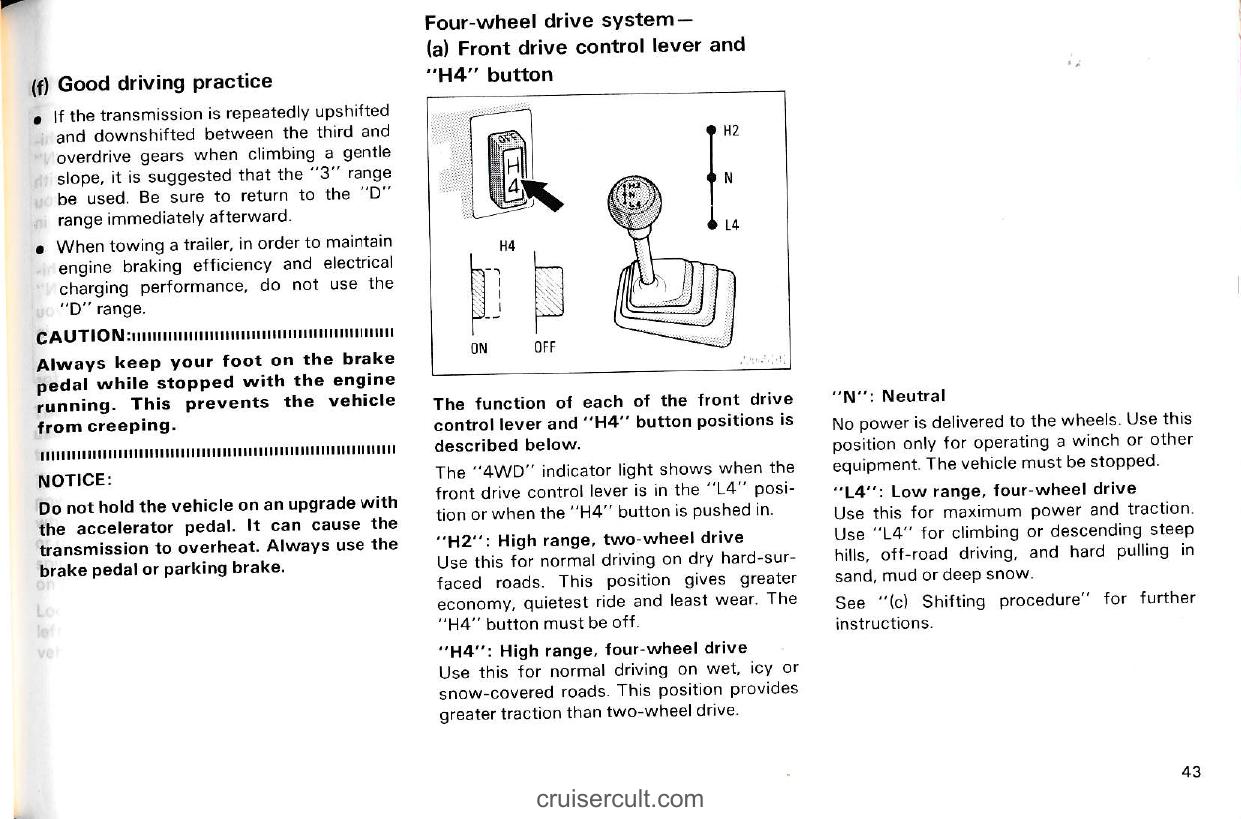

Page 43

(f) Good driving practice

If the transmission is repeatedly upshifted and downshifted between the third and overdrive gears when climbing a gentle slope, it is suggested that the "3" range be used. Be sure to return to the "D" range immediately afterward.
When towing a trailer, in order to maintain engine braking efficiency and electrical charging performance, do not use the "D" range.

CAUTION: Always keep your foot on the brake pedal while stopped with the engine running. This prevents the vehicle from creeping.

NOTICE: Do not hold the vehicle on an upgrade with the accelerator pedal. It can cause the transmission to overheat. Always use the brake pedal or parking brake.

Four-wheel drive system — (a) Front drive control lever and "H4" button

(Image labels: H2 · N · L4 ; H4 ON OFF)

The function of each of the front drive control lever and "H4" button positions is described below.

The "4WD" indicator light shows when the front drive control lever is in the "L4" position or when the "H4" button is pushed in.

"H2": High range, two-wheel drive
Use this for normal driving on dry hard-surfaced roads. This position gives greater economy, quietest ride and least wear. The "H4" button must be off.

"H4": High range, four-wheel drive
Use this for normal driving on wet, icy or snow-covered roads. This position provides greater traction than two-wheel drive.

"N": Neutral
No power is delivered to the wheels. Use this position only for operating a winch or other equipment. The vehicle must be stopped.

"L4": Low range, four-wheel drive
Use this for maximum power and traction. Use "L4" for climbing or descending steep hills, off-road driving, and hard pulling in sand, mud or deep snow.

See "(c) Shifting procedure" for further instructions.

cruisercult.com

43

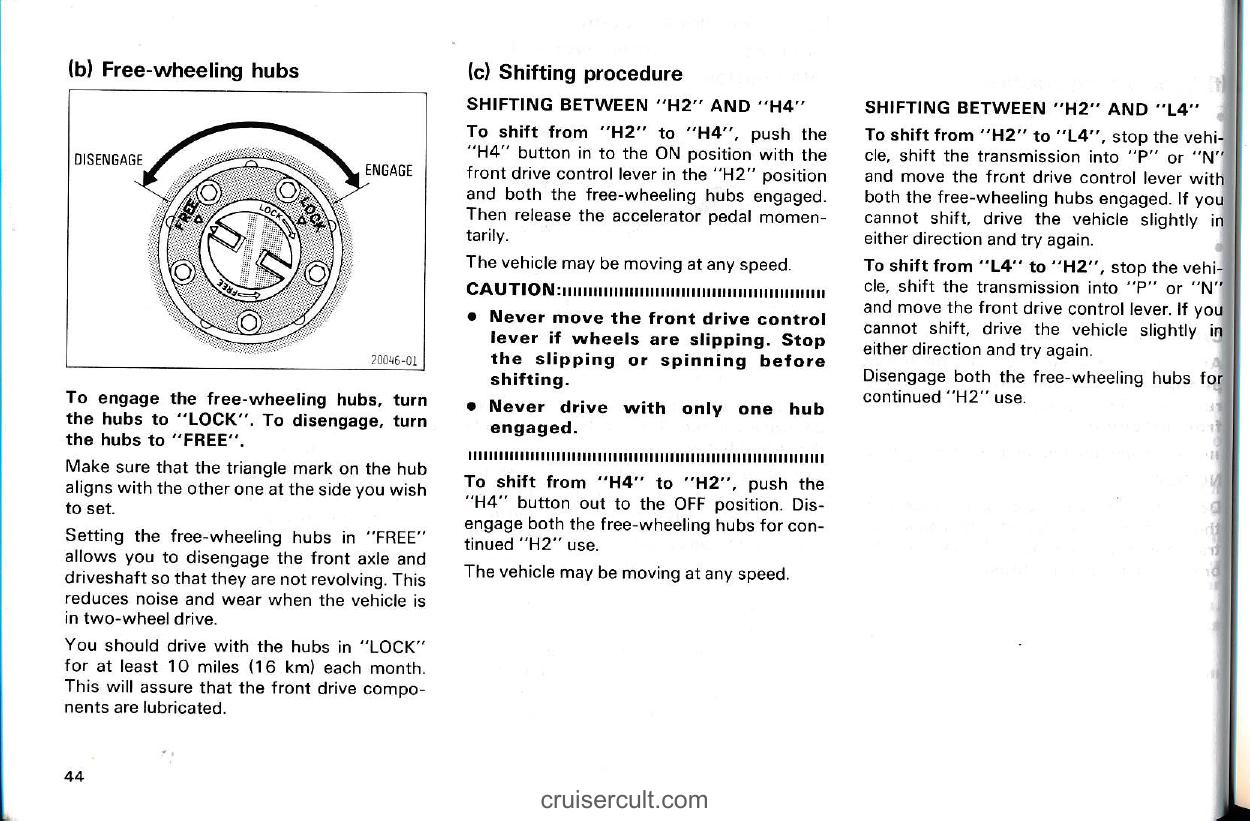

Page 44

(b) Free-wheeling hubs

![diagram]

To engage the free-wheeling hubs, turn the hubs to "LOCK". To disengage, turn the hubs to "FREE".

Make sure that the triangle mark on the hub aligns with the other one at the side you wish to set.

Setting the free-wheeling hubs in "FREE" allows you to disengage the front axle and driveshaft so that they are not revolving. This reduces noise and wear when the vehicle is in two-wheel drive.

You should drive with the hubs in "LOCK" for at least 10 miles (16 km) each month. This will assure that the front drive components are lubricated.

(c) Shifting procedure

SHIFTING BETWEEN "H2" AND "H4"

To shift from "H2" to "H4", push the "H4" button in to the ON position with the front drive control lever in the "H2" position and both the free-wheeling hubs engaged. Then release the accelerator pedal momentarily.

The vehicle may be moving at any speed.

CAUTION: - Never move the front drive control lever if wheels are slipping. Stop the slipping or spinning before shifting. - Never drive with only one hub engaged.

To shift from "H4" to "H2", push the "H4" button out to the OFF position. Disengage both the free-wheeling hubs for continued "H2" use.

The vehicle may be moving at any speed.

SHIFTING BETWEEN "H2" AND "L4"

To shift from "H2" to "L4", stop the vehicle, shift the transmission into "P" or "N" and move the front drive control lever with both the free-wheeling hubs engaged. If you cannot shift, drive the vehicle slightly in either direction and try again.

To shift from "L4" to "H2", stop the vehicle, shift the transmission into "P" or "N" and move the front drive control lever. If you cannot shift, drive the vehicle slightly in either direction and try again.

Disengage both the free-wheeling hubs for continued "H2" use.

44

cruisercult.com

Page 45

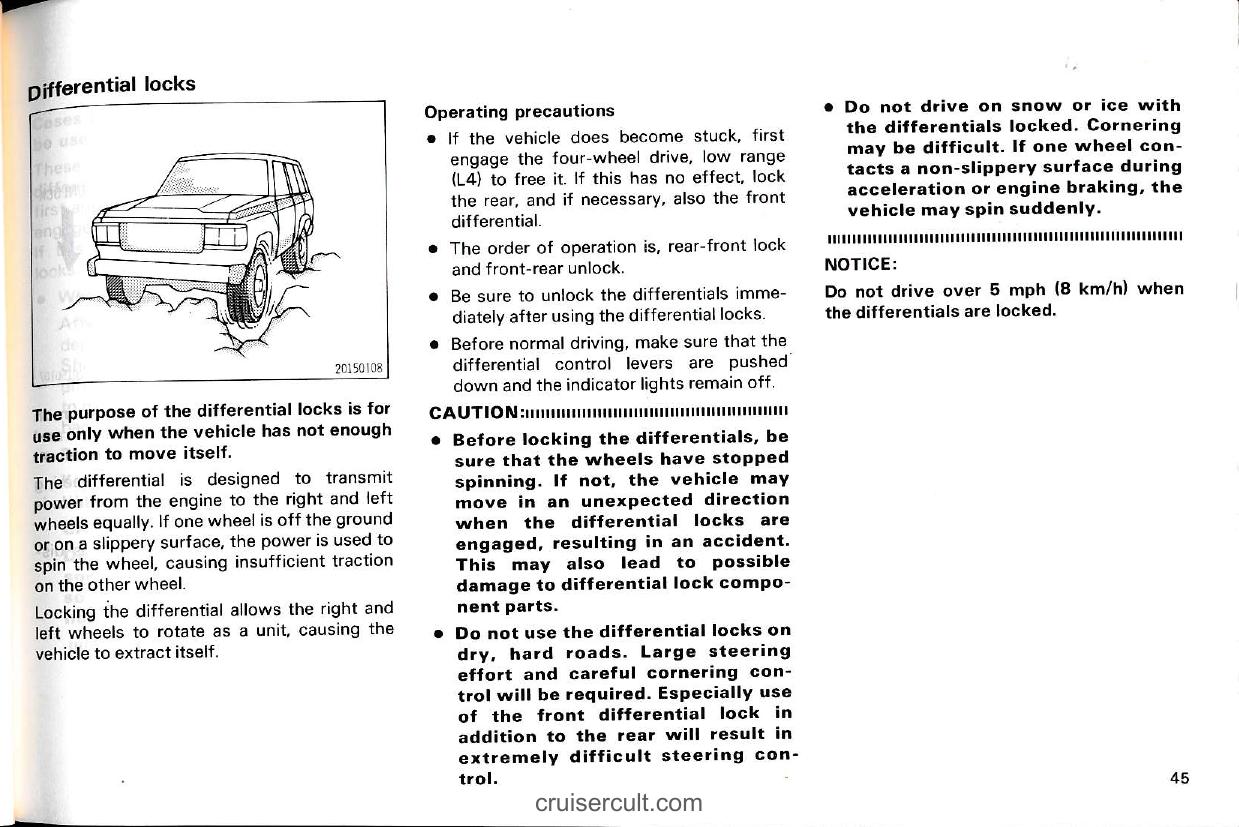

Differential locks

![20150108]

The purpose of the differential locks is for use only when the vehicle has not enough traction to move itself.

The differential is designed to transmit power from the engine to the right and left wheels equally. If one wheel is off the ground or on a slippery surface, the power is used to spin the wheel, causing insufficient traction on the other wheel.

Locking the differential allows the right and left wheels to rotate as a unit, causing the vehicle to extract itself.

Operating precautions

If the vehicle does become stuck, first engage the four-wheel drive, low range (L4) to free it. If this has no effect, lock the rear, and if necessary, also the front differential.
The order of operation is, rear-front lock and front-rear unlock.
Be sure to unlock the differentials immediately after using the differential locks.
Before normal driving, make sure that the differential control levers are pushed down and the indicator lights remain off.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Before locking the differentials, be sure that the wheels have stopped spinning. If not, the vehicle may move in an unexpected direction when the differential locks are engaged, resulting in an accident. This may also lead to possible damage to differential lock component parts.
Do not use the differential locks on dry, hard roads. Large steering effort and careful cornering control will be required. Especially use of the front differential lock in addition to the rear will result in extremely difficult steering control.
Do not drive on snow or ice with the differentials locked. Cornering may be difficult. If one wheel contacts a non-slippery surface during acceleration or engine braking, the vehicle may spin suddenly.

NOTICE:

Do not drive over 5 mph (8 km/h) when the differentials are locked.

cruisercult.com

45

Page 46

INDICATOR LIGHTS

DIFF LOCK

LOCK ↑
20150105

To lock the rear differential, pull up on the rear differential control lever. To lock the front differential in addition to the rear differential, pull up on the front differential control lever.

Locking the front differential is possible only when the rear differential control lever is pulled up. Before locking the front differential, make sure that the free-wheeling hubs are engaged (in the "LOCK" position).

For easy locking, pull up on the differential control levers and gently depress the accelerator pedal.

LOCK

INDICATOR LIGHTS
DIFF LOCK
20150106

The indicator lights tell when the differential locks are engaged. Note that each of the differentials is not still locked as long as the indicator light remains off.

↓ 1. UNLOCK
↓ 2. UNLOCK
20150107

To unlock the differentials, push down on the front differential control lever and then the rear differential control lever.

For easy unlocking, slightly turn the steering wheel in either direction while the vehicle is in motion.

When each of the differential locks is disengaged, the indicator light will go out.

46

cruisercult.com

Page 47

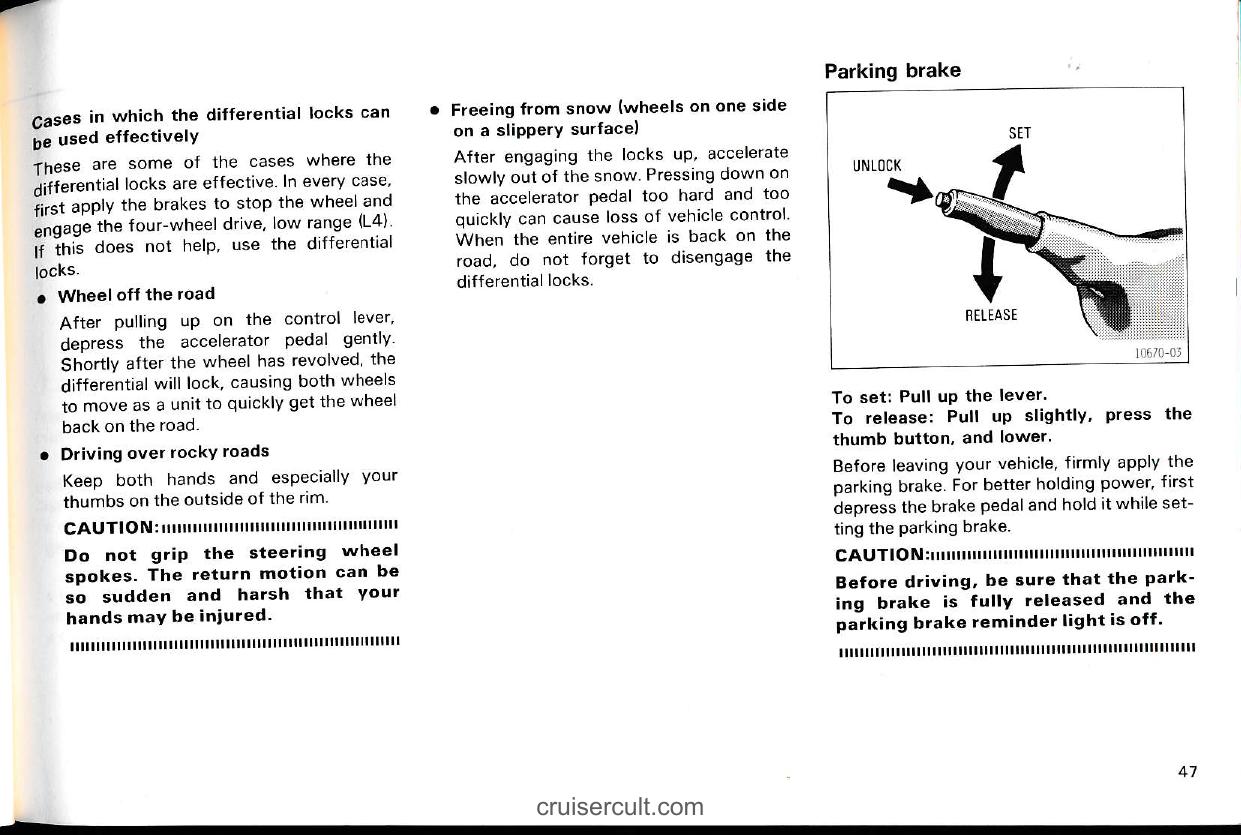

Cases in which the differential locks can be used effectively

These are some of the cases where the differential locks are effective. In every case, first apply the brakes to stop the wheel and engage the four-wheel drive, low range (L4). If this does not help, use the differential locks.

Wheel off the road

After pulling up on the control lever, depress the accelerator pedal gently. Shortly after the wheel has revolved, the differential will lock, causing both wheels to move as a unit to quickly get the wheel back on the road.

Driving over rocky roads

Keep both hands and especially your thumbs on the outside of the rim.

CAUTION: !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Do not grip the steering wheel spokes. The return motion can be so sudden and harsh that your hands may be injured.

||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

Freeing from snow (wheels on one side on a slippery surface)

After engaging the locks up, accelerate slowly out of the snow. Pressing down on the accelerator pedal too hard and too quickly can cause loss of vehicle control. When the entire vehicle is back on the road, do not forget to disengage the differential locks.

Parking brake

(To set/release illustration)

To set: Pull up the lever.
To release: Pull up slightly, press the thumb button, and lower.

Before leaving your vehicle, firmly apply the parking brake. For better holding power, first depress the brake pedal and hold it while setting the parking brake.

CAUTION: !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Before driving, be sure that the parking brake is fully released and the parking brake reminder light is off.

||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

cruisercult.com

47

Page 48

48
cruisercult.com

Page 49

Part 1 OPERATION OF INSTRUMENTS AND CONTROLS—

Chapter 1-7 Car audio and Environmental control system

Car audio operating tips
Power antenna switch
AM-FM radio with electronic tuner
Cassette tape player
AM-FM radio with electronic tuner and cassette tape player
Air conditioner controls
Heater controls
Rear heater controls

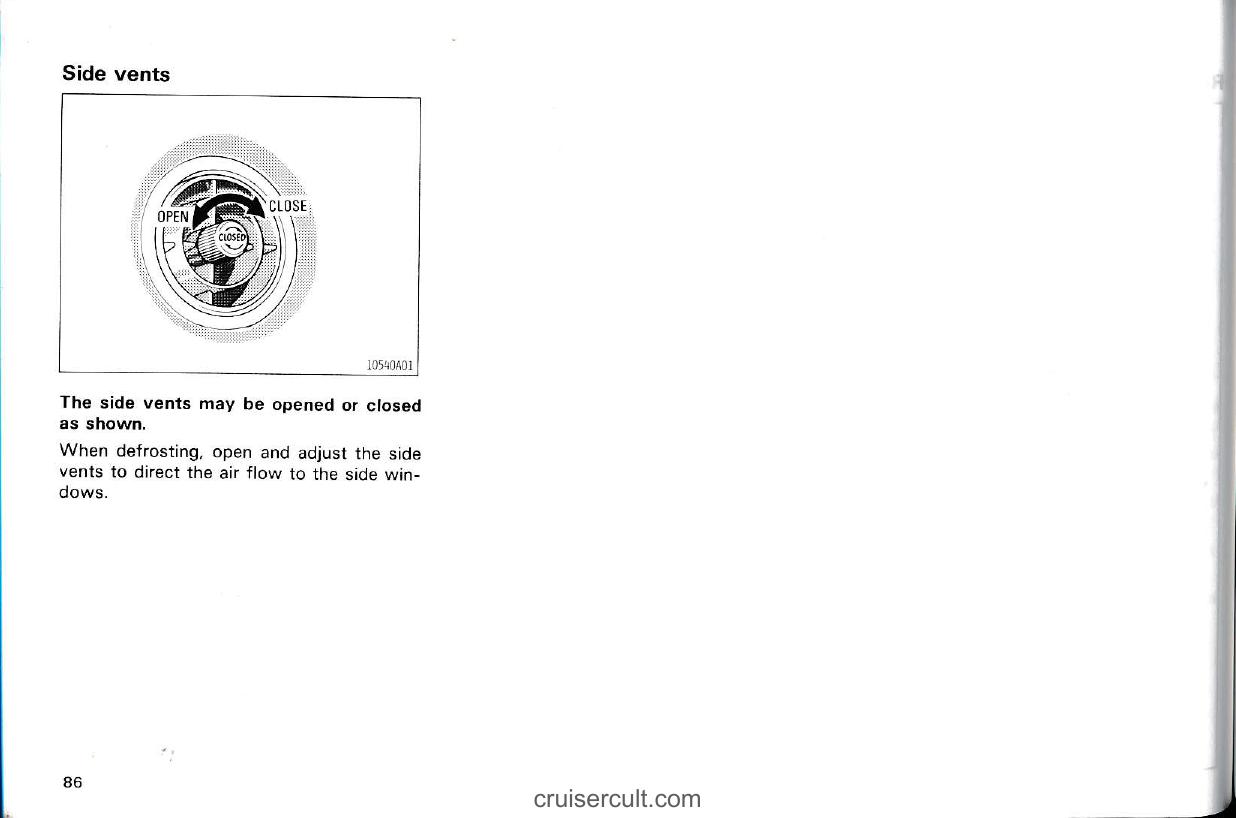

Side vents

cruisercult.com

49

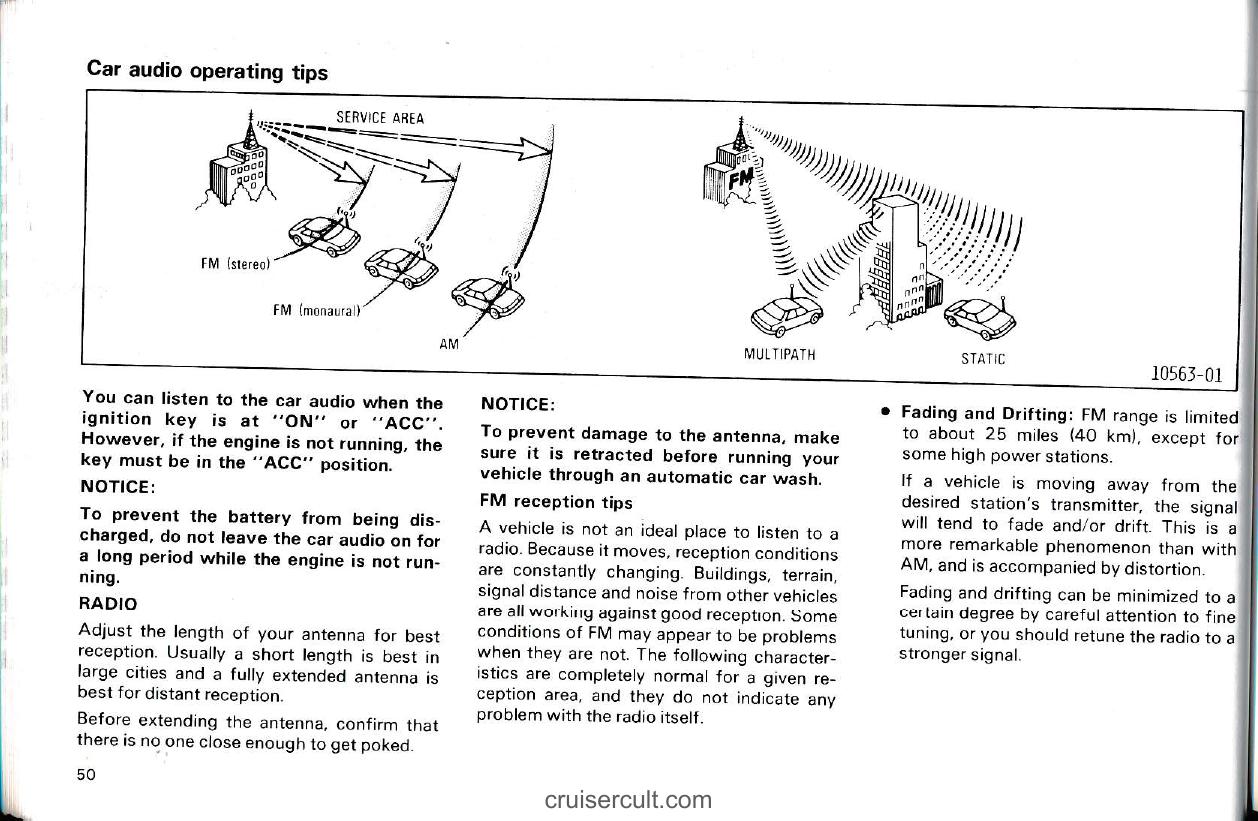

Page 50

Car audio operating tips

Figure labels: SERVICE AREA · FM (stereo) · FM (monaural) · AM · MULTIPATH · STATIC · 10563-01

You can listen to the car audio when the ignition key is at "ON" or "ACC". However, if the engine is not running, the key must be in the "ACC" position.

NOTICE: To prevent the battery from being discharged, do not leave the car audio on for a long period while the engine is not running.

RADIO

Adjust the length of your antenna for best reception. Usually a short length is best in large cities and a fully extended antenna is best for distant reception.

Before extending the antenna, confirm that there is no one close enough to get poked.

50

NOTICE: To prevent damage to the antenna, make sure it is retracted before running your vehicle through an automatic car wash.

FM reception tips

A vehicle is not an ideal place to listen to a radio. Because it moves, reception conditions are constantly changing. Buildings, terrain, signal distance and noise from other vehicles are all working against good reception. Some conditions of FM may appear to be problems when they are not. The following characteristics are completely normal for a given reception area, and they do not indicate any problem with the radio itself.

Fading and Drifting: FM range is limited to about 25 miles (40 km), except for some high power stations.
If a vehicle is moving away from the desired station's transmitter, the signal will tend to fade and/or drift. This is a more remarkable phenomenon than with AM, and is accompanied by distortion.
Fading and drifting can be minimized to a certain degree by careful attention to fine tuning, or you should retune the radio to a stronger signal.

cruisercult.com

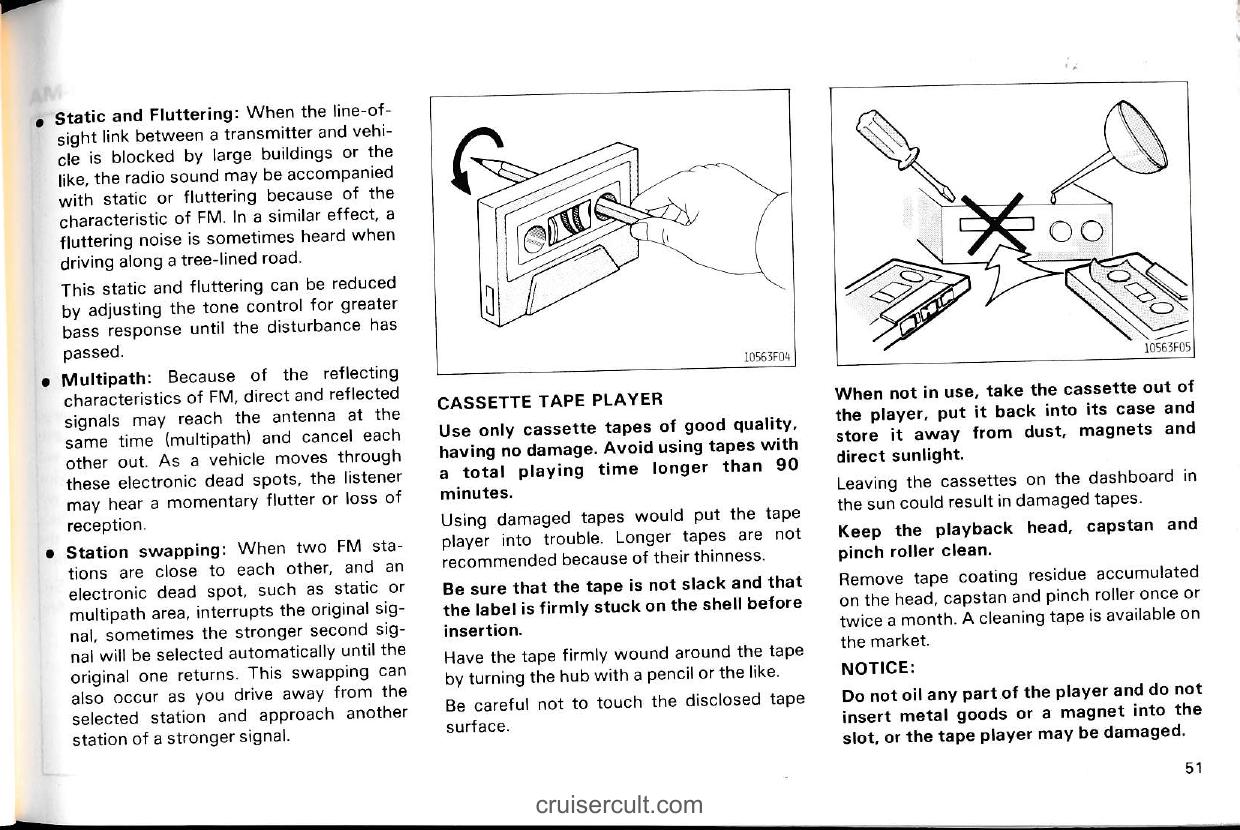

Page 51

Static and Fluttering: When the line-of-sight link between a transmitter and vehicle is blocked by large buildings or the like, the radio sound may be accompanied with static or fluttering because of the characteristic of FM. In a similar effect, a fluttering noise is sometimes heard when driving along a tree-lined road.

This static and fluttering can be reduced by adjusting the tone control for greater bass response until the disturbance has passed.

Multipath: Because of the reflecting characteristics of FM, direct and reflected signals may reach the antenna at the same time (multipath) and cancel each other out. As a vehicle moves through these electronic dead spots, the listener may hear a momentary flutter or loss of reception.
Station swapping: When two FM stations are close to each other, and an electronic dead spot, such as static or multipath area, interrupts the original signal, sometimes the stronger second signal will be selected automatically until the original one returns. This swapping can also occur as you drive away from the selected station and approach another station of a stronger signal.

CASSETTE TAPE PLAYER

Use only cassette tapes of good quality, having no damage. Avoid using tapes with a total playing time longer than 90 minutes.

Using damaged tapes would put the tape player into trouble. Longer tapes are not recommended because of their thinness.

Be sure that the tape is not slack and that the label is firmly stuck on the shell before insertion.

Have the tape firmly wound around the tape hub by turning the hub with a pencil or the like.

Be careful not to touch the exposed tape surface.

When not in use, take the cassette out of the player, put it back into its case and store it away from dust, magnets and direct sunlight.

Leaving the cassettes on the dashboard in the sun could result in damaged tapes.

Keep the playback head, capstan and pinch roller clean.

Remove tape coating residue accumulated on the head, capstan and pinch roller once or twice a month. A cleaning tape is available on the market.

NOTICE:

Do not oil any part of the player and do not insert metal goods or a magnet into the slot, or the tape player may be damaged.

cruisercult.com

51

Page 52

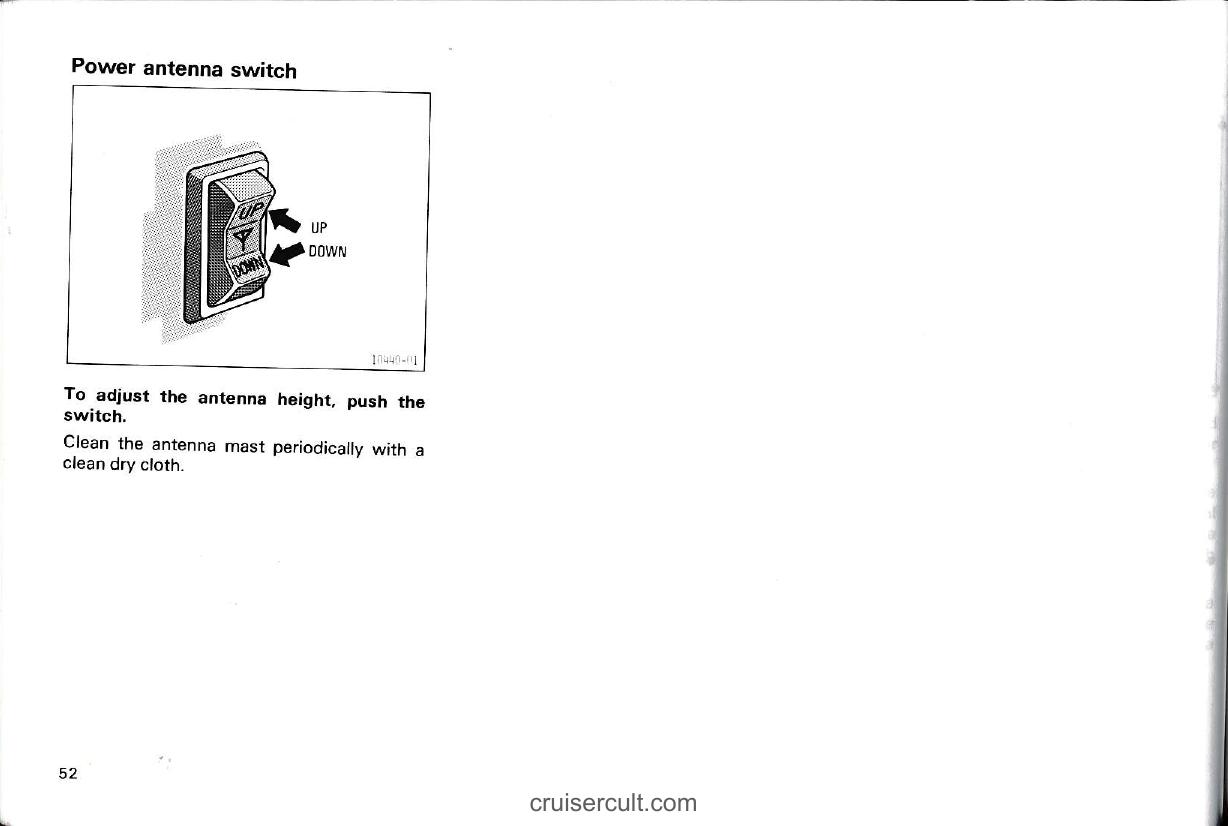

Power antenna switch

UP
DOWN

To adjust the antenna height, push the switch.

Clean the antenna mast periodically with a clean dry cloth.

10440-01

52

cruisercult.com

Page 53

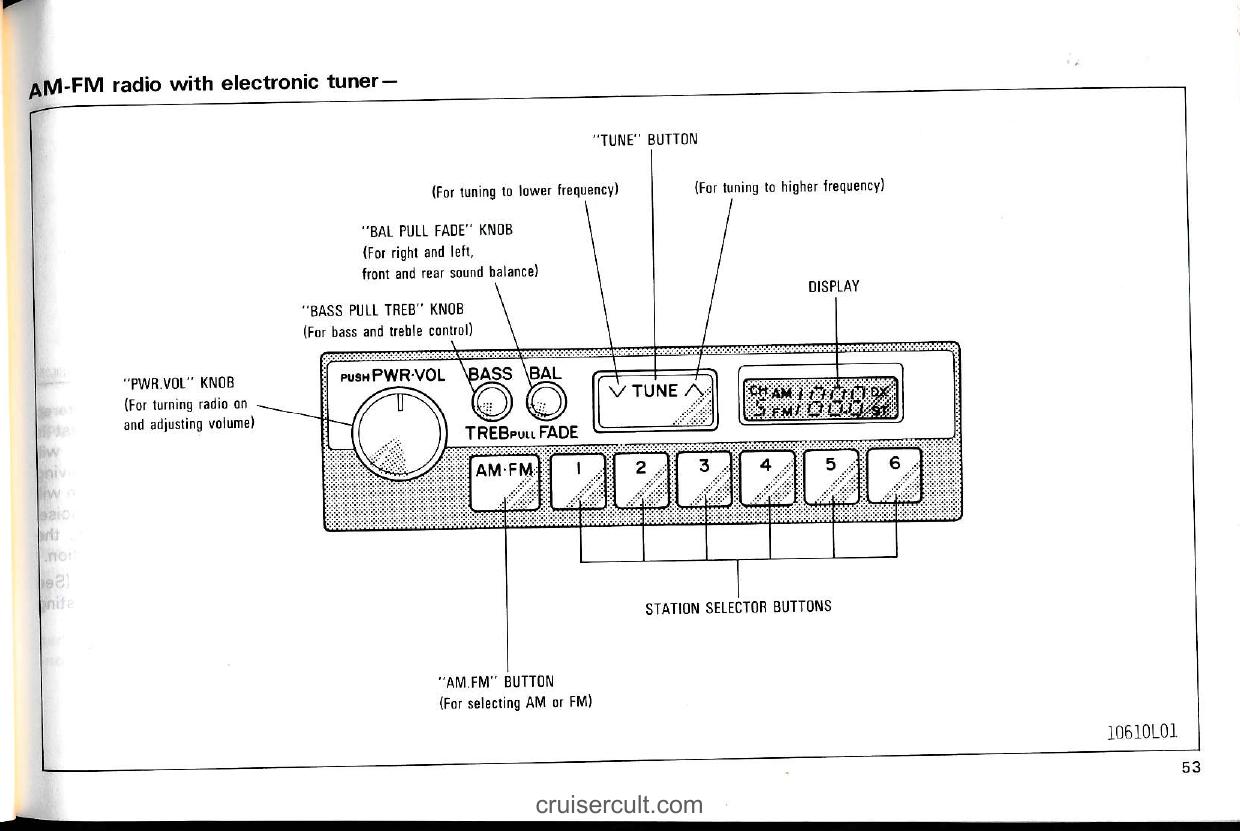

AM-FM radio with electronic tuner —

"TUNE" BUTTON
(For tuning to lower frequency)
(For tuning to higher frequency)
"BAL PULL FADE" KNOB
(For right and left, front and rear sound balance)
"BASS PULL TREB" KNOB
(For bass and treble control)
DISPLAY
"PWR.VOL" KNOB
(For turning radio on and adjusting volume)
PUSH PWR·VOL
BASS BAL
TREB PULL FADE
AM·FM 1 2 3 4 5 6
"AM·FM" BUTTON
(For selecting AM or FM)
STATION SELECTOR BUTTONS

10610L01

53

cruisercult.com

Page 54

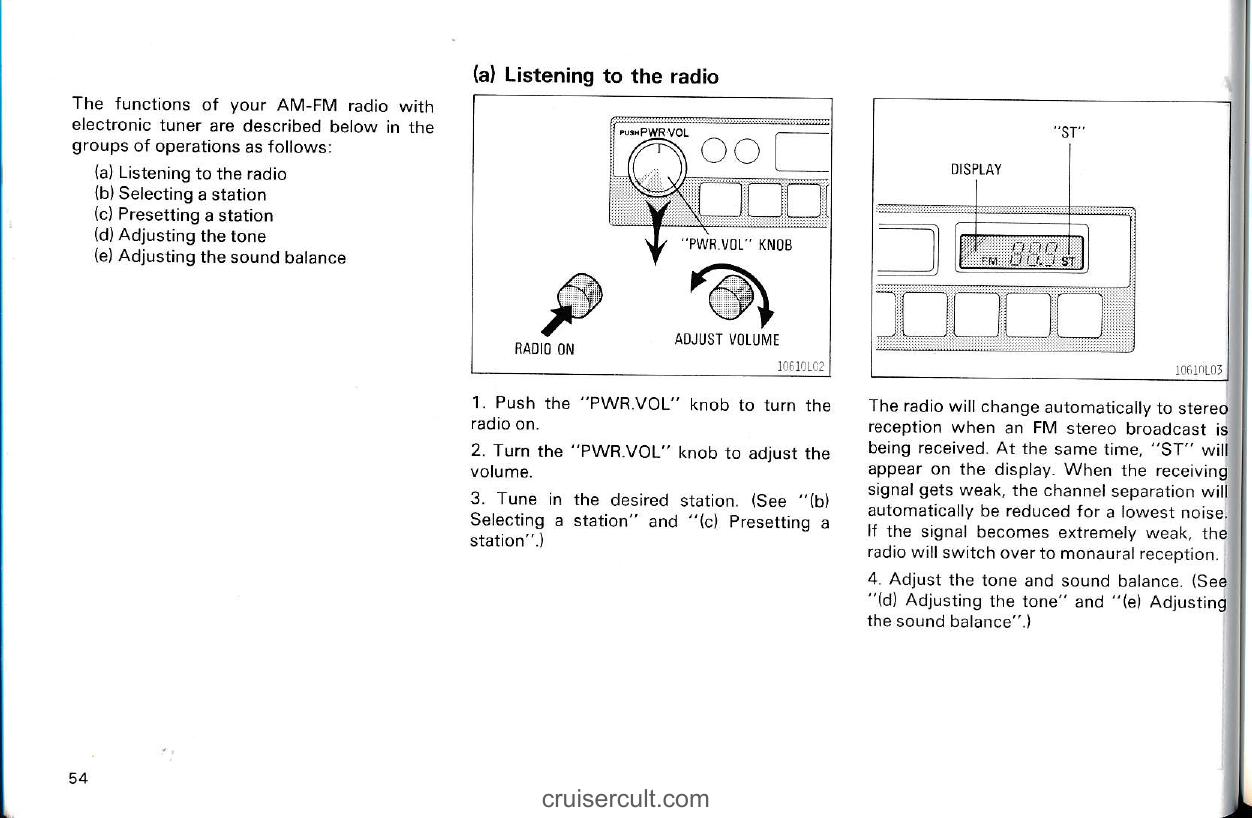

(a) Listening to the radio

The functions of your AM-FM radio with electronic tuner are described below in the groups of operations as follows:

(a) Listening to the radio
(b) Selecting a station
(c) Presetting a station
(d) Adjusting the tone
(e) Adjusting the sound balance

PUSH PWR.VOL

"PWR.VOL" KNOB

RADIO ON

ADJUST VOLUME

10610L02

Push the "PWR.VOL" knob to turn the radio on.
Turn the "PWR.VOL" knob to adjust the volume.
Tune in the desired station. (See "(b) Selecting a station" and "(c) Presetting a station".)

DISPLAY

"ST"

10610L03

The radio will change automatically to stereo reception when an FM stereo broadcast is being received. At the same time, "ST" will appear on the display. When the receiving signal gets weak, the channel separation will automatically be reduced for a lowest noise. If the signal becomes extremely weak, the radio will switch over to monaural reception.

Adjust the tone and sound balance. (See "(d) Adjusting the tone" and "(e) Adjusting the sound balance".)

54

cruisercult.com

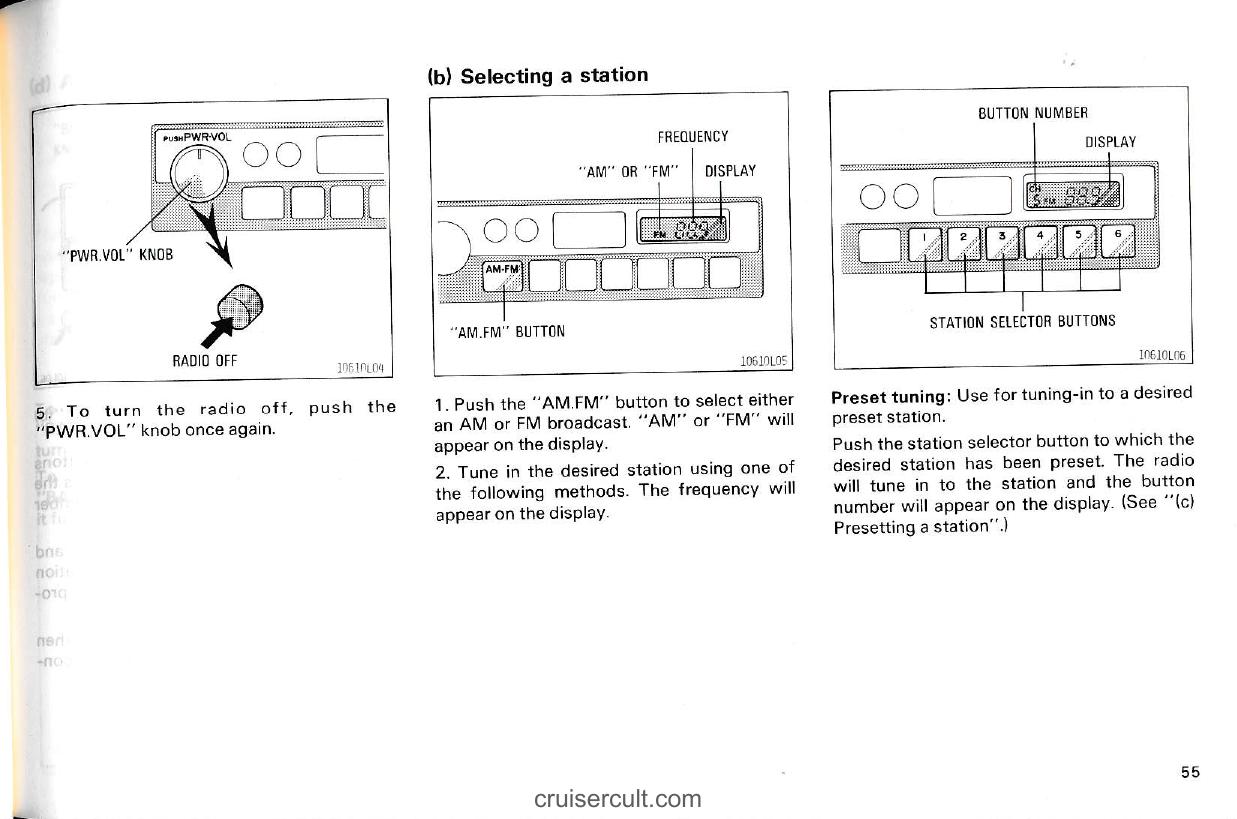

Page 55

(b) Selecting a station

PUSH PWR-VOL

"PWR.VOL" KNOB

RADIO OFF

10610L04

To turn the radio off, push the "PWR.VOL" knob once again.

FREQUENCY

"'AM' OR 'FM' DISPLAY"

AM-FM BUTTON

10610L05

Push the "AM.FM" button to select either an AM or FM broadcast. "AM" or "FM" will appear on the display.
Tune in the desired station using one of the following methods. The frequency will appear on the display.

BUTTON NUMBER DISPLAY

STATION SELECTOR BUTTONS

10610L06

Preset tuning: Use for tuning-in to a desired preset station.

Push the station selector button to which the desired station has been preset. The radio will tune in to the station and the button number will appear on the display. (See "(c) Presetting a station".)

cruisercult.com

55

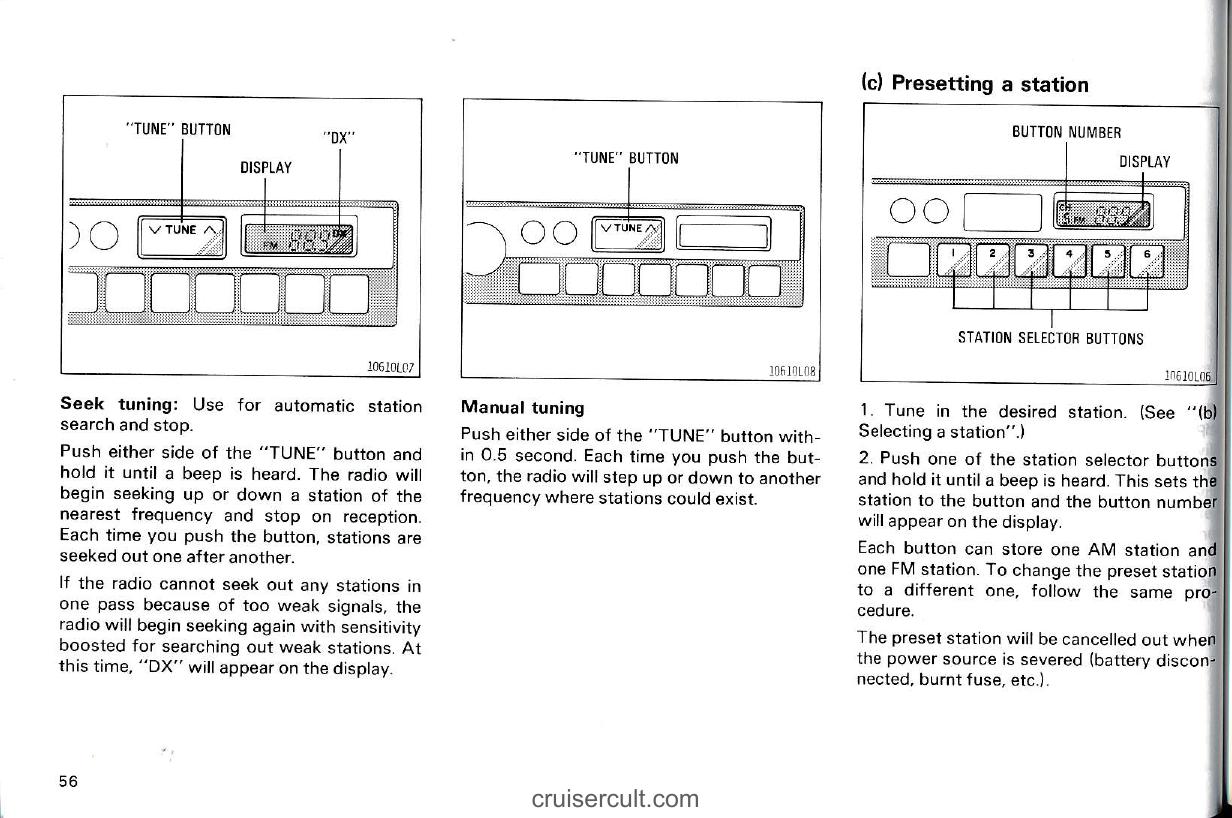

Page 56

"TUNE" BUTTON "DX" DISPLAY

Seek tuning: Use for automatic station search and stop.

Push either side of the "TUNE" button and hold it until a beep is heard. The radio will begin seeking up or down a station of the nearest frequency and stop on reception. Each time you push the button, stations are seeked out one after another.

If the radio cannot seek out any stations in one pass because of too weak signals, the radio will begin seeking again with sensitivity boosted for searching out weak stations. At this time, "DX" will appear on the display.

10610L07

"TUNE" BUTTON

Manual tuning

Push either side of the "TUNE" button within 0.5 second. Each time you push the button, the radio will step up or down to another frequency where stations could exist.

10610L08

(c) Presetting a station

BUTTON NUMBER DISPLAY

1 2 3 4 5 6

STATION SELECTOR BUTTONS

10610L06

Tune in the desired station. (See "(b) Selecting a station".)
Push one of the station selector buttons and hold it until a beep is heard. This sets the station to the button and the button number will appear on the display.

Each button can store one AM station and one FM station. To change the preset station to a different one, follow the same procedure.

The preset station will be cancelled out when the power source is severed (battery disconnected, burnt fuse, etc.).

56

cruisercult.com

Page 57

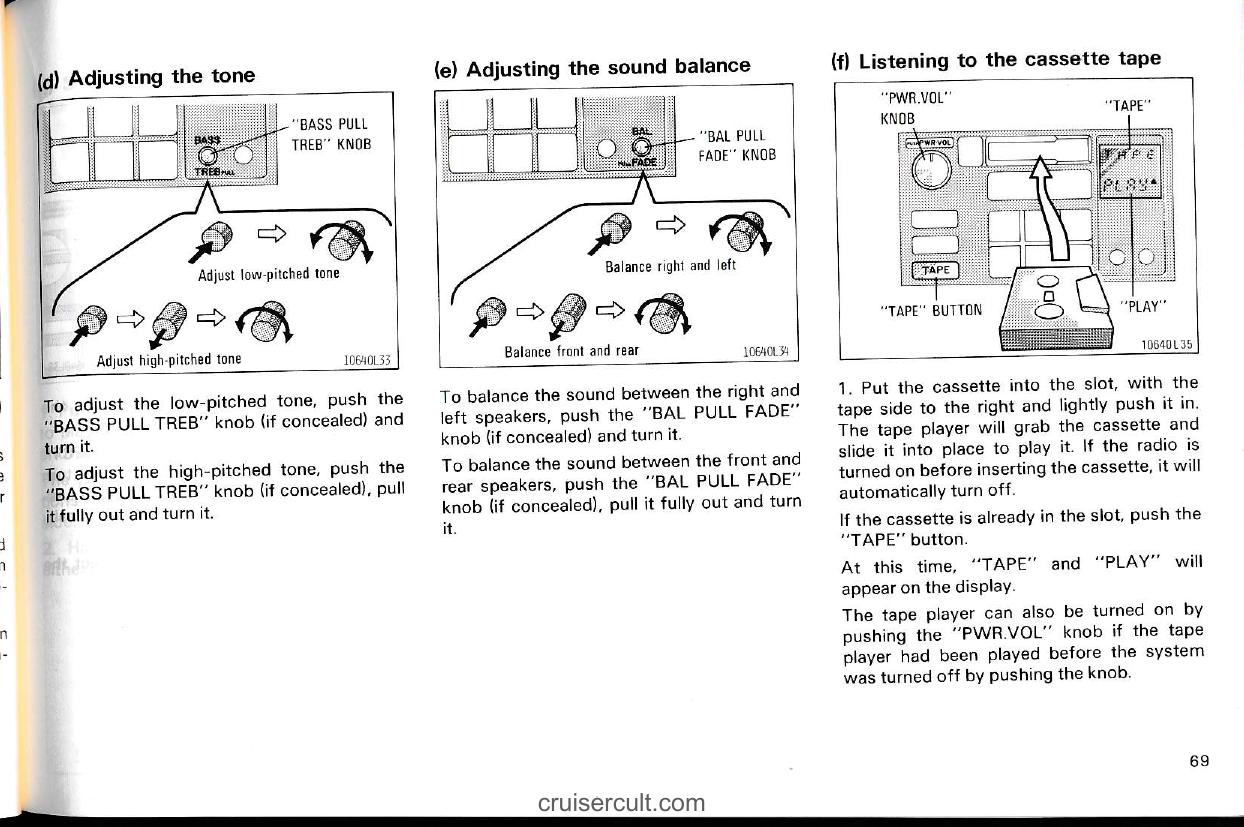

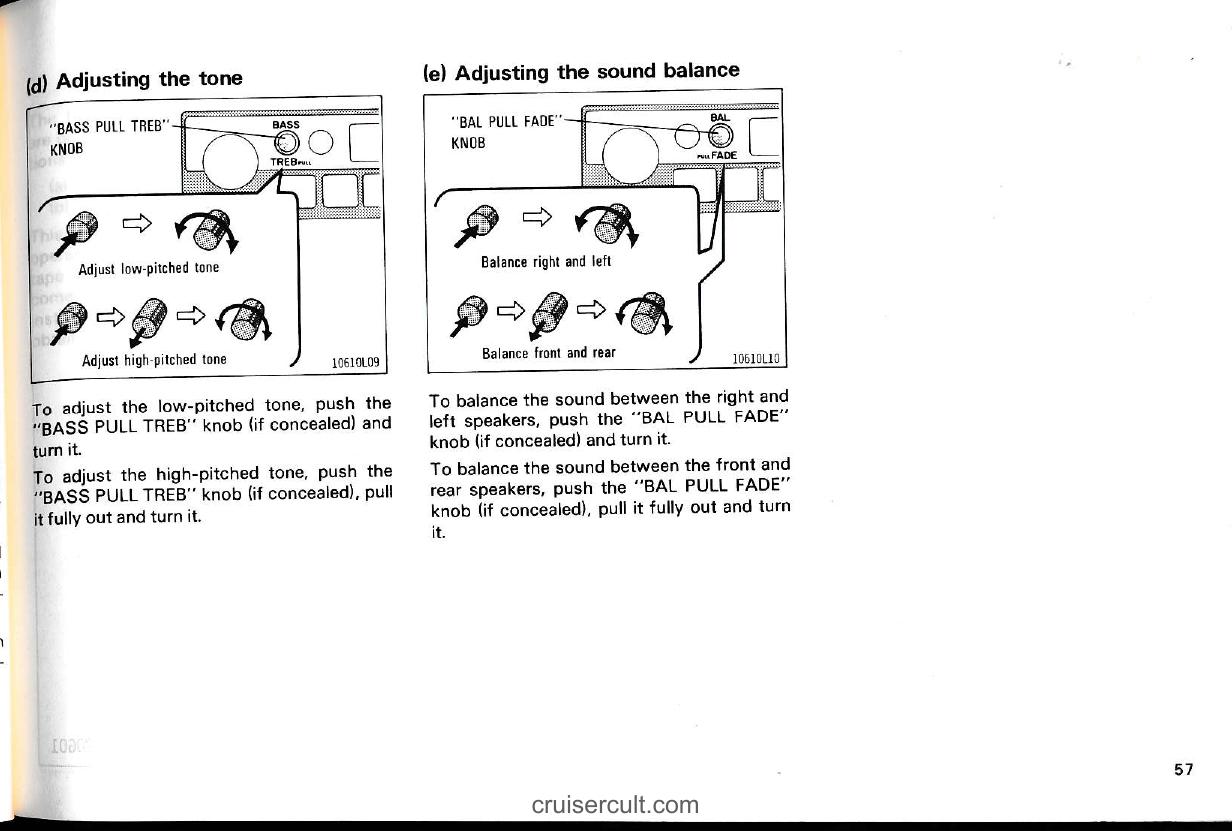

(d) Adjusting the tone

"BASS PULL TREB" KNOB

[BASS] [TREB PULL]

(illustration)

Adjust low-pitched tone
Adjust high-pitched tone

10610L09

To adjust the low-pitched tone, push the "BASS PULL TREB" knob (if concealed) and turn it.

To adjust the high-pitched tone, push the "BASS PULL TREB" knob (if concealed), pull it fully out and turn it.

(e) Adjusting the sound balance

"BAL PULL FADE" KNOB

[BAL] [PULL FADE]

(illustration)

Balance right and left
Balance front and rear

10610L10

To balance the sound between the right and left speakers, push the "BAL PULL FADE" knob (if concealed) and turn it.

To balance the sound between the front and rear speakers, push the "BAL PULL FADE" knob (if concealed), pull it fully out and turn it.

cruisercult.com

57

Page 58

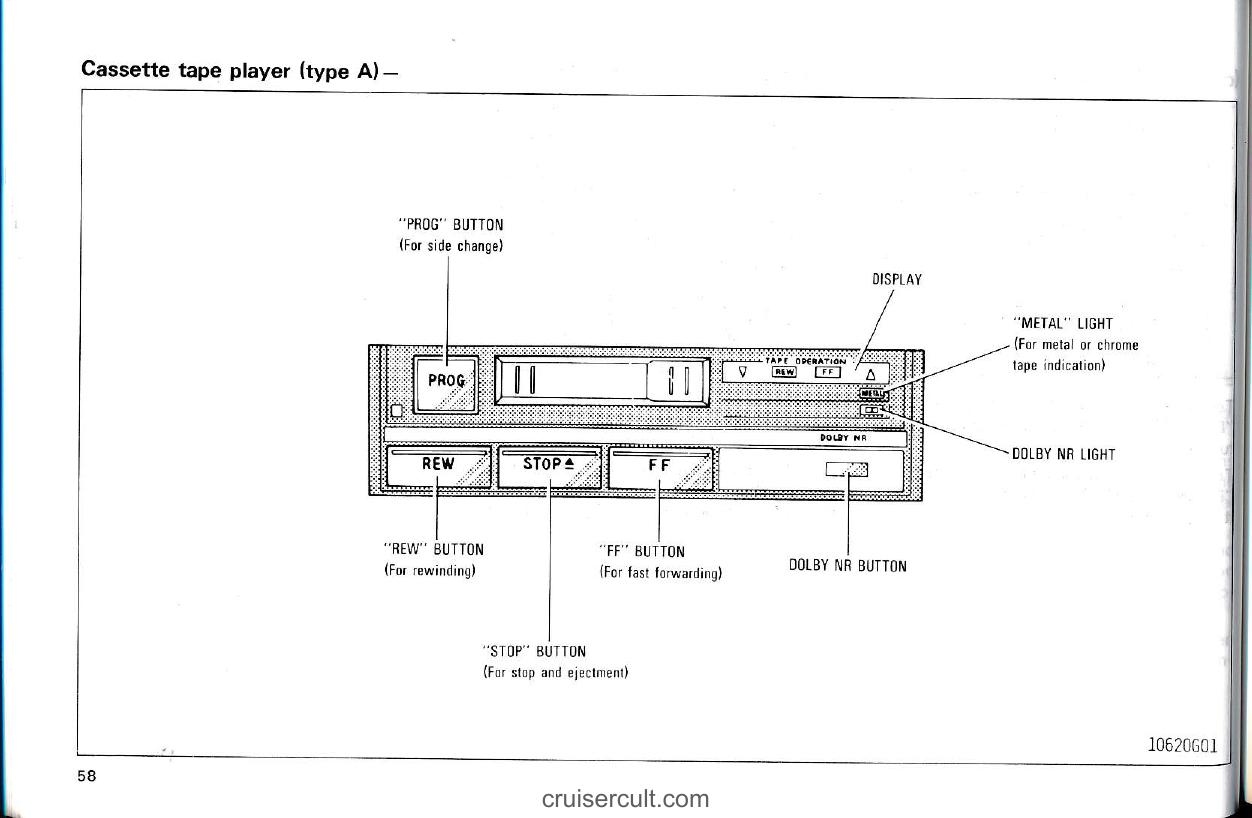

Cassette tape player (type A) —

"PROG" BUTTON
(For side change)
PROG
DISPLAY
TAPE OPERATION
REW FF
"METAL" LIGHT
(For metal or chrome tape indication)
DOLBY NR LIGHT
REW STOP FF
"REW" BUTTON
(For rewinding)
"STOP" BUTTON
(For stop and ejectment)
"FF" BUTTON
(For fast forwarding)
DOLBY NR BUTTON

58

cruisercult.com

10620601

Page 59

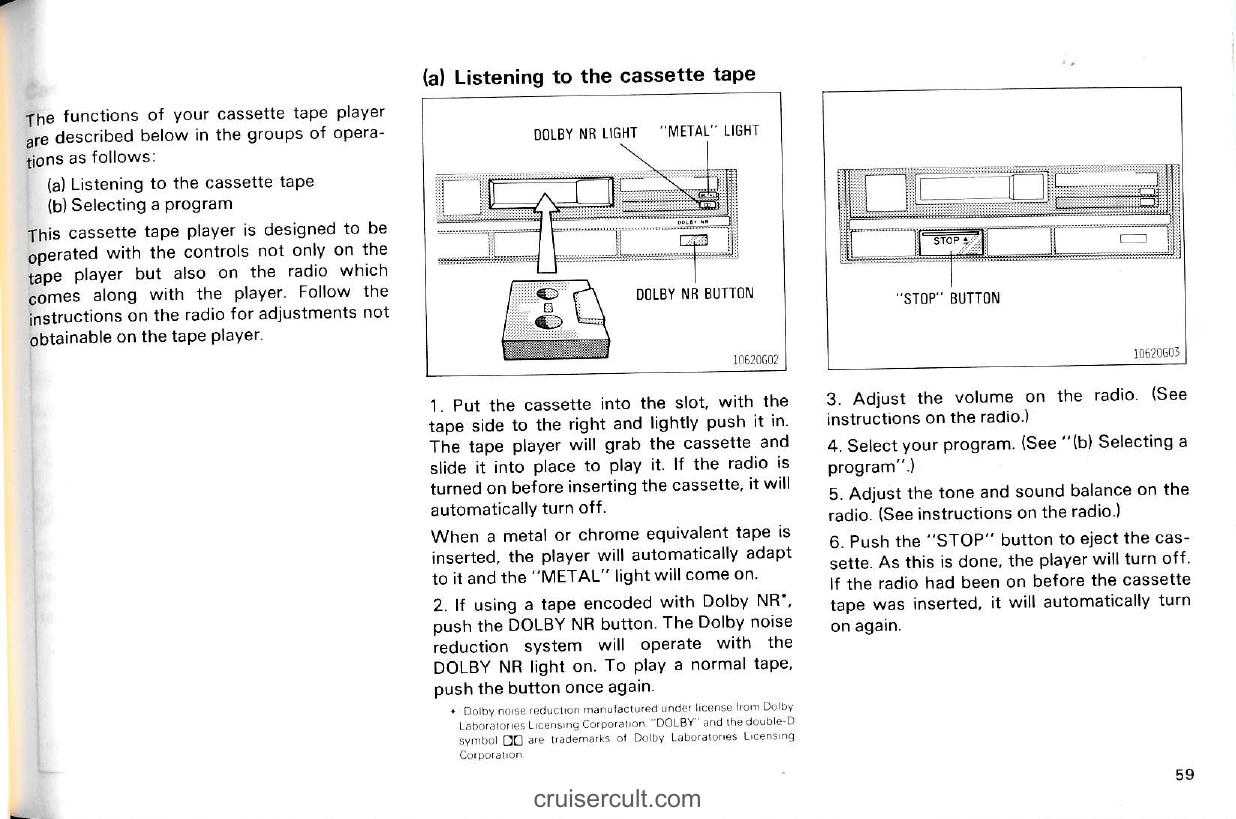

(a) Listening to the cassette tape

The functions of your cassette tape player are described below in the groups of operations as follows:

(a) Listening to the cassette tape
(b) Selecting a program

This cassette tape player is designed to be operated with the controls not only on the tape player but also on the radio which comes along with the player. Follow the instructions on the radio for adjustments not obtainable on the tape player.

DOLBY NR LIGHT "METAL" LIGHT
(NOTE: diagram)
DOLBY NR BUTTON
10620G02

(STOP) BUTTON
"STOP" BUTTON
10620G03

Put the cassette into the slot, with the tape side to the right and lightly push it in. The tape player will grab the cassette and slide it into place to play it. If the radio is turned on before inserting the cassette, it will automatically turn off.

When a metal or chrome equivalent tape is inserted, the player will automatically adapt to it and the "METAL" light will come on.

If using a tape encoded with Dolby NR*, push the DOLBY NR button. The Dolby noise reduction system will operate with the DOLBY NR light on. To play a normal tape, push the button once again.
Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "DOLBY" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
Adjust the volume on the radio. (See instructions on the radio.)
Select your program. (See "(b) Selecting a program".)
Adjust the tone and sound balance on the radio. (See instructions on the radio.)
Push the "STOP" button to eject the cassette. As this is done, the player will turn off. If the radio had been on before the cassette tape was inserted, it will automatically turn on again.

cruisercult.com

59

Page 60

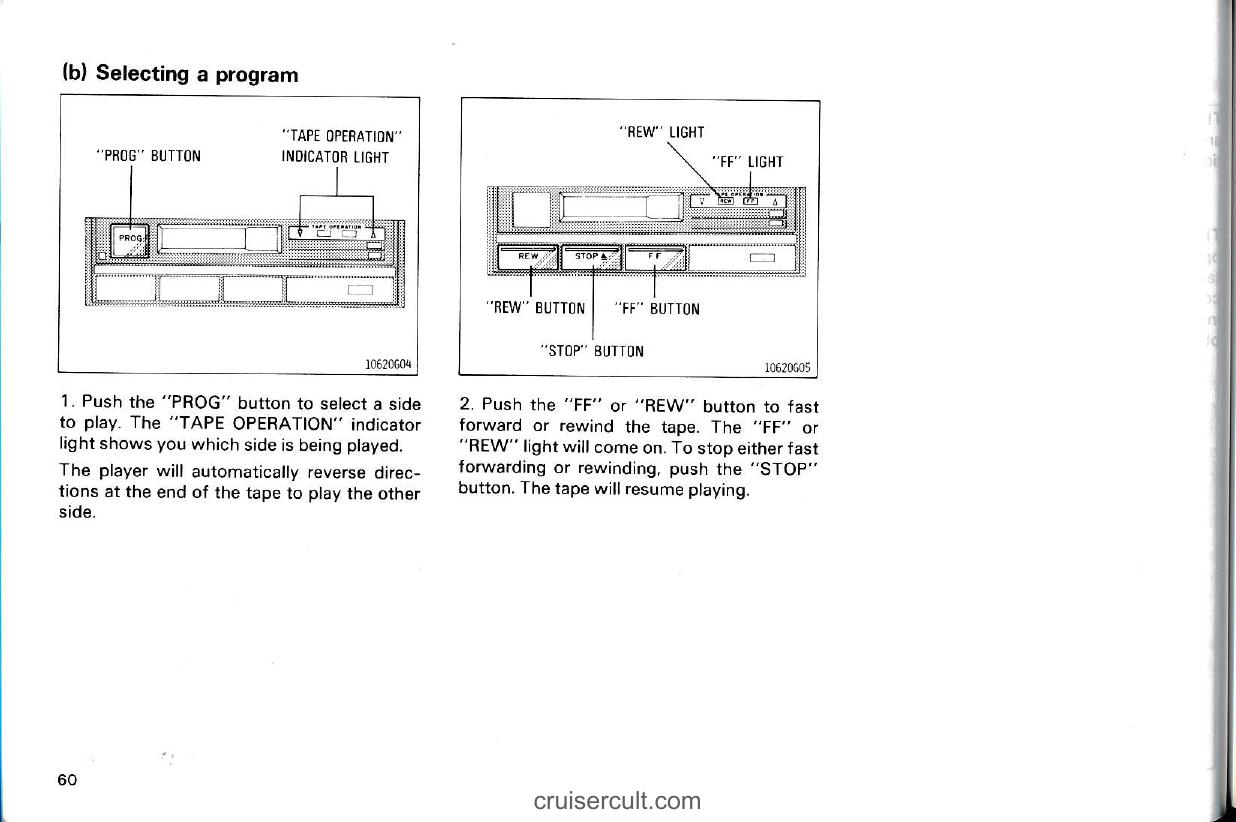

(b) Selecting a program

"PROG" BUTTON

"TAPE OPERATION" INDICATOR LIGHT

10620004

"REW" LIGHT

"FF" LIGHT

"REW" BUTTON

"STOP" BUTTON

"FF" BUTTON

10620005

Push the "PROG" button to select a side to play. The "TAPE OPERATION" indicator light shows you which side is being played.
The player will automatically reverse directions at the end of the tape to play the other side.
Push the "FF" or "REW" button to fast forward or rewind the tape. The "FF" or "REW" light will come on. To stop either fast forwarding or rewinding, push the "STOP" button. The tape will resume playing.

60

cruisercult.com

Page 61

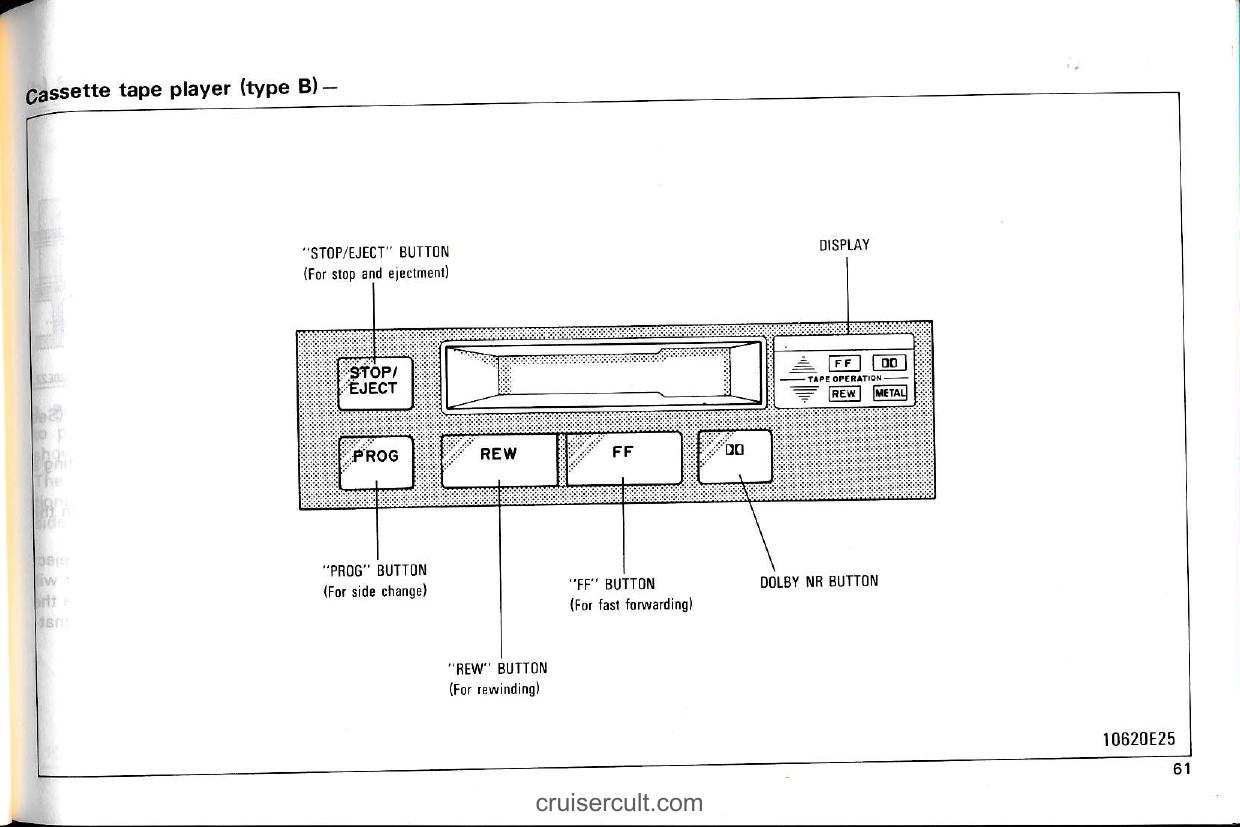

Cassette tape player (type B) -

"STOP/EJECT" BUTTON
(For stop and ejectment)
DISPLAY
STOP/ EJECT
"PROG" BUTTON
(For side change)
PROG
REW
"REW" BUTTON
(For rewinding)
FF
"FF" BUTTON
(For fast forwarding)
DO
DOLBY NR BUTTON
(small display panel)
[FF] [00]
TAPE OPERATION
REW METAL

10620E25

61

cruisercult.com

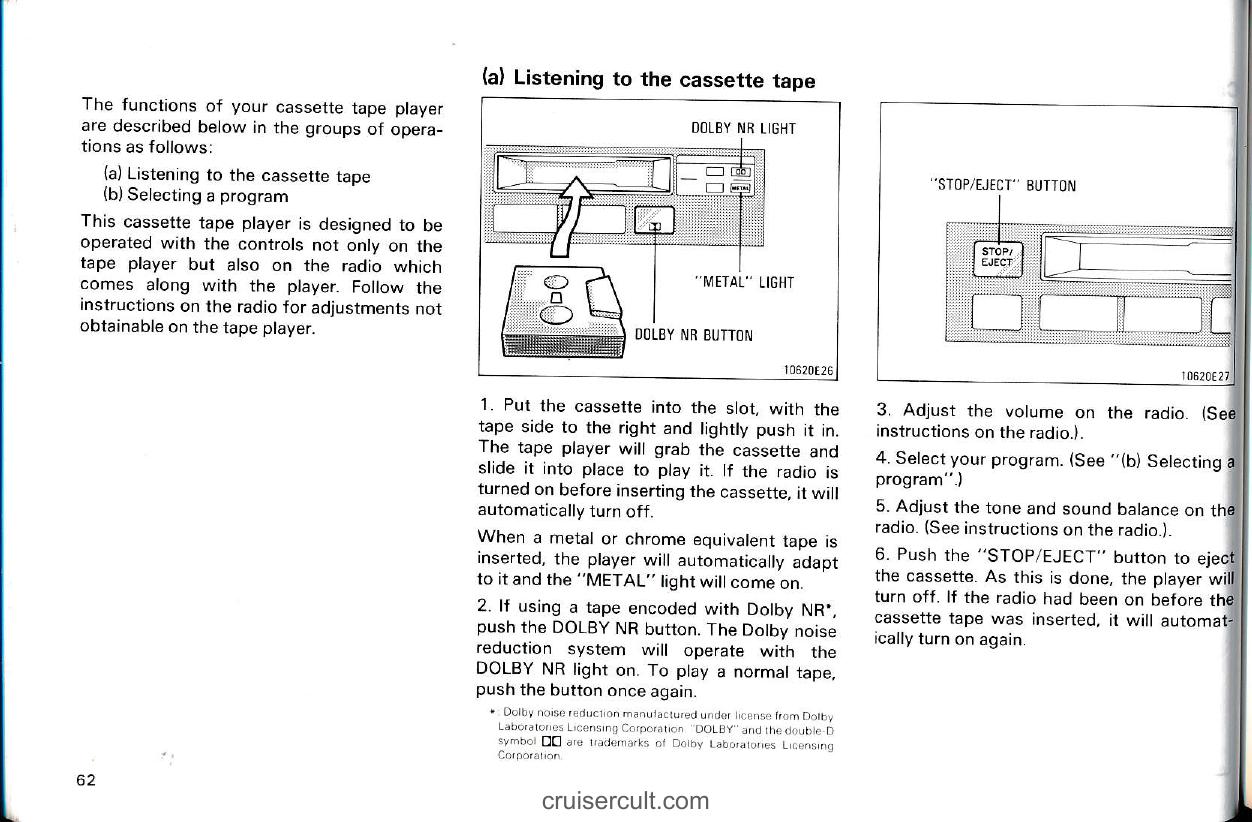

Page 62

The functions of your cassette tape player

The functions of your cassette tape player are described below in the groups of operations as follows:

(a) Listening to the cassette tape
(b) Selecting a program

This cassette tape player is designed to be operated with the controls not only on the tape player but also on the radio which comes along with the player. Follow the instructions on the radio for adjustments not obtainable on the tape player.

(a) Listening to the cassette tape

Illustration labels: - DOLBY NR LIGHT - "METAL" LIGHT - DOLBY NR BUTTON

Put the cassette into the slot, with the tape side to the right and lightly push it in. The tape player will grab the cassette and slide it into place to play it. If the radio is turned on before inserting the cassette, it will automatically turn off.

When a metal or chrome equivalent tape is inserted, the player will automatically adapt to it and the "METAL" light will come on.

If using a tape encoded with Dolby NR*, push the DOLBY NR button. The Dolby noise reduction system will operate with the DOLBY NR light on. To play a normal tape, push the button once again.

* Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation "DOLBY" and the double-D symbol □□ are trademarks of Dolby Laboratories Licensing Corporation.

Illustration label: - "STOP/EJECT" BUTTON

Adjust the volume on the radio. (See instructions on the radio.).
Select your program. (See "(b) Selecting a program".)
Adjust the tone and sound balance on the radio. (See instructions on the radio.).
Push the "STOP/EJECT" button to eject the cassette. As this is done, the player will turn off. If the radio had been on before the cassette tape was inserted, it will automatically turn on again.

62

cruisercult.com

Page 63

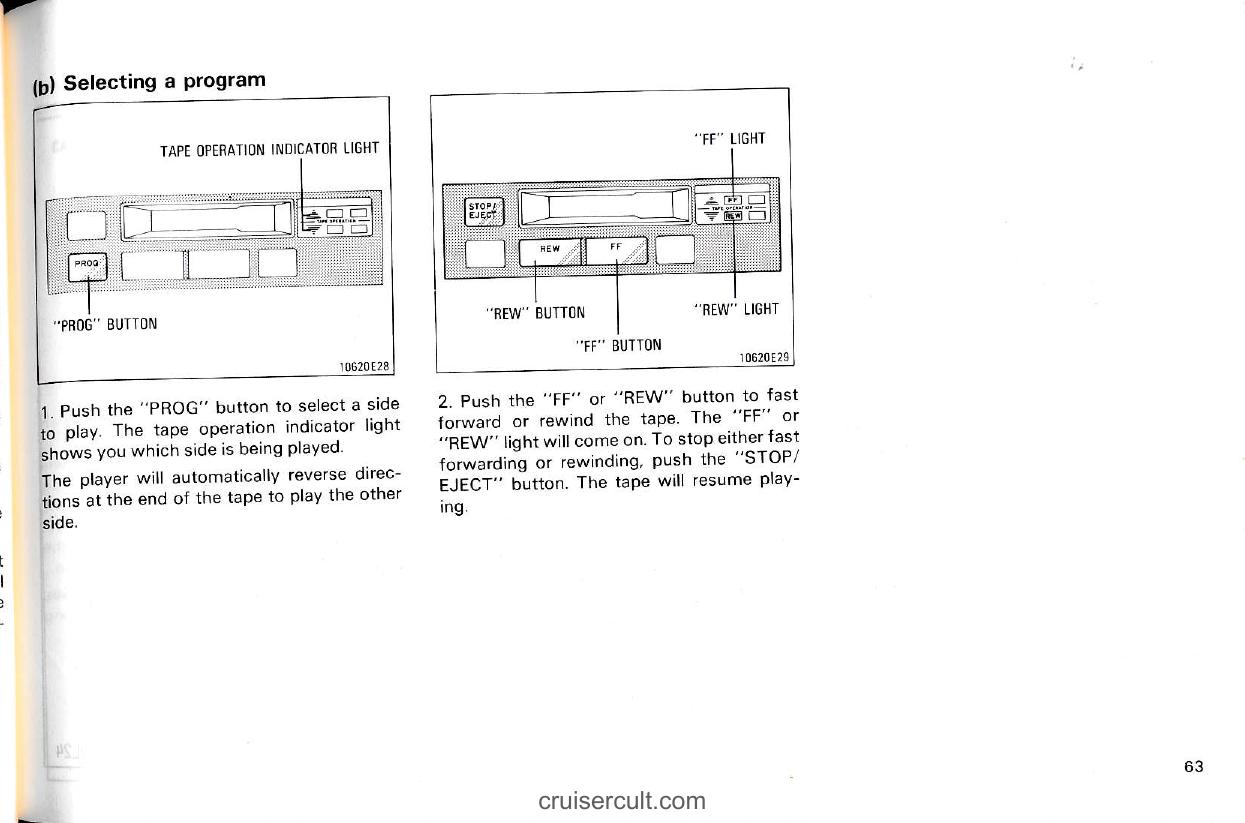

(b) Selecting a program

TAPE OPERATION INDICATOR LIGHT
"PROG" BUTTON
10620E28
"FF" LIGHT
STOP / EJECT
"REW" BUTTON
"FF" BUTTON
"REW" LIGHT
10620E29
Push the "PROG" button to select a side to play. The tape operation indicator light shows you which side is being played.
The player will automatically reverse directions at the end of the tape to play the other side.
Push the "FF" or "REW" button to fast forward or rewind the tape. The "FF" or "REW" light will come on. To stop either fast forwarding or rewinding, push the "STOP/ EJECT" button. The tape will resume playing.

cruisercult.com

63

Page 64

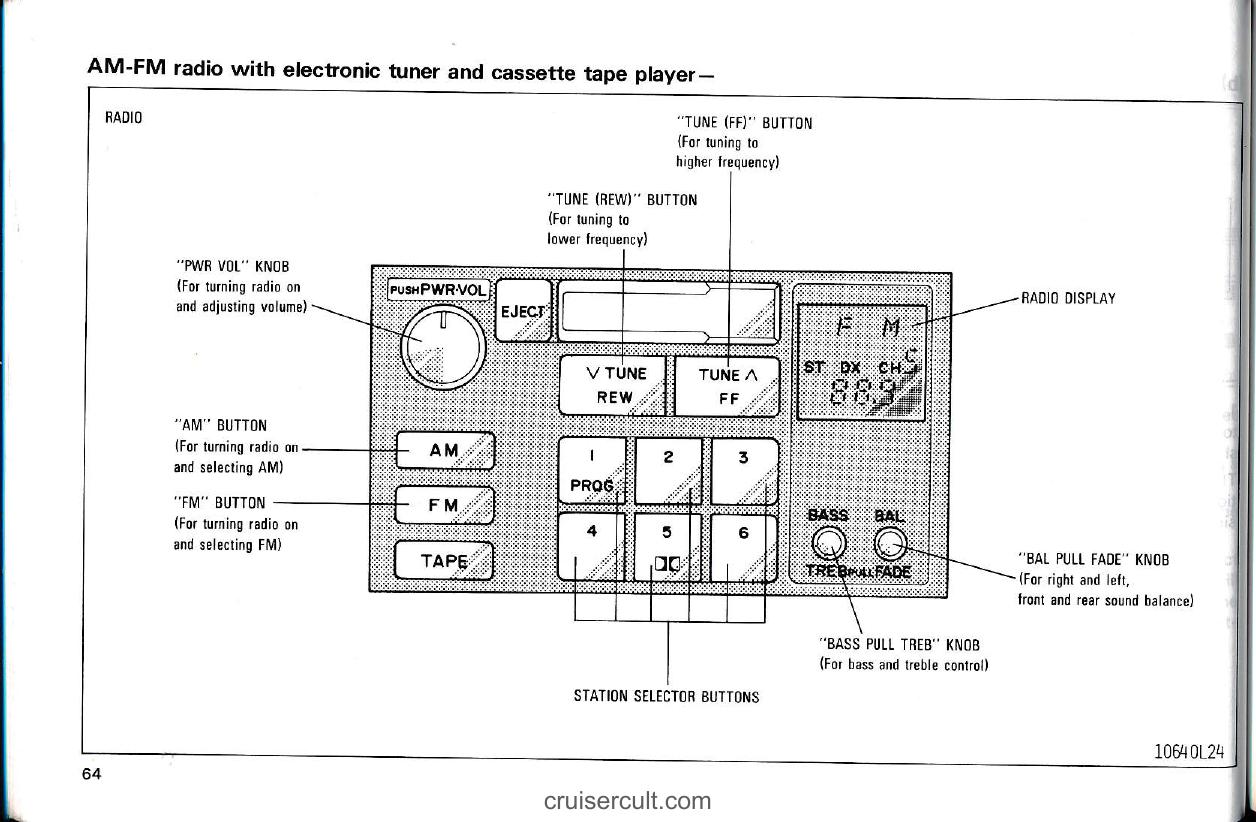

Page content not yet processed

Page 65

CASSETTE TAPE PLAYER

"FF (TUNE)" BUTTON
(For fast forwarding)
"REW (TUNE)" BUTTON
(For rewinding)
"EJECT" BUTTON
(For stop and ejectment)
TAPE PLAYER DISPLAY
T A P E
P L A Y
PUSH PWR·VOL (on knob)
"PWR.VOL" KNOB
(For turning player on and adjusting volume)
AM
FM
"TAPE" BUTTON
(For turning player on and selecting TAPE mode)
V TUNE
REW
TUNE ^
FF
1 PROG.
2
3
4
5
6
"PROG" BUTTON
(For side change)
DOLBY NR BUTTON
"BASS PULL TREB" KNOB
(For bass and treble control)
"BAL PULL FADE" KNOB
(For right and left, front and rear sound balance)
BASS
BAL

cruisercult.com

10540L25

65

Page 66

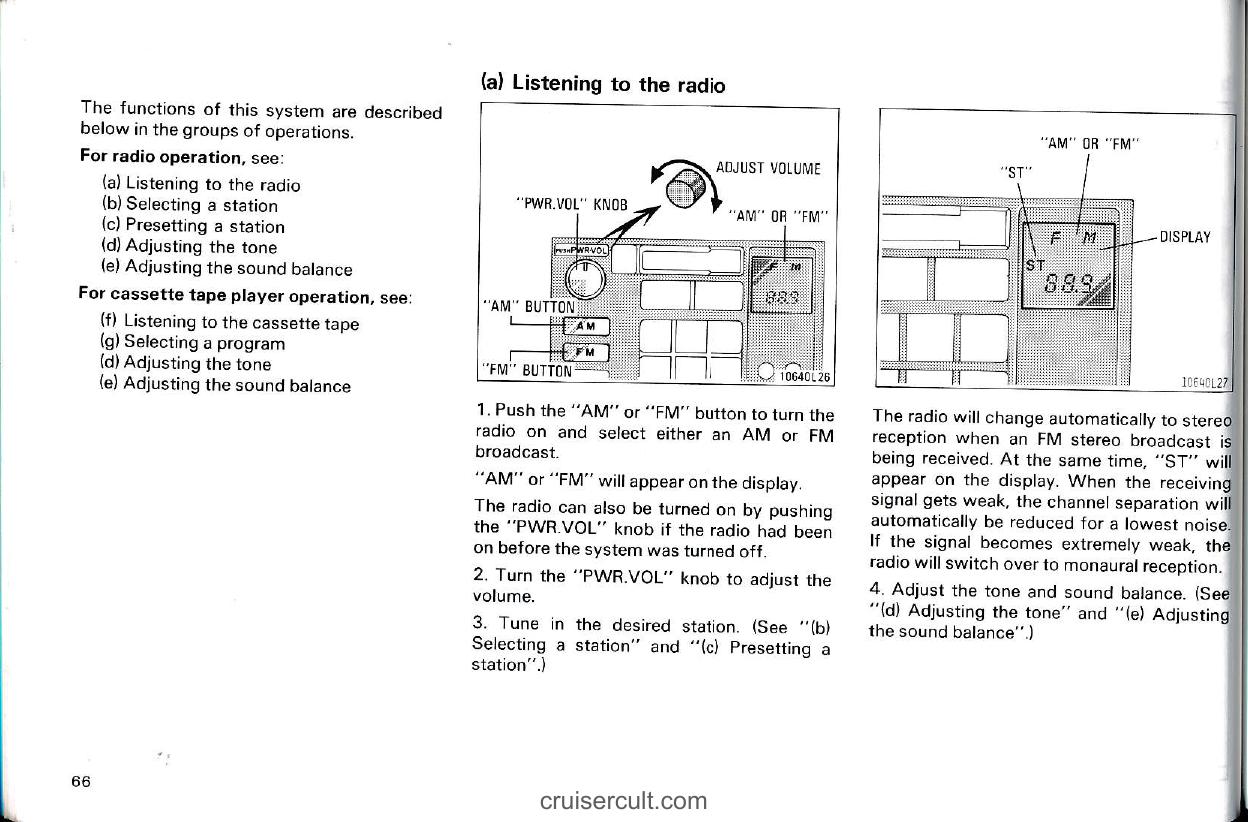

The functions of this system are described below in the groups of operations.

For radio operation, see: - (a) Listening to the radio - (b) Selecting a station - (c) Presetting a station - (d) Adjusting the tone - (e) Adjusting the sound balance

For cassette tape player operation, see: - (f) Listening to the cassette tape - (g) Selecting a program - (d) Adjusting the tone - (e) Adjusting the sound balance

66

cruisercult.com

(a) Listening to the radio

"ADJUST VOLUME"

"PWR.VOL" KNOB

"AM" OR "FM"

"AM" BUTTON

"FM" BUTTON

"AM" OR "FM" "'ST'" DISPLAY

Push the "AM" or "FM" button to turn the radio on and select either an AM or FM broadcast.

"AM" or "FM" will appear on the display.

The radio can also be turned on by pushing the "PWR.VOL" knob if the radio had been on before the system was turned off.

Turn the "PWR.VOL" knob to adjust the volume.
Tune in the desired station. (See "(b) Selecting a station" and "(c) Presetting a station".)

The radio will change automatically to stereo reception when an FM stereo broadcast is being received. At the same time, "ST" will appear on the display. When the receiving signal gets weak, the channel separation will automatically be reduced for a lowest noise. If the signal becomes extremely weak, the radio will switch over to monaural reception.

Adjust the tone and sound balance. (See "(d) Adjusting the tone" and "(e) Adjusting the sound balance".)

Page 67

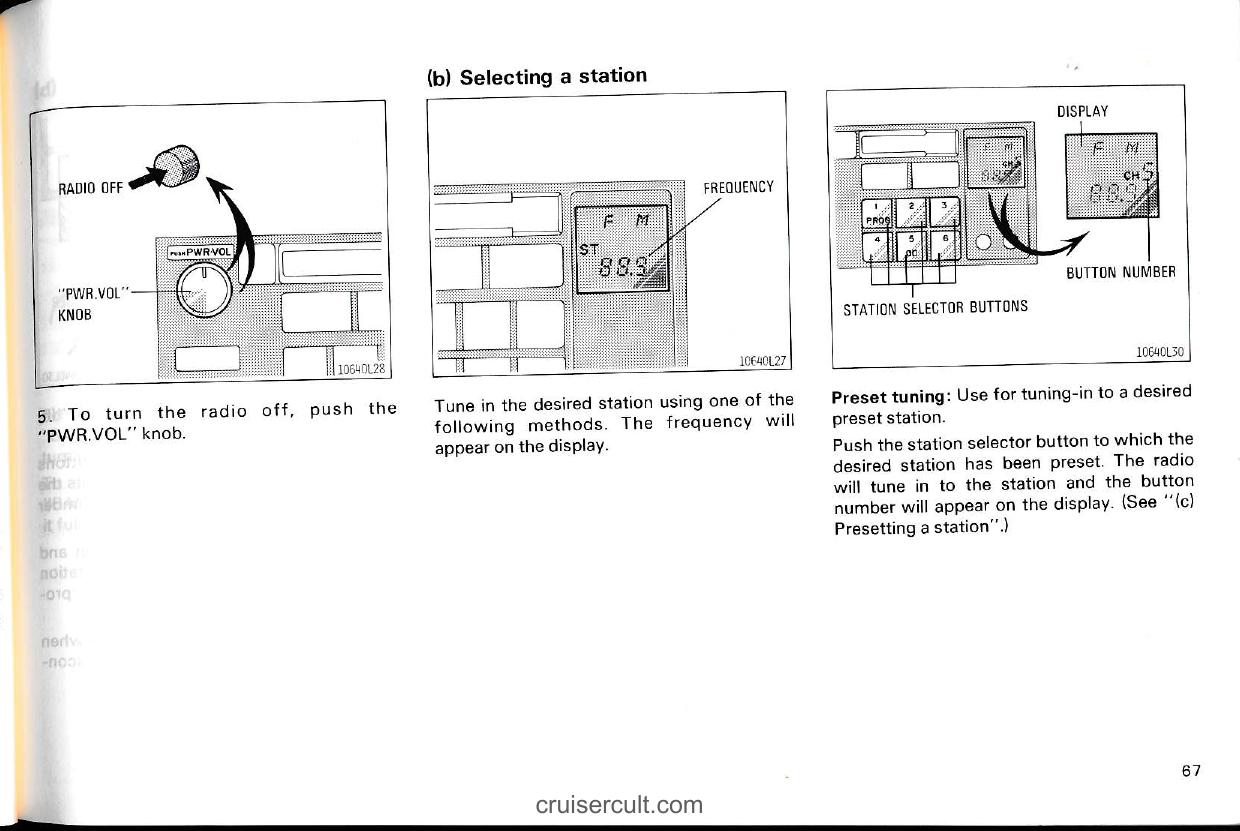

(b) Selecting a station

RADIO OFF

"PWR·VOL" KNOB

10640L28

To turn the radio off, push the "PWR.VOL" knob.

FREQUENCY

10640L27

Tune in the desired station using one of the following methods. The frequency will appear on the display.

DISPLAY

BUTTON NUMBER

STATION SELECTOR BUTTONS

10640L30

Preset tuning: Use for tuning-in to a desired preset station.

Push the station selector button to which the desired station has been preset. The radio will tune in to the station and the button number will appear on the display. (See "(c) Presetting a station".)

cruisercult.com

67

Page 68

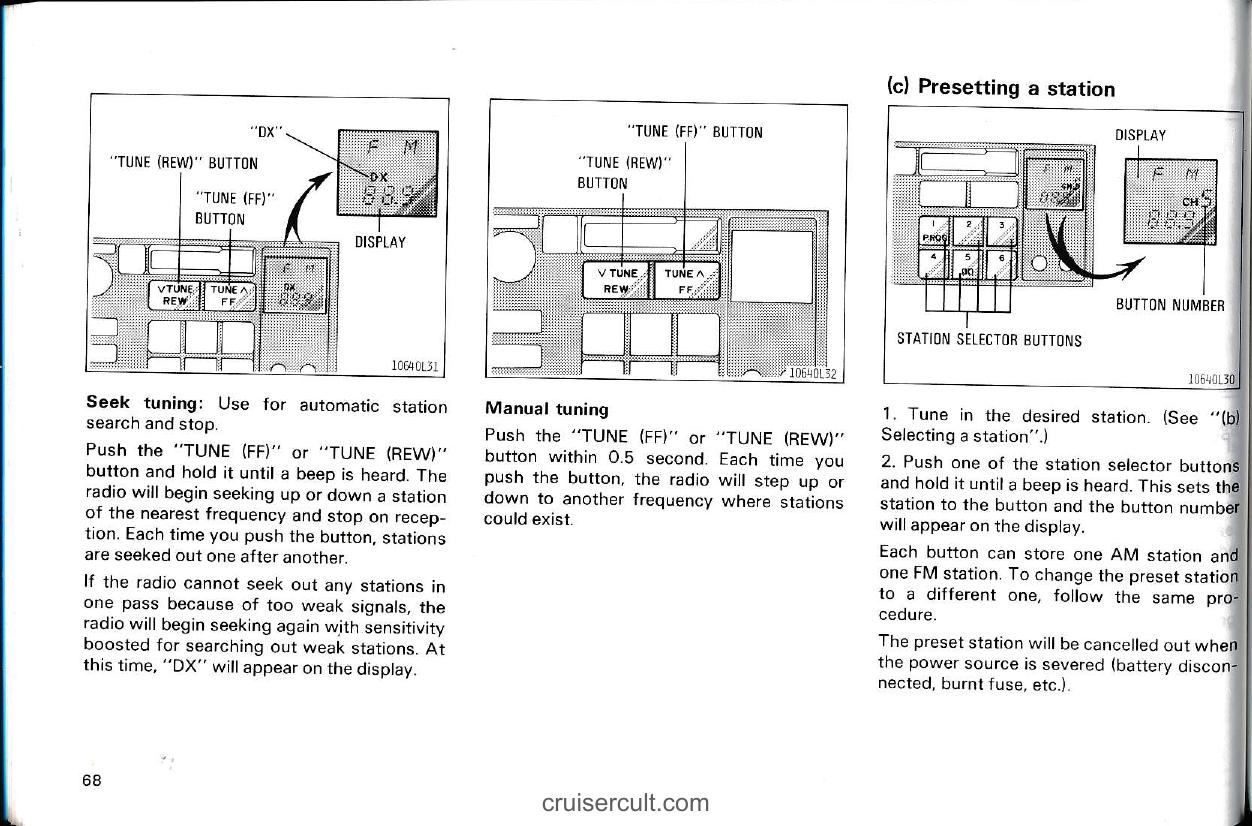

"DX"

"TUNE (REW)" BUTTON
"TUNE (FF)" BUTTON
DISPLAY
10640L31

Seek tuning:

Use for automatic station search and stop.

Push the "TUNE (FF)" or "TUNE (REW)" button and hold it until a beep is heard. The radio will begin seeking up or down a station of the nearest frequency and stop on reception. Each time you push the button, stations are seeked out one after another.

If the radio cannot seek out any stations in one pass because of too weak signals, the radio will begin seeking again with sensitivity boosted for searching out weak stations. At this time, "DX" will appear on the display.

"TUNE (FF)" BUTTON
"TUNE (REW)" BUTTON
V TUNE REW
TUNE ^ FF
10640L32

Manual tuning

Push the "TUNE (FF)" or "TUNE (REW)" button within 0.5 second. Each time you push the button, the radio will step up or down to another frequency where stations could exist.

(c) Presetting a station

DISPLAY
BUTTON NUMBER
STATION SELECTOR BUTTONS
10640L30

Tune in the desired station. (See "(b) Selecting a station".)
Push one of the station selector buttons and hold it until a beep is heard. This sets the station to the button and the button number will appear on the display.

Each button can store one AM station and one FM station. To change the preset station to a different one, follow the same procedure.

The preset station will be cancelled out when the power source is severed (battery disconnected, burnt fuse, etc.).

68
cruisercult.com

Page 69

(d) Adjusting the tone

"BASS PULL TREB" KNOB

Adjust low-pitched tone

Adjust high-pitched tone

To adjust the low-pitched tone, push the "BASS PULL TREB" knob (if concealed) and turn it.

To adjust the high-pitched tone, push the "BASS PULL TREB" knob (if concealed), pull it fully out and turn it.

(e) Adjusting the sound balance

"BAL PULL FADE" KNOB

Balance right and left

Balance front and rear

To balance the sound between the right and left speakers, push the "BAL PULL FADE" knob (if concealed) and turn it.

To balance the sound between the front and rear speakers, push the "BAL PULL FADE" knob (if concealed), pull it fully out and turn it.

(f) Listening to the cassette tape

"PWR.VOL" KNOB

"TAPE"

"TAPE" BUTTON

"PLAY"

Put the cassette into the slot, with the tape side to the right and lightly push it in. The tape player will grab the cassette and slide it into place to play it. If the radio is turned on before inserting the cassette, it will automatically turn off.

If the cassette is already in the slot, push the "TAPE" button.

At this time, "TAPE" and "PLAY" will appear on the display.

The tape player can also be turned on by pushing the "PWR.VOL" knob if the tape player had been played before the system was turned off by pushing the knob.

Page 70

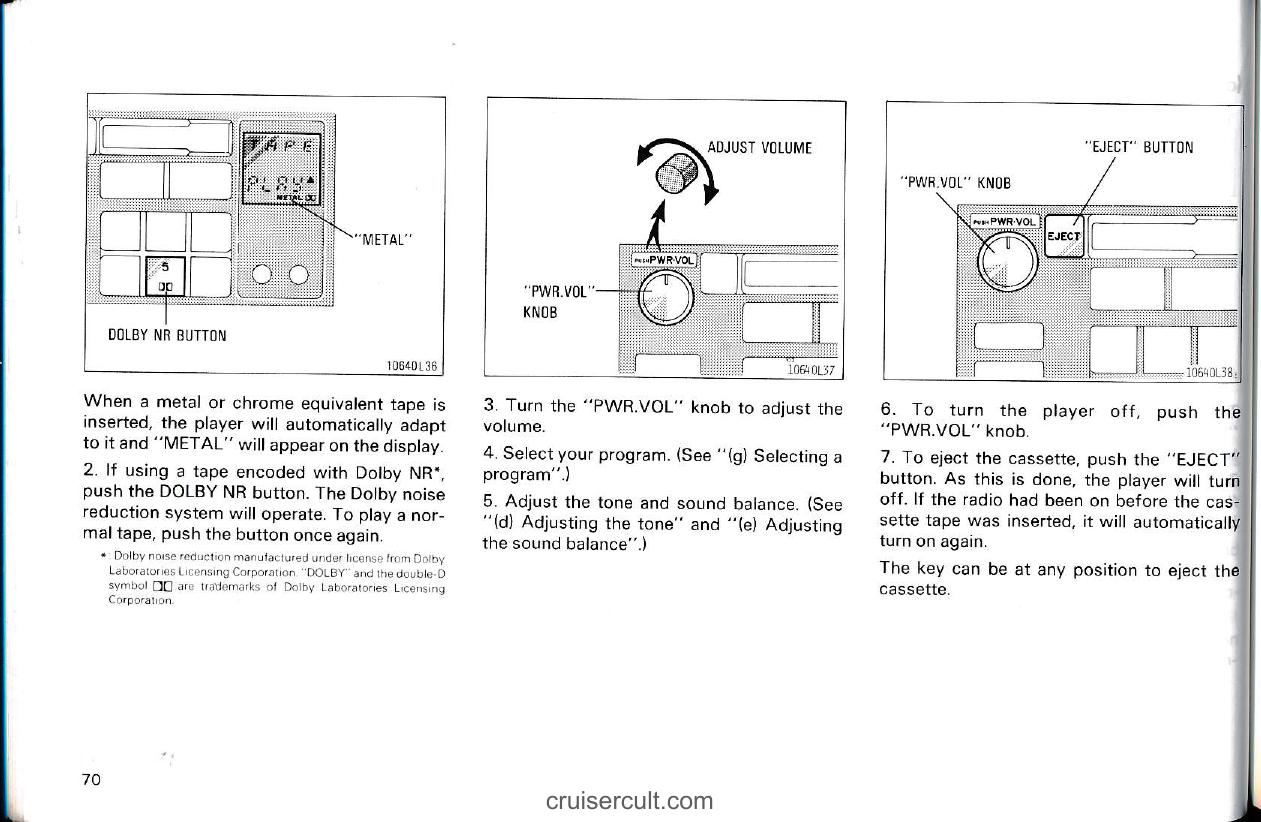

DOLBY NR BUTTON

![10640L36]

When a metal or chrome equivalent tape is inserted, the player will automatically adapt to it and "METAL" will appear on the display.

If using a tape encoded with Dolby NR*, push the DOLBY NR button. The Dolby noise reduction system will operate. To play a normal tape, push the button once again.
Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "DOLBY" and the double-D symbol □□ are trademarks of Dolby Laboratories Licensing Corporation.

ADJUST VOLUME

![10640L37]

Turn the "PWR.VOL" knob to adjust the volume.
Select your program. (See "(g) Selecting a program".)
Adjust the tone and sound balance. (See "(d) Adjusting the tone" and "(e) Adjusting the sound balance".)

"EJECT" BUTTON

![10640L38]

To turn the player off, push the "PWR.VOL" knob.
To eject the cassette, push the "EJECT" button. As this is done, the player will turn off. If the radio had been on before the cassette tape was inserted, it will automatically turn on again.

The key can be at any position to eject the cassette.

cruisercult.com

70

Page 71

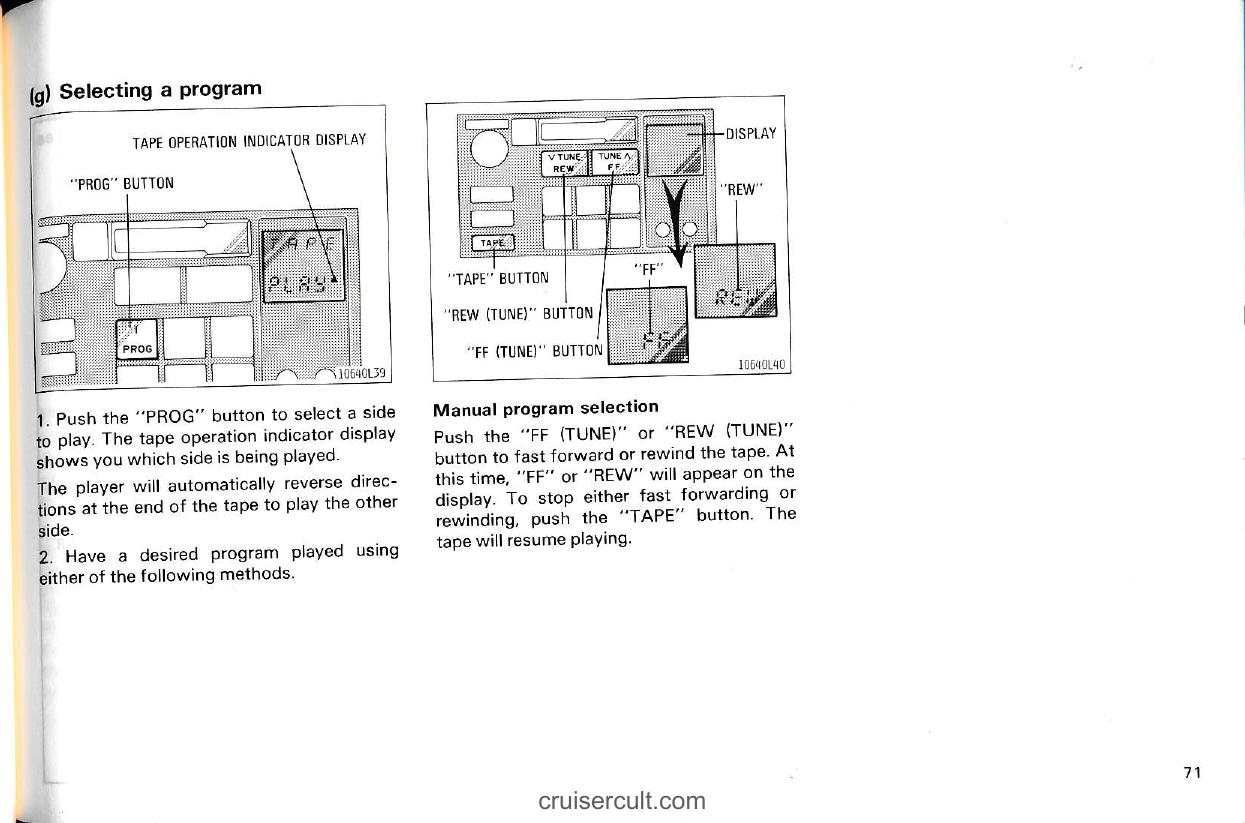

(g) Selecting a program

TAPE OPERATION INDICATOR DISPLAY
"PROG" BUTTON

Diagram labels: - DISPLAY
- "REW"
- "TAPE" BUTTON
- "FF"
- "REW (TUNE)" BUTTON
- "FF (TUNE)" BUTTON

Push the "PROG" button to select a side to play. The tape operation indicator display shows you which side is being played.

The player will automatically reverse directions at the end of the tape to play the other side.

Have a desired program played using either of the following methods.

Manual program selection

Push the "FF (TUNE)" or "REW (TUNE)" button to fast forward or rewind the tape. At this time, "FF" or "REW" will appear on the display. To stop either fast forwarding or rewinding, push the "TAPE" button. The tape will resume playing.

cruisercult.com

71

Page 72

Air conditioner controls—

AIR CONDITIONER ON-OFF BUTTON

OFF
ON

AIR INTAKE CONTROL LEVER
OUTSIDE AIR
RECIRCULATED AIR
WINDSHIELD
FLOOR
FACE
AIR FLOW CONTROL LEVER
FAN SPEED CONTROL LEVER
OFF LO I II HI A/C
A/C
TEMPERATURE CONTROL LEVER
HIGH
LOW
HIGH SPEED
HIGHER MIDDLE SPEED
LOWER MIDDLE SPEED
LOW SPEED
OFF

72

cruisercult.com

10520101

Page 73

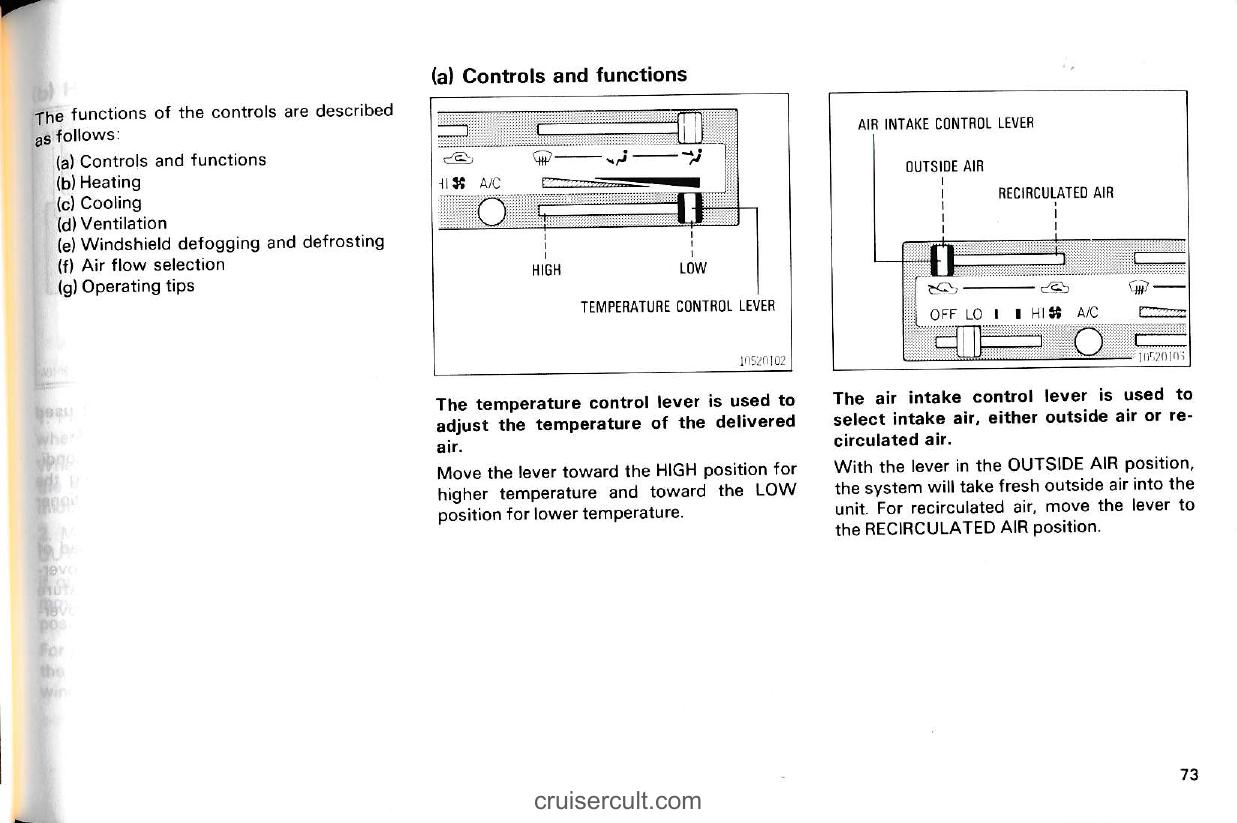

(a) Controls and functions

The functions of the controls are described as follows:
(a) Controls and functions
(b) Heating
(c) Cooling
(d) Ventilation
(e) Windshield defogging and defrosting
(f) Air flow selection
(g) Operating tips

Temperature control lever

![diagram]

The temperature control lever is used to adjust the temperature of the delivered air.

Move the lever toward the HIGH position for higher temperature and toward the LOW position for lower temperature.

Labels in diagram: HIGH — TEMPERATURE CONTROL LEVER — LOW

Air intake control lever

AIR INTAKE CONTROL LEVER

OUTSIDE AIR ←→ RECIRCULATED AIR

The air intake control lever is used to select intake air, either outside air or re-circulated air.

With the lever in the OUTSIDE AIR position, the system will take fresh outside air into the unit. For recirculated air, move the lever to the RECIRCULATED AIR position.

Panel labels (in diagram): OFF LO I I HI A/C

cruisercult.com

73

Page 74

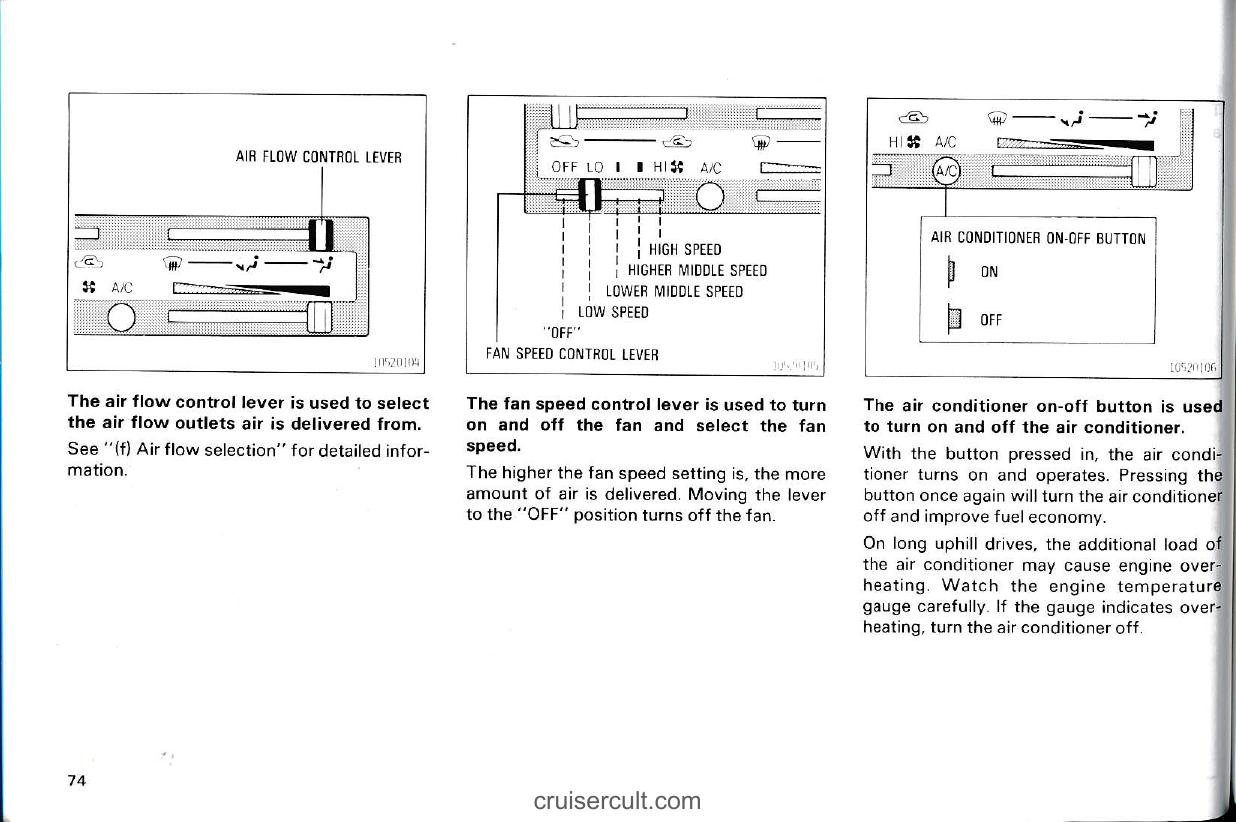

AIR FLOW CONTROL LEVER

The air flow control lever is used to select the air flow outlets air is delivered from.

See "(f) Air flow selection" for detailed information.

FAN SPEED CONTROL LEVER

OFF
LOW SPEED
LOWER MIDDLE SPEED
HIGHER MIDDLE SPEED
HIGH SPEED

The fan speed control lever is used to turn on and off the fan and select the fan speed.

The higher the fan speed setting is, the more amount of air is delivered. Moving the lever to the "OFF" position turns off the fan.

AIR CONDITIONER ON-OFF BUTTON

ON
OFF

The air conditioner on-off button is used to turn on and off the air conditioner.

With the button pressed in, the air conditioner turns on and operates. Pressing the button once again will turn the air conditioner off and improve fuel economy.

On long uphill drives, the additional load of the air conditioner may cause engine over-heating. Watch the engine temperature gauge carefully. If the gauge indicates over-heating, turn the air conditioner off.

74

cruisercult.com

Page 75

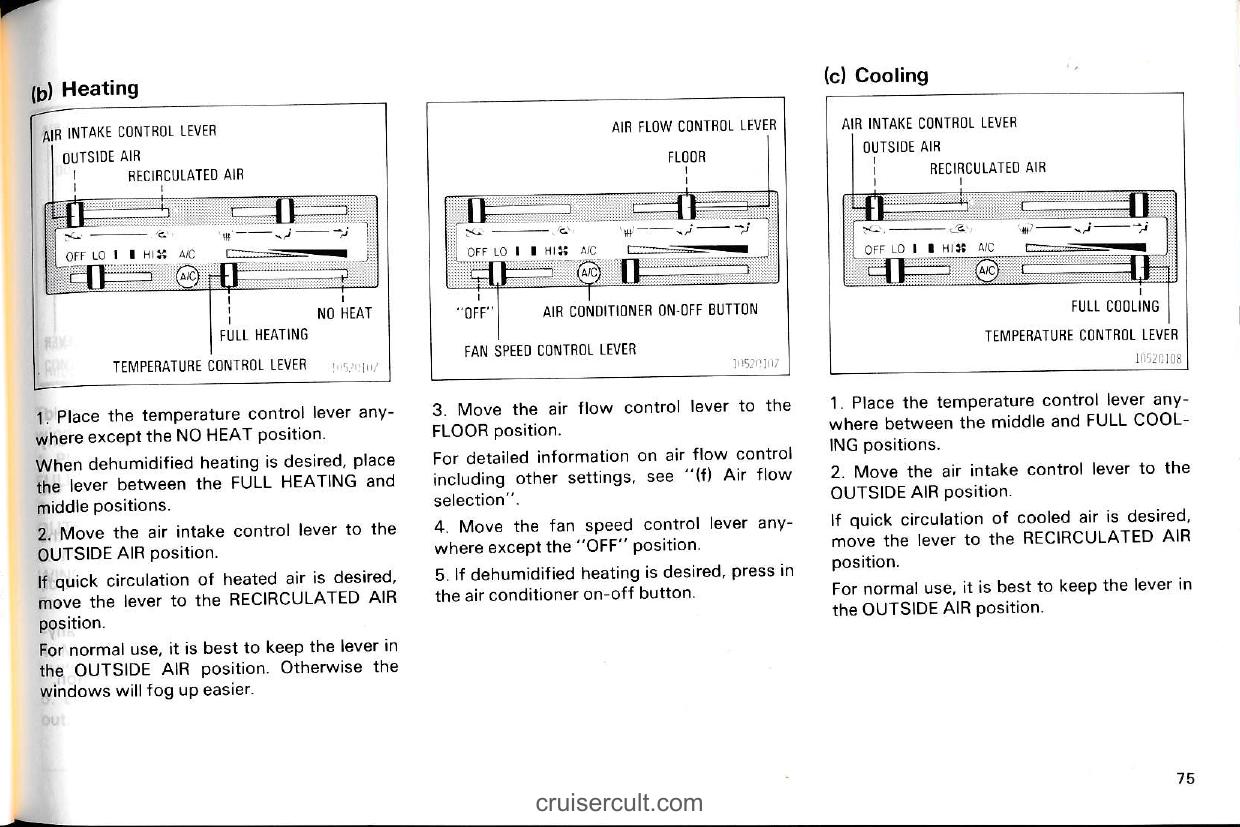

(b) Heating - AIR INTAKE CONTROL LEVER - OUTSIDE AIR - RECIRCULATED AIR - OFF LO I HI S A/C - A/C - NO HEAT - FULL HEATING - TEMPERATURE CONTROL LEVER

Place the temperature control lever anywhere except the NO HEAT position.

When dehumidified heating is desired, place the lever between the FULL HEATING and middle positions.

Move the air intake control lever to the OUTSIDE AIR position.

If quick circulation of heated air is desired, move the lever to the RECIRCULATED AIR position.

For normal use, it is best to keep the lever in the OUTSIDE AIR position. Otherwise the windows will fog up easier.

AIR FLOW CONTROL LEVER
FLOOR
"OFF"
AIR CONDITIONER ON-OFF BUTTON
FAN SPEED CONTROL LEVER
Move the air flow control lever to the FLOOR position.

For detailed information on air flow control including other settings, see "(f) Air flow selection".

Move the fan speed control lever anywhere except the "OFF" position.
If dehumidified heating is desired, press in the air conditioner on-off button.

(c) Cooling - AIR INTAKE CONTROL LEVER - OUTSIDE AIR - RECIRCULATED AIR - OFF LO I HI S A/C - A/C - FULL COOLING - TEMPERATURE CONTROL LEVER

Place the temperature control lever anywhere between the middle and FULL COOLING positions.
Move the air intake control lever to the OUTSIDE AIR position.

If quick circulation of cooled air is desired, move the lever to the RECIRCULATED AIR position.

For normal use, it is best to keep the lever in the OUTSIDE AIR position.

Page 76

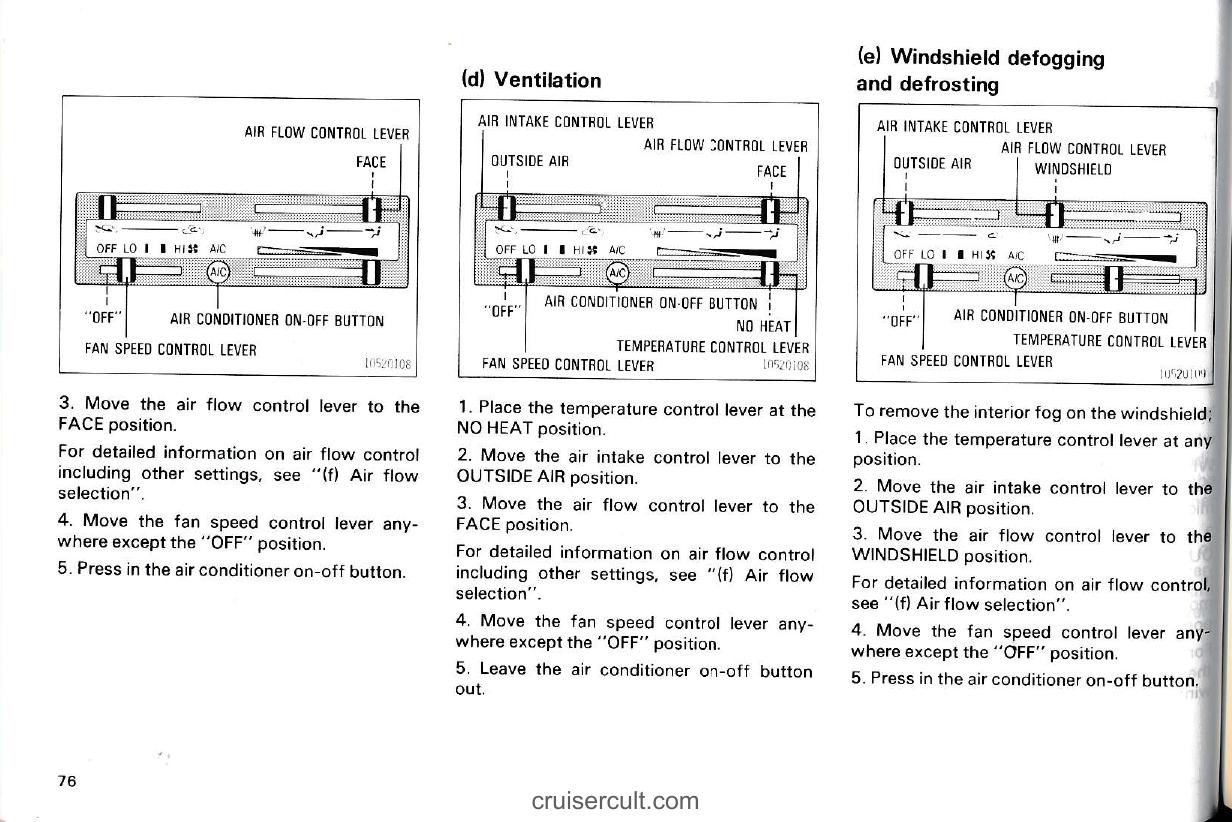

AIR FLOW CONTROL LEVER

FACE

OFF LO I II HI S A/C

"A/C" (button)

"OFF" AIR CONDITIONER ON-OFF BUTTON

FAN SPEED CONTROL LEVER

Move the air flow control lever to the FACE position.
For detailed information on air flow control including other settings, see "(f) Air flow selection".
Move the fan speed control lever anywhere except the "OFF" position.
Press in the air conditioner on-off button.

(d) Ventilation

AIR INTAKE CONTROL LEVER

OUTSIDE AIR

AIR FLOW CONTROL LEVER

FACE

OFF LO I II HI S A/C

"OFF" AIR CONDITIONER ON-OFF BUTTON

NO HEAT

TEMPERATURE CONTROL LEVER

FAN SPEED CONTROL LEVER

Place the temperature control lever at the NO HEAT position.
Move the air intake control lever to the OUTSIDE AIR position.
Move the air flow control lever to the FACE position.
For detailed information on air flow control including other settings, see "(f) Air flow selection".
Move the fan speed control lever anywhere except the "OFF" position.
Leave the air conditioner on-off button out.

(e) Windshield defogging and defrosting

AIR INTAKE CONTROL LEVER

OUTSIDE AIR

AIR FLOW CONTROL LEVER

WINDSHIELD

OFF LO I II HI S A/C

"OFF" AIR CONDITIONER ON-OFF BUTTON

TEMPERATURE CONTROL LEVER

FAN SPEED CONTROL LEVER

To remove the interior fog on the windshield:
1. Place the temperature control lever at any position.
2. Move the air intake control lever to the OUTSIDE AIR position.
3. Move the air flow control lever to the WINDSHIELD position.
For detailed information on air flow control, see "(f) Air flow selection".
4. Move the fan speed control lever anywhere except the "OFF" position.
5. Press in the air conditioner on-off button.

76

cruisercult.com

Page 77

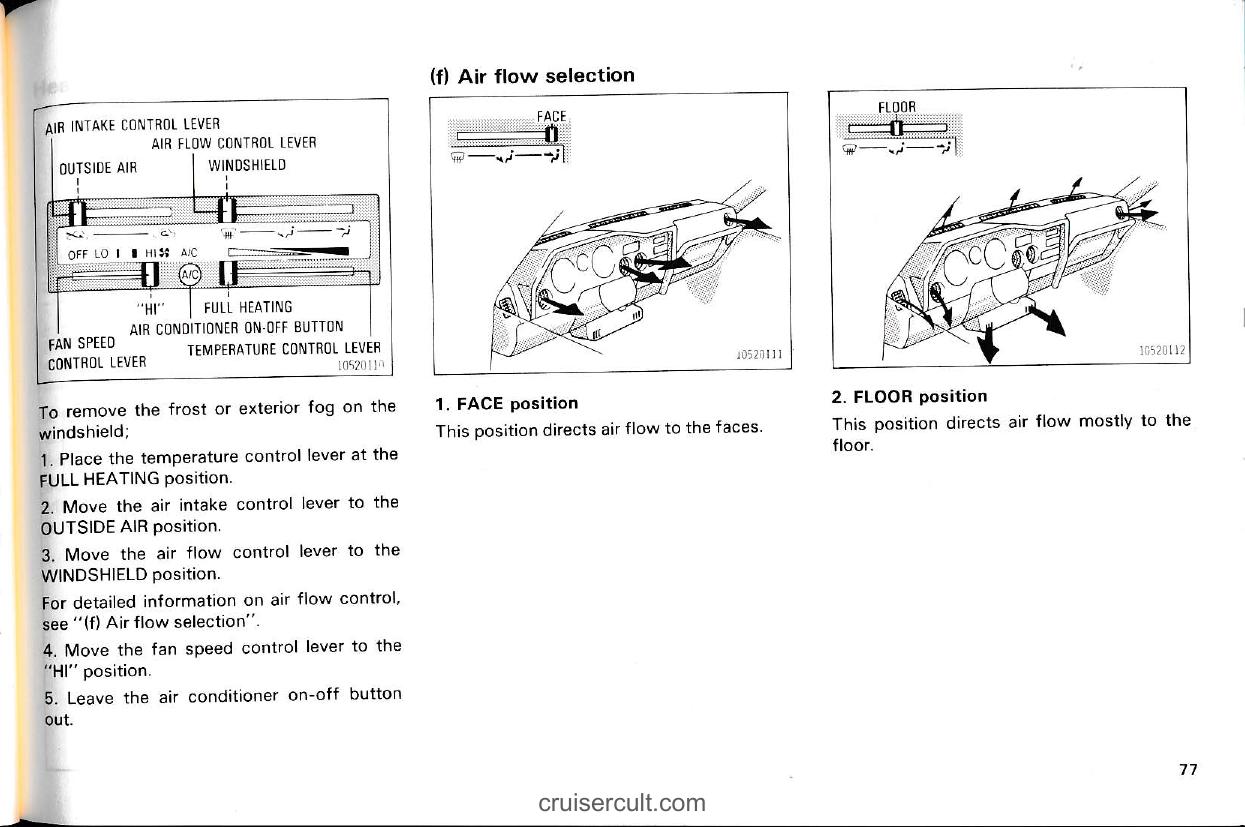

(f) Air flow selection

AIR INTAKE CONTROL LEVER
AIR FLOW CONTROL LEVER
OUTSIDE AIR
WINDSHIELD

"HI" FULL HEATING
AIR CONDITIONER ON-OFF BUTTON
FAN SPEED CONTROL LEVER
TEMPERATURE CONTROL LEVER

To remove the frost or exterior fog on the windshield;

Place the temperature control lever at the FULL HEATING position.
Move the air intake control lever to the OUTSIDE AIR position.
Move the air flow control lever to the WINDSHIELD position.

For detailed information on air flow control, see "(f) Air flow selection".

Move the fan speed control lever to the "HI" position.
Leave the air conditioner on-off button out.

1. FACE position

This position directs air flow to the faces.

2. FLOOR position

This position directs air flow mostly to the floor.

cruisercult.com

77

Page 78

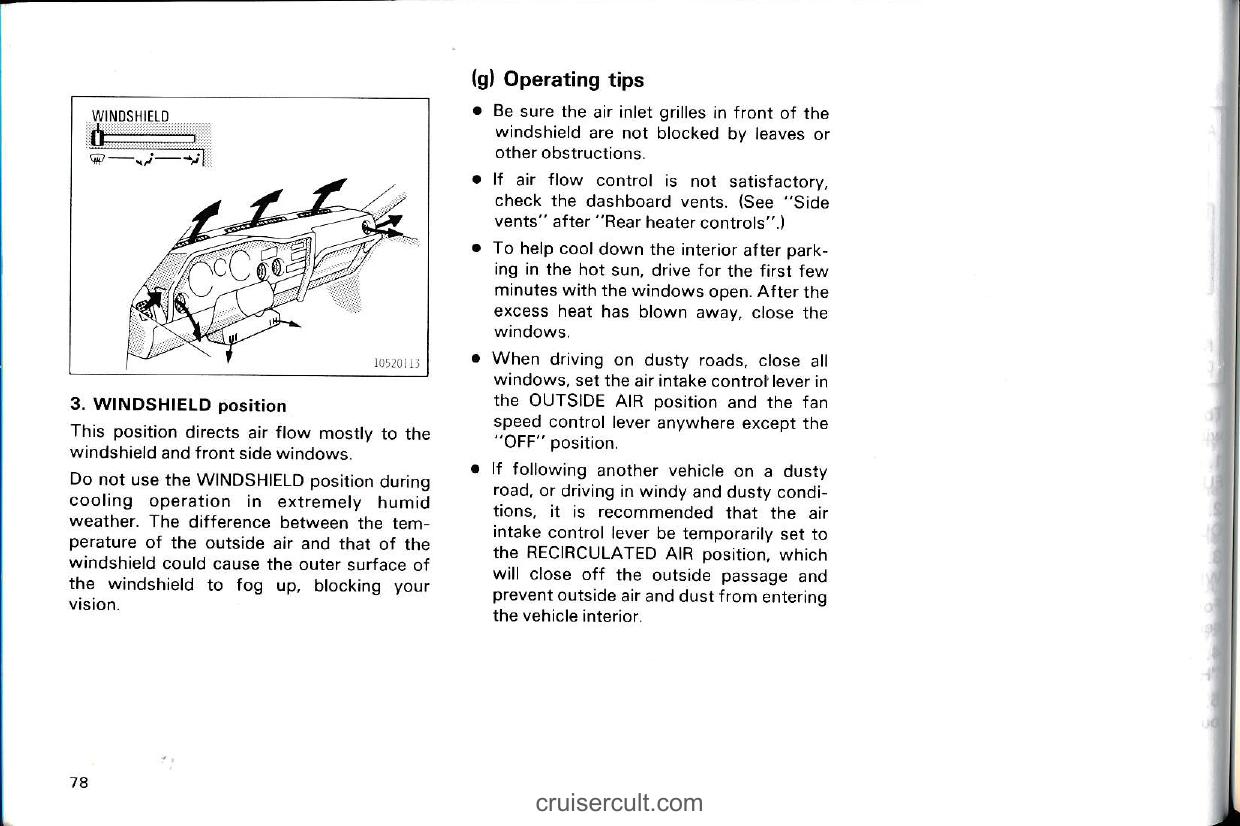

WINDSHIELD

![WINDSHIELD]

3. WINDSHIELD position

This position directs air flow mostly to the windshield and front side windows.

Do not use the WINDSHIELD position during cooling operation in extremely humid weather. The difference between the temperature of the outside air and that of the windshield could cause the outer surface of the windshield to fog up, blocking your vision.

(g) Operating tips

Be sure the air inlet grilles in front of the windshield are not blocked by leaves or other obstructions.
If air flow control is not satisfactory, check the dashboard vents. (See "Side vents" after "Rear heater controls".)
To help cool down the interior after parking in the hot sun, drive for the first few minutes with the windows open. After the excess heat has blown away, close the windows.
When driving on dusty roads, close all windows, set the air intake control lever in the OUTSIDE AIR position and the fan speed control lever anywhere except the "OFF" position.
If following another vehicle on a dusty road, or driving in windy and dusty conditions, it is recommended that the air intake control lever be temporarily set to the RECIRCULATED AIR position, which will close off the outside passage and prevent outside air and dust from entering the vehicle interior.

78

cruisercult.com

Page 79

Heater controls —

OUTSIDE AIR
RECIRCULATED AIR
WINDSHIELD
FLOOR
FACE

AIR INTAKE CONTROL LEVER

OFF LO I II HI

FAN SPEED CONTROL LEVER

OFF
LOW SPEED
LOWER MIDDLE SPEED
HIGHER MIDDLE SPEED
HIGH SPEED

AIR FLOW CONTROL LEVER

TEMPERATURE CONTROL LEVER

FULL HEATING
NO HEAT

10530101

cruisercult.com

79

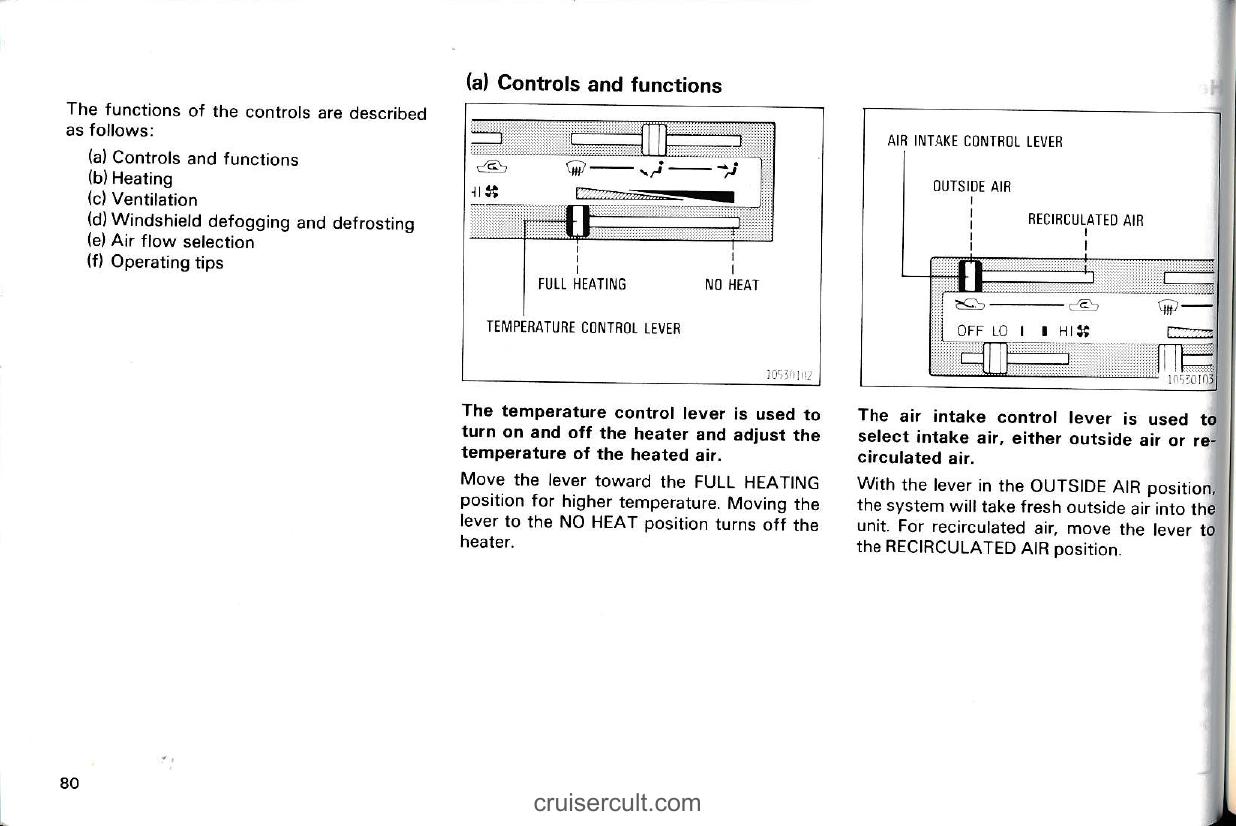

Page 80

(a) Controls and functions

The functions of the controls are described as follows:

(a) Controls and functions
(b) Heating
(c) Ventilation
(d) Windshield defogging and defrosting
(e) Air flow selection
(f) Operating tips

TEMPERATURE CONTROL LEVER

FULL HEATING ←──────────────→ NO HEAT

The temperature control lever is used to turn on and off the heater and adjust the temperature of the heated air.

Move the lever toward the FULL HEATING position for higher temperature. Moving the lever to the NO HEAT position turns off the heater.

AIR INTAKE CONTROL LEVER

OUTSIDE AIR ←──────────────→ RECIRCULATED AIR

The air intake control lever is used to select intake air, either outside air or recirculated air.

With the lever in the OUTSIDE AIR position, the system will take fresh outside air into the unit. For recirculated air, move the lever to the RECIRCULATED AIR position.

80

cruisercult.com

Page 81

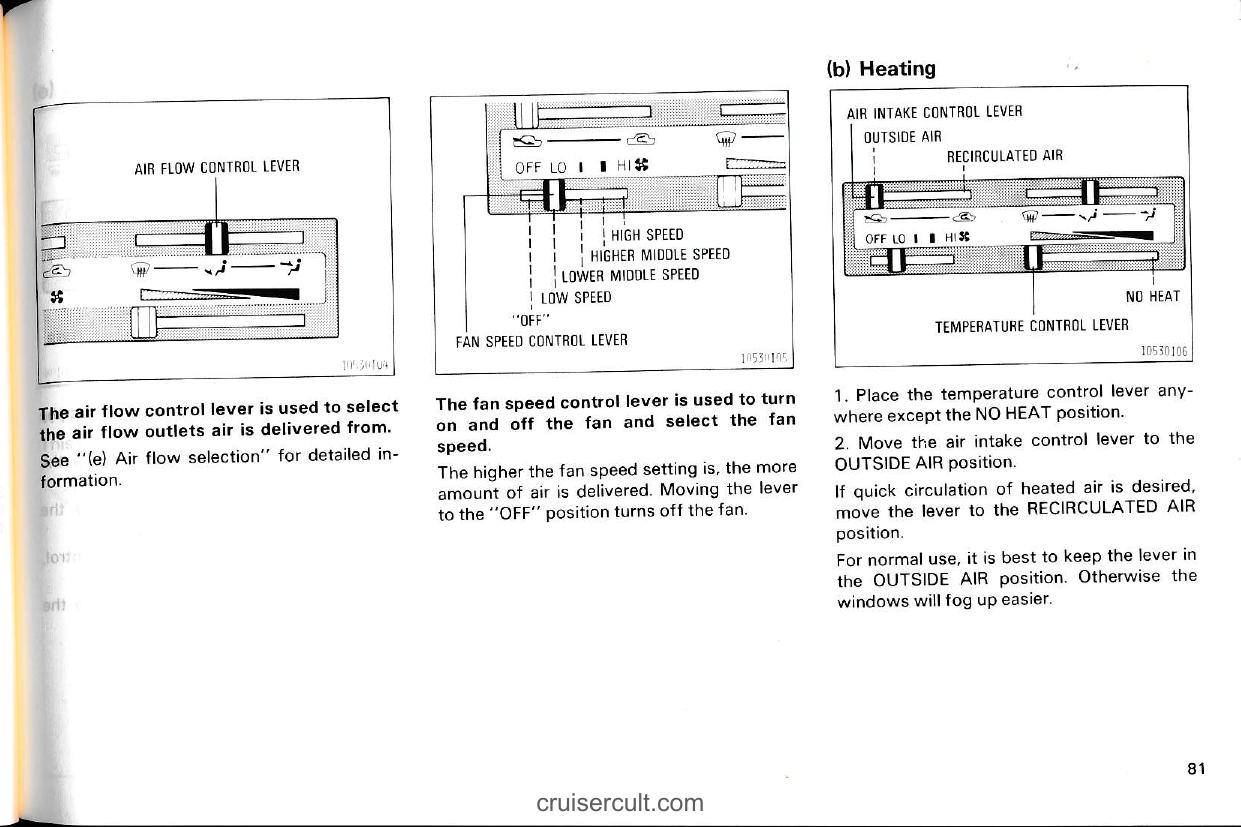

AIR FLOW CONTROL LEVER

The air flow control lever is used to select the air flow outlets air is delivered from.
See "(e) Air flow selection" for detailed information.

OFF LO I II HI
HIGH SPEED
HIGHER MIDDLE SPEED
LOWER MIDDLE SPEED
LOW SPEED
"OFF"
FAN SPEED CONTROL LEVER

The fan speed control lever

The fan speed control lever is used to turn on and off the fan and select the fan speed.

The higher the fan speed setting is, the more amount of air is delivered. Moving the lever to the "OFF" position turns off the fan.

(b) Heating

AIR INTAKE CONTROL LEVER
OUTSIDE AIR
RECIRCULATED AIR

OFF LO I II HI

NO HEAT

TEMPERATURE CONTROL LEVER

Place the temperature control lever anywhere except the NO HEAT position.
Move the air intake control lever to the OUTSIDE AIR position.

If quick circulation of heated air is desired, move the lever to the RECIRCULATED AIR position.

For normal use, it is best to keep the lever in the OUTSIDE AIR position. Otherwise the windows will fog up easier.

cruisercult.com

81

Page 82

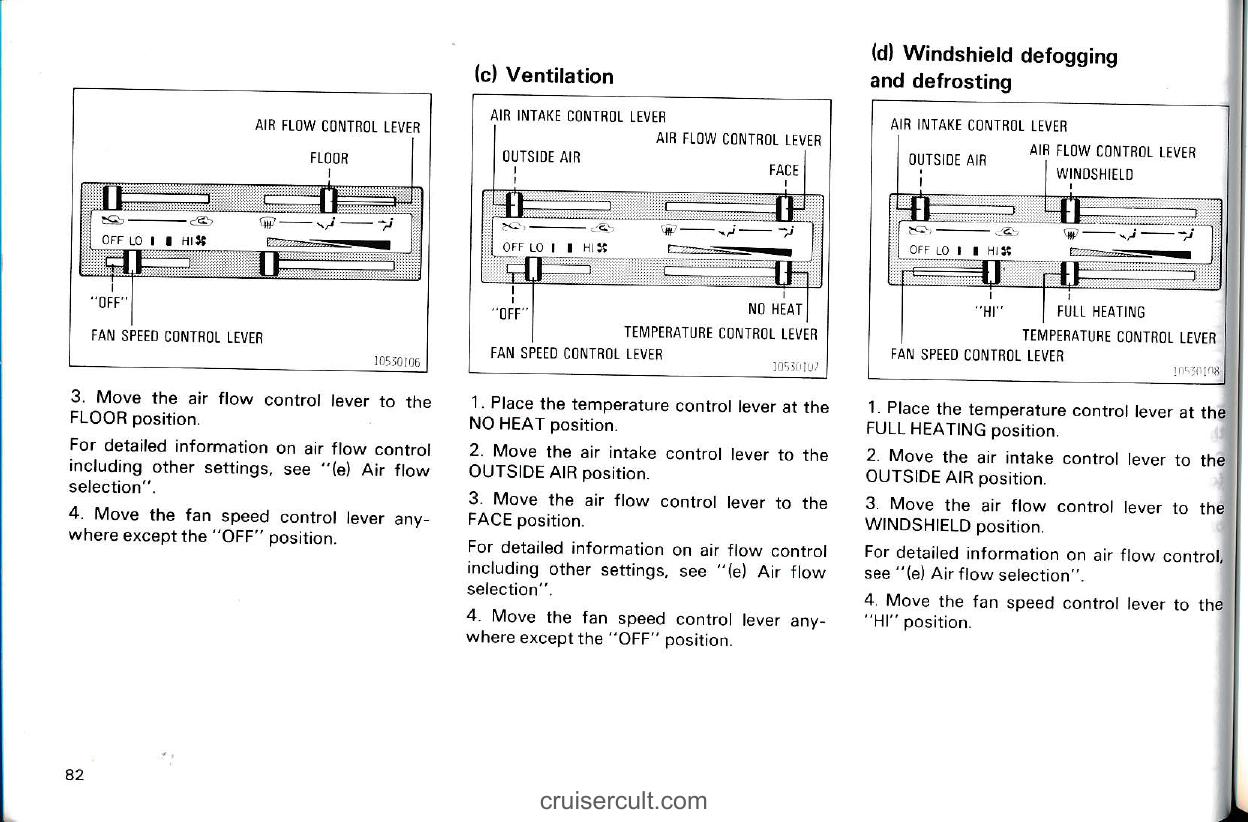

AIR FLOW CONTROL LEVER
FLOOR

"OFF" LO I I HI S

"OFF"
FAN SPEED CONTROL LEVER

Move the air flow control lever to the FLOOR position.

For detailed information on air flow control including other settings, see "(e) Air flow selection".

Move the fan speed control lever anywhere except the "OFF" position.

(c) Ventilation

AIR INTAKE CONTROL LEVER
AIR FLOW CONTROL LEVER

OUTSIDE AIR FACE

"OFF" LO I I HI S

"OFF"
TEMPERATURE CONTROL LEVER NO HEAT
FAN SPEED CONTROL LEVER

Place the temperature control lever at the NO HEAT position.
Move the air intake control lever to the OUTSIDE AIR position.
Move the air flow control lever to the FACE position.

For detailed information on air flow control including other settings, see "(e) Air flow selection".

Move the fan speed control lever anywhere except the "OFF" position.

(d) Windshield defogging and defrosting

AIR INTAKE CONTROL LEVER
AIR FLOW CONTROL LEVER

OUTSIDE AIR WINDSHIELD

"OFF" LO I I HI S

"HI" FULL HEATING
TEMPERATURE CONTROL LEVER
FAN SPEED CONTROL LEVER

Place the temperature control lever at the FULL HEATING position.
Move the air intake control lever to the OUTSIDE AIR position.
Move the air flow control lever to the WINDSHIELD position.

For detailed information on air flow control, see "(e) Air flow selection".

Move the fan speed control lever to the "HI" position.

82

cruisercult.com

Page 83

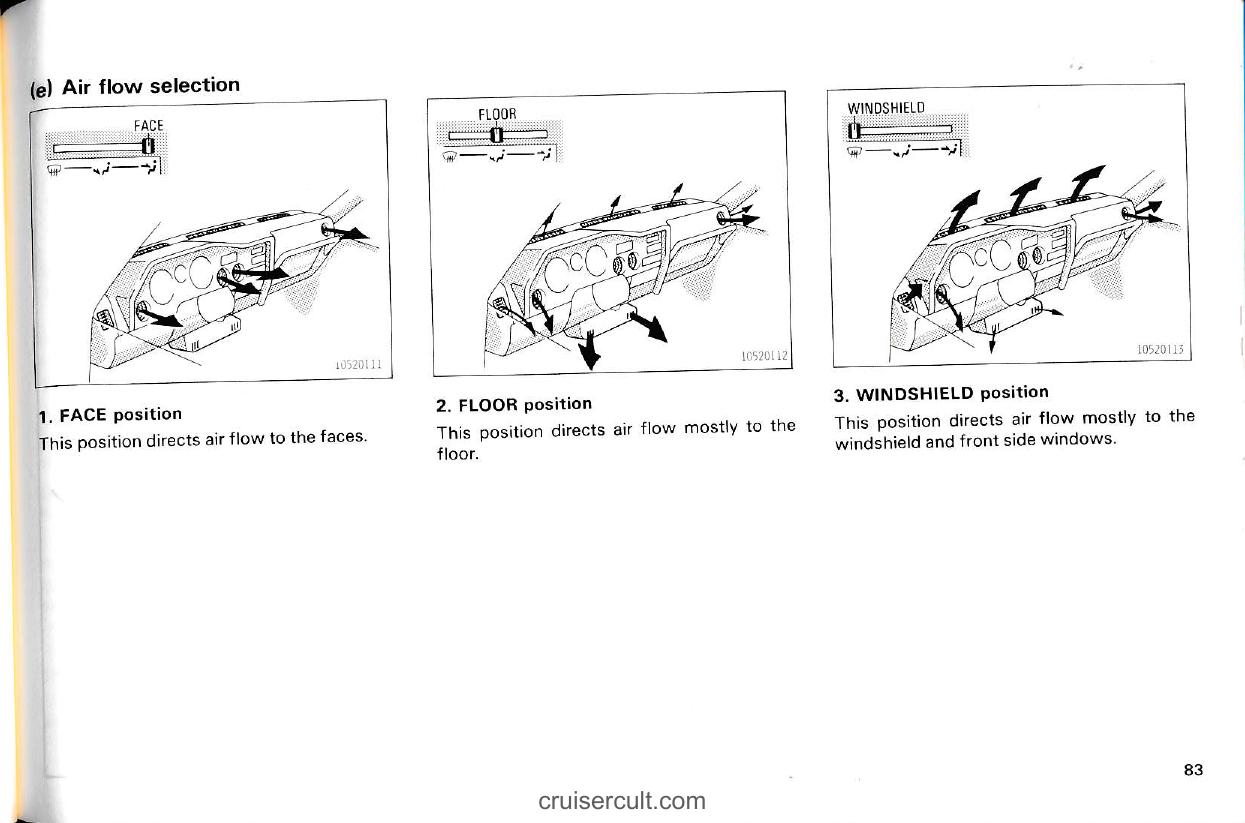

(e) Air flow selection

FACE

FACE position
This position directs air flow to the faces.
10520111

FLOOR

FLOOR position
This position directs air flow mostly to the floor.
10520112

WINDSHIELD

WINDSHIELD position
This position directs air flow mostly to the windshield and front side windows.
10520113

cruisercult.com

83

Page 84

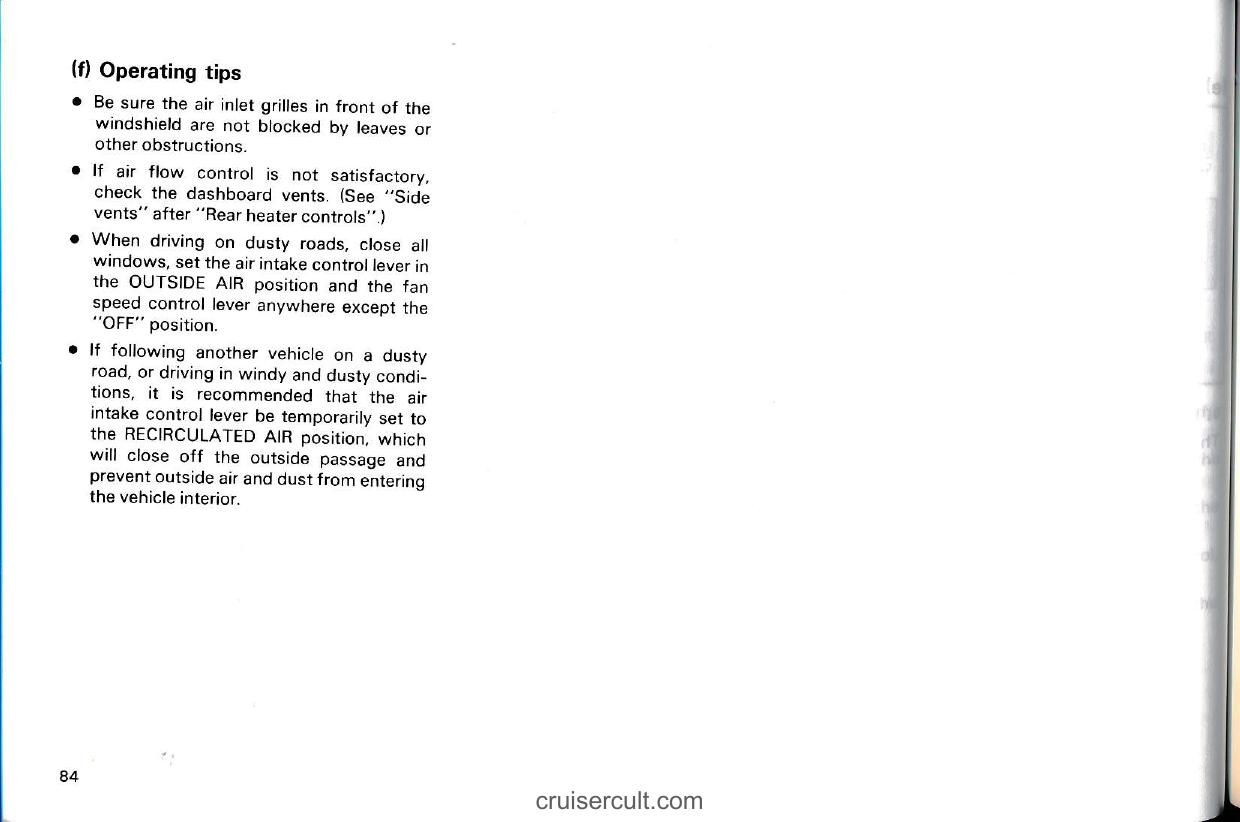

(f) Operating tips

Be sure the air inlet grilles in front of the windshield are not blocked by leaves or other obstructions.
If air flow control is not satisfactory, check the dashboard vents. (See "Side vents" after "Rear heater controls".)
When driving on dusty roads, close all windows, set the air intake control lever in the OUTSIDE AIR position and the fan speed control lever anywhere except the "OFF" position.
If following another vehicle on a dusty road, or driving in windy and dusty conditions, it is recommended that the air intake control lever be temporarily set to the RECIRCULATED AIR position, which will close off the outside passage and prevent outside air and dust from entering the vehicle interior.

84

cruisercult.com

Page 85

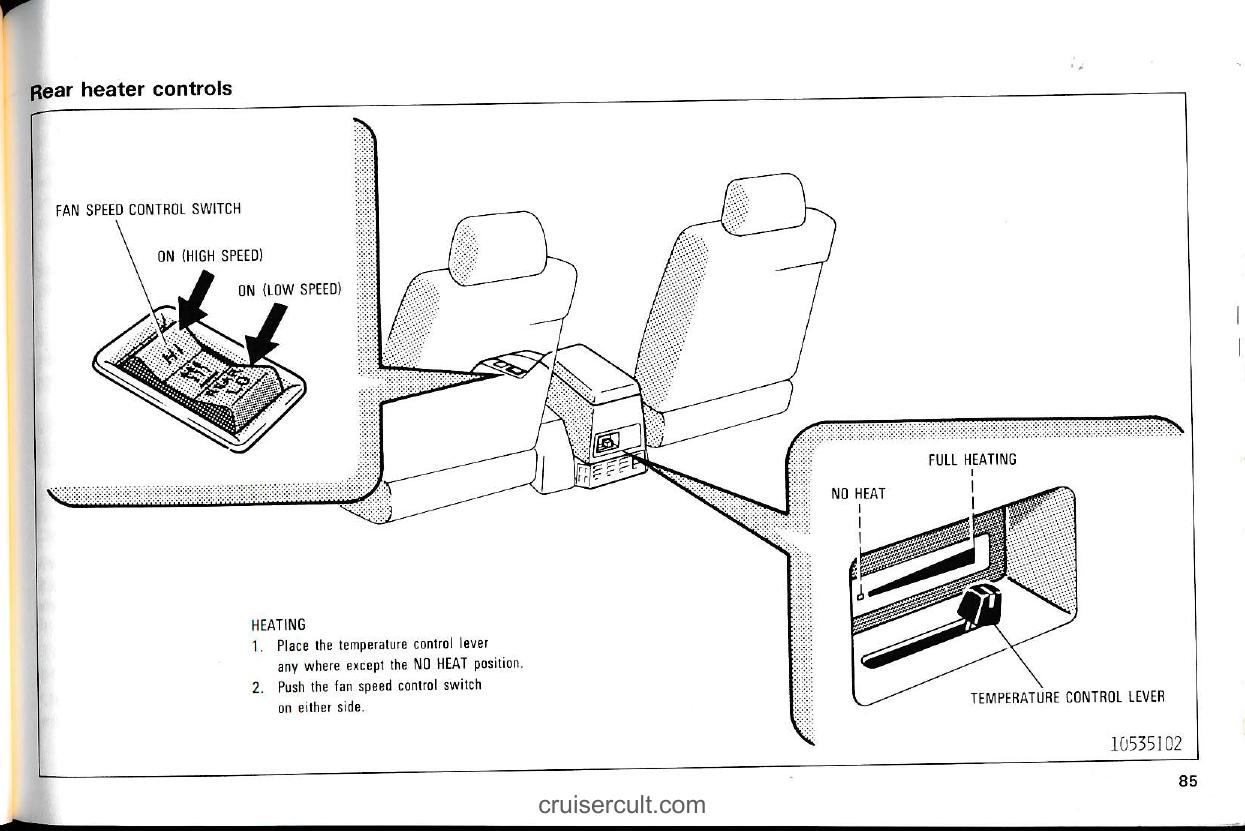

Rear heater controls

FAN SPEED CONTROL SWITCH

ON (HIGH SPEED)
ON (LOW SPEED)

FULL HEATING

NO HEAT
TEMPERATURE CONTROL LEVER

HEATING

Place the temperature control lever any where except the NO HEAT position.
Push the fan speed control switch on either side.

10535102

cruisercult.com

85

Page 86

Side vents

OPEN
CLOSE
CLOSED
10540A01

The side vents may be opened or closed as shown.

When defrosting, open and adjust the side vents to direct the air flow to the side win- dows.

86

cruisercult.com

Page 87

Part 1 OPERATION OF INSTRUMENTS AND CONTROLS—

Chapter 1-8 Other equipments

Clock
Cigarette lighter and ashtray
Glovebox
Tie-down hooks
Electric underhood cooling fan

cruisercult.com

87

Page 88

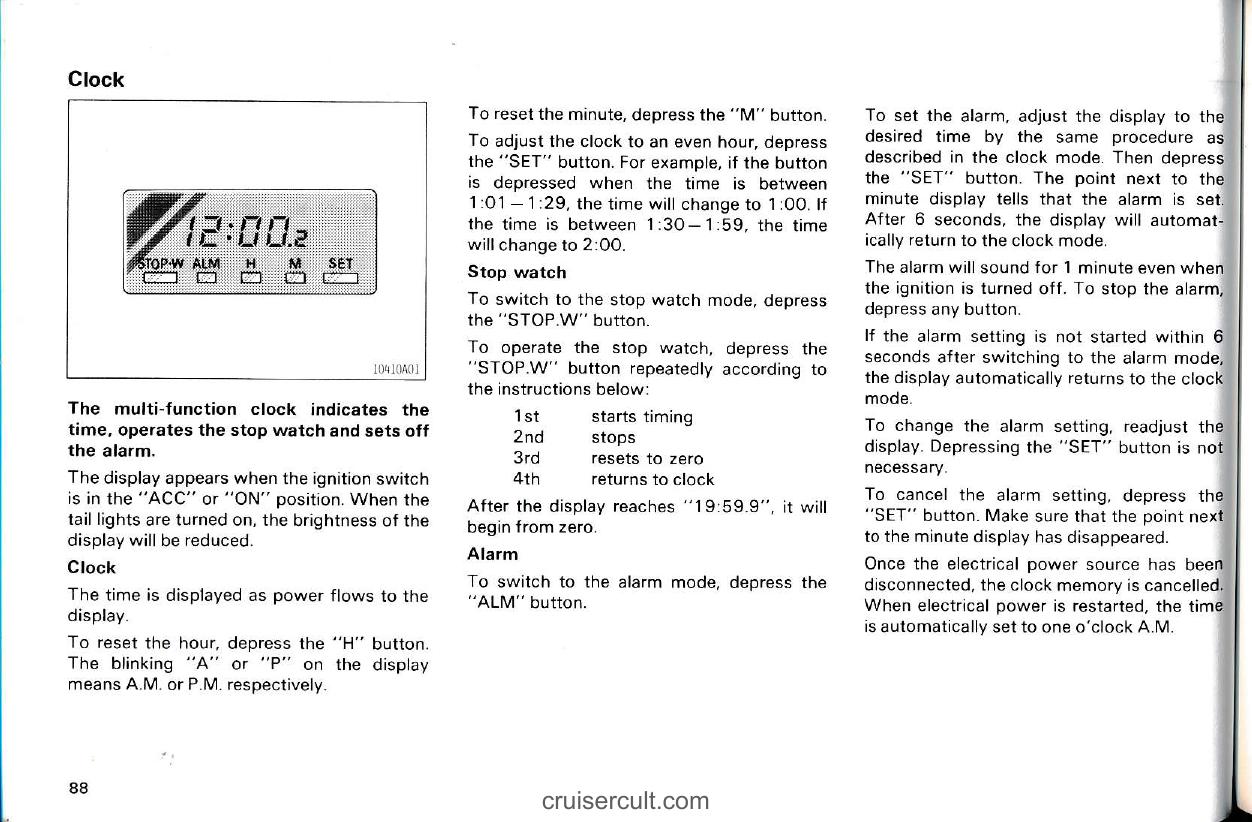

Clock

digital display

12:00.2

STOP.W ALM H M SET

10410A01

The multi-function clock indicates the time, operates the stop watch and sets off the alarm.

The display appears when the ignition switch is in the "ACC" or "ON" position. When the tail lights are turned on, the brightness of the display will be reduced.

Clock

The time is displayed as power flows to the display.

To reset the hour, depress the "H" button. The blinking "A" or "P" on the display means A.M. or P.M. respectively.

To reset the minute, depress the "M" button.

To adjust the clock to an even hour, depress the "SET" button. For example, if the button is depressed when the time is between 1:01 — 1:29, the time will change to 1:00. If the time is between 1:30 — 1:59, the time will change to 2:00.

Stop watch

To switch to the stop watch mode, depress the "STOP.W" button.

To operate the stop watch, depress the "STOP.W" button repeatedly according to the instructions below:

1st starts timing
2nd stops
3rd resets to zero
4th returns to clock

After the display reaches "19:59.9", it will begin from zero.

Alarm

To switch to the alarm mode, depress the "ALM" button.

To set the alarm, adjust the display to the desired time by the same procedure as described in the clock mode. Then depress the "SET" button. The point next to the minute display tells that the alarm is set. After 6 seconds, the display will automatically return to the clock mode.

The alarm will sound for 1 minute even when the ignition is turned off. To stop the alarm, depress any button.

If the alarm setting is not started within 6 seconds after switching to the alarm mode, the display automatically returns to the clock mode.

To change the alarm setting, readjust the display. Depressing the "SET" button is not necessary.

To cancel the alarm setting, depress the "SET" button. Make sure that the point next to the minute display has disappeared.

Once the electrical power source has been disconnected, the clock memory is cancelled. When electrical power is restarted, the time is automatically set to one o'clock A.M.

88

cruisercult.com

Page 89

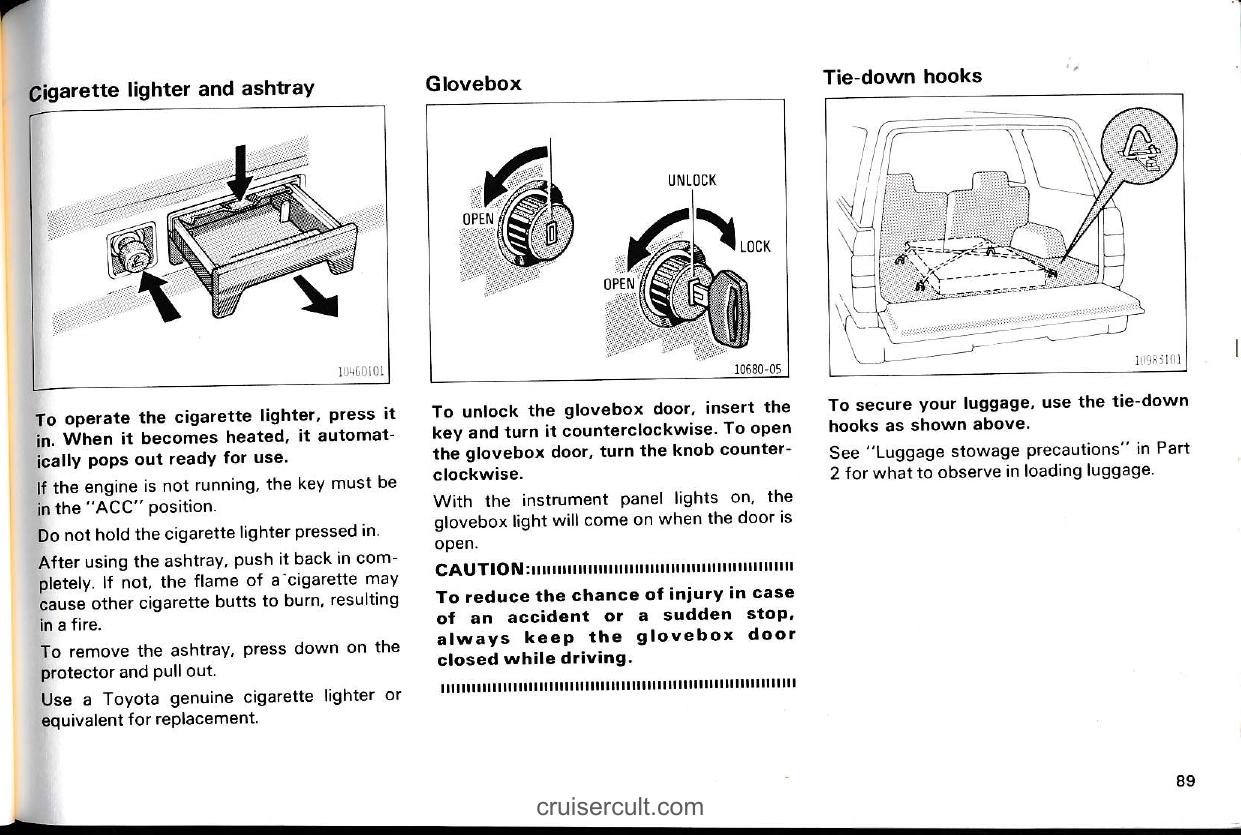

Cigarette lighter and ashtray

![image]

To operate the cigarette lighter, press it in. When it becomes heated, it automatically pops out ready for use.

If the engine is not running, the key must be in the "ACC" position.

Do not hold the cigarette lighter pressed in.

After using the ashtray, push it back in completely. If not, the flame of a cigarette may cause other cigarette butts to burn, resulting in a fire.

To remove the ashtray, press down on the protector and pull out.

Use a Toyota genuine cigarette lighter or equivalent for replacement.

Glovebox

![image]

To unlock the glovebox door, insert the key and turn it counterclockwise. To open the glovebox door, turn the knob counter-clockwise.

With the instrument panel lights on, the glovebox light will come on when the door is open.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

To reduce the chance of injury in case of an accident or a sudden stop, always keep the glovebox door closed while driving.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Tie-down hooks

![image]

To secure your luggage, use the tie-down hooks as shown above.

See "Luggage stowage precautions" in Part 2 for what to observe in loading luggage.

cruisercult.com

89

Page 90

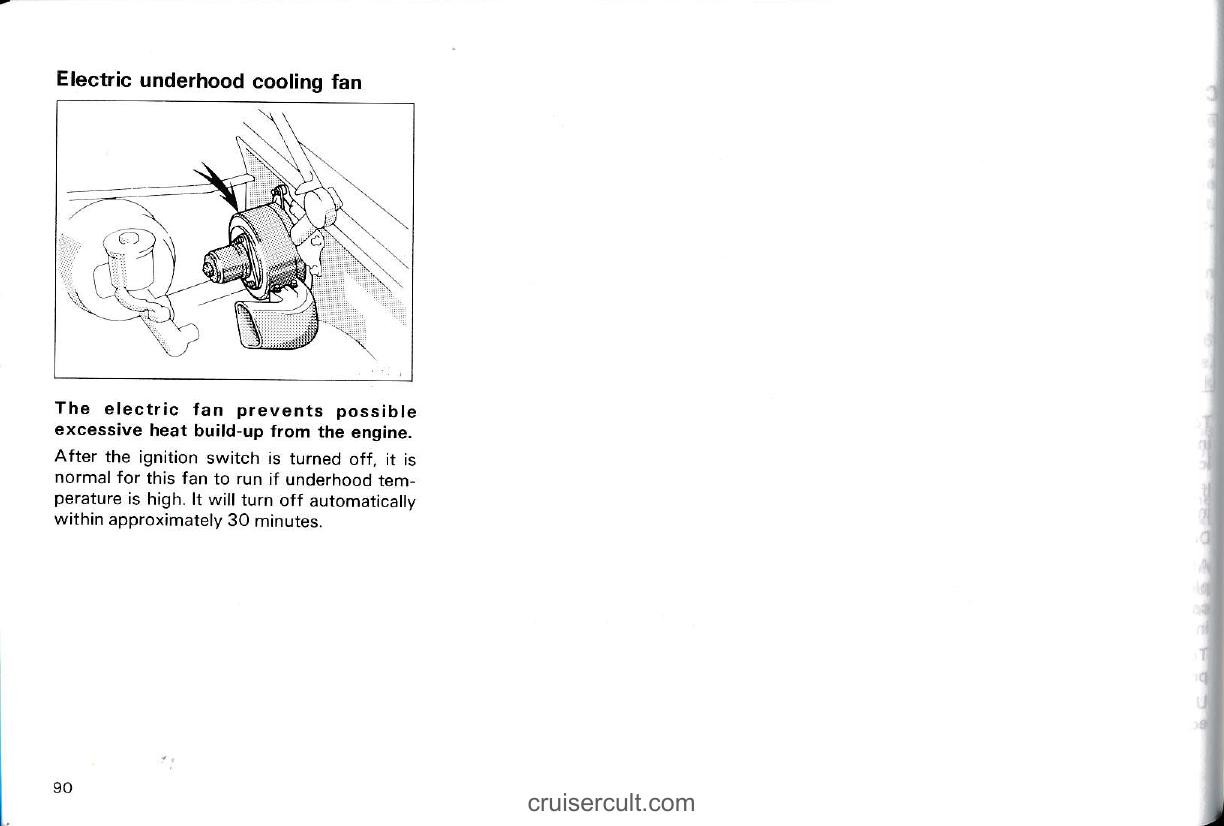

Electric underhood cooling fan

The electric fan prevents possible excessive heat build-up from the engine.

After the ignition switch is turned off, it is normal for this fan to run if underhood temperature is high. It will turn off automatically within approximately 30 minutes.

90

cruisercult.com

Page 91

Part 2 INFORMATION BEFORE DRIVING YOUR TOYOTA

Off-road vehicle precautions
Break-in period
Fuel
Operation in foreign countries
Catalytic converters
Engine exhaust cautions
Facts about engine oil consumption
Brake system
Luggage stowage precautions
Your Toyota's identification

cruisercult.com

91

Page 92

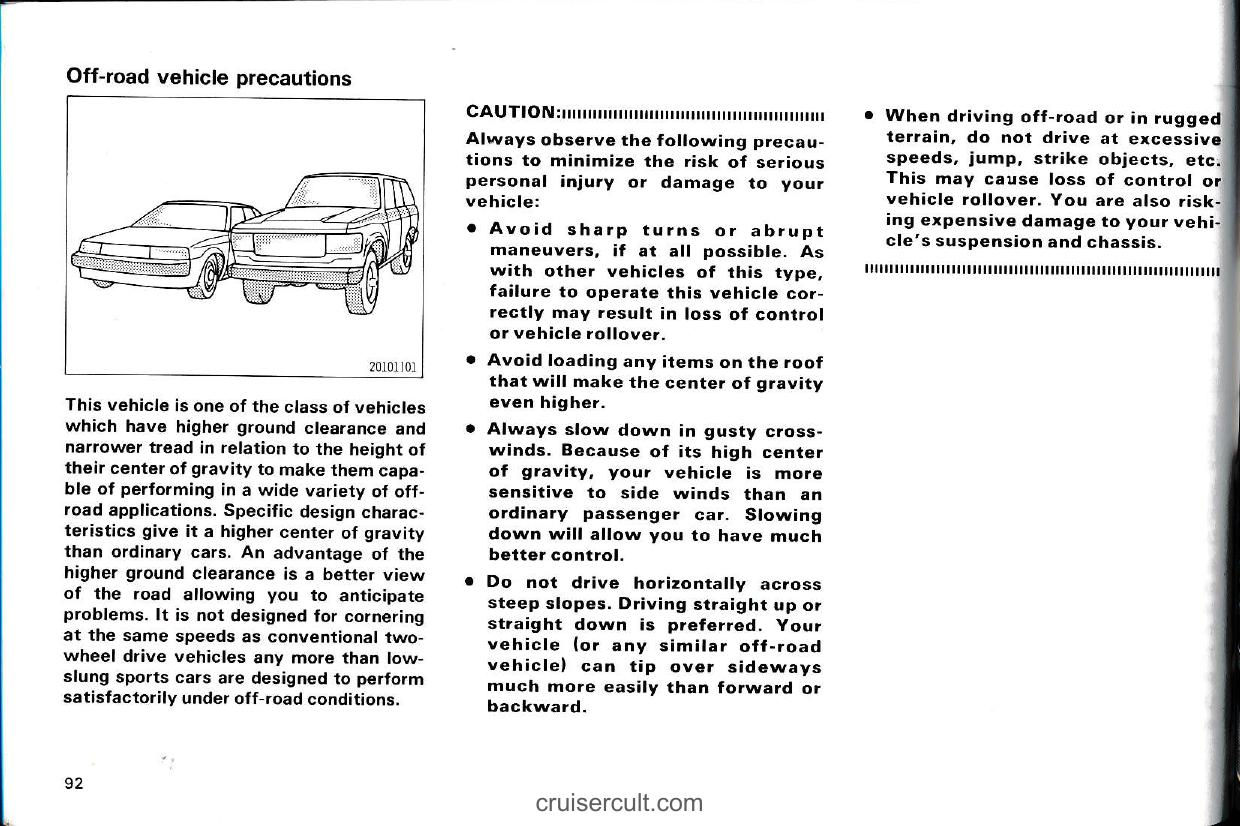

Off-road vehicle precautions

![2010101]

This vehicle is one of the class of vehicles which have higher ground clearance and narrower tread in relation to the height of their center of gravity to make them capable of performing in a wide variety of off‑road

Page 92.1 (unnumbered)

You should know
as much about
the repair
and maintenance
of your
new Land Cruiser
as the people
who built it.

cruisercult.com

Page 92.1

Page 92.2 (unnumbered)

The Toyota authorized 1989 Land Cruiser Repair Manual tells you how to maintain your Land Cruiser, diagnose problems, and perform your own maintenance and repair work.

The best way to keep your new Land Cruiser in top running order is to maintain it properly from the moment you drive it off the showroom floor and to make repairs promptly when problems arise.

The Toyota authorized 1989 Land Cruiser Repair Manual helps you do both. It's packed with literally everything you need to know to perform your own maintenance and repair in virtually every area of your new Land Cruiser.

Maintenance and repair procedures for the engine, chassis, body, electrical system, and more, are clearly explained and illustrated.

cruisercult.com

Page 92.2

Page 92.3 (unnumbered)

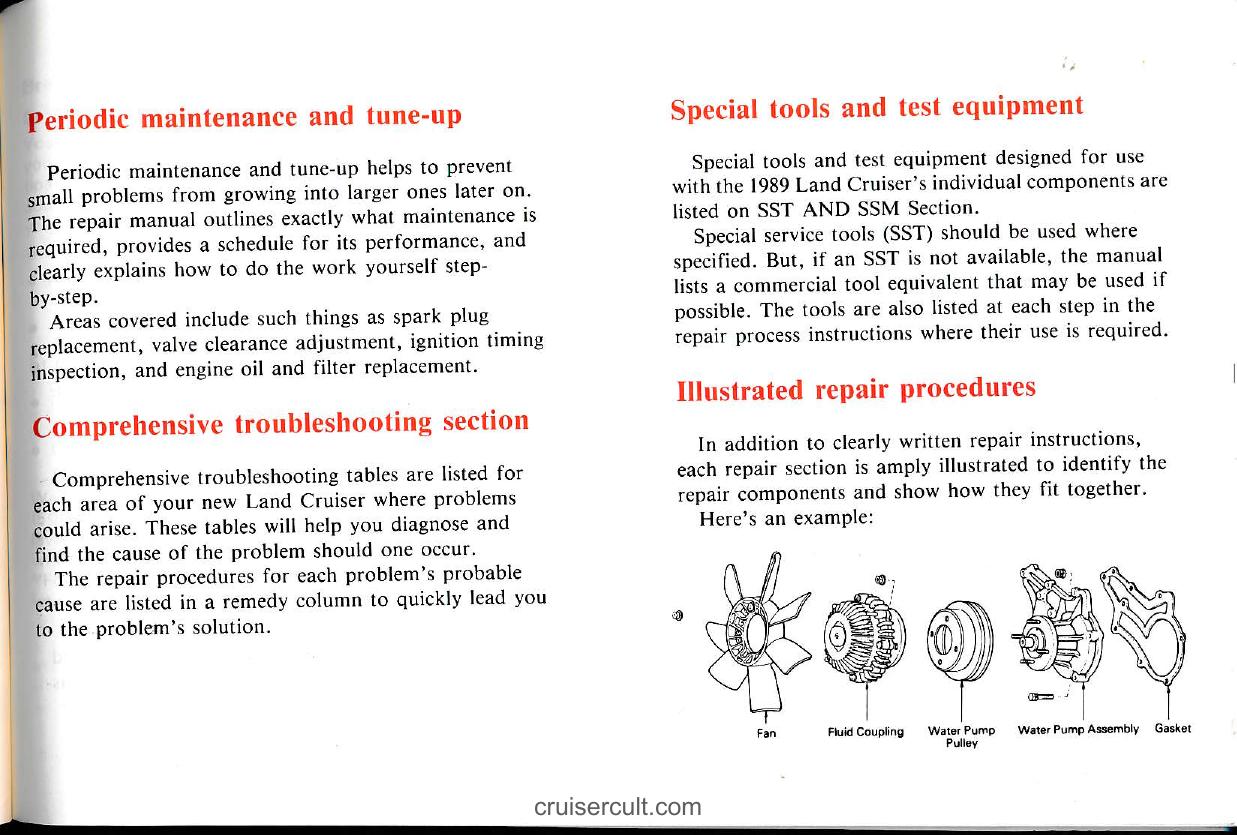

Periodic maintenance and tune-up

Periodic maintenance and tune-up helps to prevent small problems from growing into larger ones later on. The repair manual outlines exactly what maintenance is required, provides a schedule for its performance, and clearly explains how to do the work yourself step-by-step.

Areas covered include such things as spark plug replacement, valve clearance adjustment, ignition timing inspection, and engine oil and filter replacement.

Comprehensive troubleshooting section

Comprehensive troubleshooting tables are listed for each area of your new Land Cruiser where problems could arise. These tables will help you diagnose and find the cause of the problem should one occur.

The repair procedures for each problem's probable cause are listed in a remedy column to quickly lead you to the problem's solution.

Special tools and test equipment

Special tools and test equipment designed for use with the 1989 Land Cruiser's individual components are listed on SST AND SSM Section.

Special service tools (SST) should be used where specified. But, if an SST is not available, the manual lists a commercial tool equivalent that may be used if possible. The tools are also listed at each step in the repair process instructions where their use is required.

Illustrated repair procedures

In addition to clearly written repair instructions, each repair section is amply illustrated to identify the repair components and show how they fit together.

Here's an example:

Fan
Fluid Coupling
Water Pump Pulley
Water Pump Assembly
Gasket

cruisercult.com

Page 92.3

Page 92.4 (unnumbered)

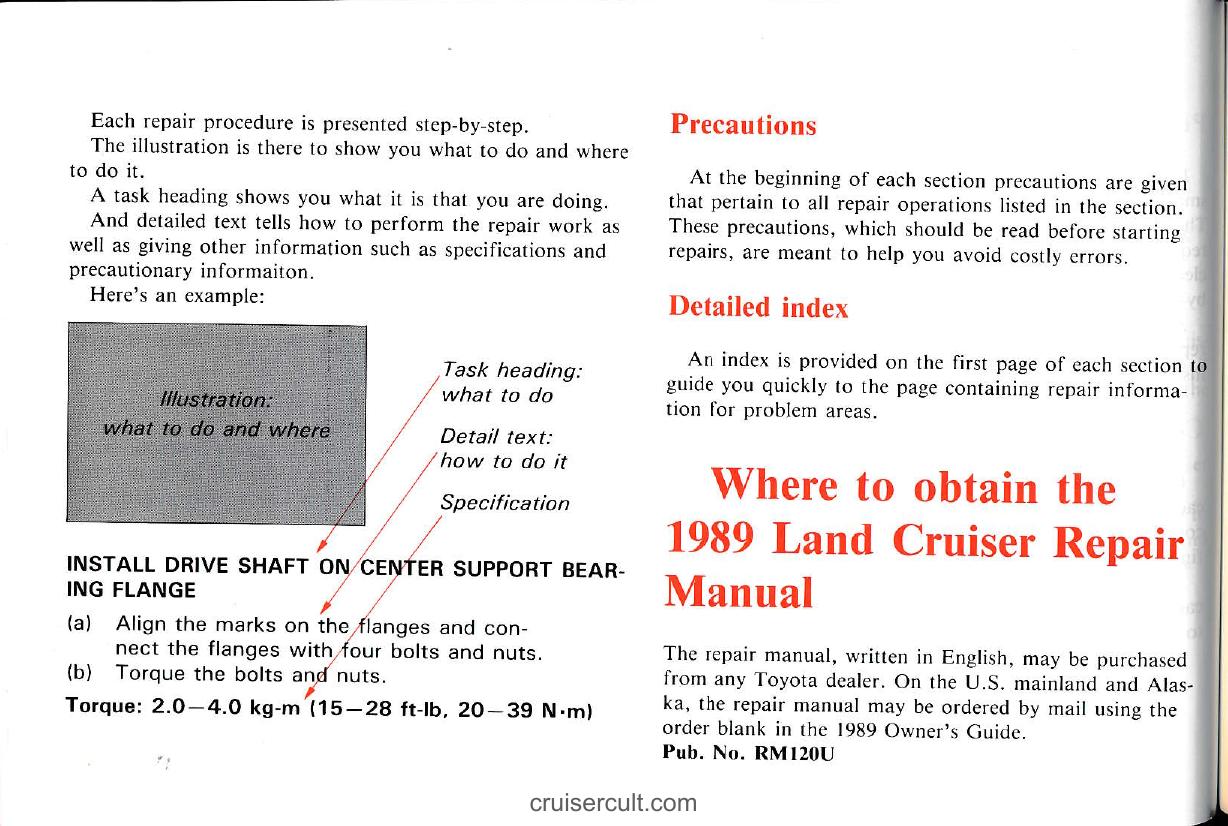

Each repair procedure is presented step-by-step.
The illustration is there to show you what to do and where to do it.

A task heading shows you what it is that you are doing.
And detailed text tells how to perform the repair work as well as giving other information such as specifications and precautionary informaiton.
Here’s an example:

Illustration:
what to do and where

Task heading:
what to do

Detail text:
how to do it

Specification

INSTALL DRIVE SHAFT ON CENTER SUPPORT BEAR-
ING FLANGE

(a) Align the marks on the flanges and connect the flanges with four bolts and nuts.
(b) Torque the bolts and nuts.

Torque: 2.0–4.0 kg-m (15–28 ft-lb, 20–39 N·m)

cruisercult.com

Precautions

At the beginning of each section precautions are given that pertain to all repair operations listed in the section. These precautions, which should be read before starting repairs, are meant to help you avoid costly errors.

Detailed index

An index is provided on the first page of each section to guide you quickly to the page containing repair informa- tion for problem areas.

Where to obtain the 1989 Land Cruiser Repair Manual

The repair manual, written in English, may be purchased from any Toyota dealer. On the U.S. mainland and Alaska, the repair manual may be ordered by mail using the order blank in the 1989 Owner’s Guide.
Pub. No. RM120U

Page 92.4

Page 93

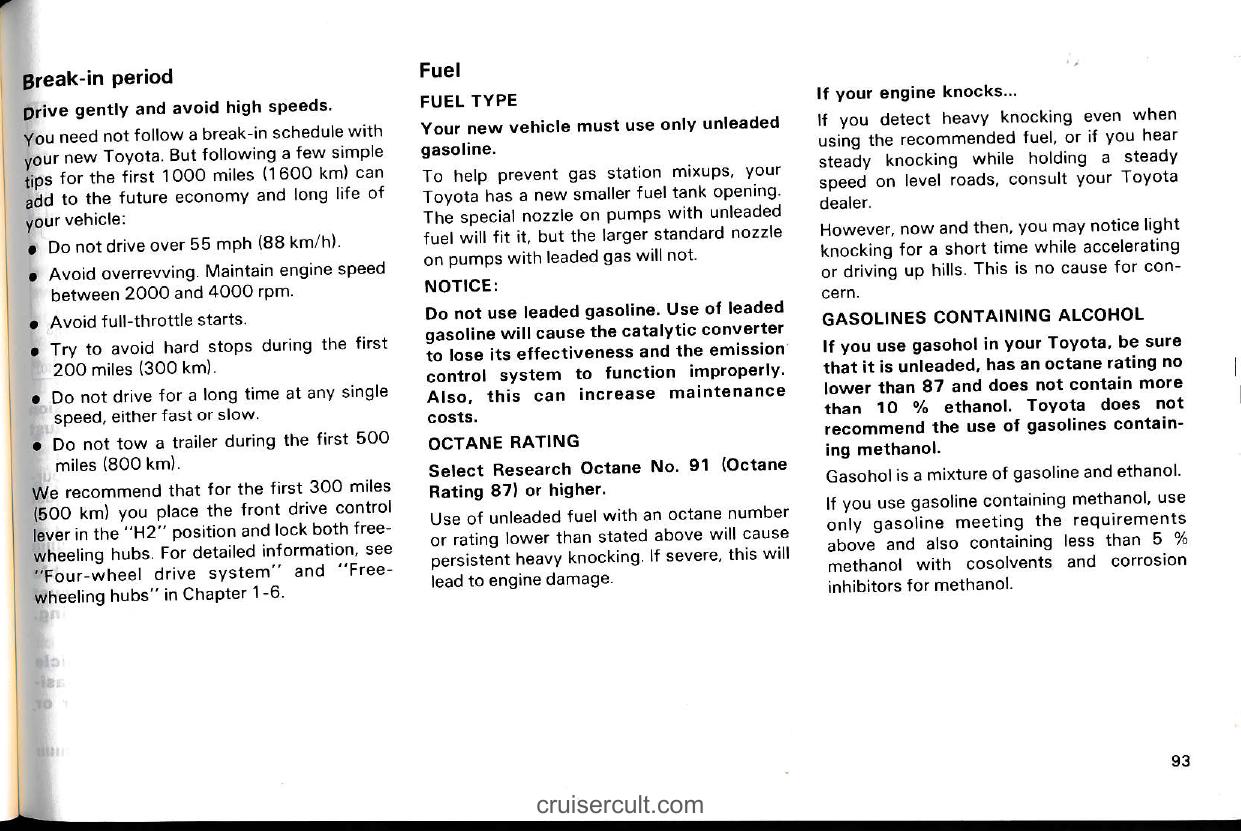

Break-in period

Drive gently and avoid high speeds.

You need not follow a break-in schedule with your new Toyota. But following a few simple tips for the first 1000 miles (1600 km) can add to the future economy and long life of your vehicle:

Do not drive over 55 mph (88 km/h).
Avoid overrevving. Maintain engine speed between 2000 and 4000 rpm.
Avoid full-throttle starts.
Try to avoid hard stops during the first 200 miles (300 km).
Do not drive for a long time at any single speed, either fast or slow.
Do not tow a trailer during the first 500 miles (800 km).

We recommend that for the first 300 miles (500 km) you place the front drive control lever in the "H2" position and lock both free-wheeling hubs. For detailed information, see "Four-wheel drive system" and "Free-wheeling hubs" in Chapter 1-6.

Fuel

FUEL TYPE

Your new vehicle must use only unleaded gasoline.

To help prevent gas station mixups, your Toyota has a new smaller fuel tank opening. The special nozzle on pumps with unleaded fuel will fit it, but the larger standard nozzle on pumps with leaded gas will not.

NOTICE:

Do not use leaded gasoline. Use of leaded gasoline will cause the catalytic converter to lose its effectiveness and the emission control system to function improperly. Also, this can increase maintenance costs.

OCTANE RATING

Select Research Octane No. 91 (Octane Rating 87) or higher.

Use of unleaded fuel with an octane number or rating lower than stated above will cause persistent heavy knocking. If severe, this will lead to engine damage.

If your engine knocks...

If you detect heavy knocking even when using the recommended fuel, or if you hear steady knocking while holding a steady speed on level roads, consult your Toyota dealer.

However, now and then, you may notice light knocking for a short time while accelerating or driving up hills. This is no cause for concern.

GASOLINES CONTAINING ALCOHOL

If you use gasohol in your Toyota, be sure that it is unleaded, has an octane rating no lower than 87 and does not contain more than 10% ethanol. Toyota does not recommend the use of gasolines containing methanol.

Gasohol is a mixture of gasoline and ethanol.

If you use gasoline containing methanol, use only gasoline meeting the requirements above and also containing less than 5% methanol with cosolvents and corrosion inhibitors for methanol.

cruisercult.com

93

Page 94

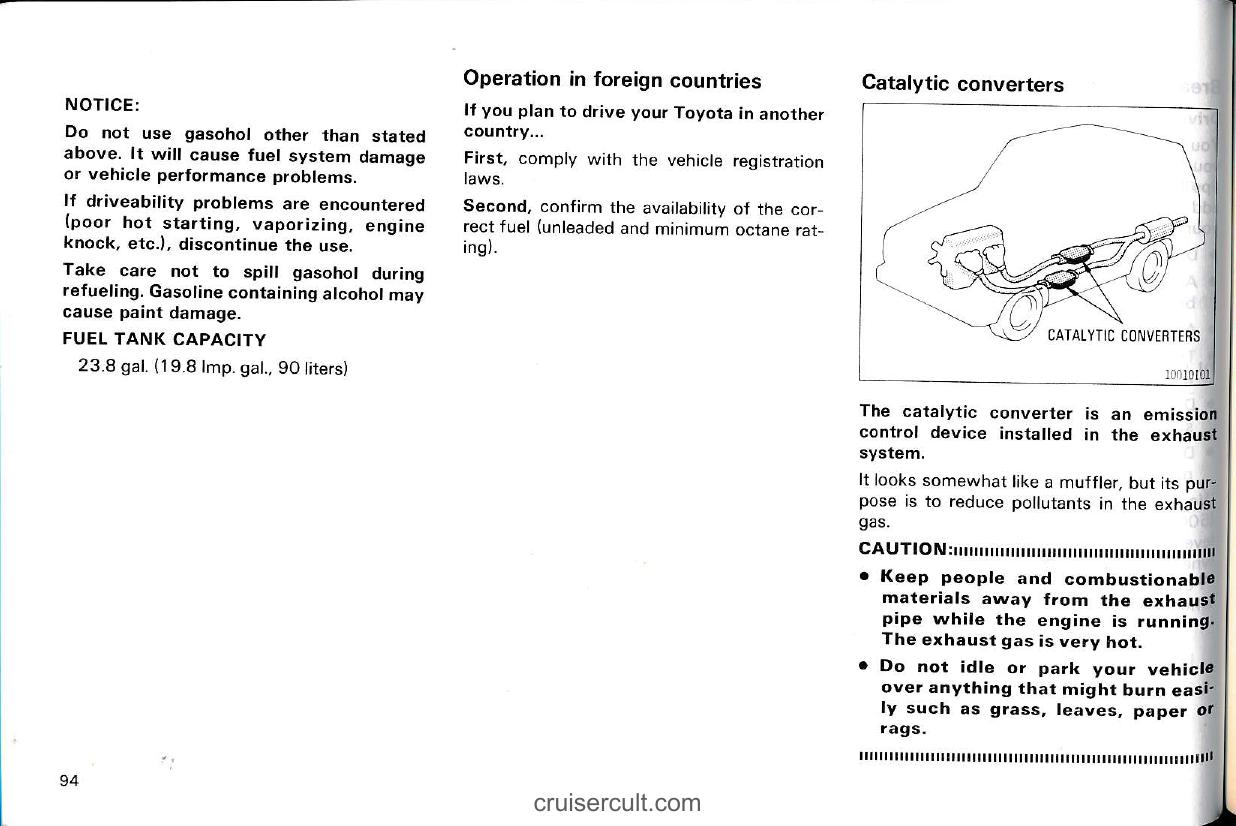

NOTICE:

Do not use gasohol other than stated above. It will cause fuel system damage or vehicle performance problems.

If driveability problems are encountered (poor hot starting, vaporizing, engine knock, etc.), discontinue the use.

Take care not to spill gasohol during refueling. Gasoline containing alcohol may cause paint damage.

FUEL TANK CAPACITY

23.8 gal. (19.8 Imp. gal., 90 liters)

Operation in foreign countries

If you plan to drive your Toyota in another country...

First, comply with the vehicle registration laws.

Second, confirm the availability of the correct fuel (unleaded and minimum octane rating).

Catalytic converters

The catalytic converter is an emission control device installed in the exhaust system.

It looks somewhat like a muffler, but its purpose is to reduce pollutants in the exhaust gas.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Keep people and combustible materials away from the exhaust pipe while the engine is running. The exhaust gas is very hot.
Do not idle or park your vehicle over anything that might burn easily such as grass, leaves, paper or rags.

94

cruisercult.com

Page 95

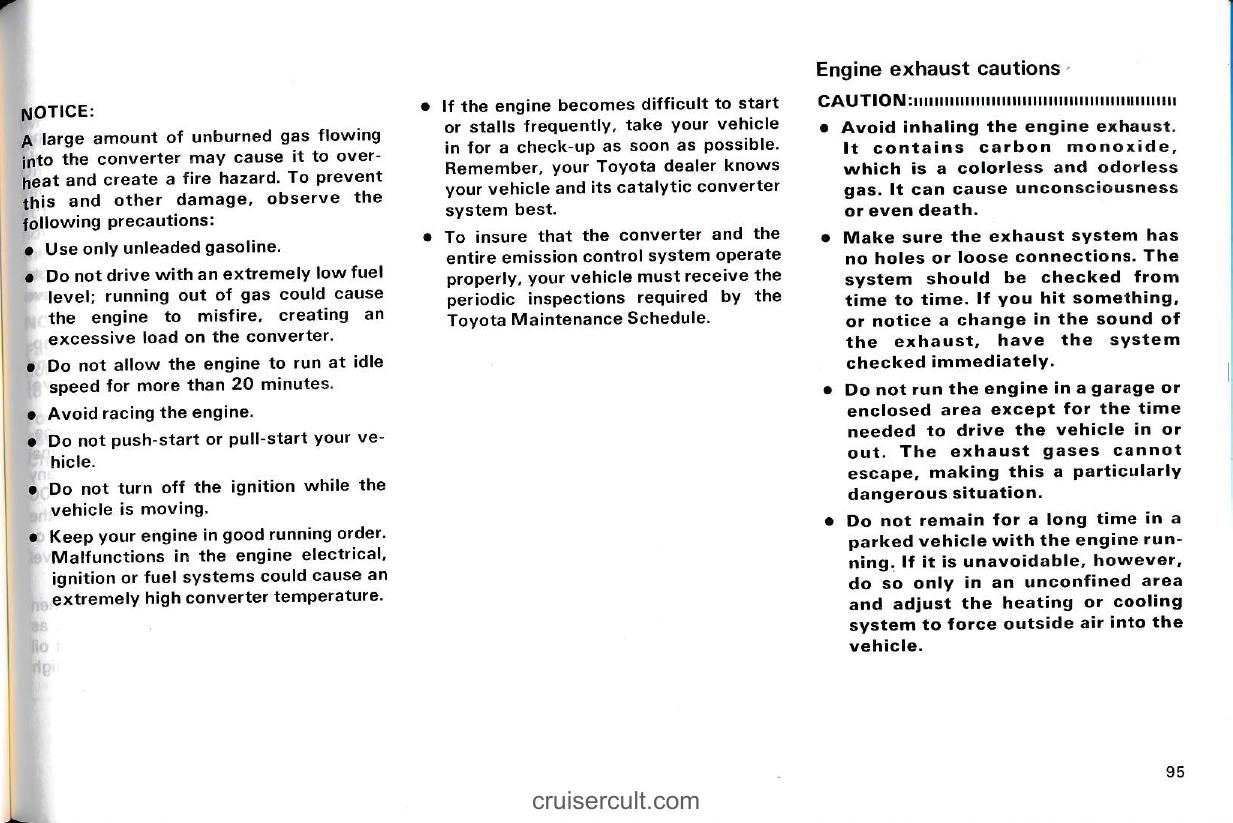

NOTICE:

A large amount of unburned gas flowing into the converter may cause it to overheat and create a fire hazard. To prevent this and other damage, observe the following precautions:

Use only unleaded gasoline.
Do not drive with an extremely low fuel level; running out of gas could cause the engine to misfire, creating an excessive load on the converter.
Do not allow the engine to run at idle speed for more than 20 minutes.
Avoid racing the engine.
Do not push-start or pull-start your vehicle.
Do not turn off the ignition while the vehicle is moving.
Keep your engine in good running order. Malfunctions in the engine electrical, ignition or fuel systems could cause an extremely high converter temperature.
If the engine becomes difficult to start or stalls frequently, take your vehicle in for a check-up as soon as possible. Remember, your Toyota dealer knows your vehicle and its catalytic converter system best.
To insure that the converter and the entire emission control system operate properly, your vehicle must receive the periodic inspections required by the Toyota Maintenance Schedule.

Engine exhaust cautions

CAUTION:

Avoid inhaling the engine exhaust. It contains carbon monoxide, which is a colorless and odorless gas. It can cause unconsciousness or even death.
Make sure the exhaust system has no holes or loose connections. The system should be checked from time to time. If you hit something, or notice a change in the sound of the exhaust, have the system checked immediately.
Do not run the engine in a garage or enclosed area except for the time needed to drive the vehicle in or out. The exhaust gases cannot escape, making this a particularly dangerous situation.
Do not remain for a long time in a parked vehicle with the engine running. If it is unavoidable, however, do so only in an unconfined area and adjust the heating or cooling system to force outside air into the vehicle.

cruisercult.com

95

Page 96

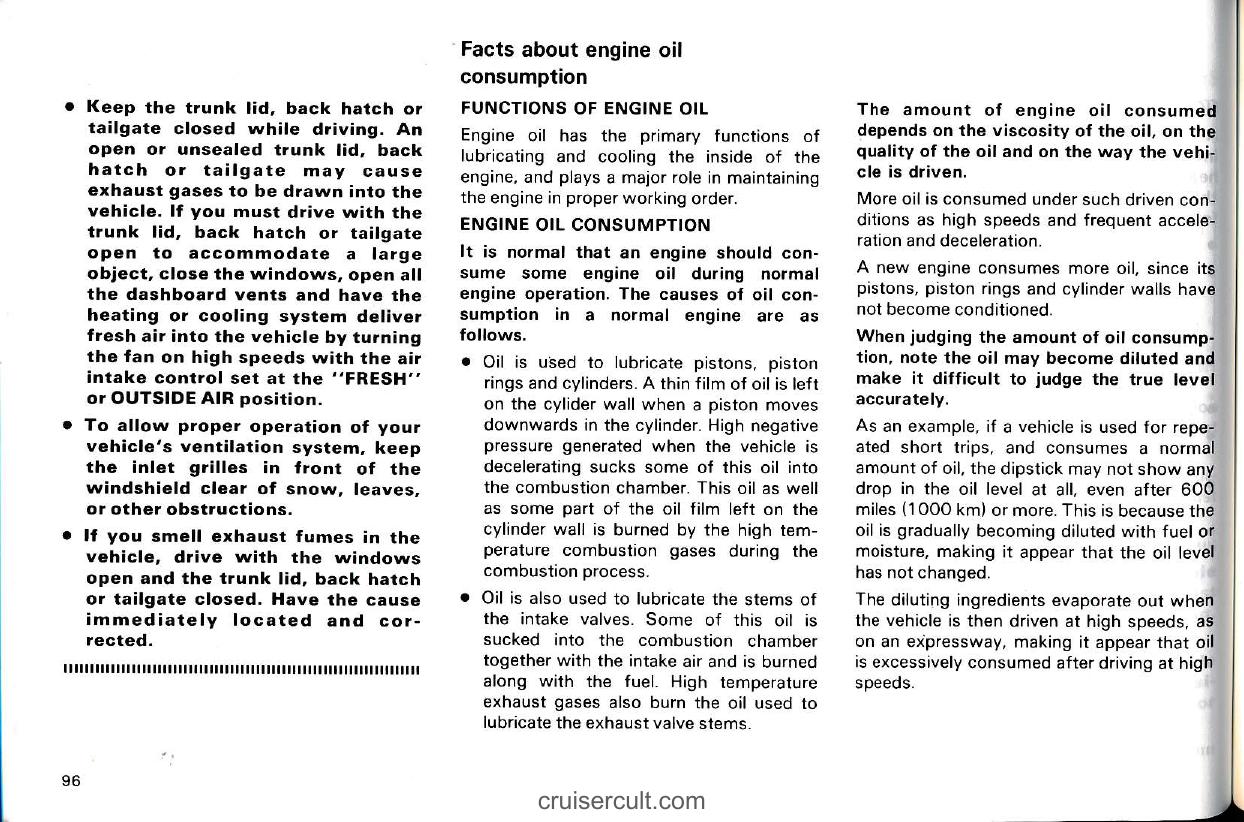

Keep the trunk lid, back hatch or tailgate closed while driving. An open or unsealed trunk lid, back hatch or tailgate may cause exhaust gases to be drawn into the vehicle. If you must drive with the trunk lid, back hatch or tailgate open to accommodate a large object, close the windows, open all the dashboard vents and have the heating or cooling system deliver fresh air into the vehicle by turning the fan on high speeds with the air intake control set at the "FRESH", or OUTSIDE AIR position.
To allow proper operation of your vehicle's ventilation system, keep the inlet grilles in front of the windshield clear of snow, leaves, or other obstructions.
If you smell exhaust fumes in the vehicle, drive with the windows open and the trunk lid, back hatch or tailgate closed. Have the cause immediately located and corrected.

Facts about engine oil consumption

FUNCTIONS OF ENGINE OIL

Engine oil has the primary functions of lubricating and cooling the inside of the engine, and plays a major role in maintaining the engine in proper working order.

ENGINE OIL CONSUMPTION

It is normal that an engine should consume some engine oil during normal engine operation. The causes of oil consumption in a normal engine are as follows.

Oil is used to lubricate pistons, piston rings and cylinders. A thin film of oil is left on the cylinder wall when a piston moves downwards in the cylinder. High negative pressure generated when the vehicle is decelerating sucks some of this oil into the combustion chamber. This oil as well as some part of the oil film left on the cylinder wall is burned by the high temperature combustion gases during the combustion process.
Oil is also used to lubricate the stems of the intake valves. Some of this oil is sucked into the combustion chamber together with the intake air and is burned along with the fuel. High temperature exhaust gases also burn the oil used to lubricate the exhaust valve stems.

The amount of engine oil consumed depends on the viscosity of the oil, on the quality of the oil and on the way the vehicle is driven.

More oil is consumed under such driven conditions as high speeds and frequent acceleration and deceleration.

A new engine consumes more oil, since its pistons, piston rings and cylinder walls have not become conditioned.

When judging the amount of oil consumption, note the oil may become diluted and make it difficult to judge the true level accurately.

As an example, if a vehicle is used for repeated short trips, and consumes a normal amount of oil, the dipstick may not show any drop in the oil level at all, even after 600 miles (1000 km) or more. This is because the oil is gradually becoming diluted with fuel or moisture, making it appear that the oil level has not changed.

The diluting ingredients evaporate out when the vehicle is then driven at high speeds, as on an expressway, making it appear that oil is excessively consumed after driving at high speeds.

96

cruisercult.com

Page 97

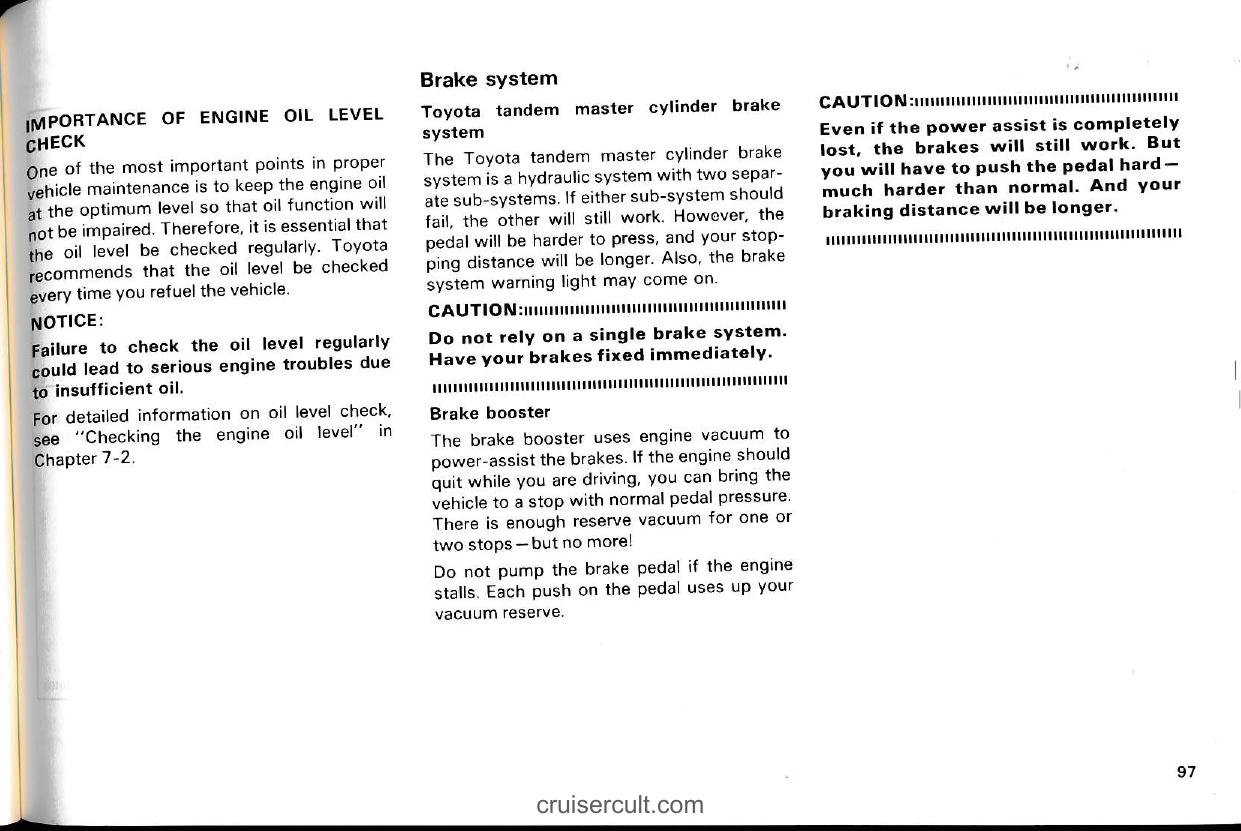

IMPORTANCE OF ENGINE OIL LEVEL CHECK

One of the most important points in proper vehicle maintenance is to keep the engine oil at the optimum level so that oil function will not be impaired. Therefore, it is essential that the oil level be checked regularly. Toyota recommends that the oil level be checked every time you refuel the vehicle.

NOTICE:

Failure to check the oil level regularly could lead to serious engine troubles due to insufficient oil.

For detailed information on oil level check, see "Checking the engine oil level" in Chapter 7-2.

Brake system

Toyota tandem master cylinder brake system

The Toyota tandem master cylinder brake system is a hydraulic system with two separate sub-systems. If either sub-system should fail, the other will still work. However, the pedal will be harder to press, and your stopping distance will be longer. Also, the brake system warning light may come on.

CAUTION:

Do not rely on a single brake system. Have your brakes fixed immediately.

Brake booster

The brake booster uses engine vacuum to power-assist the brakes. If the engine should quit while you are driving, you can bring the vehicle to a stop with normal pedal pressure. There is enough reserve vacuum for one or two stops — but no more!

Do not pump the brake pedal if the engine stalls. Each push on the pedal uses up your vacuum reserve.

CAUTION:

Even if the power assist is completely lost, the brakes will still work. But you will have to push the pedal hard — much harder than normal. And your braking distance will be longer.

cruisercult.com

97

Page 98

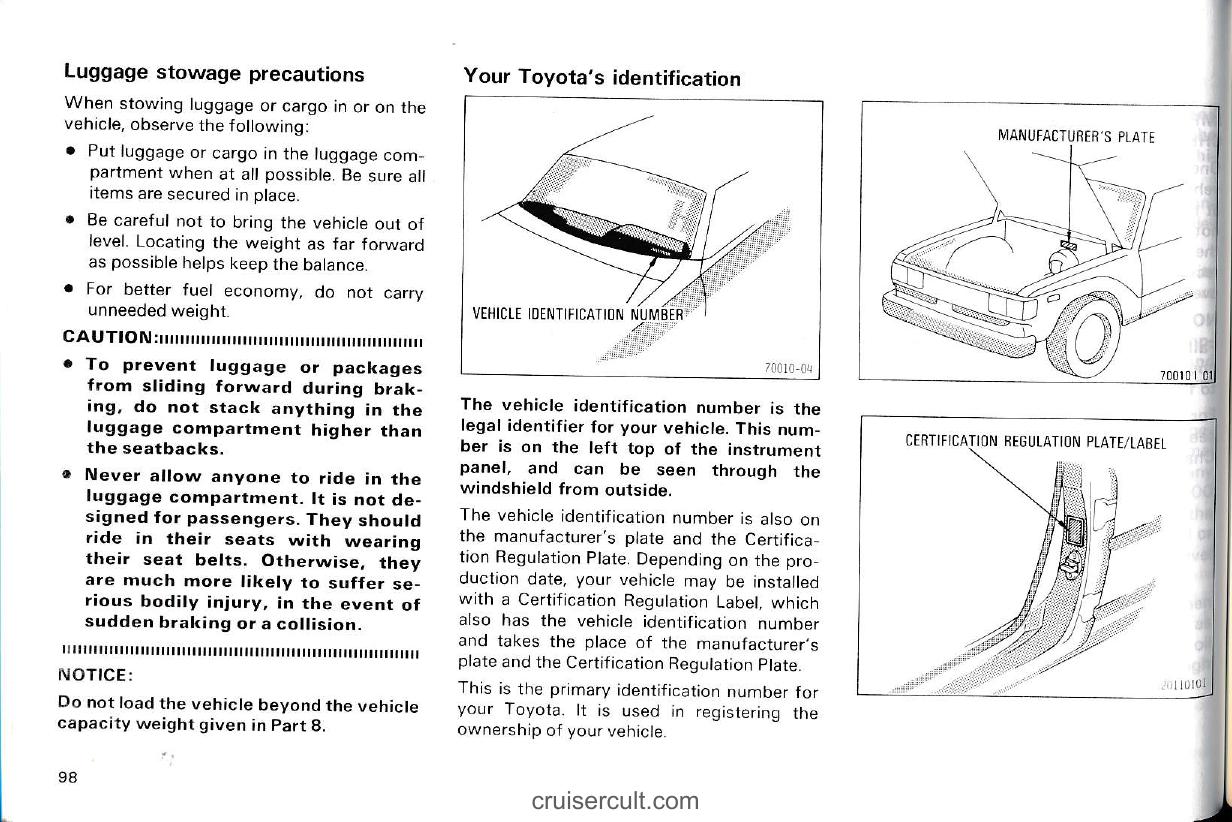

Luggage stowage precautions

When stowing luggage or cargo in or on the vehicle, observe the following:

Put luggage or cargo in the luggage compartment when at all possible. Be sure all items are secured in place.
Be careful not to bring the vehicle out of level. Locating the weight as far forward as possible helps keep the balance.
For better fuel economy, do not carry unneeded weight.

CAUTION:

To prevent luggage or packages from sliding forward during braking, do not stack anything in the luggage compartment higher than the seatbacks.
Never allow anyone to ride in the luggage compartment. It is not designed for passengers. They should ride in their seats with wearing their seat belts. Otherwise, they are much more likely to suffer serious bodily injury, in the event of sudden braking or a collision.

NOTICE:

Do not load the vehicle beyond the vehicle capacity weight given in Part 8.

98

Your Toyota's identification

![Vehicle illustration labeled VEHICLE IDENTIFICATION NUMBER]
VEHICLE IDENTIFICATION NUMBER
(70010-04)

The vehicle identification number is the legal identifier for your vehicle. This number is on the left top of the instrument panel, and can be seen through the windshield from outside.

The vehicle identification number is also on the manufacturer's plate and the Certification Regulation Plate. Depending on the production date, your vehicle may be installed with a Certification Regulation Label, which also has the vehicle identification number and takes the place of the manufacturer's plate and the Certification Regulation Plate.

This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle.

MANUFACTURER'S PLATE
(70010101)

CERTIFICATION REGULATION PLATE/LABEL
(20110101)

Page 99

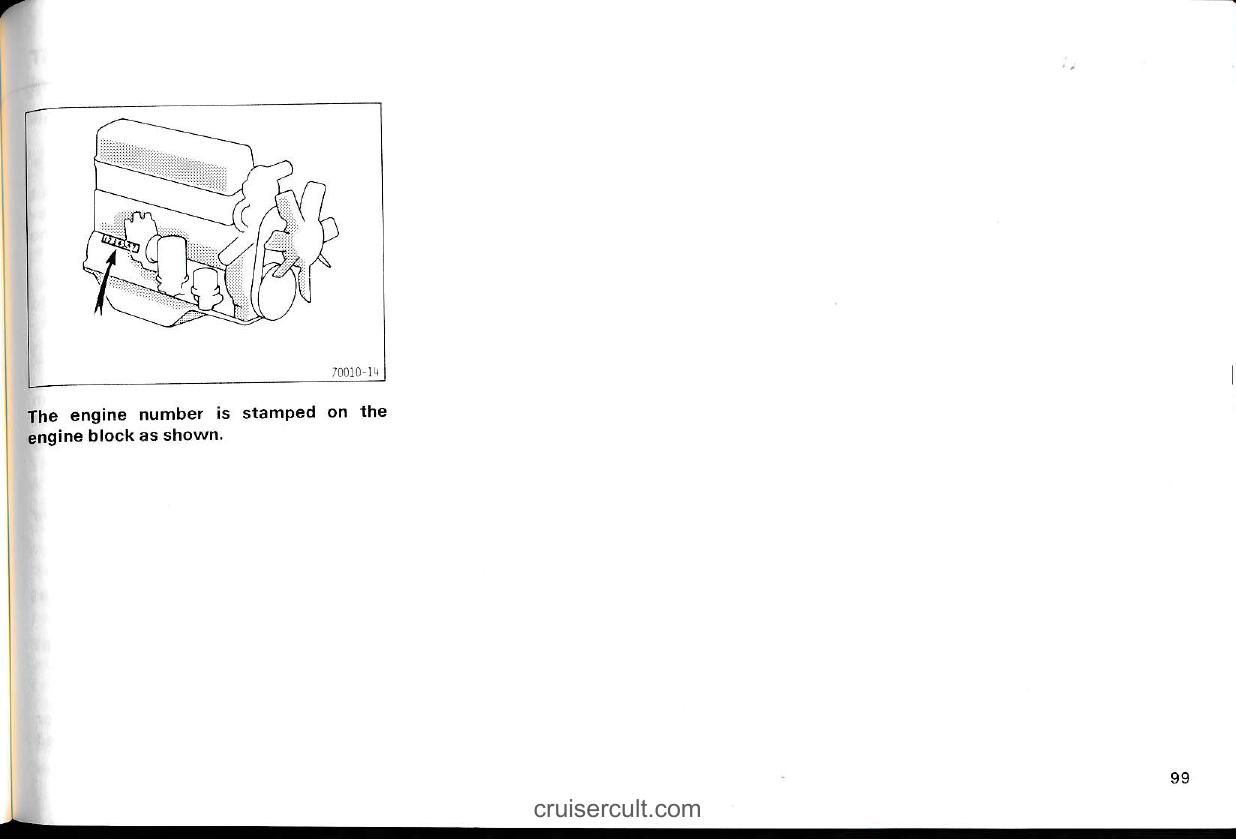

The engine number is stamped on the engine block as shown.

70010-14

cruisercult.com

99

Page 100

100

cruisercult.com

Page 101

Part 3 STARTING AND DRIVING

Before starting the engine
How to start the engine
Tips for driving in various conditions
Off-road driving precautions
Winter driving tips
Trailer towing
How to save fuel and make your vehicle last longer, too

cruisercult.com

101

Page 102

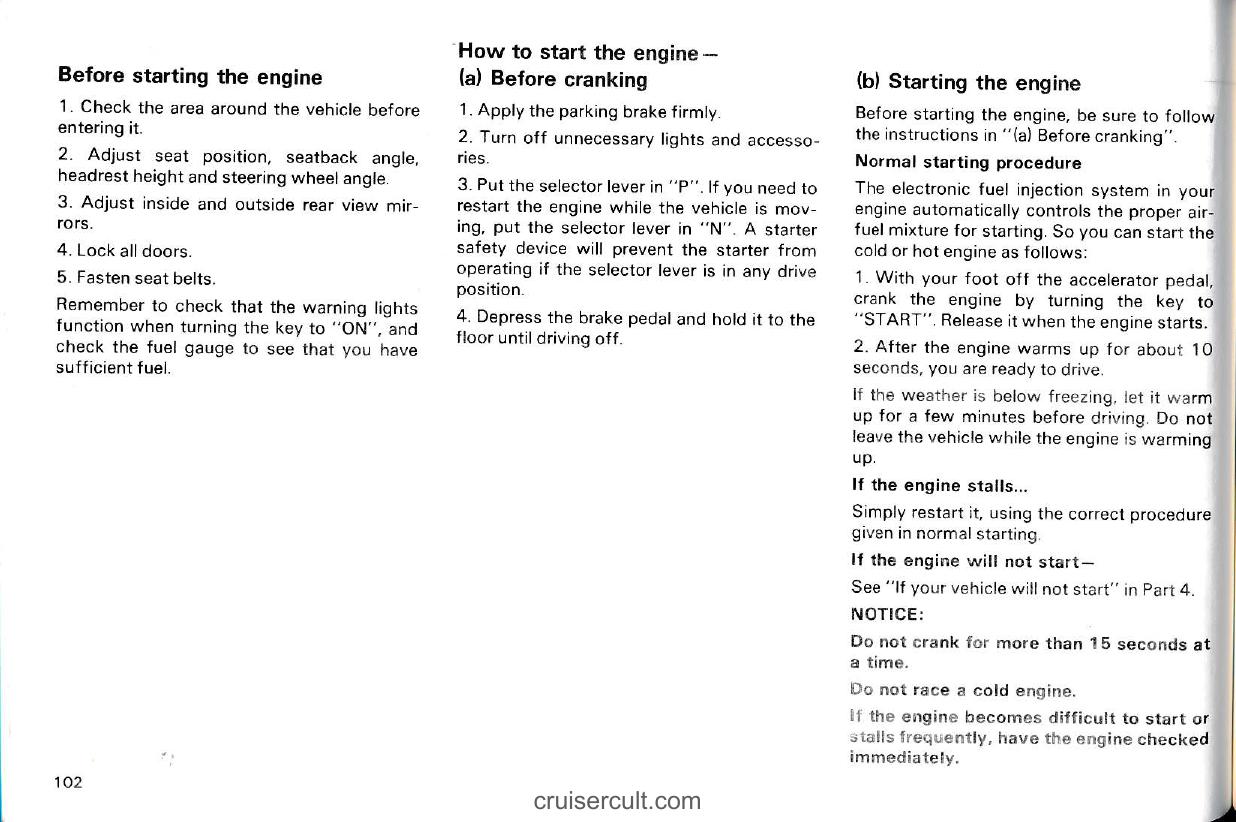

Before starting the engine

Check the area around the vehicle before entering it.
Adjust seat position, seatback angle, headrest height and steering wheel angle.
Adjust inside and outside rear view mirrors.
Lock all doors.
Fasten seat belts.

Remember to check that the warning lights function when turning the key to "ON", and check the fuel gauge to see that you have sufficient fuel.

How to start the engine —

(a) Before cranking

Apply the parking brake firmly.
Turn off unnecessary lights and accessories.
Put the selector lever in "P". If you need to restart the engine while the vehicle is moving, put the selector lever in "N". A starter safety device will prevent the starter from operating if the selector lever is in any drive position.
Depress the brake pedal and hold it to the floor until driving off.

(b) Starting the engine

Before starting the engine, be sure to follow the instructions in "(a) Before cranking".

Normal starting procedure

The electronic fuel injection system in your engine automatically controls the proper air-fuel mixture for starting. So you can start the cold or hot engine as follows:

With your foot off the accelerator pedal, crank the engine by turning the key to "START". Release it when the engine starts.
After the engine warms up for about 10 seconds, you are ready to drive.

If the weather is below freezing, let it warm up for a few minutes before driving. Do not leave the vehicle while the engine is warming up.

If the engine stalls...

Simply restart it, using the correct procedure given in normal starting.

If the engine will not start—

See "If your vehicle will not start" in Part 4.

NOTICE:

Do not crank for more than 15 seconds at a time.

Do not race a cold engine.

If the engine becomes difficult to start or stalls frequently, have the engine checked immediately.

102

cruisercult.com

Page 103

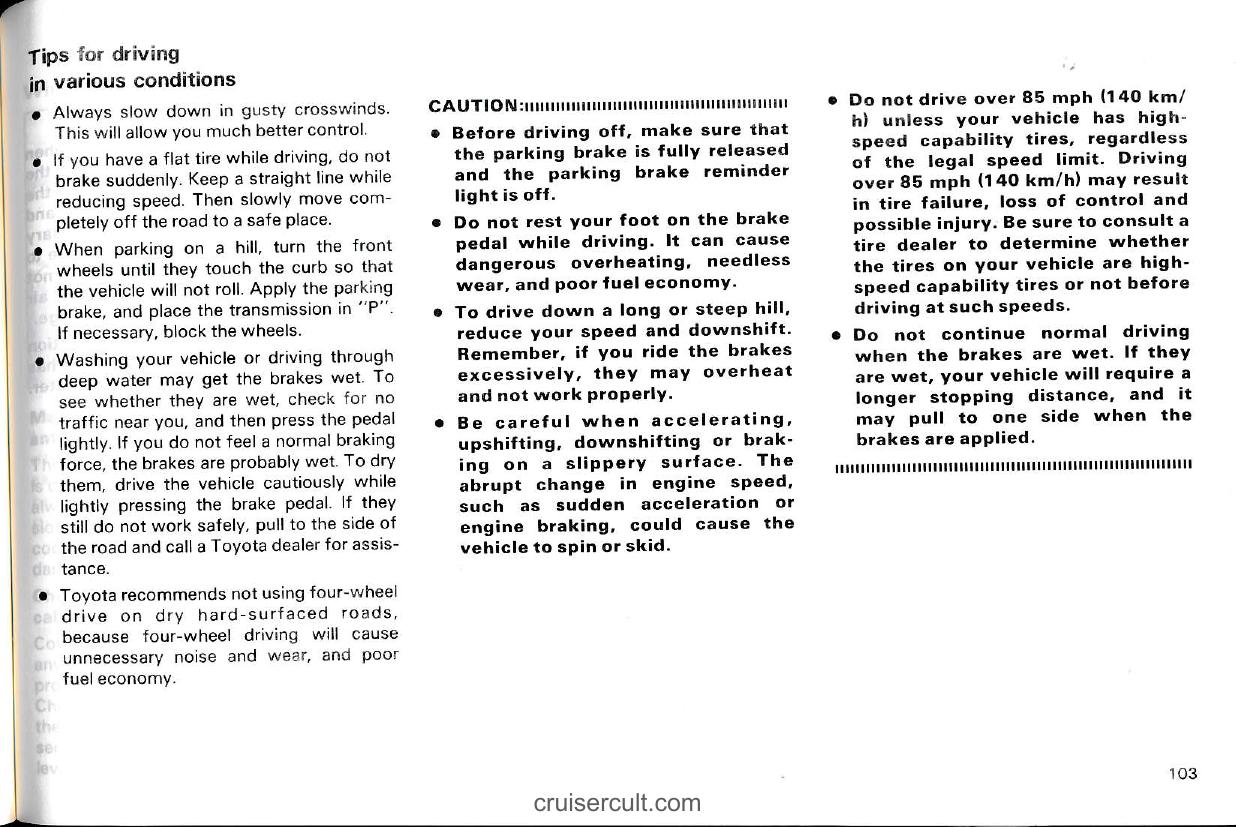

Page content not yet processed

Page 104

Off-road driving precautions

When driving your vehicle off-road, please observe the following precautions to ensure your driving enjoyment and to help prevent the closure of areas to off-road vehicles.

a. Drive your vehicle only in areas where off-road vehicles are permitted to travel.

b. Respect private property. Get owner's permission before entering private property.

c. Do not enter areas that are closed. Honor gates, barriers and signs that restrict travel.

d. Stay on established roads. When conditions are wet, driving techniques should be changed or travel delayed to prevent damage to roads.

For owners in U.S. mainland, Hawaii and Puerto Rico:

To obtain additional information pertaining to driving your vehicle off-road, consult the following organizations.

State and Local Parks and Recreation Departments
State Motor Vehicle Bureau
Recreational Vehicle Clubs
U.S. Forest Service and Bureau of Land Management

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Always observe the following precautions to minimize the risk of serious personal injury or damage to your vehicle:

Drive carefully when off the road. Do not take unnecessary risks by driving in dangerous places.
Do not grip the steering wheel spokes when driving off-road. A bad bump could jerk the wheel and injure your hands. Keep both hands and especially your thumbs on the outside of the rim.
Always check your brakes for effectiveness immediately after driving in sand, mud, or water.
The driver and all passengers should fasten their seat belts whenever the vehicle is moving.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

NOTICE:

If driving through water, such as when crossing shallow streams, first check the depth of the water and the bottom of the river bed for firmness. Drive slowly and avoid deep water. Take all necessary safety measures to ensure that damage to the engine or other components does not occur. Water entering the engine air intake will cause severe engine damage.

Always perform a maintenance inspection after each day of off-road driving that has taken you through sand, mud, or water. (See Part 6.)

104

cruisercult.com

Page 105

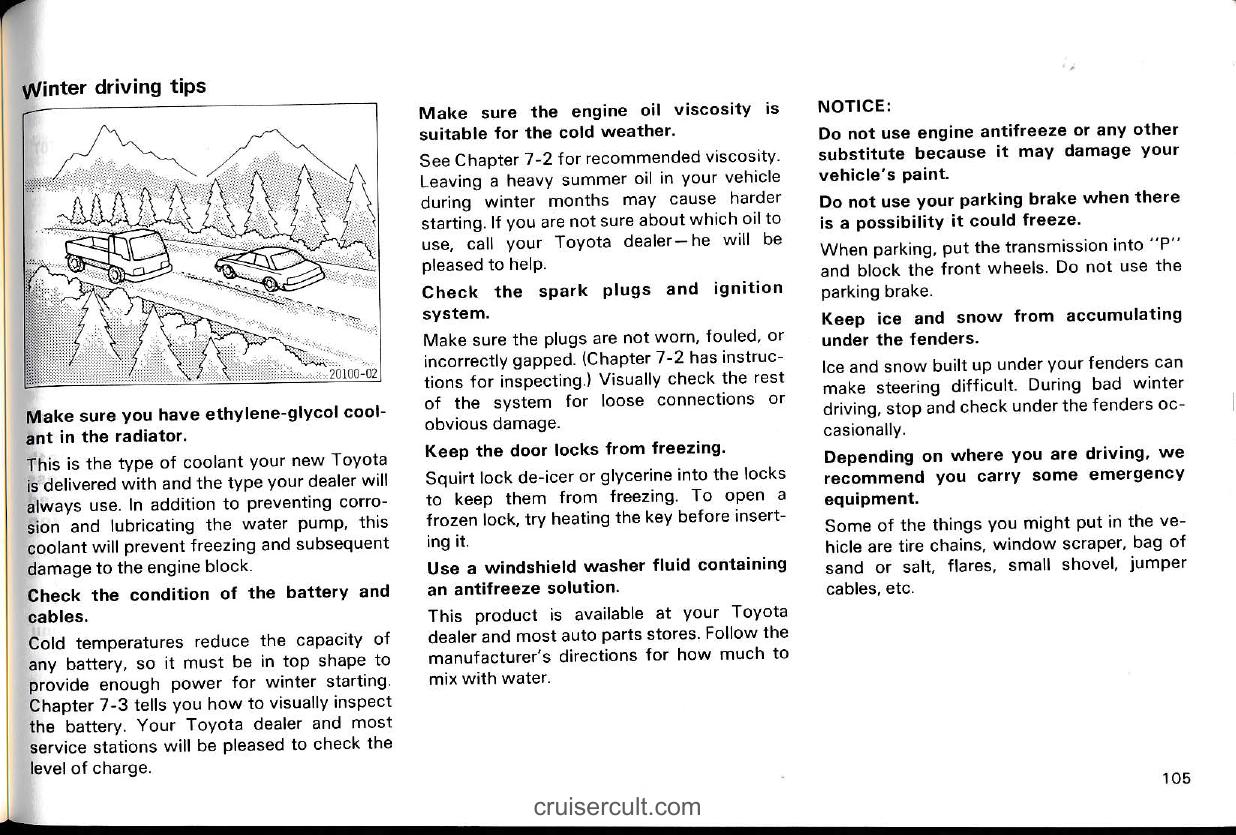

Winter driving tips

![20100-02]

Make sure you have ethylene-glycol coolant in the radiator.

This is the type of coolant your new Toyota is delivered with and the type your dealer will always use. In addition to preventing corrosion and lubricating the water pump, this coolant will prevent freezing and subsequent damage to the engine block.

Check the condition of the battery and cables.

Cold temperatures reduce the capacity of any battery, so it must be in top shape to provide enough power for winter starting. Chapter 7-3 tells you how to visually inspect the battery. Your Toyota dealer and most service stations will be pleased to check the level of charge.

Make sure the engine oil viscosity is suitable for the cold weather.

See Chapter 7-2 for recommended viscosity. Leaving a heavy summer oil in your vehicle during winter months may cause harder starting. If you are not sure about which oil to use, call your Toyota dealer — he will be pleased to help.

Check the spark plugs and ignition system.

Make sure the plugs are not worn, fouled, or incorrectly gapped. (Chapter 7-2 has instructions for inspecting.) Visually check the rest of the system for loose connections or obvious damage.

Keep the door locks from freezing.

Squirt lock de-icer or glycerine into the locks to keep them from freezing. To open a frozen lock, try heating the key before inserting it.

Use a windshield washer fluid containing an antifreeze solution.

This product is available at your Toyota dealer and most auto parts stores. Follow the manufacturer's directions for how much to mix with water.

NOTICE:

Do not use engine antifreeze or any other substitute because it may damage your vehicle's paint.

Do not use your parking brake when there is a possibility it could freeze.

When parking, put the transmission into "P" and block the front wheels. Do not use the parking brake.

Keep ice and snow from accumulating under the fenders.

Ice and snow built up under your fenders can make steering difficult. During bad winter driving, stop and check under the fenders occasionally.

Depending on where you are driving, we recommend you carry some emergency equipment.

Some of the things you might put in the vehicle are tire chains, window scraper, bag of sand or salt, flares, small shovel, jumper cables, etc.

cruisercult.com

105

Page 106

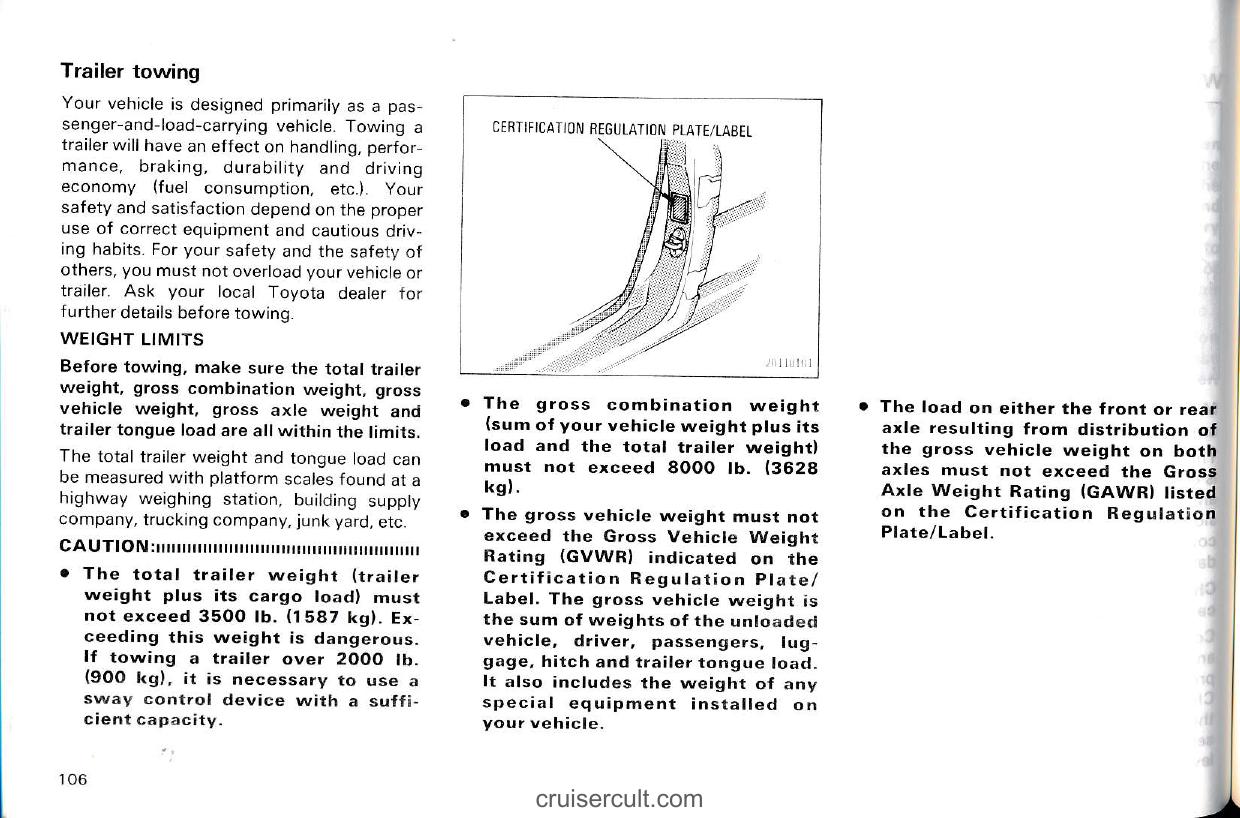

Trailer towing

Your vehicle is designed primarily as a passenger-and-load-carrying vehicle. Towing a trailer will have an effect on handling, performance, braking, durability and driving economy (fuel consumption, etc.). Your safety and satisfaction depend on the proper use of correct equipment and cautious driving habits. For your safety and the safety of others, you must not overload your vehicle or trailer. Ask your local Toyota dealer for further details before towing.

WEIGHT LIMITS

Before towing, make sure the total trailer weight, gross combination weight, gross vehicle weight, gross axle weight and trailer tongue load are all within the limits.

The total trailer weight and tongue load can be measured with platform scales found at a highway weighing station, building supply company, trucking company, junk yard, etc.

CAUTION:||||||||||||||||||||||||||||||||||

The total trailer weight (trailer weight plus its cargo load) must not exceed 3500 lb. (1587 kg). Exceeding this weight is dangerous. If towing a trailer over 2000 lb. (900 kg), it is necessary to use a sway control device with a sufficient capacity.

CERTIFICATION REGULATION PLATE/LABEL

The gross combination weight (sum of your vehicle weight plus its load and the total trailer weight) must not exceed 8000 lb. (3628 kg).
The gross vehicle weight must not exceed the Gross Vehicle Weight Rating (GVWR) indicated on the Certification Regulation Plate/Label. The gross vehicle weight is the sum of weights of the unloaded vehicle, driver, passengers, luggage, hitch and trailer tongue load. It also includes the weight of any special equipment installed on your vehicle.
The load on either the front or rear axle resulting from distribution of the gross vehicle weight on both axles must not exceed the Gross Axle Weight Rating (GAWR) listed on the Certification Regulation Plate/Label.

106

cruisercult.com

Page 107

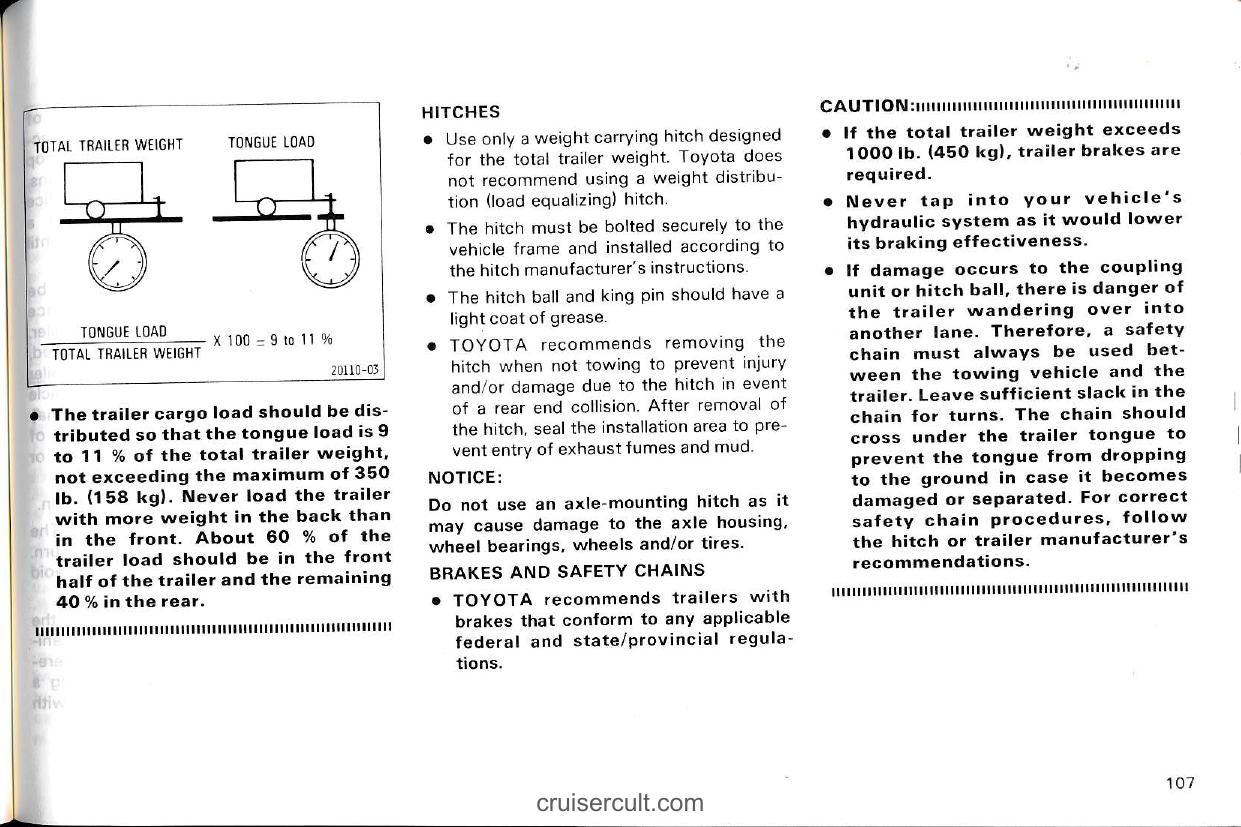

TOTAL TRAILER WEIGHT

TONGUE LOAD

TONGUE LOAD
TOTAL TRAILER WEIGHT

TONGUE LOAD
————— × 100 = 9 to 11 %

20110-03

The trailer cargo load should be distributed so that the tongue load is 9 to 11 % of the total trailer weight, not exceeding the maximum of 350 lb. (158 kg). Never load the trailer with more weight in the back than in the front. About 60 % of the trailer load should be in the front half of the trailer and the remaining 40 % in the rear.

HITCHES

Use only a weight carrying hitch designed for the total trailer weight. Toyota does not recommend using a weight distribution (load equalizing) hitch.
The hitch must be bolted securely to the vehicle frame and installed according to the hitch manufacturer's instructions.
The hitch ball and king pin should have a light coat of grease.
TOYOTA recommends removing the hitch when not towing to prevent injury and/or damage due to the hitch in event of a rear end collision. After removal of the hitch, seal the installation area to prevent entry of exhaust fumes and mud.

NOTICE:
Do not use an axle-mounting hitch as it may cause damage to the axle housing, wheel bearings, wheels and/or tires.

BRAKES AND SAFETY CHAINS

TOYOTA recommends trailers with brakes that conform to any applicable federal and state/provincial regulations.

CAUTION

If the total trailer weight exceeds 1000 lb. (450 kg), trailer brakes are required.
Never tap into your vehicle's hydraulic system as it would lower its braking effectiveness.
If damage occurs to the coupling unit or hitch ball, there is danger of the trailer wandering over into another lane. Therefore, a safety chain must always be used between the towing vehicle and the trailer. Leave sufficient slack in the chain for turns. The chain should cross under the trailer tongue to prevent the tongue from dropping to the ground in case it becomes damaged or separated. For correct safety chain procedures, follow the hitch or trailer manufacturer's recommendations.

cruisercult.com

107

Page 108

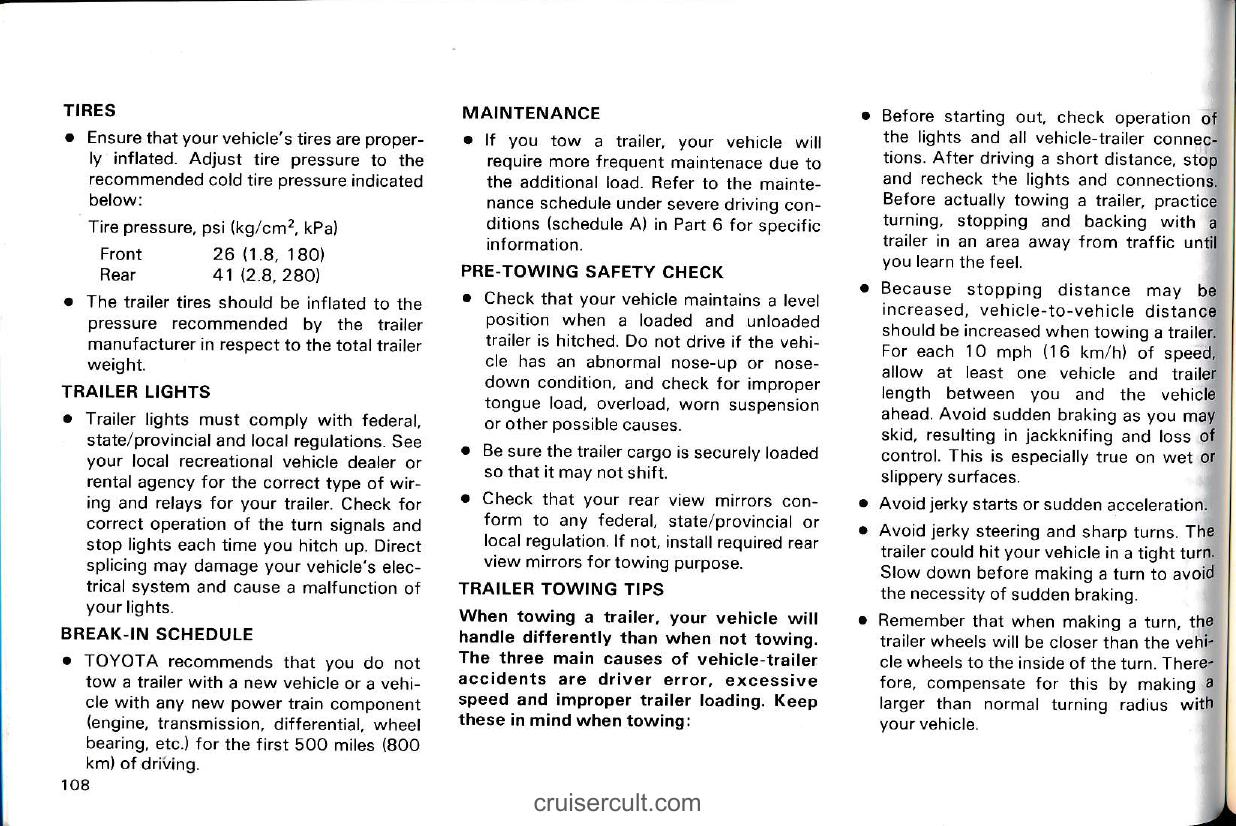

TIRES

Ensure that your vehicle's tires are properly inflated. Adjust tire pressure to the recommended cold tire pressure indicated below:

Tire pressure, psi (kg/cm2, kPa) - Front 26 (1.8, 180) - Rear 41 (2.8, 280)

The trailer tires should be inflated to the pressure recommended by the trailer manufacturer in respect to the total trailer weight.

TRAILER LIGHTS

Trailer lights must comply with federal, state/provincial and local regulations. See your local recreational vehicle dealer or rental agency for the correct type of wiring and relays for your trailer. Check for correct operation of the turn signals and stop lights each time you hitch up. Direct splicing may damage your vehicle's electrical system and cause a malfunction of your lights.

BREAK-IN SCHEDULE

TOYOTA recommends that you do not tow a trailer with a new vehicle or a vehicle with any new power train component (engine, transmission, differential, wheel bearing, etc.) for the first 500 miles (800 km) of driving.

108

MAINTENANCE

If you tow a trailer, your vehicle will require more frequent maintenance due to the additional load. Refer to the maintenance schedule under severe driving conditions (schedule A) in Part 6 for specific information.

PRE-TOWING SAFETY CHECK

Check that your vehicle maintains a level position when a loaded and unloaded trailer is hitched. Do not drive if the vehicle has an abnormal nose-up or nose-down condition, and check for improper tongue load, overload, worn suspension or other possible causes.
Be sure the trailer cargo is securely loaded so that it may not shift.
Check that your rear view mirrors conform to any federal, state/provincial or local regulation. If not, install required rear view mirrors for towing purpose.

TRAILER TOWING TIPS

When towing a trailer, your vehicle will handle differently than when not towing. The three main causes of vehicle-trailer accidents are driver error, excessive speed and improper trailer loading. Keep these in mind when towing:

Before starting out, check operation of the lights and all vehicle-trailer connections. After driving a short distance, stop and recheck the lights and connections. Before actually towing a trailer, practice turning, stopping and backing with a trailer in an area away from traffic until you learn the feel.
Because stopping distance may be increased, vehicle-to-vehicle distance should be increased when towing a trailer. For each 10 mph (16 km/h) of speed, allow at least one vehicle and trailer length between you and the vehicle ahead. Avoid sudden braking as you may skid, resulting in jackknifing and loss of control. This is especially true on wet or slippery surfaces.
Avoid jerky starts or sudden acceleration.
Avoid jerky steering and sharp turns. The trailer could hit your vehicle in a tight turn. Slow down before making a turn to avoid the necessity of sudden braking.
Remember that when making a turn, the trailer wheels will be closer than the vehicle wheels to the inside of the turn. Therefore, compensate for this by making a larger than normal turning radius with your vehicle.

cruisercult.com

Page 109

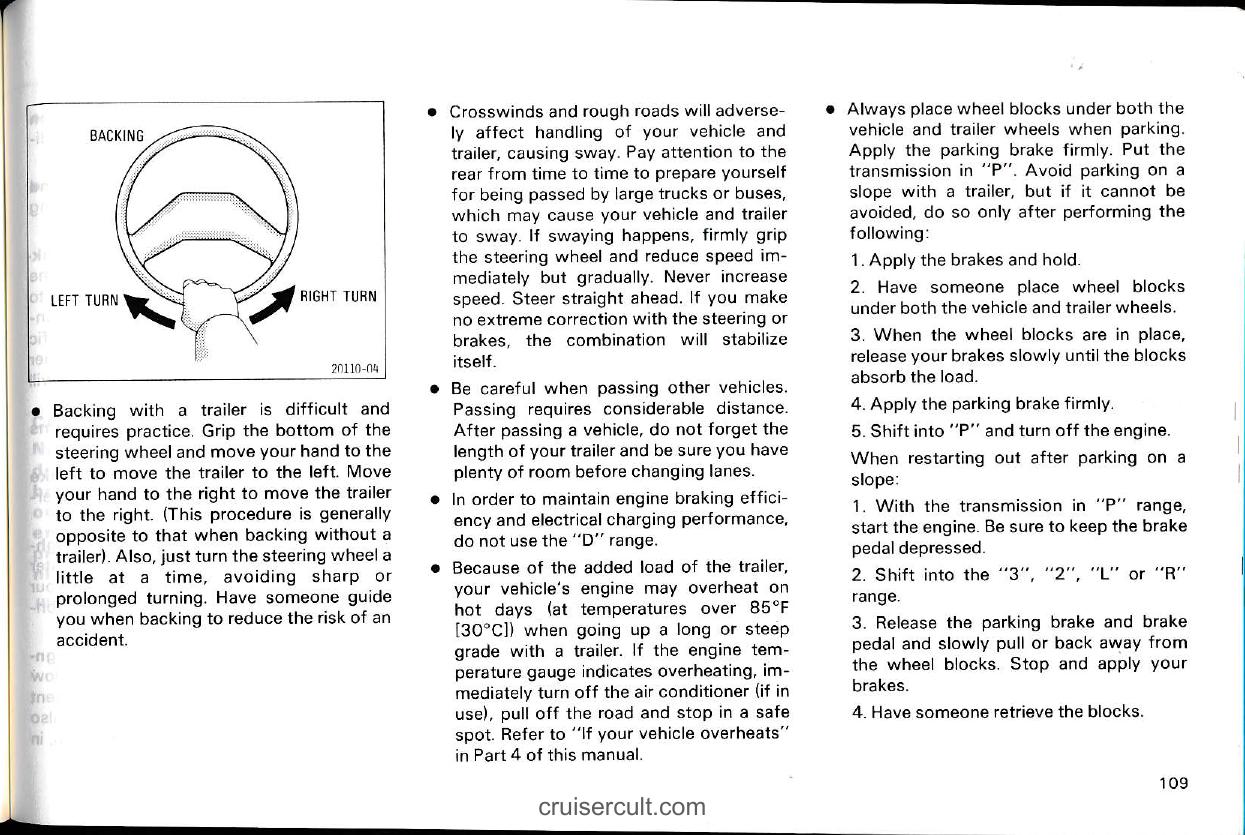

BACKING

steering diagram

LEFT TURN ← RIGHT TURN

Backing with a trailer is difficult and requires practice. Grip the bottom of the steering wheel and move your hand to the left to move the trailer to the left. Move your hand to the right to move the trailer to the right. (This procedure is generally opposite to that when backing without a trailer). Also, just turn the steering wheel a little at a time, avoiding sharp or prolonged turning. Have someone guide you when backing to reduce the risk of an accident.
Crosswinds and rough roads will adversely affect handling of your vehicle and trailer, causing sway. Pay attention to the rear from time to time to prepare yourself for being passed by large trucks or buses, which may cause your vehicle and trailer to sway. If swaying happens, firmly grip the steering wheel and reduce speed immediately but gradually. Never increase speed. Steer straight ahead. If you make no extreme correction with the steering or brakes, the combination will stabilize itself.
Be careful when passing other vehicles. Passing requires considerable distance. After passing a vehicle, do not forget the length of your trailer and be sure you have plenty of room before changing lanes.
In order to maintain engine braking efficiency and electrical charging performance, do not use the "D" range.
Because of the added load of the trailer, your vehicle's engine may overheat on hot days (at temperatures over 85°F [30°C]) when going up a long or steep grade with a trailer. If the engine temperature gauge indicates overheating, immediately turn off the air conditioner (if in use), pull off the road and stop in a safe spot. Refer to "If your vehicle overheats" in Part 4 of this manual.
Always place wheel blocks under both the vehicle and trailer wheels when parking. Apply the parking brake firmly. Put the transmission in "P". Avoid parking on a slope with a trailer, but if it cannot be avoided, do so only after performing the following:
Apply the brakes and hold.
Have someone place wheel blocks under both the vehicle and trailer wheels.
When the wheel blocks are in place, release your brakes slowly until the blocks absorb the load.
Apply the parking brake firmly.
Shift into "P" and turn off the engine.

When restarting out after parking on a slope:

With the transmission in "P" range, start the engine. Be sure to keep the brake pedal depressed.
Shift into the "3", "2", "L" or "R" range.
Release the parking brake and brake pedal and slowly pull or back away from the wheel blocks. Stop and apply your brakes.
Have someone retrieve the blocks.

cruisercult.com

109

Page 110

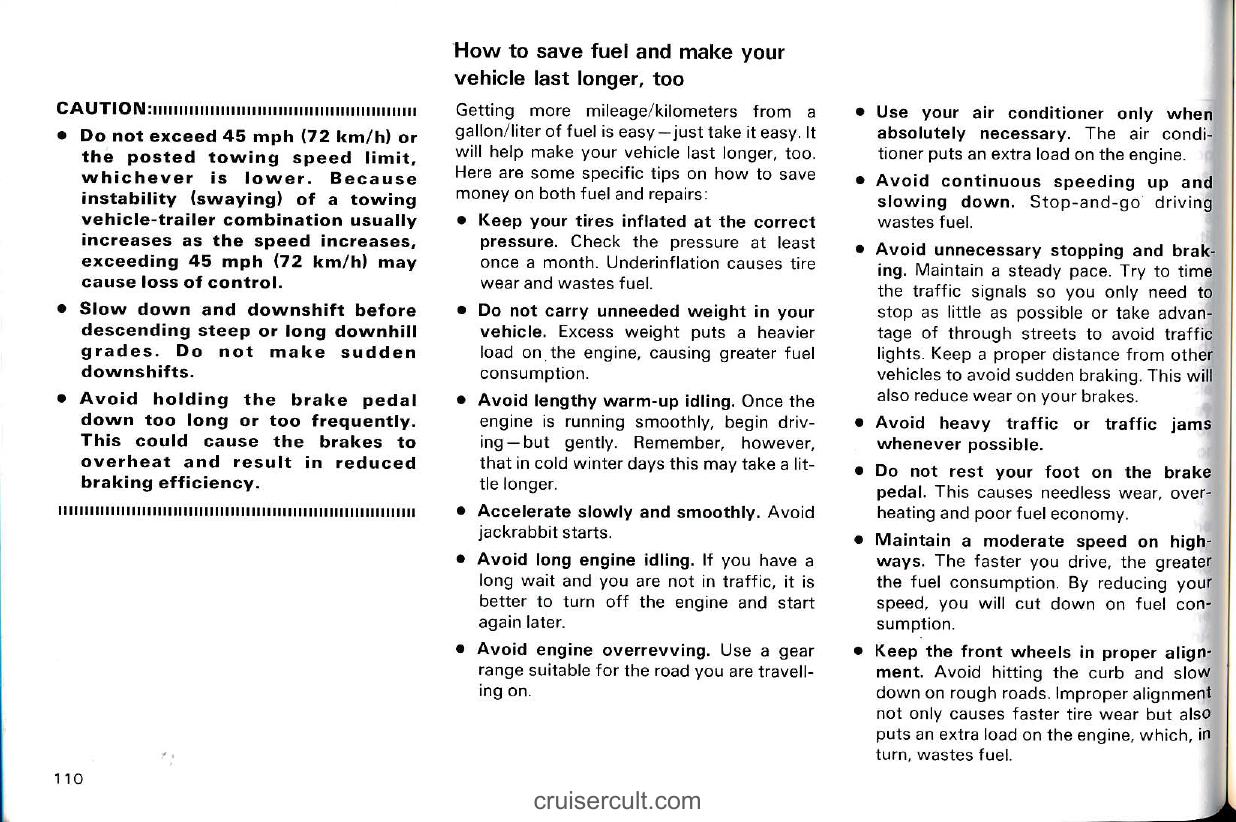

CAUTION:

Do not exceed 45 mph (72 km/h) or the posted towing speed limit, whichever is lower. Because instability (swaying) of a towing vehicle-trailer combination usually increases as the speed increases, exceeding 45 mph (72 km/h) may cause loss of control.
Slow down and downshift before descending steep or long downhill grades. Do not make sudden downshifts.
Avoid holding the brake pedal down too long or too frequently. This could cause the brakes to overheat and result in reduced braking efficiency.

How to save fuel and make your vehicle last longer, too

Getting more mileage/kilometers from a gallon/liter of fuel is easy — just take it easy. It will help make your vehicle last longer, too. Here are some specific tips on how to save money on both fuel and repairs:

Keep your tires inflated at the correct pressure. Check the pressure at least once a month. Underinflation causes tire wear and wastes fuel.
Do not carry unneeded weight in your vehicle. Excess weight puts a heavier load on the engine, causing greater fuel consumption.
Avoid lengthy warm-up idling. Once the engine is running smoothly, begin driving — but gently. Remember, however, that in cold winter days this may take a little longer.
Accelerate slowly and smoothly. Avoid jackrabbit starts.
Avoid long engine idling. If you have a long wait and you are not in traffic, it is better to turn off the engine and start again later.
Avoid engine overrevving. Use a gear range suitable for the road you are travelling on.
Use your air conditioner only when absolutely necessary. The air conditioner puts an extra load on the engine.
Avoid continuous speeding up and slowing down. Stop-and-go driving wastes fuel.
Avoid unnecessary stopping and braking. Maintain a steady pace. Try to time the traffic signals so you only need to stop as little as possible or take advantage of through streets to avoid traffic lights. Keep a proper distance from other vehicles to avoid sudden braking. This will also reduce wear on your brakes.
Avoid heavy traffic or traffic jams whenever possible.
Do not rest your foot on the brake pedal. This causes needless wear, overheating and poor fuel economy.
Maintain a moderate speed on highways. The faster you drive, the greater the fuel consumption. By reducing your speed, you will cut down on fuel consumption.
Keep the front wheels in proper alignment. Avoid hitting the curb and slow down on rough roads. Improper alignment not only causes faster tire wear but also puts an extra load on the engine, which, in turn, wastes fuel.

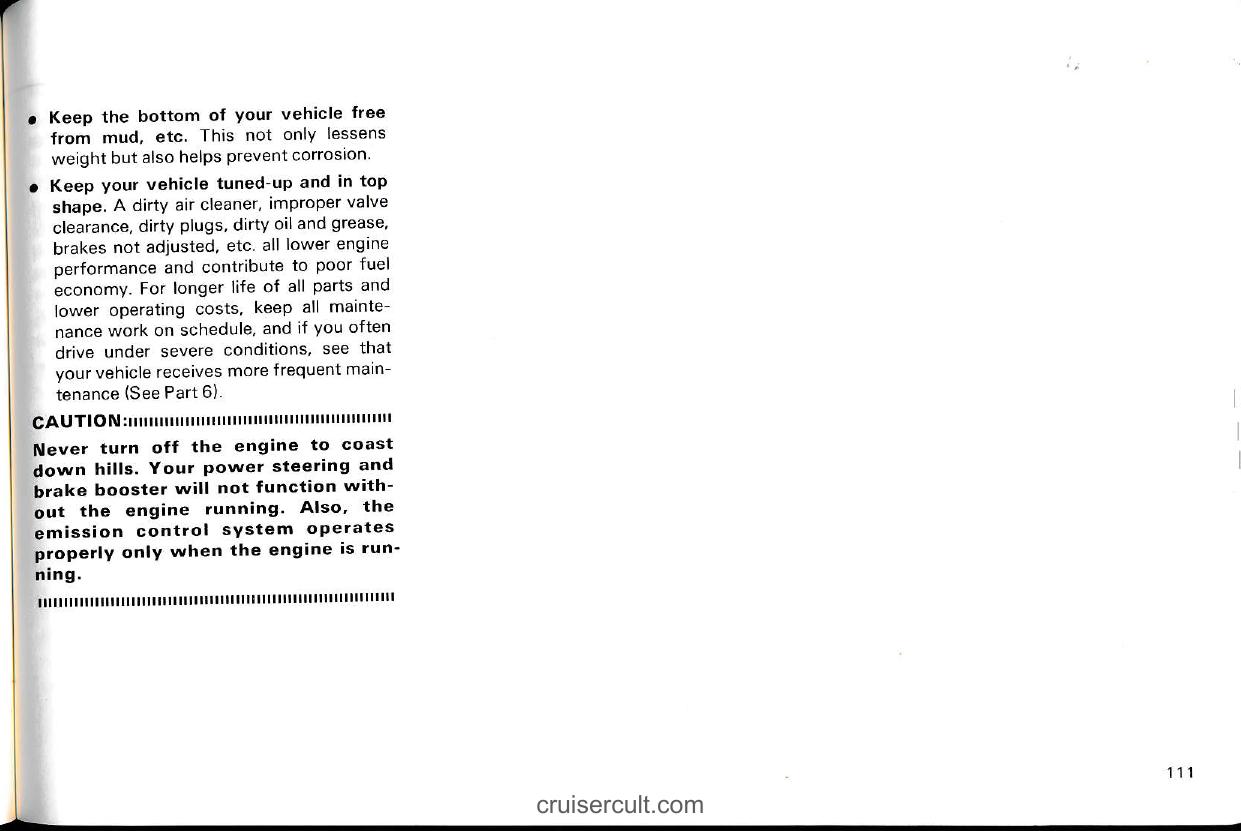

Page 111

Keep the bottom of your vehicle free from mud, etc. This not only lessens weight but also helps prevent corrosion.
Keep your vehicle tuned-up and in top shape. A dirty air cleaner, improper valve clearance, dirty plugs, dirty oil and grease, brakes not adjusted, etc. all lower engine performance and contribute to poor fuel economy. For longer life of all parts and lower operating costs, keep all maintenance work on schedule, and if you often drive under severe conditions, see that your vehicle receives more frequent maintenance (See Part 6).

CAUTION: Never turn off the engine to coast down hills. Your power steering and brake booster will not function without the engine running. Also, the emission control system operates properly only when the engine is running.

cruisercult.com

111

Page 112

112

cruisercult.com

Page 113

Part 4 IN CASE OF AN EMERGENCY

If your vehicle will not start
If your vehicle overheats
If you have a flat tire
If your vehicle needs to be towed
If you lose your key

cruisercult.com

113

Page 114

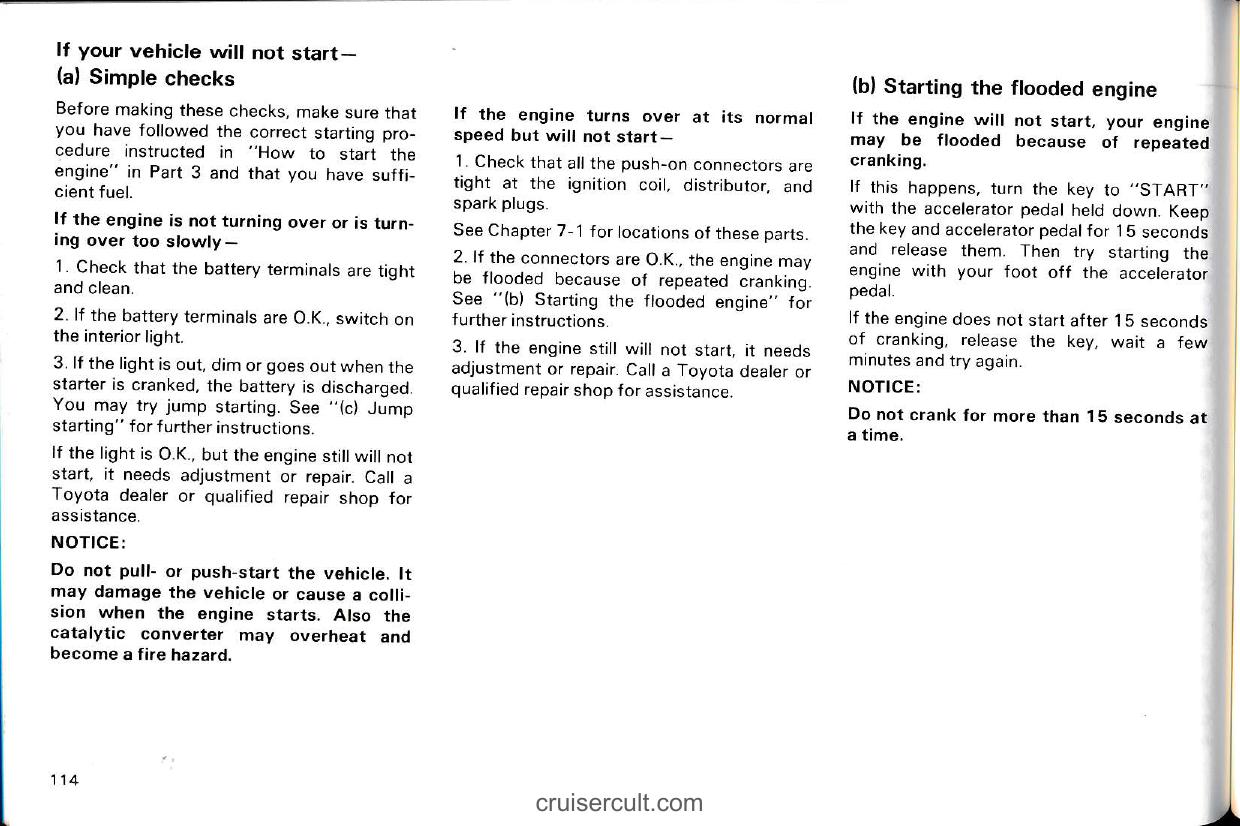

If your vehicle will not start—

(a) Simple checks

Before making these checks, make sure that you have followed the correct starting procedure instructed in "How to start the engine" in Part 3 and that you have sufficient fuel.

If the engine is not turning over or is turning over too slowly—

Check that the battery terminals are tight and clean.
If the battery terminals are O.K., switch on the interior light.
If the light is out, dim or goes out when the starter is cranked, the battery is discharged. You may try jump starting. See "(c) Jump starting" for further instructions.

If the light is O.K., but the engine still will not start, it needs adjustment or repair. Call a Toyota dealer or qualified repair shop for assistance.

NOTICE:
Do not pull- or push-start the vehicle. It may damage the vehicle or cause a collision when the engine starts. Also the catalytic converter may overheat and become a fire hazard.

If the engine turns over at its normal speed but will not start—

Check that all the push-on connectors are tight at the ignition coil, distributor, and spark plugs.

See Chapter 7-1 for locations of these parts.

If the connectors are O.K., the engine may be flooded because of repeated cranking. See "(b) Starting the flooded engine" for further instructions.
If the engine still will not start, it needs adjustment or repair. Call a Toyota dealer or qualified repair shop for assistance.

(b) Starting the flooded engine

If the engine will not start, your engine may be flooded because of repeated cranking.

If this happens, turn the key to "START" with the accelerator pedal held down. Keep the key and accelerator pedal held down for 15 seconds and release them. Then try starting the engine with your foot off the accelerator pedal.

If the engine does not start after 15 seconds of cranking, release the key, wait a few minutes and try again.

NOTICE:
Do not crank for more than 15 seconds at a time.

114

cruisercult.com

Page 115

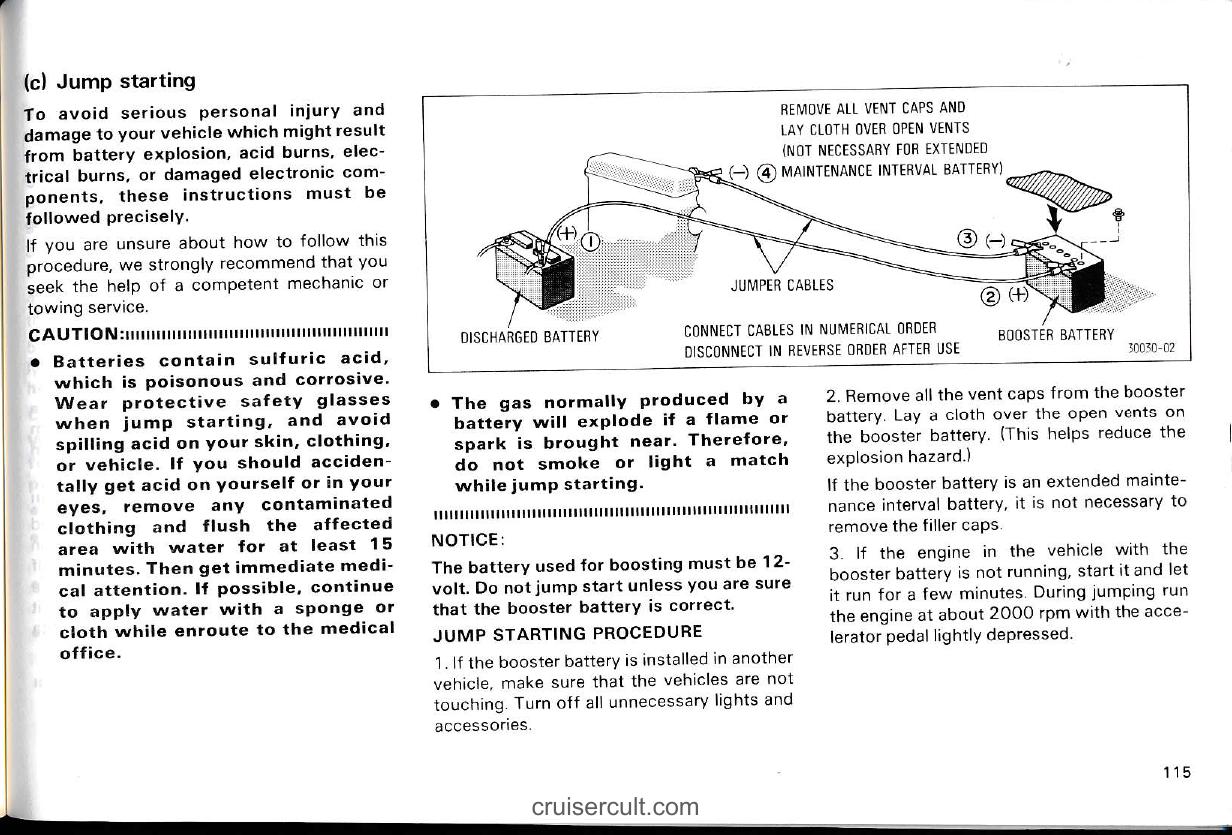

(c) Jump starting

To avoid serious personal injury and damage to your vehicle which might result from battery explosion, acid burns, electrical burns, or damaged electronic components, these instructions must be followed precisely.

If you are unsure about how to follow this procedure, we strongly recommend that you seek the help of a competent mechanic or towing service.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Batteries contain sulfuric acid, which is poisonous and corrosive. Wear protective safety glasses when jump starting, and avoid spilling acid on your skin, clothing, or vehicle. If you should accidentally get acid on yourself or in your eyes, remove any contaminated clothing and flush the affected area with water for at least 15 minutes. Then get immediate medical attention. If possible, continue to apply water with a sponge or cloth while enroute to the medical office.
The gas normally produced by a battery will explode if a flame or spark is brought near. Therefore, do not smoke or light a match while jump starting.

NOTICE:

The battery used for boosting must be 12-volt. Do not jump start unless you are sure that the booster battery is correct.

JUMP STARTING PROCEDURE

If the booster battery is installed in another vehicle, make sure that the vehicles are not touching. Turn off all unnecessary lights and accessories.
Remove all the vent caps from the booster battery. Lay a cloth over the open vents on the booster battery. (This helps reduce the explosion hazard.)

If the booster battery is an extended maintenance interval battery, it is not necessary to remove the filler caps.

If the engine in the vehicle with the booster battery is not running, start it and let it run for a few minutes. During jumping run the engine at about 2000 rpm with the accelerator pedal lightly depressed.

Diagram text: - REMOVE ALL VENT CAPS AND LAY CLOTH OVER OPEN VENTS (NOT NECESSARY FOR EXTENDED (4) MAINTENANCE INTERVAL BATTERY) - JUMPER CABLES - DISCHARGED BATTERY - CONNECT CABLES IN NUMERICAL ORDER DISCONNECT IN REVERSE ORDER AFTER USE - BOOSTER BATTERY

cruisercult.com

115

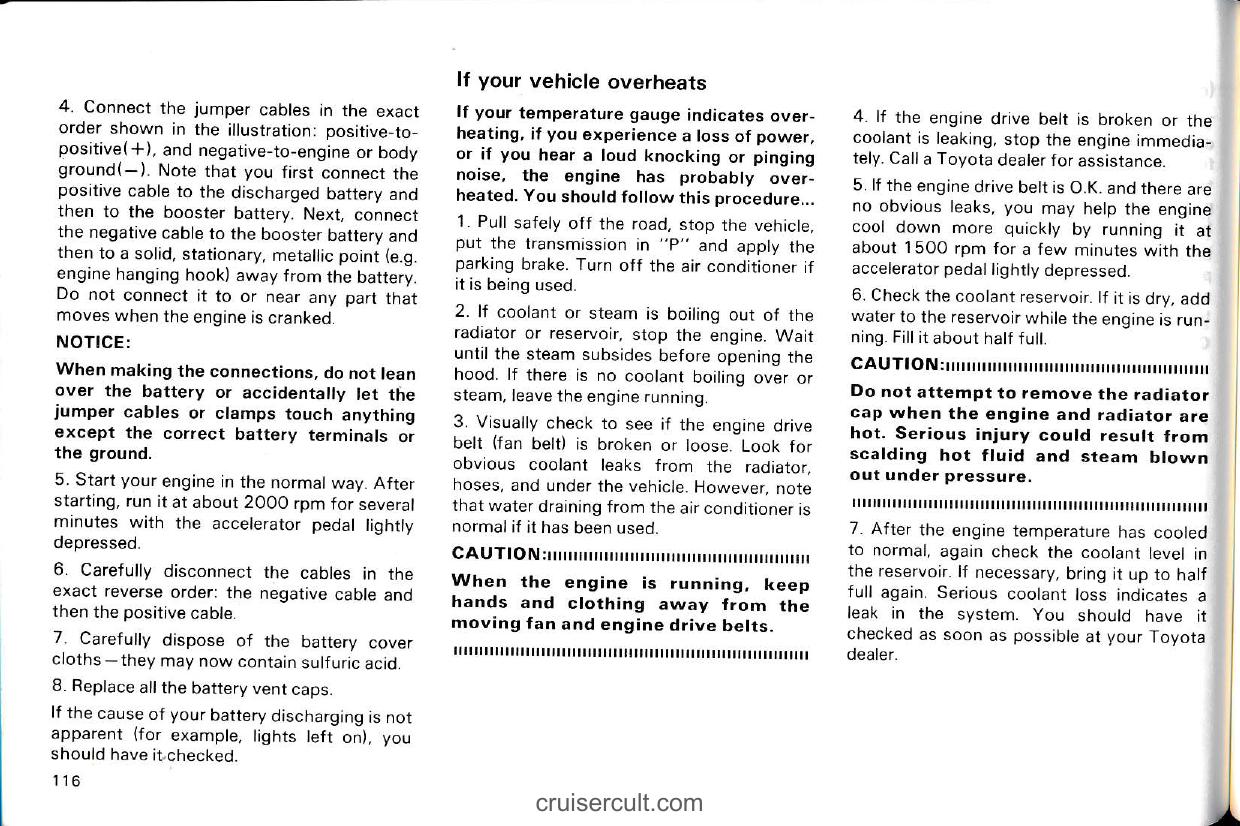

Page 116

Connect the jumper cables in the exact order shown in the illustration: positive-to-positive(+), and negative-to-engine or body ground(−). Note that you first connect the positive cable to the discharged battery and then to the booster battery. Next, connect the negative cable to the booster battery and then to a solid, stationary, metallic point (e.g. engine hanging hook) away from the battery. Do not connect it to or near any part that moves when the engine is cranked.

NOTICE:

When making the connections, do not lean over the battery or accidentally let the jumper cables or clamps touch anything except the correct battery terminals or the ground.

Start your engine in the normal way. After starting, run it at about 2000 rpm for several minutes with the accelerator pedal lightly depressed.
Carefully disconnect the cables in the exact reverse order: the negative cable and then the positive cable.
Carefully dispose of the battery cover cloths—they may now contain sulfuric acid.
Replace all the battery vent caps.

If the cause of your battery discharging is not apparent (for example, lights left on), you should have it checked.

116

If your vehicle overheats

If your temperature gauge indicates overheating, if you experience a loss of power, or if you hear a loud knocking or pinging noise, the engine has probably overheated. You should follow this procedure...

Pull safely off the road, stop the vehicle, put the transmission in "P" and apply the parking brake. Turn off the air conditioner if it is being used.
If coolant or steam is boiling out of the radiator or reservoir, stop the engine. Wait until the steam subsides before opening the hood. If there is no coolant boiling over or steam, leave the engine running.
Visually check to see if the engine drive belt (fan belt) is broken or loose. Look for obvious coolant leaks from the radiator, hoses, and under the vehicle. However, note that water draining from the air conditioner is normal if it has been used.

CAUTION: !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

When the engine is running, keep hands and clothing away from the moving fan and engine drive belts. !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

If the engine drive belt is broken or the coolant is leaking, stop the engine immediately. Call a Toyota dealer for assistance.
If the engine drive belt is O.K. and there are no obvious leaks, you may help the engine cool down more quickly by running it at about 1500 rpm for a few minutes with the accelerator pedal lightly depressed.
Check the coolant reservoir. If it is dry, add water to the reservoir while the engine is running. Fill it about half full.

CAUTION: !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Do not attempt to remove the radiator cap when the engine and radiator are hot. Serious injury could result from scalding hot fluid and steam blown out under pressure. !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

After the engine temperature has cooled to normal, again check the coolant level in the reservoir or if necessary, bring it up to half full again. Serious coolant loss indicates a leak in the system. You should have it checked as soon as possible at your Toyota dealer.

cruisercult.com

Page 117

If you have a flat tire —

Make sure you are completely off the road — well away from the traffic. Avoid stopping on the center divider of a highway. Park on a level spot with firm ground.
Stop the engine and turn on your emergency flashers.
Firmly set the parking brake and put the transmission in "P".
Have everyone get out of the vehicle on the side away from traffic.
Read the following instructions thoroughly. They are designed to help a person who has never before changed a tire.

CAUTION: When jacking, be sure to observe the following to reduce the possibility of personal injury:

Follow jacking instructions.
Use a jack only for lifting your vehicle during wheel changing.
Never get beneath the vehicle when supported by a jack.
Do not start or run the engine while your vehicle is supported by a jack.

Required tools and spare tire

![JACK] ![TOOL BAG]

Get the tool bag, jack and spare tire.

To prepare yourself for an emergency, you should familiarize yourself with the use of the jack, each of the tools and their storage locations.

LOOSEN

To remove the jack, loosen the retaining screw as shown above.

When storing the jack, put it into place and secure to prevent it from flying forward during a collision or sudden braking.

cruisercult.com

117

Page 118

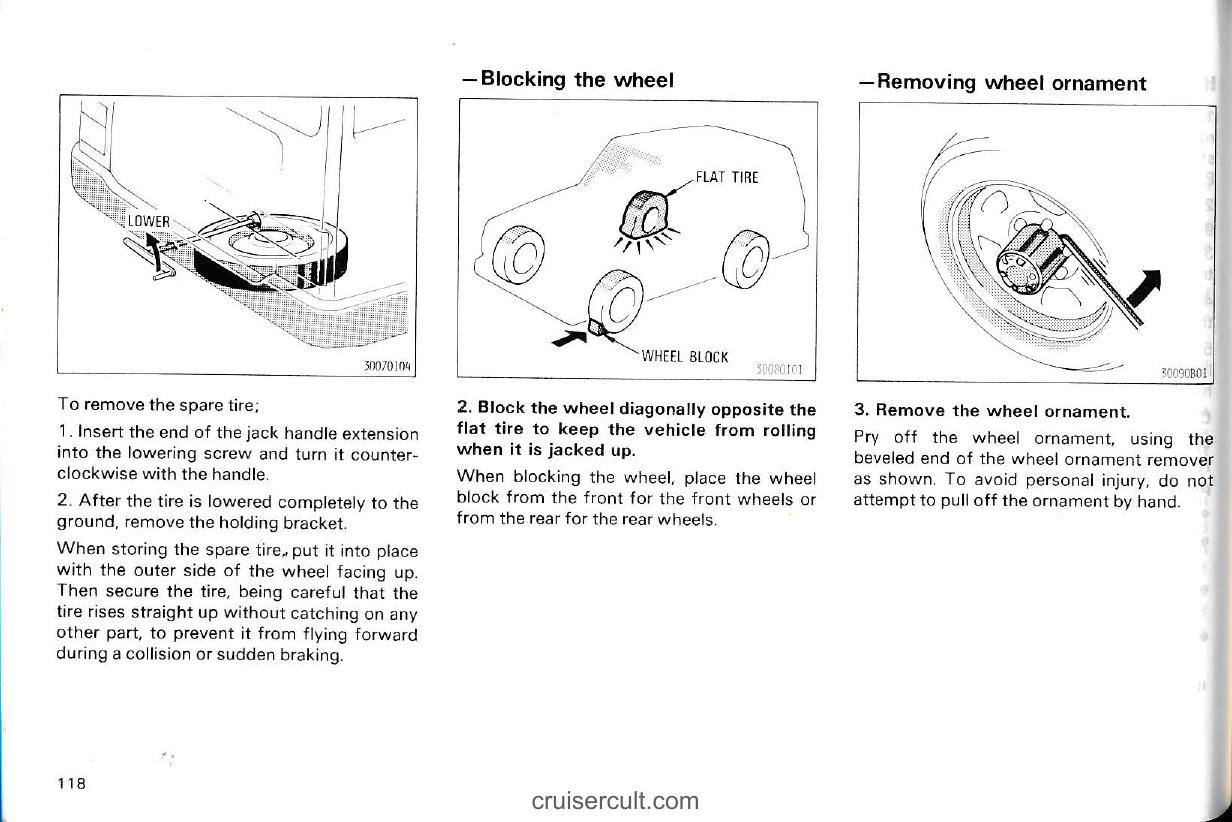

—Blocking the wheel

FLAT TIRE WHEEL BLOCK 30080101

Block the wheel diagonally opposite the flat tire to keep the vehicle from rolling when it is jacked up.

When blocking the wheel, place the wheel block from the front for the front wheels or from the rear for the rear wheels.

—Removing wheel ornament

30090801

Remove the wheel ornament.

Pry off the wheel ornament, using the beveled end of the wheel ornament remover as shown. To avoid personal injury, do not attempt to pull off the ornament by hand.

To remove the spare tire;

LOWER 30070104

Insert the end of the jack handle extension into the lowering screw and turn it counter-clockwise with the handle.
After the tire is lowered completely to the ground, remove the holding bracket.

When storing the spare tire, put it into place with the outer side of the wheel facing up. Then secure the tire, being careful that the tire rises straight up without catching on any other part, to prevent it from flying forward during a collision or sudden braking.

118

cruisercult.com

Page 119

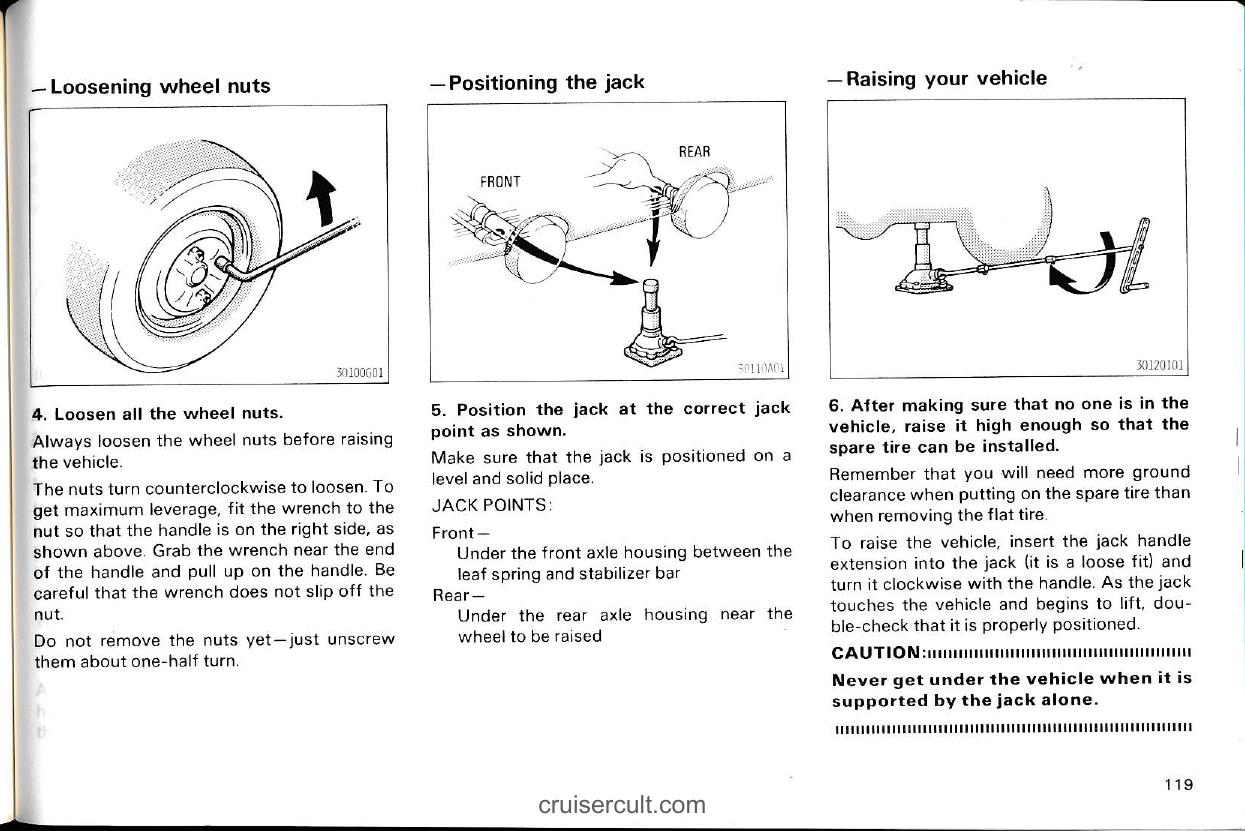

— Loosening wheel nuts

Loosen all the wheel nuts.

Always loosen the wheel nuts before raising the vehicle.

The nuts turn counterclockwise to loosen. To get maximum leverage, fit the wrench to the nut so that the handle is on the right side, as shown above. Grab the wrench near the end of the handle and pull up on the handle. Be careful that the wrench does not slip off the nut.

Do not remove the nuts yet—just unscrew them about one-half turn.

— Positioning the jack

Position the jack at the correct jack point as shown.

Make sure that the jack is positioned on a level and solid place.

JACK POINTS:

Front —
Under the front axle housing between the leaf spring and stabilizer bar

Rear —
Under the rear axle housing near the wheel to be raised

— Raising your vehicle

After making sure that no one is in the vehicle, raise it high enough so that the spare tire can be installed.

Remember that you will need more ground clearance when putting on the spare tire than when removing the flat tire.

To raise the vehicle, insert the jack handle extension into the jack (it is a loose fit) and turn it clockwise with the handle. As the jack touches the vehicle and begins to lift, double-check that it is properly positioned.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Never get under the vehicle when it is supported by the jack alone.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

cruisercult.com

119

Page 120

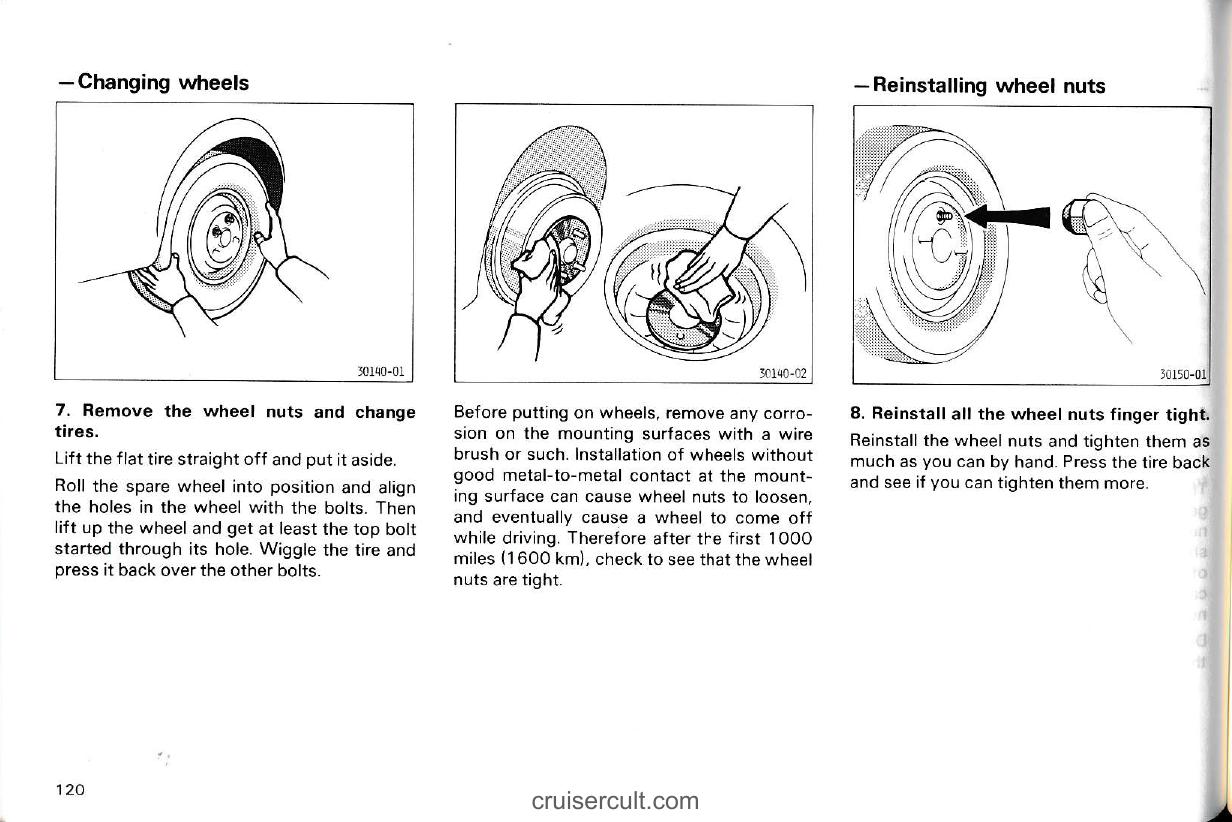

Changing wheels
Remove the wheel nuts and change tires.

Lift the flat tire straight off and put it aside. Roll the spare wheel into position and align the holes in the wheel with the bolts. Then lift up the wheel and get at least the top bolt started through its hole. Wiggle the tire and press it back over the other bolts.

Before putting on wheels, remove any corrosion on the mounting surfaces with a wire brush or such. Installation of wheels without good metal-to-metal contact at the mounting surface can cause wheel nuts to loosen, and eventually cause a wheel to come off while driving. Therefore after the first 1000 miles (1600 km), check to see that the wheel nuts are tight.

Reinstalling wheel nuts
Reinstall all the wheel nuts finger tight.

Reinstall the wheel nuts and tighten them as much as you can by hand. Press the tire back and see if you can tighten them more.

120

cruisercult.com

Page 121

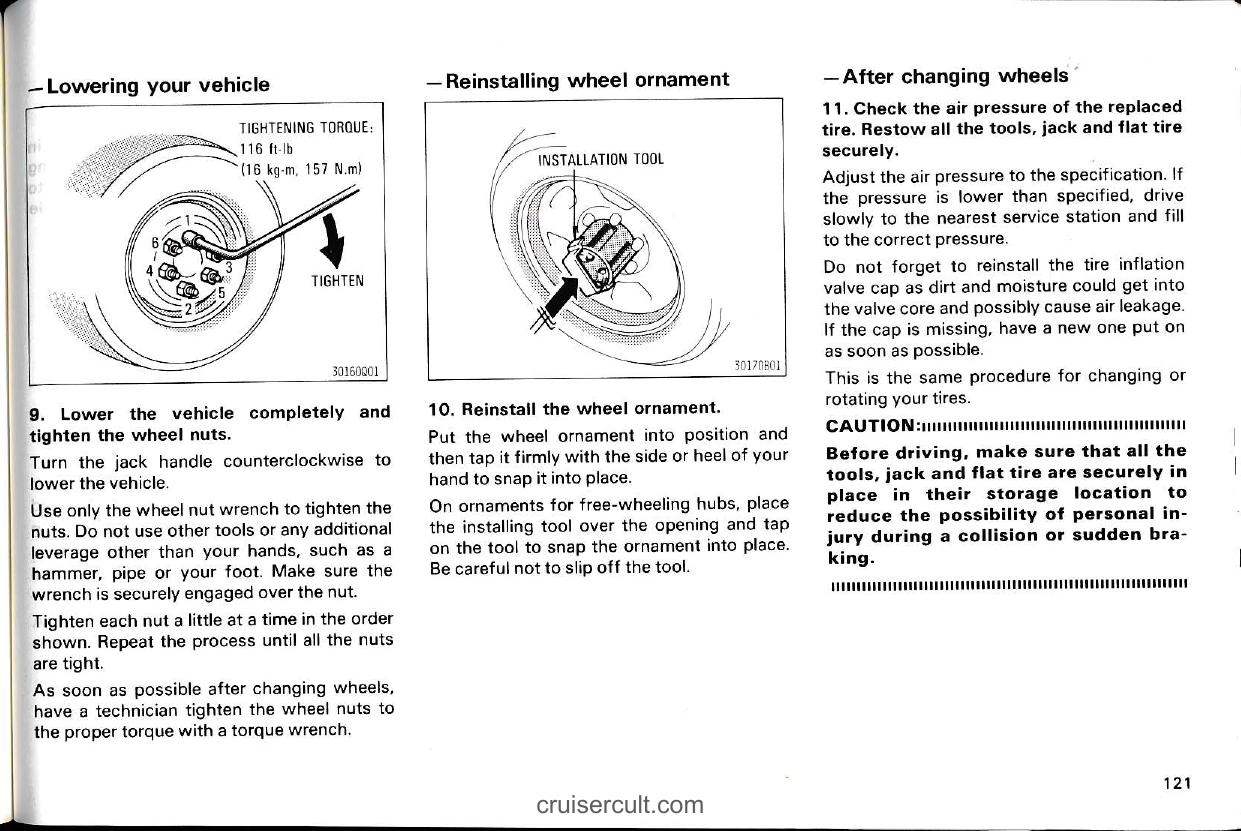

Lowering your vehicle

TIGHTENING TORQUE:
116 ft-lb
(16 kg-m, 157 N.m)

Lower the vehicle completely and tighten the wheel nuts.

Turn the jack handle counterclockwise to lower the vehicle.

Use only the wheel nut wrench to tighten the nuts. Do not use other tools or any additional leverage other than your hands, such as a hammer, pipe or your foot. Make sure the wrench is securely engaged over the nut.

Tighten each nut a little at a time in the order shown. Repeat the process until all the nuts are tight.

As soon as possible after changing wheels, have a technician tighten the wheel nuts to the proper torque with a torque wrench.

cruisercult.com

Reinstalling wheel ornament

INSTALLATION TOOL

Reinstall the wheel ornament.

Put the wheel ornament into position and then tap it firmly with the side or heel of your hand to snap it into place.

On ornaments for free-wheeling hubs, place the installing tool over the opening and tap on the tool to snap the ornament into place. Be careful not to slip off the tool.

After changing wheels

Check the air pressure of the replaced tire. Restow all the tools, jack and flat tire securely.

Adjust the air pressure to the specification. If the pressure is lower than specified, drive slowly to the nearest service station and fill to the correct pressure.

Do not forget to reinstall the tire inflation valve cap as dirt and moisture could get into the valve core and possibly cause air leakage. If the cap is missing, have a new one put on as soon as possible.

This is the same procedure for changing or rotating your tires.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Before driving, make sure that all the tools, jack and flat tire are securely in place in their storage location to reduce the possibility of personal injury during a collision or sudden braking.

121

Page 122

If your vehicle needs to be towed —

If towing is necessary, we recommend you have it done by your Toyota dealer or commercial tow truck service.

Proper equipment will help ensure that your vehicle is not damaged while being towed. Commercial operators are generally aware of the state/provincial and local laws pertaining to towing.

Your vehicle can be damaged if it is towed incorrectly. Although most operators know the correct procedure, it is possible to make a mistake. Rather than risk damage to your vehicle, why don't you make sure that the following few precautions are observed. If necessary, show this page to the tow truck driver.

TOWING PRECAUTIONS:

Use a safety chain system for all towing, and abide by the state/provincial and local laws. The wheels and axle on the ground must be in good condition. If they are damaged, use a towing dolly.

The vehicle may be towed from either the front or rear. We recommend using a towing dolly when towing from the rear.

Towing with rear wheels on ground

Release the parking brake and put the transmission in "N" and the transfer in "H2". Disconnect the rear propeller shaft at the rear differential if the vehicle must be towed faster than 30 mph (45 km/h) or farther than 50 miles (80 km).

NOTICE:

Do not tow faster or farther than the above limits without disconnecting the rear propeller shaft. This causes transmission damage.

Towing with four wheels on ground

Disengage both free-wheeling hubs (if so equipped), place the ignition key in the "ACC" position and observe the precautions described in "Towing with rear wheels on ground".

NOTICE:

Do not tow with the key removed or in the "LOCK" position, as the steering lock mechanism is not strong enough to hold the front wheels straight while towing.

Towing with front wheels on ground

Put the transmission in "N" and the transfer in "H2" and place the ignition key in the "ACC" position. Disengage both free-wheeling hubs (if so equipped).

NOTICE:

Do not tow with the key removed or in the "LOCK" position, as the steering lock mechanism is not strong enough to hold the front wheels straight while towing.

122

cruisercult.com

Page 123

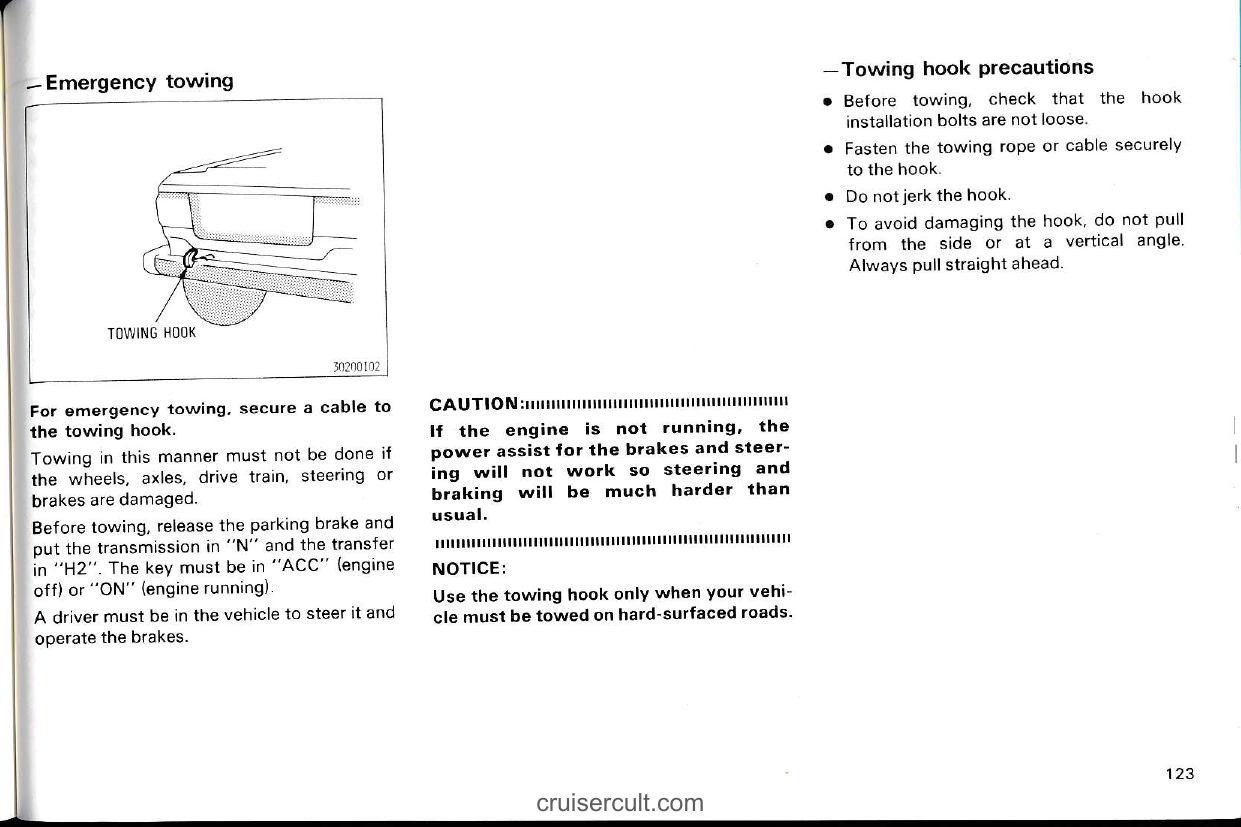

Emergency towing

TOWING HOOK

For emergency towing, secure a cable to the towing hook.

Towing in this manner must not be done if the wheels, axles, drive train, steering or brakes are damaged.

Before towing, release the parking brake and put the transmission in "N" and the transfer in "H2". The key must be in "ACC" (engine off) or "ON" (engine running).

A driver must be in the vehicle to steer it and operate the brakes.

Towing hook precautions

Before towing, check that the hook installation bolts are not loose.
Fasten the towing rope or cable securely to the hook.
Do not jerk the hook.
To avoid damaging the hook, do not pull from the side or at a vertical angle. Always pull straight ahead.

CAUTION:

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

If the engine is not running, the power assist for the brakes and steering will not work so steering and braking will be much harder than usual.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

NOTICE:

Use the towing hook only when your vehicle must be towed on hard-surfaced roads.

cruisercult.com

123

Page 124

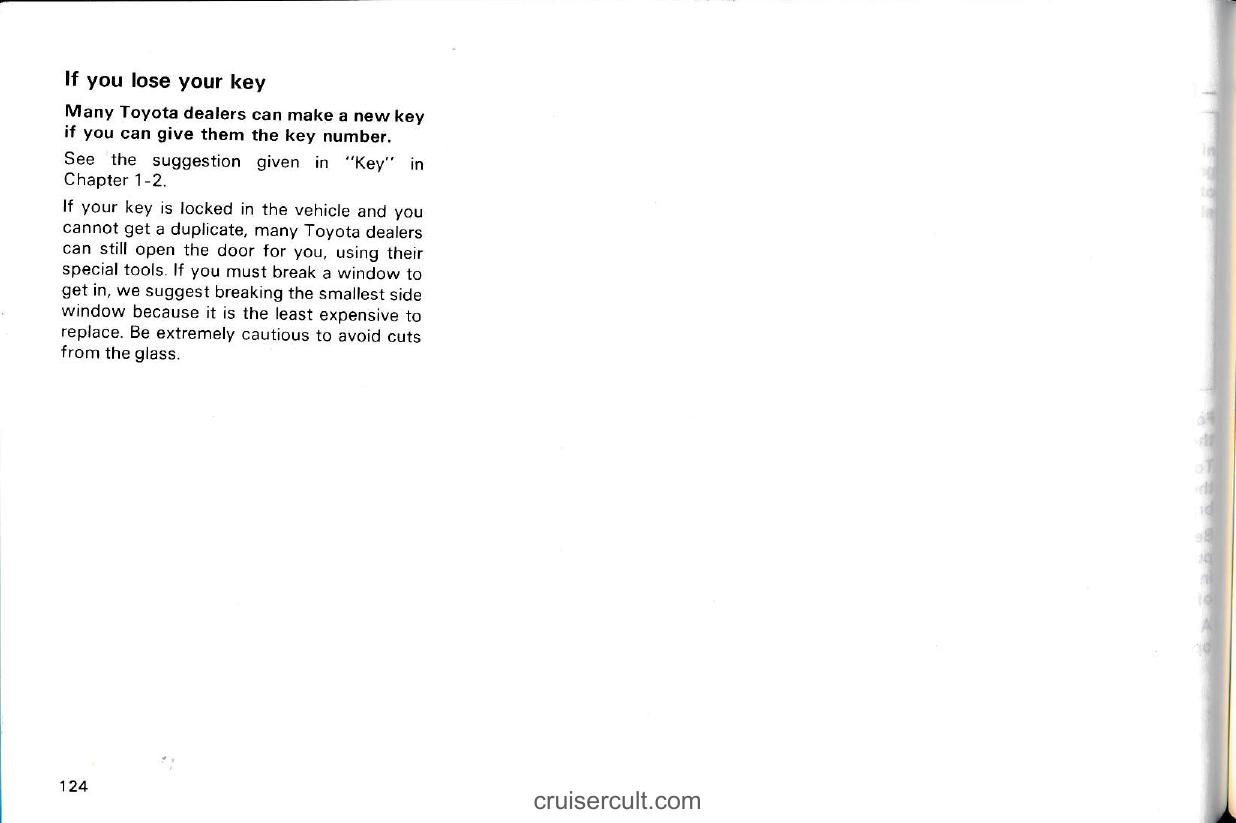

If you lose your key

Many Toyota dealers can make a new key if you can give them the key number.

See the suggestion given in "Key" in Chapter 1-2.

If your key is locked in the vehicle and you cannot get a duplicate, many Toyota dealers can still open the door for you, using their special tools. If you must break a window to get in, we suggest breaking the smallest side window because it is the least expensive to replace. Be extremely cautious to avoid cuts from the glass.

124

cruisercult.com

Page 125

Part 5 CORROSION PREVENTION AND APPEARANCE CARE

Protecting your Toyota from corrosion
Washing and waxing your Toyota
Cleaning the interior

cruisercult.com

125

Page 126

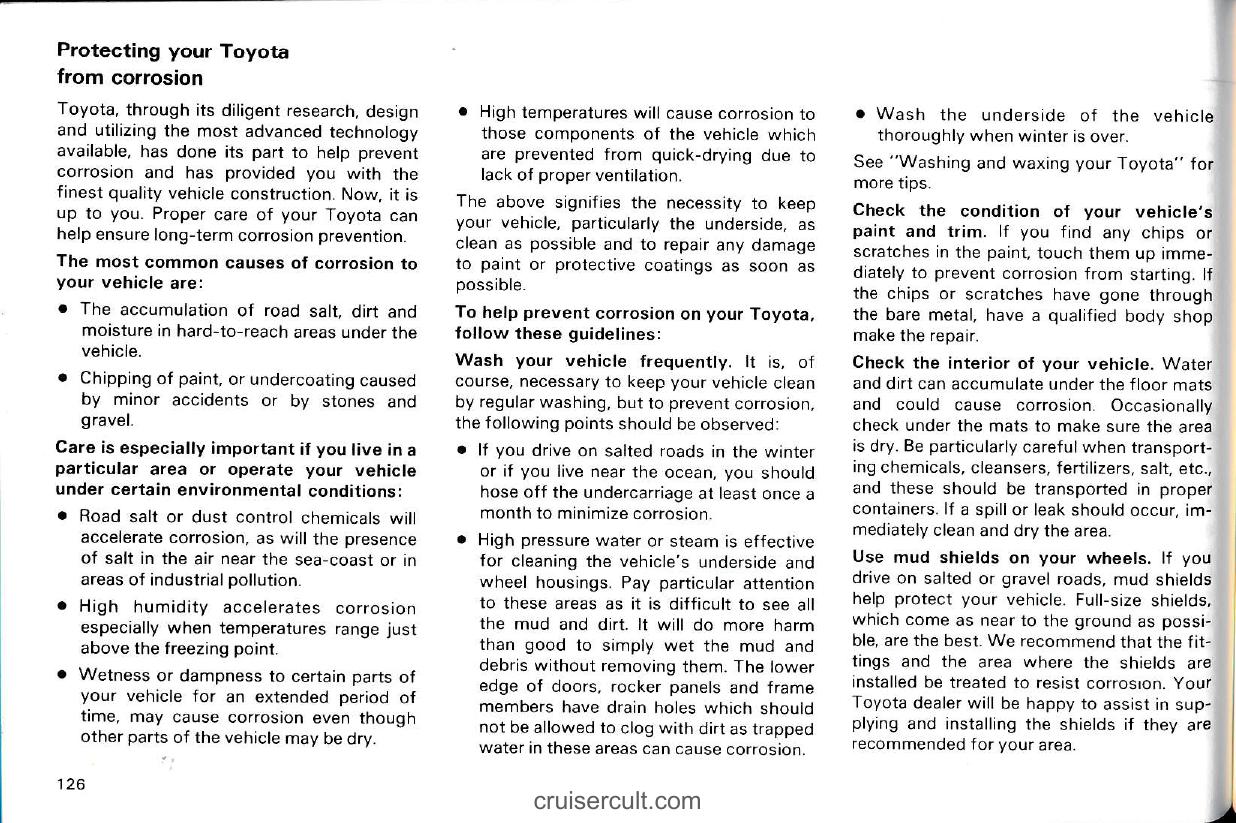

Protecting your Toyota from corrosion

Toyota, through its diligent research, design and utilizing the most advanced technology available, has done its part to help prevent corrosion and has provided you with the finest quality vehicle construction. Now, it is up to you. Proper care of your Toyota can help ensure long-term corrosion prevention.

The most common causes of corrosion to your vehicle are:

The accumulation of road salt, dirt and moisture in hard-to-reach areas under the vehicle.
Chipping of paint, or undercoating caused by minor accidents or by stones and gravel.

Care is especially important if you live in a particular area or operate your vehicle under certain environmental conditions:

Road salt or dust control chemicals will accelerate corrosion, as will the presence of salt in the air near the sea-coast or in areas of industrial pollution.
High humidity accelerates corrosion especially when temperatures range just above the freezing point.
Wetness or dampness to certain parts of your vehicle for an extended period of time, may cause corrosion even though other parts of the vehicle may be dry.
High temperatures will cause corrosion to those components of the vehicle which are prevented from quick-drying due to lack of proper ventilation.

The above signifies the necessity to keep your vehicle, particularly the underside, as clean as possible and to repair any damage to paint or protective coatings as soon as possible.

To help prevent corrosion on your Toyota, follow these guidelines:

Wash your vehicle frequently.

It is, of course, necessary to keep your vehicle clean by regular washing, but to prevent corrosion, the following points should be observed: - If you drive on salted roads in the winter or if you live near the ocean, you should hose off the undercarriage at least once a month to minimize corrosion. - High pressure water or steam is effective for cleaning the vehicle's underside and wheel housings. Pay particular attention to these areas as it is difficult to see all the mud and dirt. It will do more harm than good to simply wet the mud and debris without removing them. The lower edge of doors, rocker panels and frame members have drain holes which should not be allowed to clog with dirt as trapped water in these areas can cause corrosion. - Wash the underside of the vehicle thoroughly when winter is over.

See "Washing and waxing your Toyota" for more tips.

Check the condition of your vehicle's paint and trim.

If you find any chips or scratches in the paint, touch them up immediately to prevent corrosion from starting. If the chips or scratches have gone through the bare metal, have a qualified body shop make the repair.

Check the interior of your vehicle.

Water and dirt can accumulate under the floor mats and could cause corrosion. Occasionally check under the mats to make sure the area is dry. Be particularly careful when transporting chemicals, cleansers, fertilizers, salt, etc., and these should be transported in proper containers. If a spill or leak should occur, immediately clean and dry the area.

Use mud shields on your wheels.

If you drive on salted or gravel roads, mud shields help protect your vehicle. Full-size shields, which come as near to the ground as possible, are the best. We recommend that the fittings and the area where the shields are installed be treated to resist corrosion. Your Toyota dealer will be happy to assist in supplying and installing the shields if they are recommended for your area.

126

cruisercult.com

Page 127

Washing and waxing your Toyota

Do not park your vehicle in a damp, poorly ventilated garage.
If you wash your vehicle in the garage, or if you drive it in covered with water or snow, your garage may be so damp it will cause corrosion. Even if your garage is heated, a wet vehicle can corrode in it if the ventilation is poor.

Wash your vehicle in the shade when the body is not hot to the touch. Use a mild car-wash soap and rinse it well.

Dirt can cause small scratches in the paint and the chemicals in some dirt and air pollutants can cause deterioration of the paint and trim. Therefore, frequent washing is recommended. If you park or drive your Toyota near the ocean or on salted roads, it is especially important to prevent corrosion.

Your vehicle can be washed in an automatic car wash. Remember, however, that the paint surface could then be scratched with the brushes. Scratches reduce the paint's gloss retention and durability. They can become apparent easily, especially on the darker paints.

The following is the adequate procedure of car washing by hand.

Begin by rinsing all loose dirt off the vehicle with a hose. If the underside has picked up mud or road salt, use a hard, direct stream from a hose to remove it.
Wash with a commercial car-wash product available at your Toyota dealer or auto parts store. Follow the manufacturer's mixing instructions carefully. Dip your sponge or cloth into the wash bucket frequently and do not rub too hard—let the soap and water remove the dirt.

Road tar may be removed with turpentine. Use warm water and car-wash soap for insects and tree sap. Commercial products are also available.

NOTICE:
Do not use gasoline or strong solvents, which may be toxic or cause damage.

Rinse the vehicle thoroughly. If any soap dries on the vehicle, it may cause streaking. In hot weather, you may have to rinse each section of the vehicle right after you wash it.
Dry the vehicle with a moist chamois or soft towel. The main purpose of drying is to remove excess water so that the vehicle will air dry without water spots. So do not rub or press hard, which might scratch the paint.

If you detect any stone chips or scratches in the paint, touch them up immediately to protect the bare metal from corrosion.

After washing your vehicle, make sure the brakes are fully dry before driving.

Polishing and waxing is recommended to maintain the original beauty of your Toyota's finish.

Always wash and dry the vehicle before you begin waxing, even if you are using a combined cleaner and wax.

cruisercult.com

127

Page 128

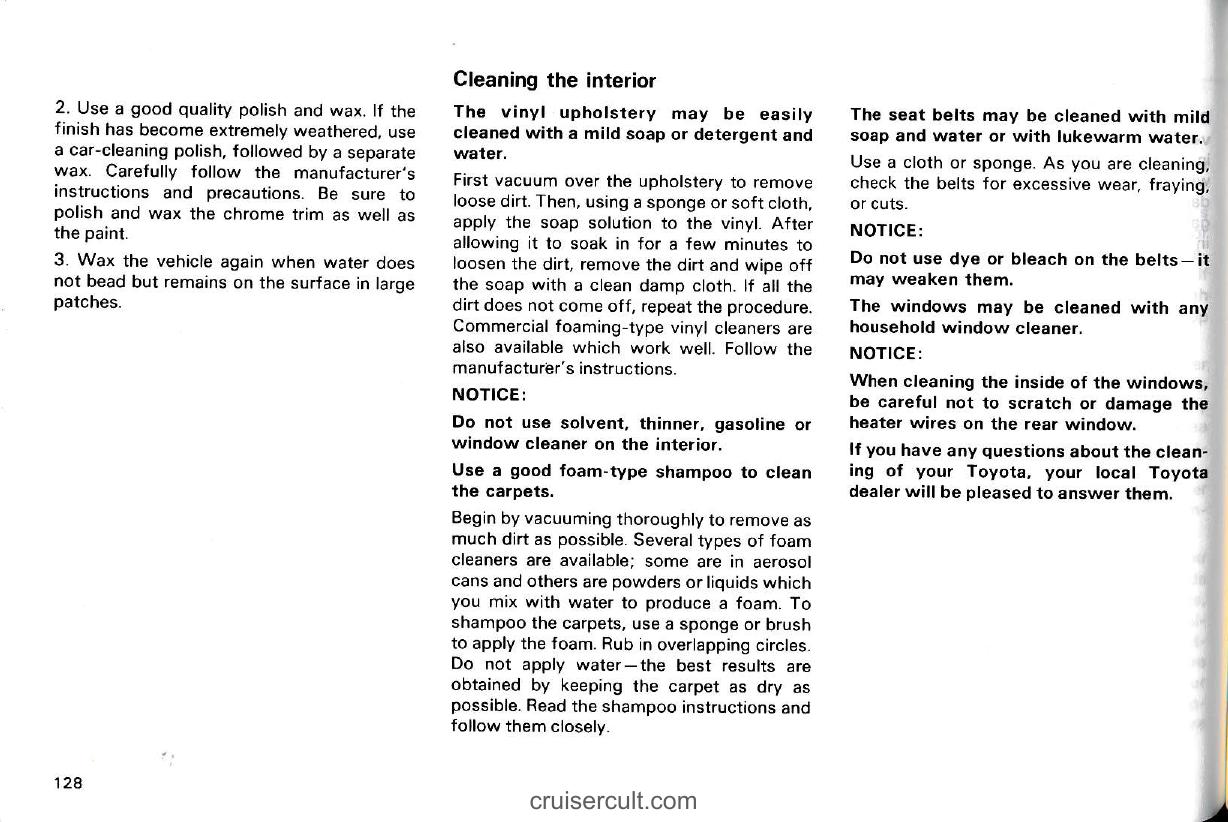

Use a good quality polish and wax. If the finish has become extremely weathered, use a car-cleaning polish, followed by a separate wax. Carefully follow the manufacturer's instructions and precautions. Be sure to polish and wax the chrome trim as well as the paint.
Wax the vehicle again when water does not bead but remains on the surface in large patches.

Cleaning the interior

The vinyl upholstery may be easily cleaned with a mild soap or detergent and water.

First vacuum over the upholstery to remove loose dirt. Then, using a sponge or soft cloth, apply the soap solution to the vinyl. After allowing it to soak in for a few minutes to loosen the dirt, remove the dirt and wipe off the soap with a clean damp cloth. If all the dirt does not come off, repeat the procedure. Commercial foaming-type vinyl cleaners are also available which work well. Follow the manufacturer's instructions.

NOTICE:

Do not use solvent, thinner, gasoline or window cleaner on the interior

Use a good foam-type shampoo to clean the carpets.

Begin by vacuuming thoroughly to remove as much dirt as possible. Several types of foam cleaners are available; some are in aerosol cans and others are powders or liquids which you mix with water to produce a foam. To shampoo the carpets, use a sponge or brush to apply the foam. Rub in overlapping circles. Do not apply water — the best results are obtained by keeping the carpet as dry as possible. Read the shampoo instructions and follow them closely.

The seat belts may be cleaned with mild soap and water or with lukewarm water.

Use a cloth or sponge. As you are cleaning, check the belts for excessive wear, fraying, or cuts.

NOTICE:

Do not use dye or bleach on the belts — it may weaken them.

The windows may be cleaned with any household window cleaner.

NOTICE:

When cleaning the inside of the windows, be careful not to scratch or damage the heater wires on the rear window.

If you have any questions about the cleaning of your Toyota, your local Toyota dealer will be pleased to answer them.

128

cruisercult.com

Page 129

Part 6 VEHICLE MAINTENANCE AND CARE

Maintenance requirements
General maintenance
Does your vehicle need repairing?
Scheduled maintenance

cruisercult.com

129

Page 130

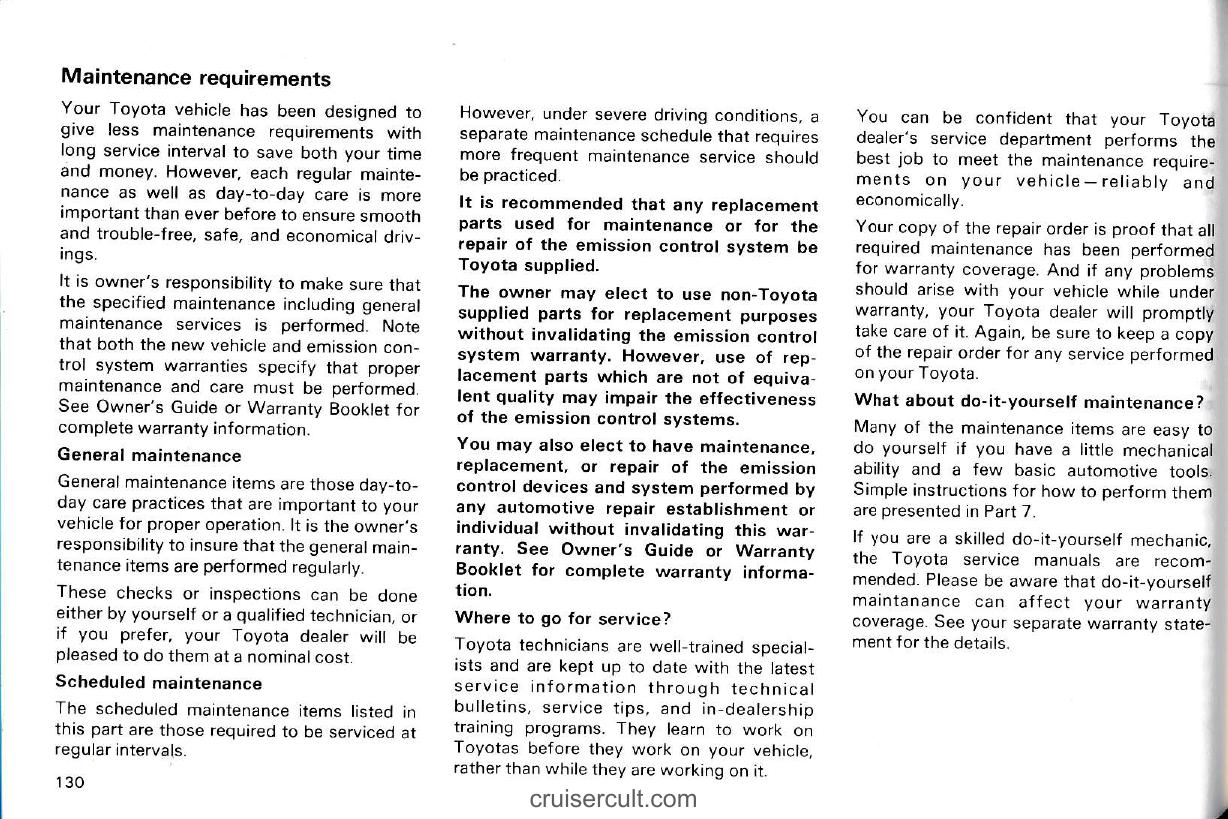

Maintenance requirements

Your Toyota vehicle has been designed to give less maintenance requirements with long service interval to save both your time and money. However, each regular maintenance as well as day-to-day care is more important than ever before to ensure smooth and trouble-free, safe, and economical drivings.

It is owner's responsibility to make sure that the specified maintenance including general maintenance services is performed. Note that both the new vehicle and emission control system warranties specify that proper maintenance and care must be performed. See Owner's Guide or Warranty Booklet for complete warranty information.

General maintenance

General maintenance items are those day-to-day care practices that are important to your vehicle for proper operation. It is the owner's responsibility to insure that the general maintenance items are performed regularly.

These checks or inspections can be done either by yourself or a qualified technician, or if you prefer, your Toyota dealer will be pleased to do them at a nominal cost.

Scheduled maintenance

The scheduled maintenance items listed in this part are those required to be serviced at regular intervals.

However, under severe driving conditions, a separate maintenance schedule that requires more frequent maintenance service should be practiced.

It is recommended that any replacement parts used for maintenance or for the repair of the emission control system be Toyota supplied.

The owner may elect to use non-Toyota supplied parts for replacement purposes without invalidating the emission control system warranty. However, use of replacement parts which are not of equivalent quality may impair the effectiveness of the emission control systems.

You may also elect to have maintenance, replacement, or repair of the emission control devices and system performed by any automotive repair establishment or individual without invalidating this warranty. See Owner's Guide or Warranty Booklet for complete warranty information.

Where to go for service?

Toyota technicians are well-trained specialists and are kept up to date with the latest service information through technical bulletins, service tips, and in-dealership training programs. They learn to work on Toyotas before they work on your vehicle, rather than while they are working on it.

You can be confident that your Toyota dealer's service department performs the best job to meet the maintenance requirements on your vehicle—reliably and economically.

Your copy of the repair order is proof that all required maintenance has been performed for warranty coverage. And if any problems should arise with your vehicle while under warranty, your Toyota dealer will promptly take care of it. Again, be sure to keep a copy of the repair order for any service performed on your Toyota.

What about do-it-yourself maintenance?

Many of the maintenance items are easy to do yourself if you have a little mechanical ability and a few basic automotive tools. Simple instructions for how to perform them are presented in Part 7.

If you are a skilled do-it-yourself mechanic, the Toyota service manuals are recommended. Please be aware that do-it-yourself maintenance can affect your warranty coverage. See your separate warranty statement for the details.

130

cruisercult.com

Page 131

General maintenance

Listed below are the general maintenance items that should be performed at the frequencies as specified. In addition to the items listed if you notice any unusual noise, smell or vibration, you should investigate the cause or take your vehicle to your Toyota dealer or a qualified service shop immediately. It is recommended that any problem you notice be brought to the attention of your dealer or the qualified service shop for their advice.

CAUTION: !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Make these checks only where adequate ventilation can be obtained if you run the engine.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

MAINTENANCE ITEMS	DESCRIPTION OF SERVICE AND INTERVALS
OUTSIDE THE VEHICLE	Items listed below should be performed from time to time, unless otherwise specified.
Tires	Check the pressure with a gauge and adjust as shown in Part 8. Check carefully for cuts, damage or excessive wear. See Chapter 7-2 for additional information.
Wheel nuts	When checking the tires, make sure no nuts are missing, and check the nuts for looseness. Tighten them if necessary.
Tire rotation	Rotate the tires every 7500 miles (12000 km). See Chapter 7-2 for additional information.

Windshield wiper blades
Check for wear or cracks whenever they do not wipe clean.
Fluid leaks
Check underneath for leaking fuel, oil, water or other fluid after the vehicle has been parked for a while. If you smell fuel fumes or notice any leak, have the cause found and corrected immediately.
Doors and engine hood
Check that all doors including tailgate operate smoothly and all latches lock securely. Make sure the engine hood secondary latch secures the hood from opening when the primary latch is released.

INSIDE THE VEHICLE

Items listed below should be checked regularly, e.g. while performing periodic services, cleaning the vehicle, etc.

Lights
Make sure that the headlights, stop lights, tail lights, turn signal lights, and other lights are all working. Check headlight aim.
Warning lights and buzzers
Check that all warning lights and buzzers function properly.

131

cruisercult.com

Page 132

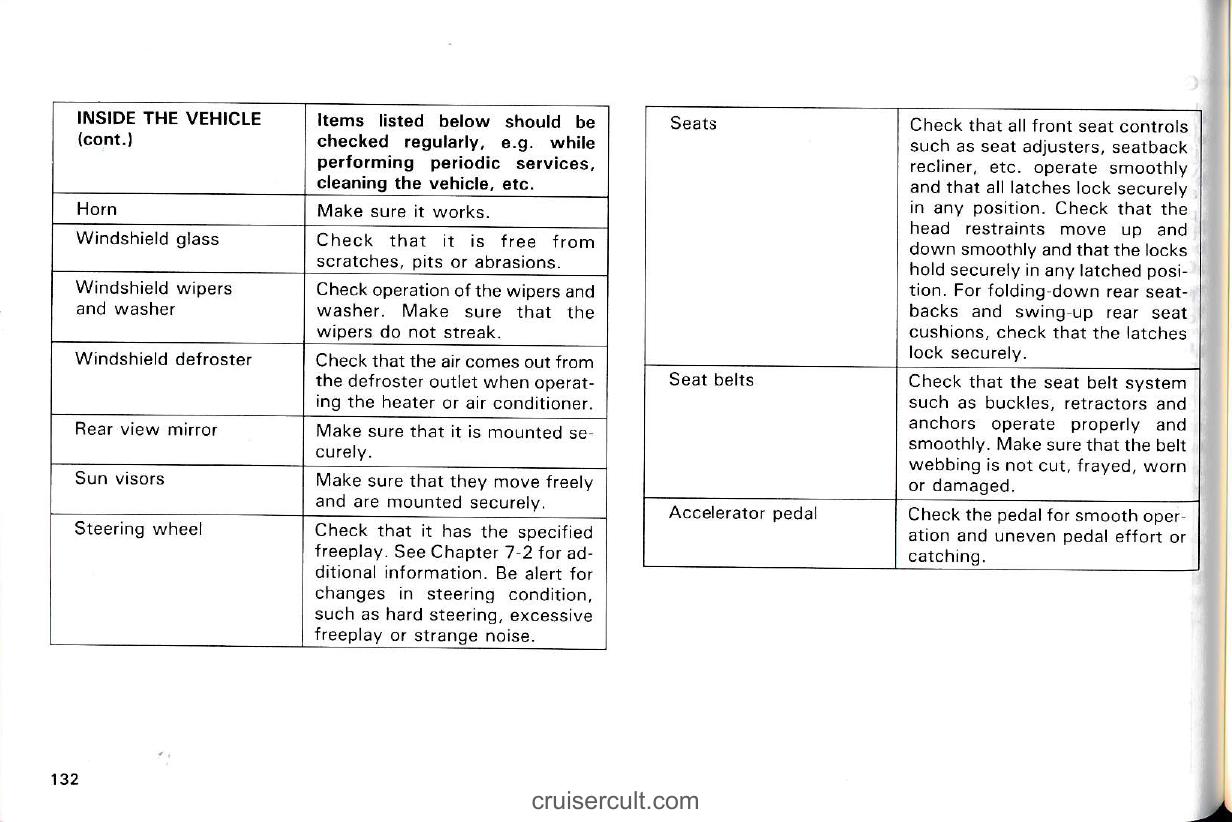

INSIDE THE VEHICLE (cont.)

Items listed below should be checked regularly, e.g. while performing periodic services, cleaning the vehicle, etc.

Horn
Make sure it works.
Windshield glass
Check that it is free from scratches, pits or abrasions.
Windshield wipers and washer
Check operation of the wipers and washer. Make sure that the wipers do not streak.
Windshield defroster
Check that the air comes out from the defroster outlet when operating the heater or air conditioner.
Rear view mirror
Make sure that it is mounted securely.
Sun visors
Make sure that they move freely and are mounted securely.
Steering wheel
Check that it has the specified freeplay. See Chapter 7-2 for additional information. Be alert for changes in steering condition, such as hard steering, excessive freeplay or strange noise.
Seats
Check that all front seat controls such as seat adjusters, seatback recliner, etc. operate smoothly and that all latches lock securely in any position. Check that the head restraints move up and down smoothly and that the locks hold securely in any latched position. For folding-down rear seatbacks and swing-up rear seat cushions, check that the latches lock securely.
Seat belts
Check that the seat belt system such as buckles, retractors and anchors operate properly and smoothly. Make sure that the belt webbing is not cut, frayed, worn or damaged.
Accelerator pedal
Check the pedal for smooth operation and uneven pedal effort or catching.

132

cruisercult.com

Page 133

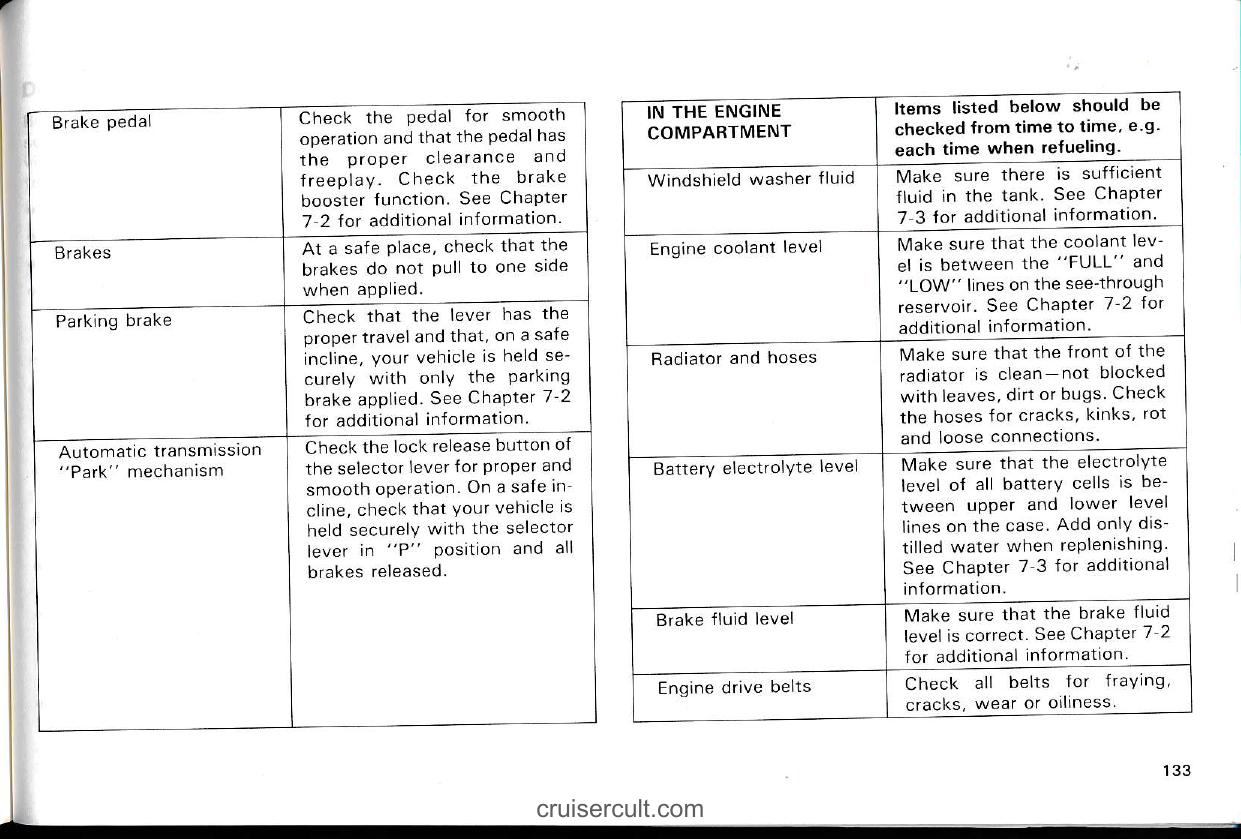

Brake pedal
Check the pedal for smooth operation and that the pedal has the proper clearance and freeplay. Check the brake booster function. See Chapter 7-2 for additional information.
Brakes
At a safe place, check that the brakes do not pull to one side when applied.
Parking brake
Check that the lever has the proper travel and that, on a safe incline, your vehicle is held securely with only the parking brake applied. See Chapter 7-2 for additional information.
Automatic transmission "Park" mechanism
Check the lock release button of the selector lever for proper and smooth operation. On a safe incline, check that your vehicle is held securely with the selector lever in "P" position and all brakes released.

IN THE ENGINE COMPARTMENT

Items listed below should be checked from time to time, e.g. each time when refueling.

Windshield washer fluid
Make sure there is sufficient fluid in the tank. See Chapter 7-3 for additional information.
Engine coolant level
Make sure that the coolant level is between the "FULL" and "LOW" lines on the see-through reservoir. See Chapter 7-2 for additional information.
Radiator and hoses
Make sure that the front of the radiator is clean — not blocked with leaves, dirt or bugs. Check the hoses for cracks, kinks, rot and loose connections.
Battery electrolyte level
Make sure that the electrolyte level of all battery cells is between upper and lower level lines on the case. Add only distilled water when replenishing. See Chapter 7-3 for additional information.
Brake fluid level
Make sure that the brake fluid level is correct. See Chapter 7-2 for additional information.
Engine drive belts
Check all belts for fraying, cracks, wear or oiliness.

cruisercult.com

133

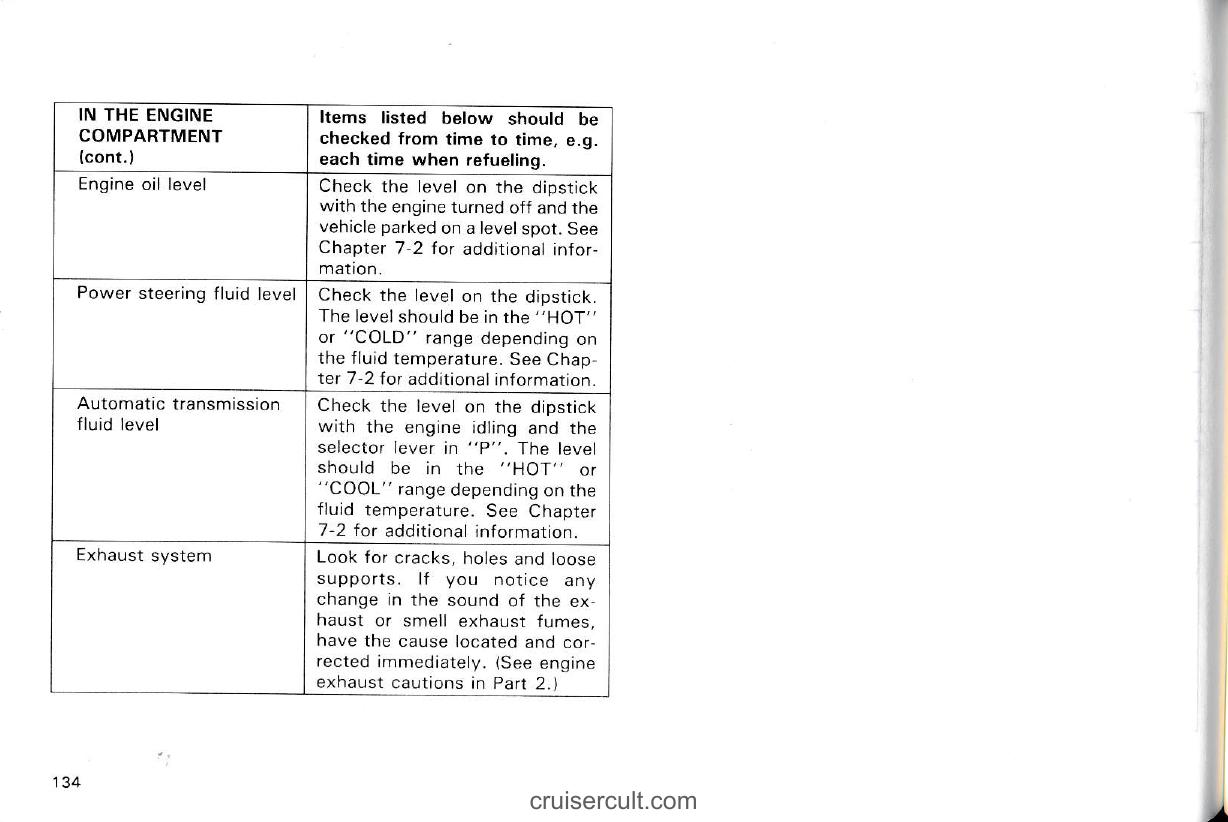

Page 134

IN THE ENGINE COMPARTMENT (cont.)	Items listed below should be checked from time to time, e.g. each time when refueling.
Engine oil level	Check the level on the dipstick with the engine turned off and the vehicle parked on a level spot. See Chapter 7-2 for additional information.
Power steering fluid level	Check the level on the dipstick. The level should be in the "HOT" or "COLD" range depending on the fluid temperature. See Chapter 7-2 for additional information.
Automatic transmission fluid level	Check the level on the dipstick with the engine idling and the selector lever in "P". The level should be in the "HOT" or "COOL" range depending on the fluid temperature. See Chapter 7-2 for additional information.
Exhaust system	Look for cracks, holes and loose supports. If you notice any change in the sound of the exhaust or smell exhaust fumes, have the cause located and corrected immediately. (See engine exhaust cautions in Part 2.)

134

cruisercult.com

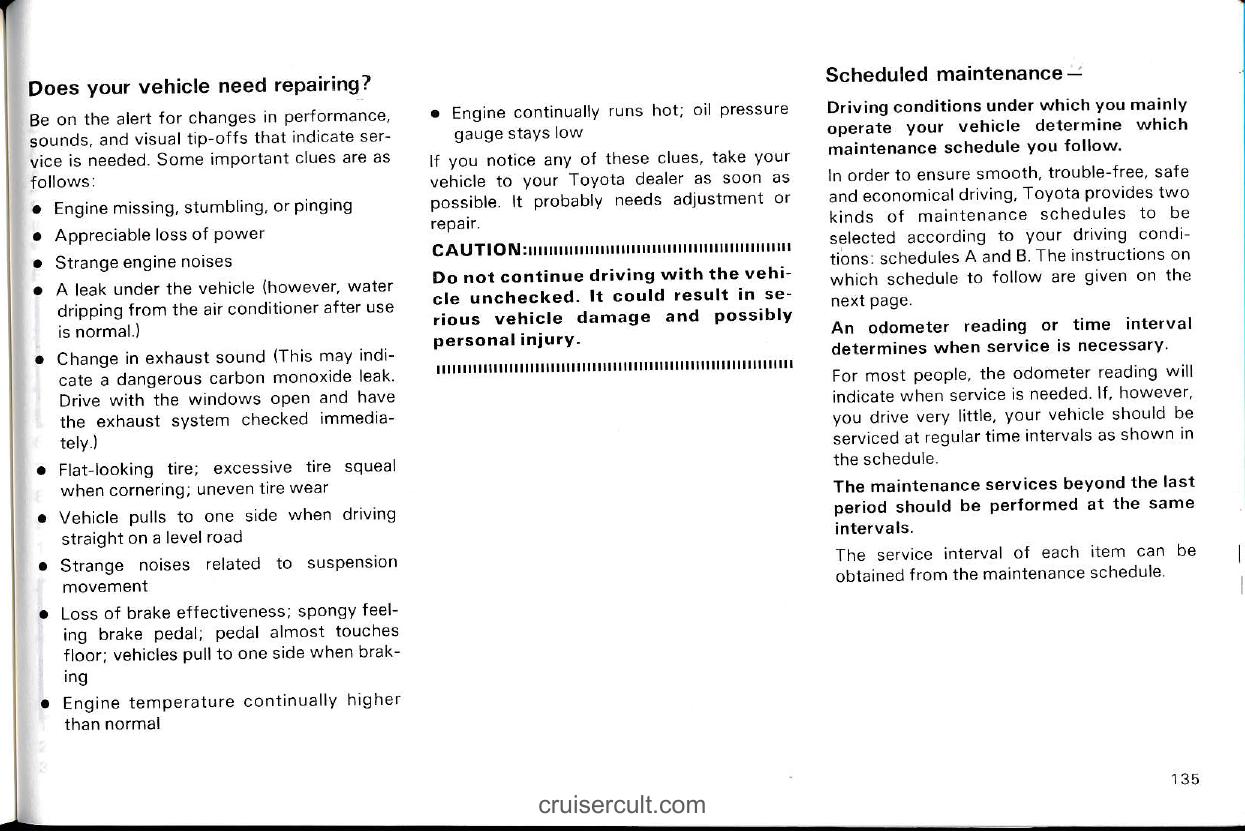

Page 135

Does your vehicle need repairing?

Be on the alert for changes in performance, sounds, and visual tip-offs that indicate service is needed. Some important clues are as follows:

Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A leak under the vehicle (however, water dripping from the air conditioner after use is normal.)
Change in exhaust sound (This may indicate a dangerous carbon monoxide leak. Drive with the windows open and have the exhaust system checked immediately.)
Flat-looking tire; excessive tire squeal when cornering; uneven tire wear
Vehicle pulls to one side when driving straight on a level road
Strange noises related to suspension movement
Loss of brake effectiveness; spongy feeling brake pedal; pedal almost touches floor; vehicles pull to one side when braking
Engine temperature continually higher than normal
Engine continually runs hot; oil pressure gauge stays low

If you notice any of these clues, take your vehicle to your Toyota dealer as soon as possible. It probably needs adjustment or repair.

CAUTION: !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Do not continue driving with the vehicle unchecked. It could result in serious vehicle damage and possibly personal injury.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Scheduled maintenance —

Driving conditions under which you mainly operate your vehicle determine which maintenance schedule you follow.

In order to ensure smooth, trouble-free, safe and economical driving, Toyota provides two kinds of maintenance schedules to be selected according to your driving conditions: schedules A and B. The instructions on which schedule to follow are given on the next page.

An odometer reading or time interval determines when service is necessary.

For most people, the odometer reading will indicate when service is needed. If, however, you drive very little, your vehicle should be serviced at regular time intervals as shown in the schedule.

The maintenance services beyond the last period should be performed at the same intervals.

The service interval of each item can be obtained from the maintenance schedule.

cruisercult.com

135

Page 136

Whenever you drive off-road through sand, mud or water, check the following items daily and perform maintenance or repair as required.

Brake pads and discs
Brake linings and drums
Brake lines and hoses
Transmission, transfer and differential oil
Wheel bearings
Air filter

Grease the propeller shafts daily when you drive off-road through sand, mud or water.

WHICH SCHEDULE TO FOLLOW?

If you mainly operate your vehicle under one or more of the severe conditions below:

Towing a trailer, using a camper or car top carrier
Operating on dusty, rough, muddy or salt-spread roads
Repeated short trips less than 5 miles (8 km) and outside temperatures remain below freezing
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use

Follow
SCHEDULE A

If you mainly operate your vehicle under:

CONDITIONS OTHER THAN THOSE LISTED ABOVE

Follow
SCHEDULE B

136
cruisercult.com
50040-01U

Page 137

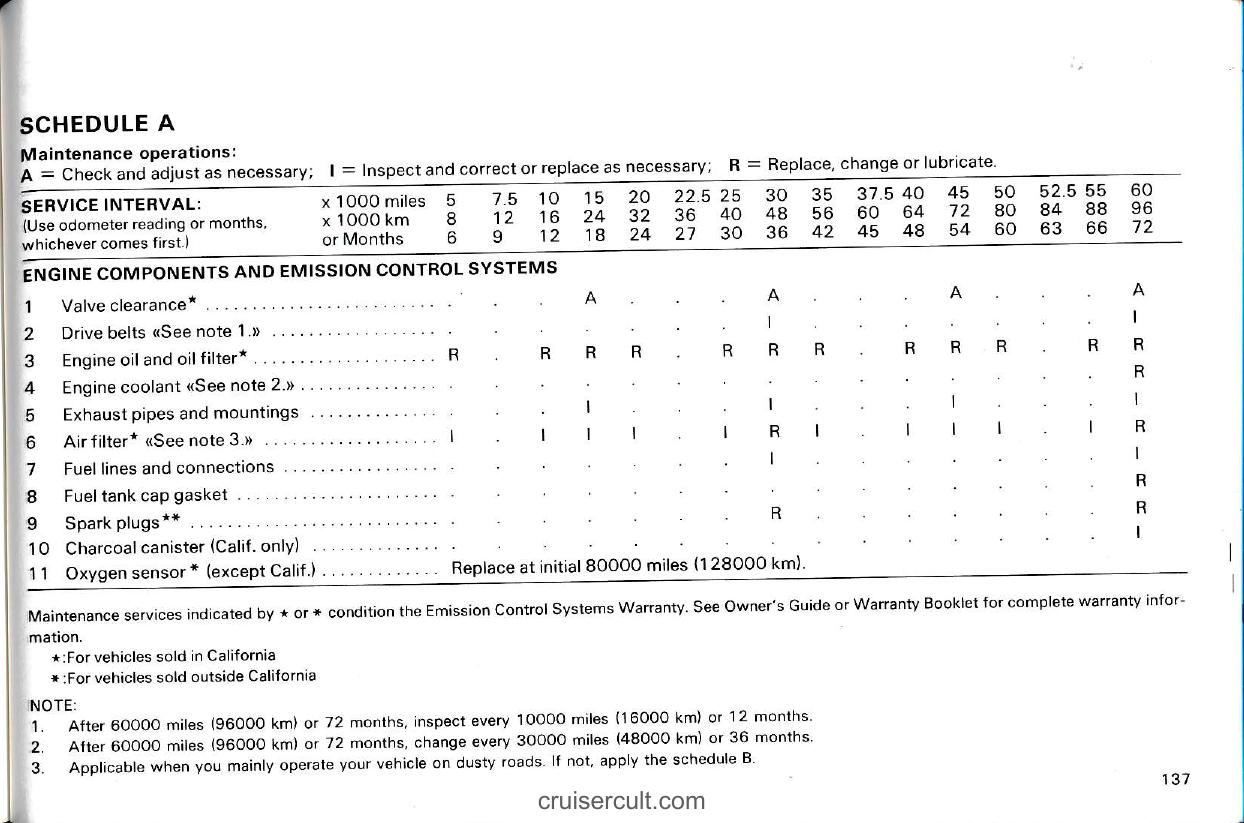

SCHEDULE A

Maintenance operations:
A = Check and adjust as necessary; I = Inspect and correct or replace as necessary; R = Replace, change or lubricate.

SERVICE INTERVAL:

x 1000 miles 5 7.5 10 15 20 22.5 25 30 35 37.5 40 45 50 52.5 55 60
(Use odometer reading or months,
x 1000 km 8 12 16 24 32 36 40 48 56 60 64 72 80 84 88 96
whichever comes first.) or Months 6 9 12 18 24 27 30 36 42 45 48 54 60 63 66 72

ENGINE COMPONENTS AND EMISSION CONTROL SYSTEMS

Valve clearance*
Drive belts «See note 1.»
Engine oil and oil filter*
Engine coolant «See note 2.»
Exhaust pipes and mountings
Air filter* «See note 3.»
Fuel lines and connections
Fuel tank cap gasket
Spark plugs**
Charcoal canister (Calif. only)
Oxygen sensor * (except Calif.) — Replace at initial 80000 miles (128000 km).

Maintenance services indicated by * or ** condition the Emission Control Systems Warranty. See Owner’s Guide or Warranty Booklet for complete warranty information.

: For vehicles sold in California
*: For vehicles sold outside California

NOTE: 1. After 60000 miles (96000 km) or 72 months, inspect every 10000 miles (16000 km) or 12 months.
2. After 60000 miles (96000 km) or 72 months, change every 30000 miles (48000 km) or 36 months.
3. Applicable when you mainly operate your vehicle on dusty roads. If not, apply the schedule B.

cruisercult.com

137

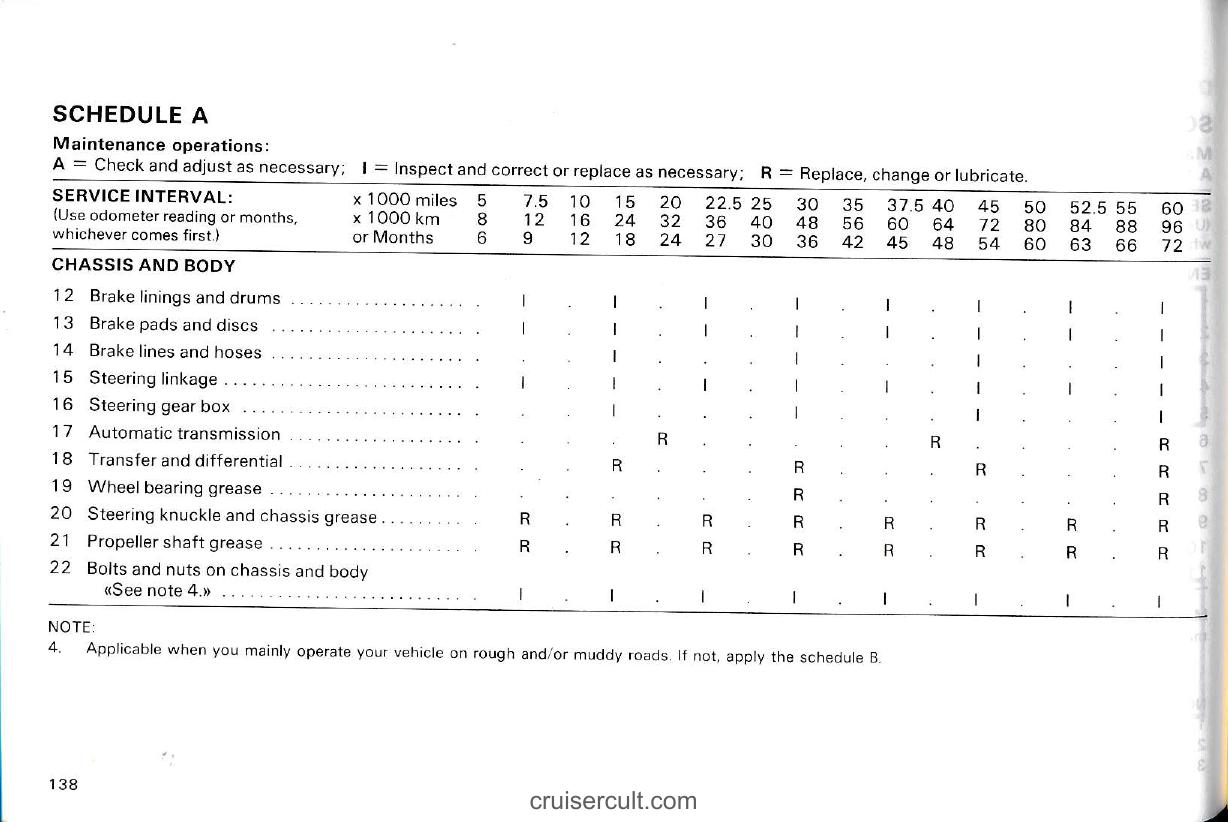

Page 138

SCHEDULE A

Maintenance operations:
A = Check and adjust as necessary; I = Inspect and correct or replace as necessary; R = Replace, change or lubricate.

SERVICE INTERVAL:

x 1000 miles: 5, 7.5, 10, 15, 20, 22.5, 25, 30, 35, 37.5, 40, 45, 50, 52.5, 55, 60
(Use odometer reading or months, x 1000 km: 8, 12, 16, 24, 32, 36, 40, 48, 56, 60, 64, 72, 80, 84, 88, 96)
or Months: 6, 9, 12, 18, 24, 27, 30, 36, 42, 45, 48, 54, 60, 63, 66, 72
(whichever comes first.)

CHASSIS AND BODY

Brake linings and drums
Brake pads and discs
Brake lines and hoses
Steering linkage
Steering gear box
Automatic transmission
Transfer and differential
Wheel bearing grease
Steering knuckle and chassis grease
Propeller shaft grease
Bolts and nuts on chassis and body
«See note 4.»

NOTE:
4. Applicable when you mainly operate your vehicle on rough and/or muddy roads. If not, apply the schedule B.

138

cruisercult.com

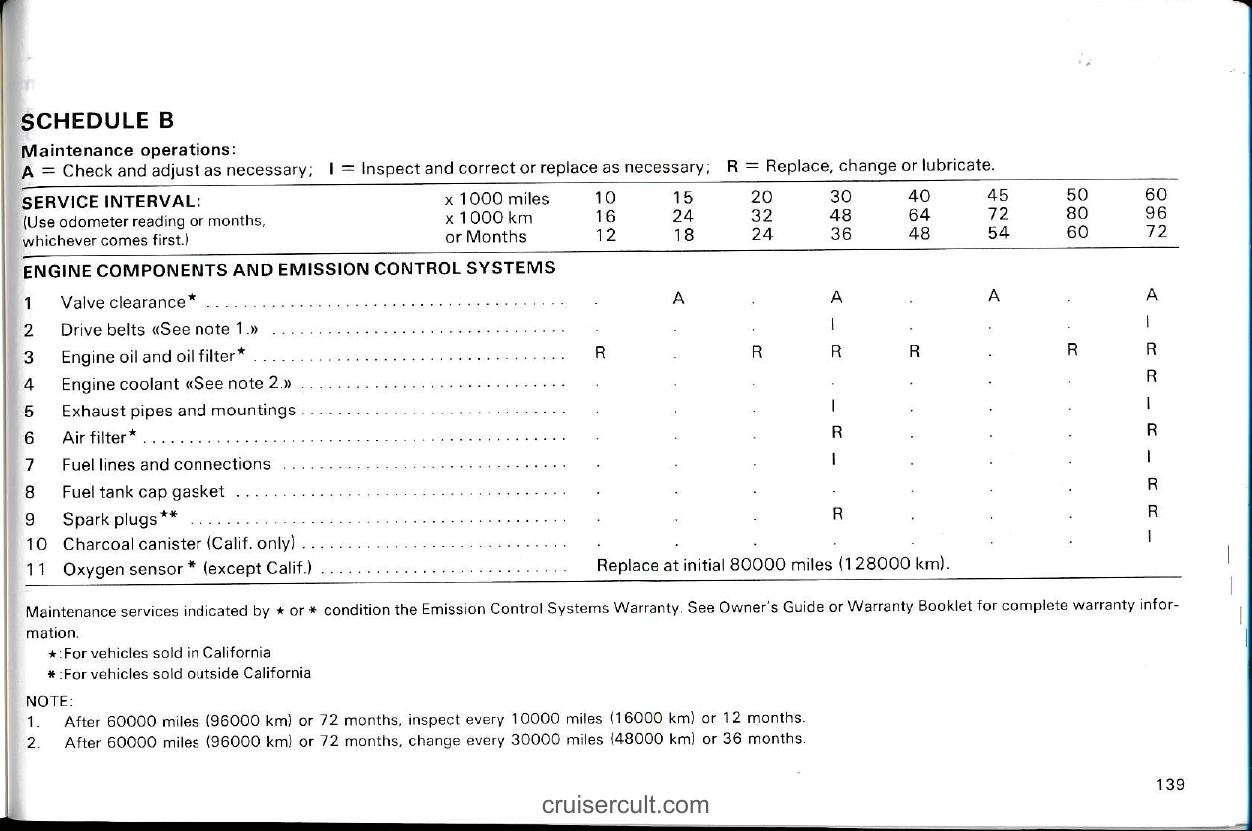

Page 139

SCHEDULE B

Maintenance operations:
A = Check and adjust as necessary; I = Inspect and correct or replace as necessary; R = Replace, change or lubricate.

SERVICE INTERVAL:

	x 1000 miles	10	15	20	30	40	45	50	60
	x 1000 km	16	24	32	48	64	72	80	96
	or Months	12	18	24	36	48	54	60	72

(Use odometer reading or months, whichever comes first.)

ENGINE COMPONENTS AND EMISSION CONTROL SYSTEMS

Valve clearance*
Drive belts «See note 1.»
Engine oil and oil filter*
Engine coolant «See note 2.»
Exhaust pipes and mountings
Air filter*
Fuel lines and connections
Fuel tank cap gasket
Spark plugs**
Charcoal canister (Calif. only)
Oxygen sensor * (except Calif.)

Replace at initial 80000 miles (128000 km).

Maintenance services indicated by * or ** condition the Emission Control Systems Warranty. See Owner’s Guide or Warranty Booklet for complete warranty information.

: For vehicles sold in California
** : For vehicles sold outside California

NOTE: 1. After 60000 miles (96000 km) or 72 months, inspect every 10000 miles (16000 km) or 12 months.
2. After 60000 miles (96000 km) or 72 months, change every 30000 miles (48000 km) or 36 months.

cruisercult.com

139

Page 140

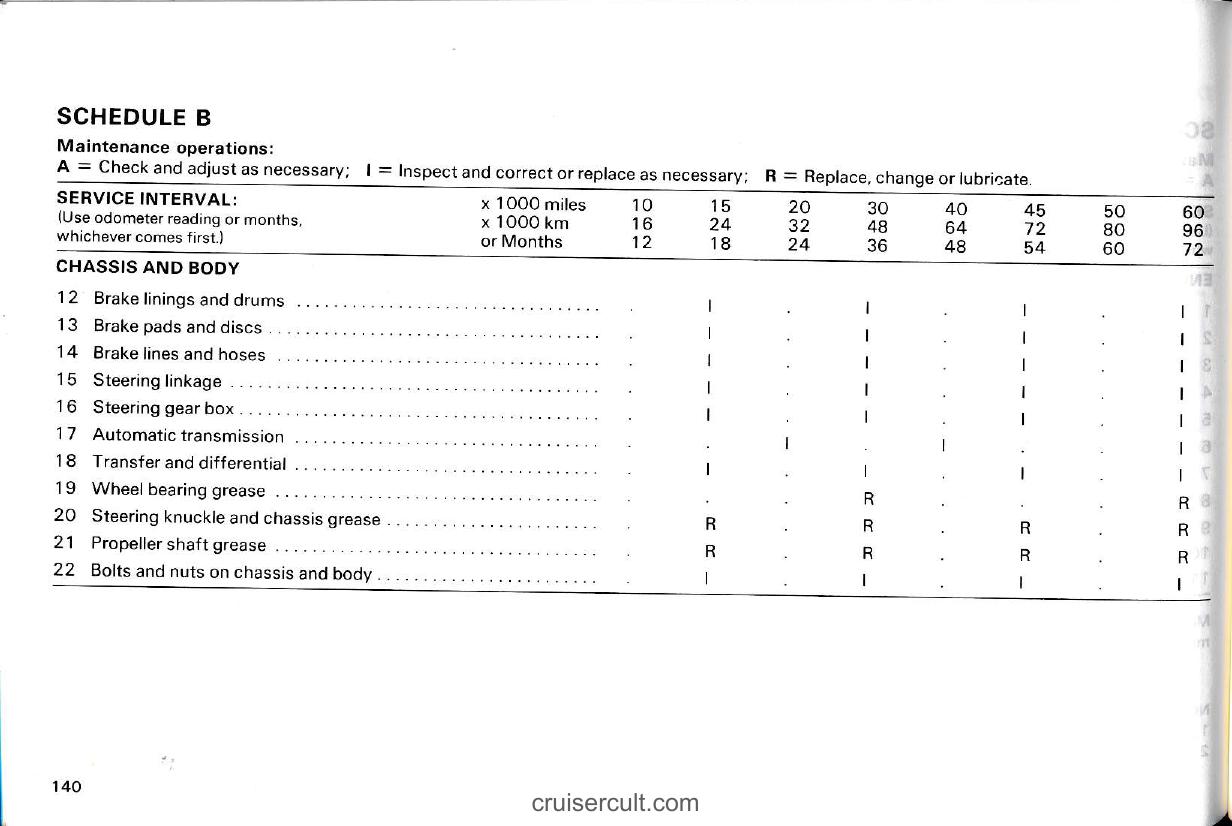

SCHEDULE B

Maintenance operations:
A = Check and adjust as necessary; I = Inspect and correct or replace as necessary; R = Replace, change or lubricate.

SERVICE INTERVAL:

(Use odometer reading or months, whichever comes first.)

x 1000 miles	10	15	20	30	40	45	50	60
x 1000 km	16	24	32	48	64	72	80	96
or Months	12	18	24	36	48	54	60	72

CHASSIS AND BODY

Brake linings and drums
Brake pads and discs
Brake lines and hoses
Steering linkage
Steering gear box
Automatic transmission
Transfer and differential
Wheel bearing grease
Steering knuckle and chassis grease
Propeller shaft grease
Bolts and nuts on chassis and body

Page 141

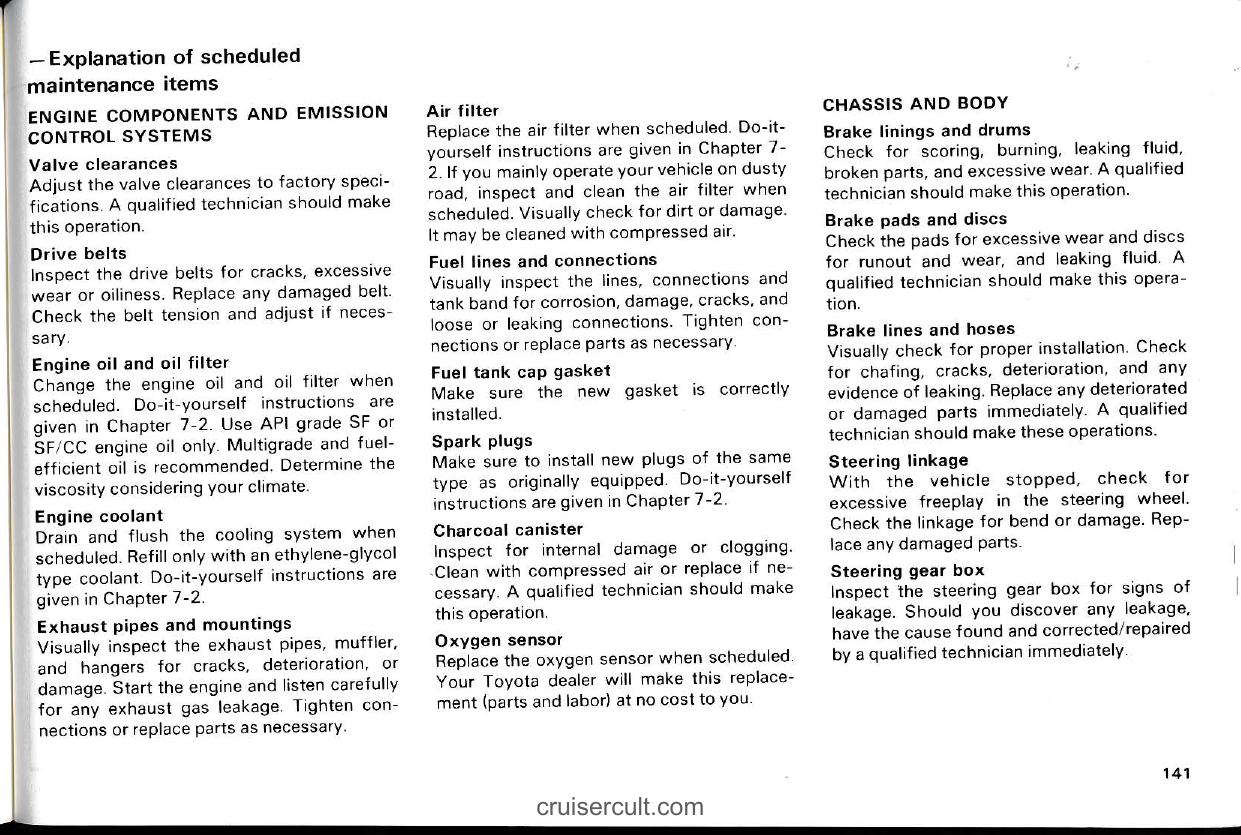

— Explanation of scheduled maintenance items

ENGINE COMPONENTS AND EMISSION CONTROL SYSTEMS

Valve clearances
Adjust the valve clearances to factory specifications. A qualified technician should make this operation.

Drive belts
Inspect the drive belts for cracks, excessive wear or oiliness. Replace any damaged belt. Check the belt tension and adjust if necessary.

Engine oil and oil filter
Change the engine oil and oil filter when scheduled. Do-it-yourself instructions are given in Chapter 7-2. Use API grade SF or SF/CC engine oil only. Multigrade and fuelefficient oil is recommended. Determine the viscosity considering your climate.

Engine coolant
Drain and flush the cooling system when scheduled. Refill only with an ethylene-glycol type coolant. Do-it-yourself instructions are given in Chapter 7-2.

Exhaust pipes and mountings
Visually inspect the exhaust pipes, muffler, and hangers for cracks, deterioration, or damage. Start the engine and listen carefully for any exhaust gas leakage. Tighten connections or replace parts as necessary.

Air filter
Replace the air filter when scheduled. Do-it-yourself instructions are given in Chapter 7-2. If you mainly operate your vehicle on dusty road, inspect and clean the air filter when scheduled. Visually check for dirt or damage. It may be cleaned with compressed air.

Fuel lines and connections
Visually inspect the lines, connections and tank band for corrosion, damage, cracks, and loose or leaking connections. Tighten connections or replace parts as necessary.

Fuel tank cap gasket
Make sure the new gasket is correctly installed.

Spark plugs
Make sure to install new plugs of the same type as originally equipped. Do-it-yourself instructions are given in Chapter 7-2.

Charcoal canister
Inspect for internal damage or clogging. Clean with compressed air or replace if necessary. A qualified technician should make this operation.

Oxygen sensor
Replace the oxygen sensor when scheduled. Your Toyota dealer will make this replacement (parts and labor) at no cost to you.

CHASSIS AND BODY

Brake linings and drums
Check for scoring, burning, leaking fluid, broken parts, and excessive wear. A qualified technician should make this operation.

Brake pads and discs
Check the pads for excessive wear and discs for runout and wear, and leaking fluid. A qualified technician should make this operation.

Brake lines and hoses
Visually check for proper installation. Check for chafing, cracks, deterioration, and any evidence of leaking. Replace any deteriorated or damaged parts immediately. A qualified technician should make these operations.

Steering linkage
With the vehicle stopped, check for excessive freeplay in the steering wheel. Check the linkage for bend or damage. Replace any damaged parts.

Steering gear box
Inspect the steering gear box for signs of leakage. Should you discover any leakage, have the cause found and corrected/repaired by a qualified technician immediately.

cruisercult.com

141

Page 142

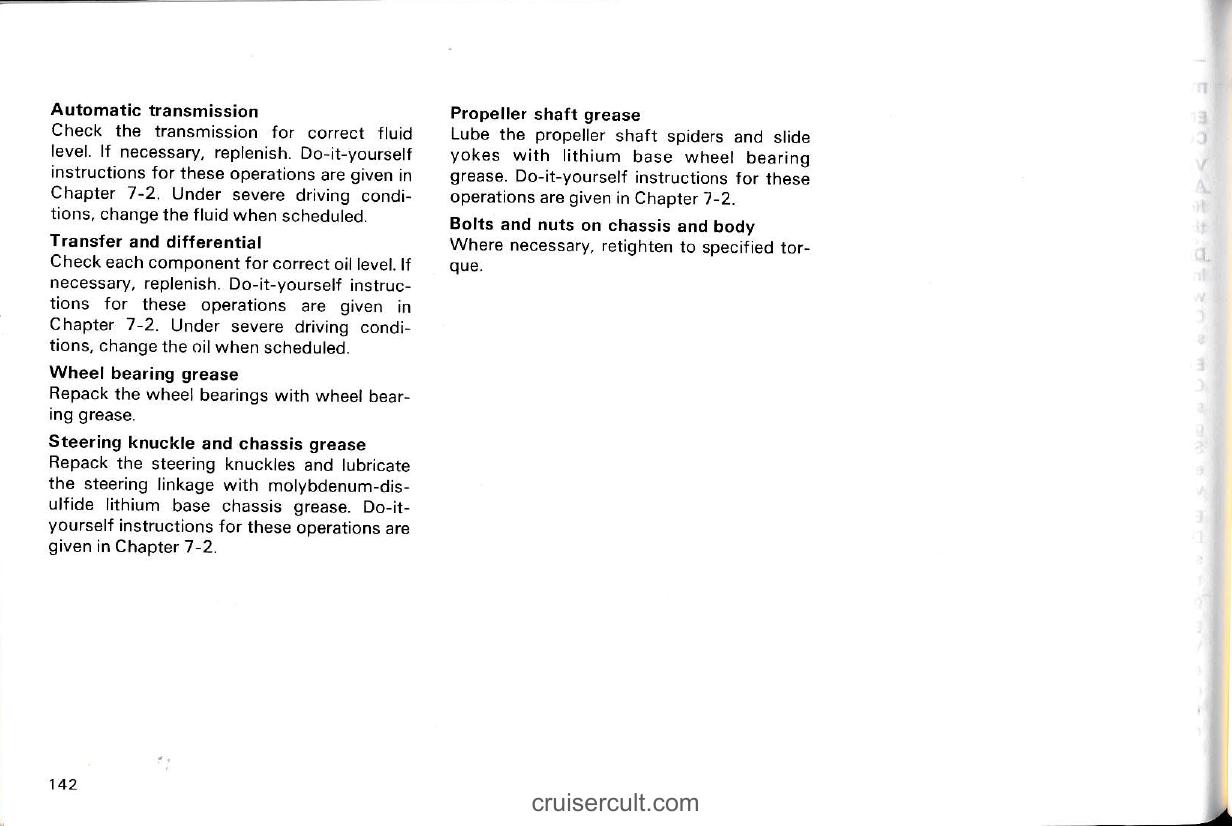

Automatic transmission

Check the transmission for correct fluid level. If necessary, replenish. Do-it-yourself instructions for these operations are given in Chapter 7-2. Under severe driving conditions, change the fluid when scheduled.

Transfer and differential

Check each component for correct oil level. If necessary, replenish. Do-it-yourself instructions for these operations are given in Chapter 7-2. Under severe driving conditions, change the oil when scheduled.

Wheel bearing grease

Repack the wheel bearings with wheel bearing grease.

Steering knuckle and chassis grease

Repack the steering knuckles and lubricate the steering linkage with molybdenum-disulfide lithium base chassis grease. Do-it-yourself instructions for these operations are given in Chapter 7-2.

Propeller shaft grease

Lube the propeller shaft spiders and slide yokes with lithium base wheel bearing grease. Do-it-yourself instructions for these operations are given in Chapter 7-2.

Bolts and nuts on chassis and body

Where necessary, retighten to specified torque.

142

cruisercult.com

Page 143

Part 7 DO-IT-YOURSELF MAINTENANCE—

Chapter 7-1 Introduction

Engine compartment overview
Do-it-yourself service precautions
Parts and tools

cruisercult.com

143

Page 144

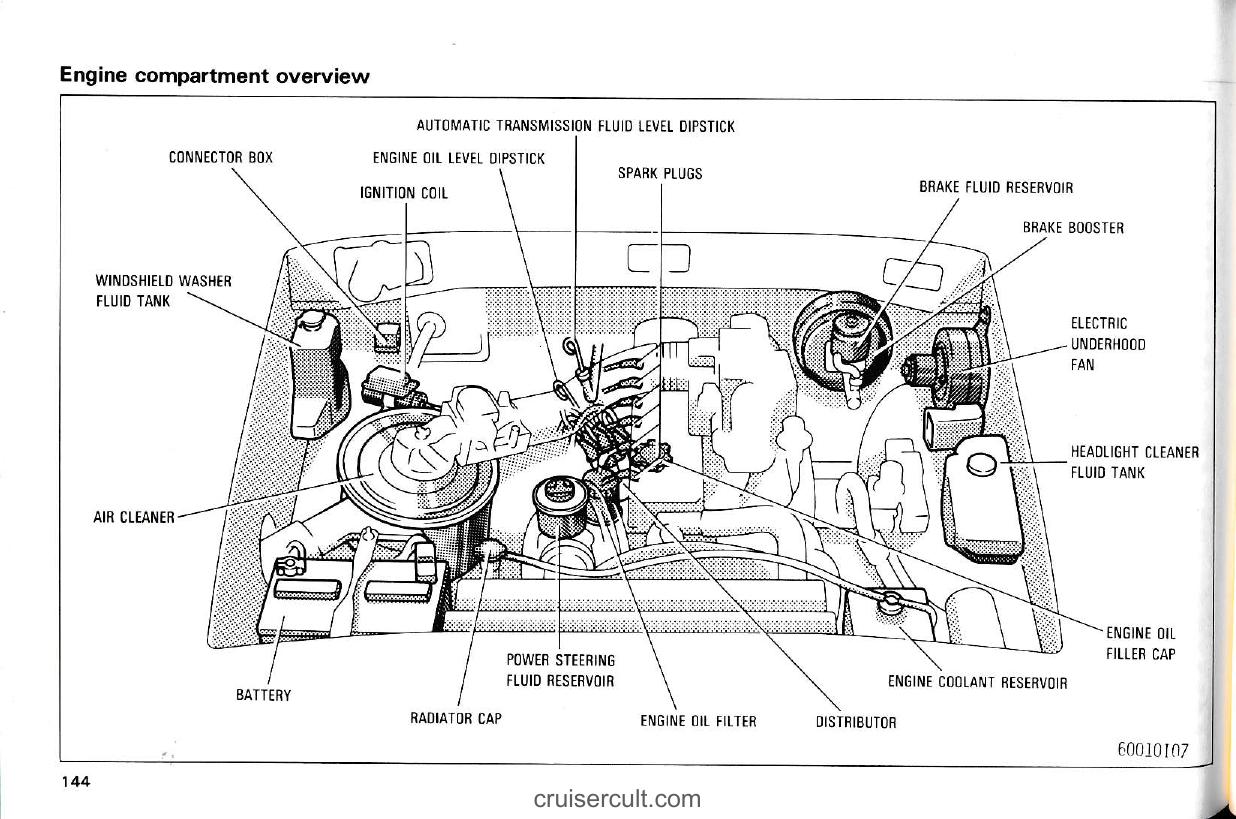

Engine compartment overview

AUTOMATIC TRANSMISSION FLUID LEVEL DIPSTICK
CONNECTOR BOX
ENGINE OIL LEVEL DIPSTICK
SPARK PLUGS
IGNITION COIL
BRAKE FLUID RESERVOIR
BRAKE BOOSTER
WINDSHIELD WASHER FLUID TANK
ELECTRIC UNDERHOOD FAN
HEADLIGHT CLEANER FLUID TANK
AIR CLEANER
ENGINE OIL FILLER CAP
BATTERY
RADIATOR CAP
POWER STEERING FLUID RESERVOIR
ENGINE OIL FILTER
DISTRIBUTOR
ENGINE COOLANT RESERVOIR

144
cruisercult.com
60010107

Page 145

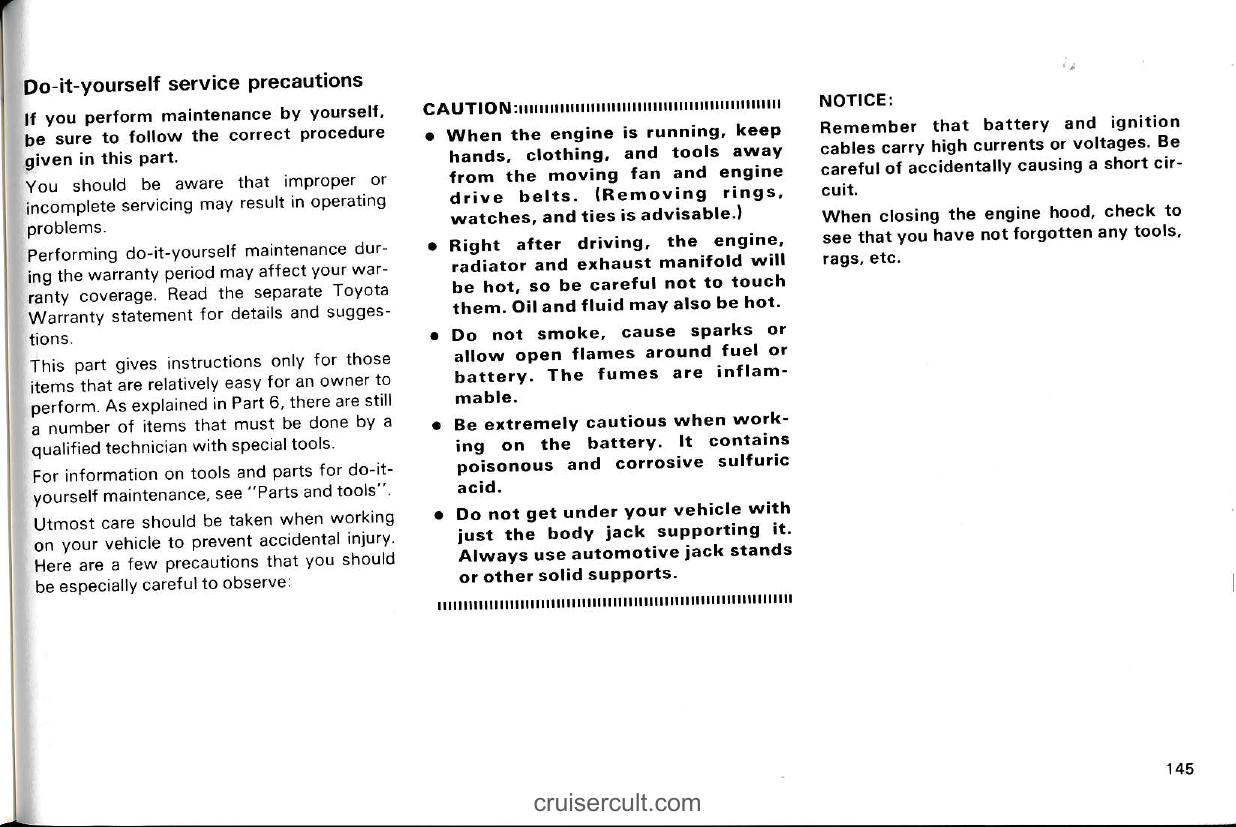

Do-it-yourself service precautions

If you perform maintenance by yourself, be sure to follow the correct procedure given in this part.

You should be aware that improper or incomplete servicing may result in operating problems.

Performing do-it-yourself maintenance during the warranty period may affect your warranty coverage. Read the separate Toyota Warranty statement for details and suggestions.

This part gives instructions only for those items that are relatively easy for an owner to perform. As explained in Part 6, there are still a number of items that must be done by a qualified technician with special tools.

For information on tools and parts for do-it-yourself maintenance, see "Parts and tools".

Utmost care should be taken when working on your vehicle to prevent accidental injury. Here are a few precautions that you should be especially careful to observe:

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

When the engine is running, keep hands, clothing, and tools away from the moving fan and engine drive belts. (Removing rings, watches, and ties is advisable.)
Right after driving, the engine, radiator and exhaust manifold will be hot, so be careful not to touch them. Oil and fluid may also be hot.
Do not smoke, cause sparks or allow open flames around fuel or battery. The fumes are inflammable.
Be extremely cautious when working on the battery. It contains poisonous and corrosive sulfuric acid.
Do not get under your vehicle with just the body jack supporting it. Always use automotive jack stands or other solid supports.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

NOTICE:

Remember that battery and ignition cables carry high currents or voltages. Be careful of accidentally causing a short circuit.

When closing the engine hood, check to see that you have not forgotten any tools, rags, etc.

cruisercult.com

145

Page 146

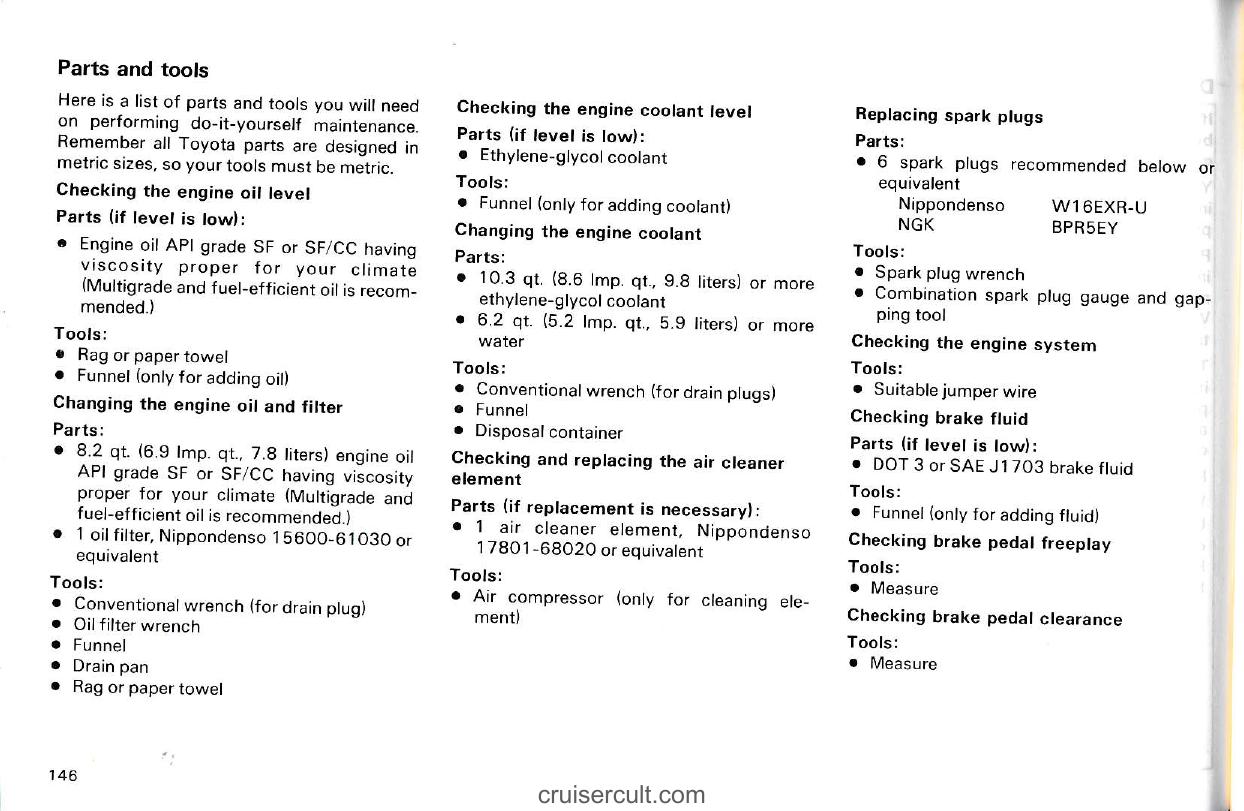

Parts and tools

Here is a list of parts and tools you will need on performing do-it-yourself maintenance. Remember all Toyota parts are designed in metric sizes, so your tools must be metric.

Checking the engine oil level

Parts (if level is low):

Engine oil API grade SF or SF/CC having viscosity proper for your climate (Multigrade and fuel-efficient oil is recommended.)

Tools:

Rag or paper towel
Funnel (only for adding oil)

Changing the engine oil and filter

Parts:

8.2 qt. (6.9 Imp. qt., 7.8 liters) engine oil API grade SF or SF/CC having viscosity proper for your climate (Multigrade and fuel-efficient oil is recommended.)
1 oil filter, Nippondenso 15600-61030 or equivalent

Tools:

Conventional wrench (for drain plug)
Oil filter wrench
Funnel
Drain pan
Rag or paper towel

Checking the engine coolant level

Parts (if level is low):

Ethylene-glycol coolant

Tools:

Funnel (only for adding coolant)

Changing the engine coolant

Parts:

10.3 qt. (8.6 Imp. qt., 9.8 liters) or more ethylene-glycol coolant
6.2 qt. (5.2 Imp. qt., 5.9 liters) or more water

Tools:

Conventional wrench (for drain plugs)
Funnel
Disposal container

Checking and replacing the air cleaner element

Parts (if replacement is necessary):

1 air cleaner element, Nippondenso 17801-68020 or equivalent

Tools:

Air compressor (only for cleaning element)

Replacing spark plugs

Parts:

6 spark plugs recommended below or equivalent
Nippondenso W16EXR-U
NGK BPR5EY

Tools:

Spark plug wrench
Combination spark plug gauge and gapping tool

Checking the engine system

Tools:

Suitable jumper wire

Checking brake fluid

Parts (if level is low):

DOT 3 or SAE J1703 brake fluid

Tools:

Funnel (only for adding fluid)

Checking brake pedal freeplay

Tools:

Measure

Checking brake pedal clearance

Tools:

Measure

146

cruisercult.com

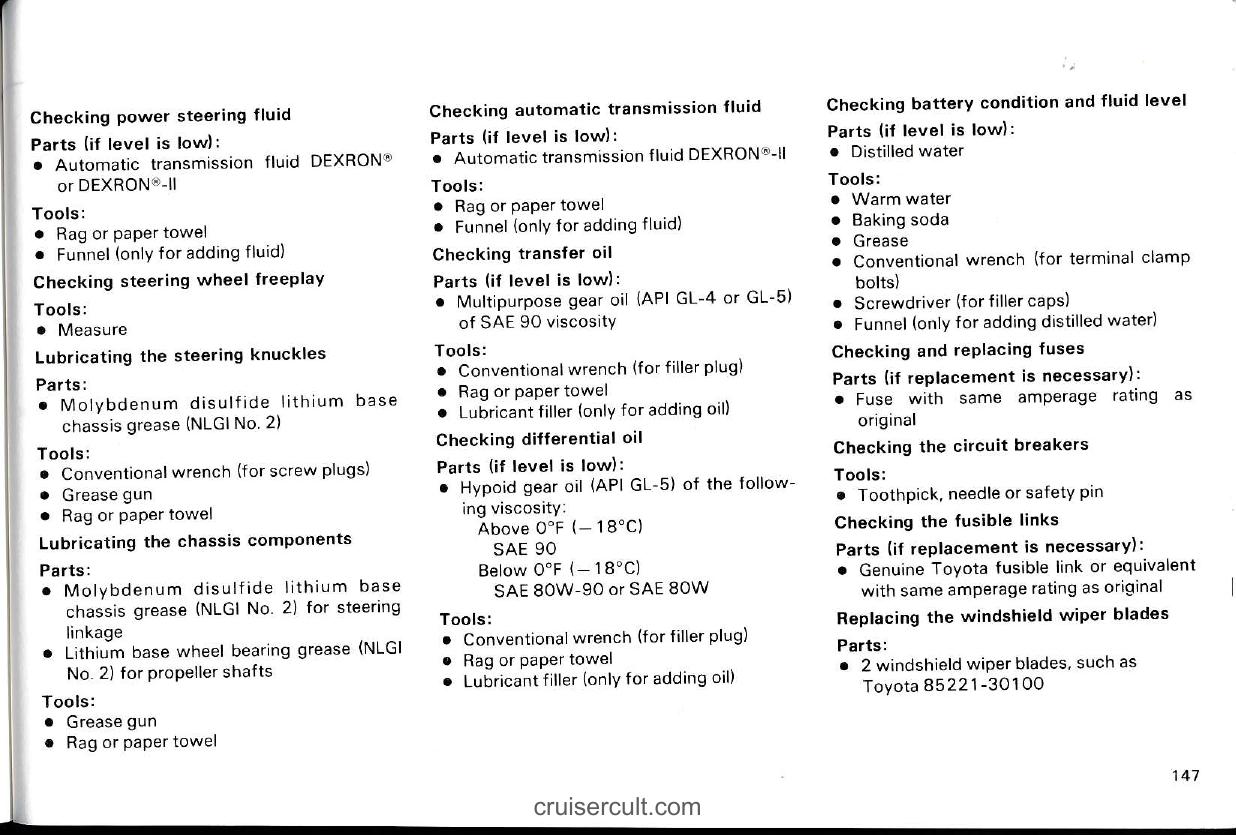

Page 147

Checking power steering fluid

Parts (if level is low):
Automatic transmission fluid DEXRON® or DEXRON®-II
Tools:
Rag or paper towel
Funnel (only for adding fluid)

Checking steering wheel freeplay

Tools:
Measure

Lubricating the steering knuckles

Parts:
Molybdenum disulfide lithium base chassis grease (NLGI No. 2)
Tools:
Conventional wrench (for screw plugs)
Grease gun
Rag or paper towel

Lubricating the chassis components

Parts:
Molybdenum disulfide lithium base chassis grease (NLGI No. 2) for steering linkage
Lithium base wheel bearing grease (NLGI No. 2) for propeller shafts
Tools:
Grease gun
Rag or paper towel

Checking automatic transmission fluid

Parts (if level is low):
Automatic transmission fluid DEXRON®-II
Tools:
Rag or paper towel
Funnel (only for adding fluid)

Checking transfer oil

Parts (if level is low):
Multipurpose gear oil (API GL-4 or GL-5) of SAE 90 viscosity
Tools:
Conventional wrench (for filler plug)
Rag or paper towel
Lubricant filler (only for adding oil)

Checking differential oil

Parts (if level is low):
Hypoid gear oil (API GL-5) of the following viscosity:
- Above 0°F (—18°C): SAE 90
- Below 0°F (—18°C): SAE 80W-90 or SAE 80W
Tools:
Conventional wrench (for filler plug)
Rag or paper towel
Lubricant filler (only for adding oil)

Checking battery condition and fluid level

Parts (if level is low):
Distilled water
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal clamp bolts)
Screwdriver (for filler caps)
Funnel (only for adding distilled water)

Checking and replacing fuses

Parts (if replacement is necessary):
Fuse with same amperage rating as original

Checking the circuit breakers

Tools:
Toothpick, needle or safety pin

Checking the fusible links

Parts (if replacement is necessary):
Genuine Toyota fusible link or equivalent with same amperage rating as original

Replacing the windshield wiper blades

Parts:
2 windshield wiper blades, such as Toyota 85221-30100

cruisercult.com

147

Page 148

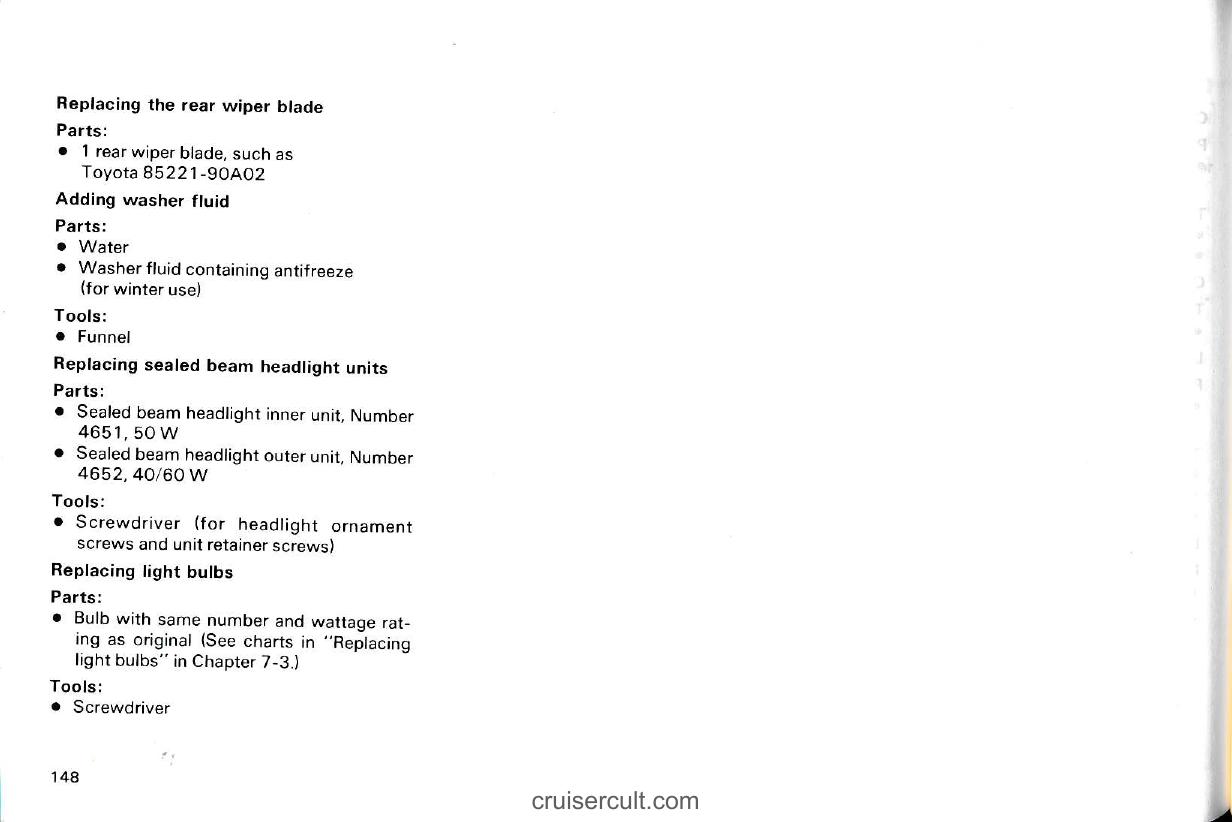

Replacing the rear wiper blade

Parts: - 1 rear wiper blade, such as
Toyota 85221-90A02

Adding washer fluid

Parts: - Water - Washer fluid containing antifreeze
(for winter use)

Tools: - Funnel

Replacing sealed beam headlight units

Parts: - Sealed beam headlight inner unit, Number
4651, 50 W - Sealed beam headlight outer unit, Number
4652, 40/60 W

Tools: - Screwdriver (for headlight ornament
screws and unit retainer screws)

Replacing light bulbs

Parts: - Bulb with same number and wattage rat-
ing as original (See charts in "Replacing
light bulbs" in Chapter 7-3.)

Tools: - Screwdriver

148

cruisercult.com

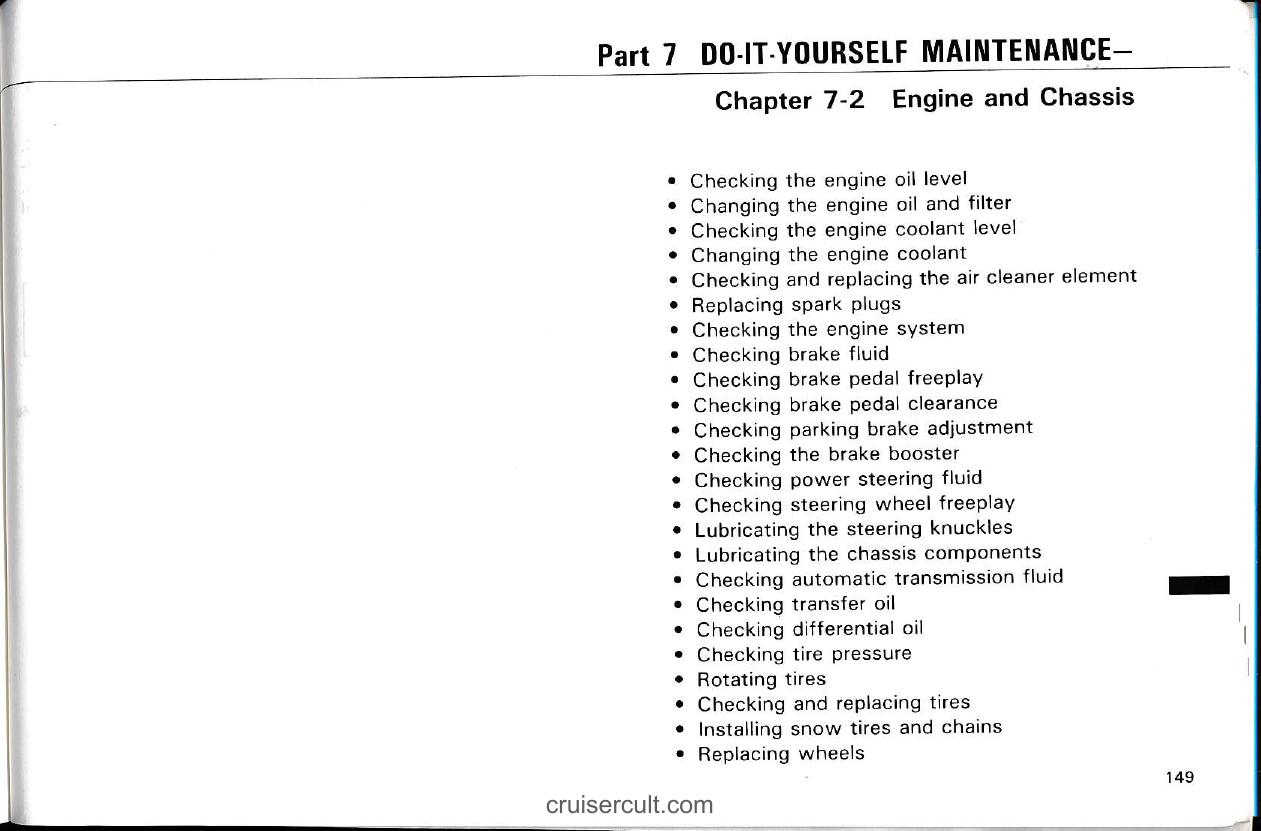

Page 149

Part 7 DO-IT-YOURSELF MAINTENANCE—

Chapter 7-2 Engine and Chassis

Checking the engine oil level
Changing the engine oil and filter
Checking the engine coolant level
Changing the engine coolant
Checking and replacing the air cleaner element
Replacing spark plugs
Checking the engine system
Checking brake fluid
Checking brake pedal freeplay
Checking brake pedal clearance
Checking parking brake adjustment
Checking the brake booster
Checking power steering fluid
Checking steering wheel freeplay
Lubricating the steering knuckles
Lubricating the chassis components
Checking automatic transmission fluid
Checking transfer oil
Checking differential oil
Checking tire pressure
Rotating tires
Checking and replacing tires
Installing snow tires and chains
Replacing wheels

cruisercult.com

149

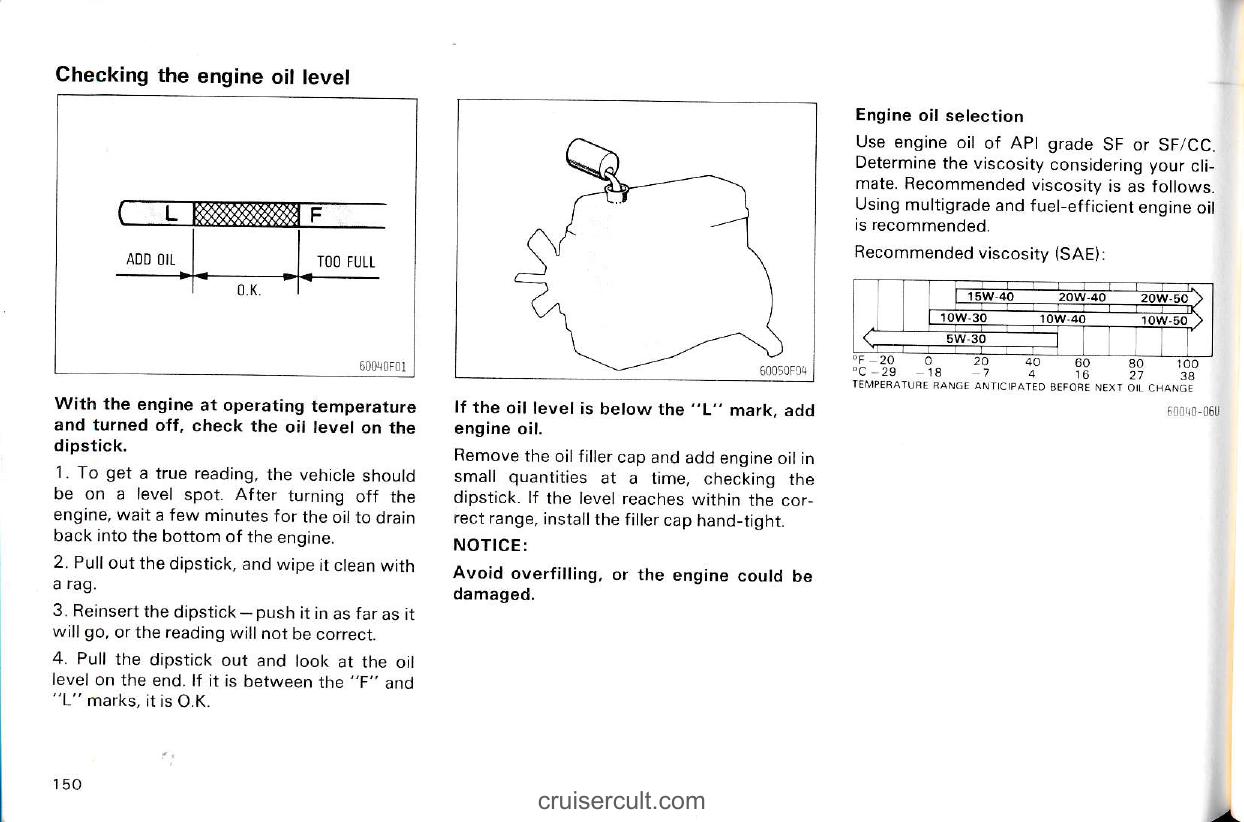

Page 150

Checking the engine oil level

   L           [hashed area]          F
ADD OIL   <----->   O.K.   <----->   TOO FULL

60040F01

With the engine at operating temperature and turned off, check the oil level on the dipstick.

To get a true reading, the vehicle should be on a level spot. After turning off the engine, wait a few minutes for the oil to drain back into the bottom of the engine.
Pull out the dipstick, and wipe it clean with a rag.
Reinsert the dipstick — push it in as far as it will go, or the reading will not be correct.
Pull the dipstick out and look at the oil level on the end. If it is between the "F" and "L" marks, it is O.K.

60050F04

If the oil level is below the "L" mark, add engine oil.

Remove the oil filler cap and add engine oil in small quantities at a time, checking the dipstick. If the level reaches within the correct range, install the filler cap hand-tight.

NOTICE: Avoid overfilling, or the engine could be damaged.

Engine oil selection

Use engine oil of API grade SF or SF/CC. Determine the viscosity considering your climate. Recommended viscosity is as follows. Using multigrade and fuel-efficient engine oil is recommended.

Recommended viscosity (SAE):

5W-30
10W-30
10W-40
10W-50
15W-40
20W-40
20W-50

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

°F -20 0 20 40 60 80 100
°C -29 -18 -7 4 16 27 38

60040-06U

150

cruisercult.com

Page 151

Changing the engine oil and filter

![60050F01]

Warm up the engine for a few minutes and then turn it off. Remove the oil filler cap. a. Park the vehicle on a level spot. Warm up the engine until the engine temperature gauge shows a rise. (Warm oil will drain faster and more thoroughly.) Turn the engine off. b. Remove the oil filler cap. This allows air to enter the engine as the oil drains.

![60050-04 LOOSEN]

Remove the drain plug and allow the oil to drain fully. a. Place a drain pan under the drain plug. b. Using a wrench, remove the drain plug. Allow the oil to drain fully.

CAUTION: !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

The oil may be hot—be careful not to burn yourself.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

![60050F03 LOOSEN]

Remove the old oil filter and install a new one hand-tight. Reinstall the drain plug. a. Using an oil filter wrench (any of several common types will work), loosen the oil filter. It turns counterclockwise. Once loose, you may unscrew it the rest of the way by hand. When removing it, hold up the end so that oil does not spill out. b. With a clean rag, wipe off the mounting surface on the engine so that the new filter will seat well. Make sure that the old gasket has not stuck to the mounting surface. If it has, remove it before installing the new filter. c. Smear a little engine oil on the rubber gasket of the new oil filter.

cruisercult.com

151

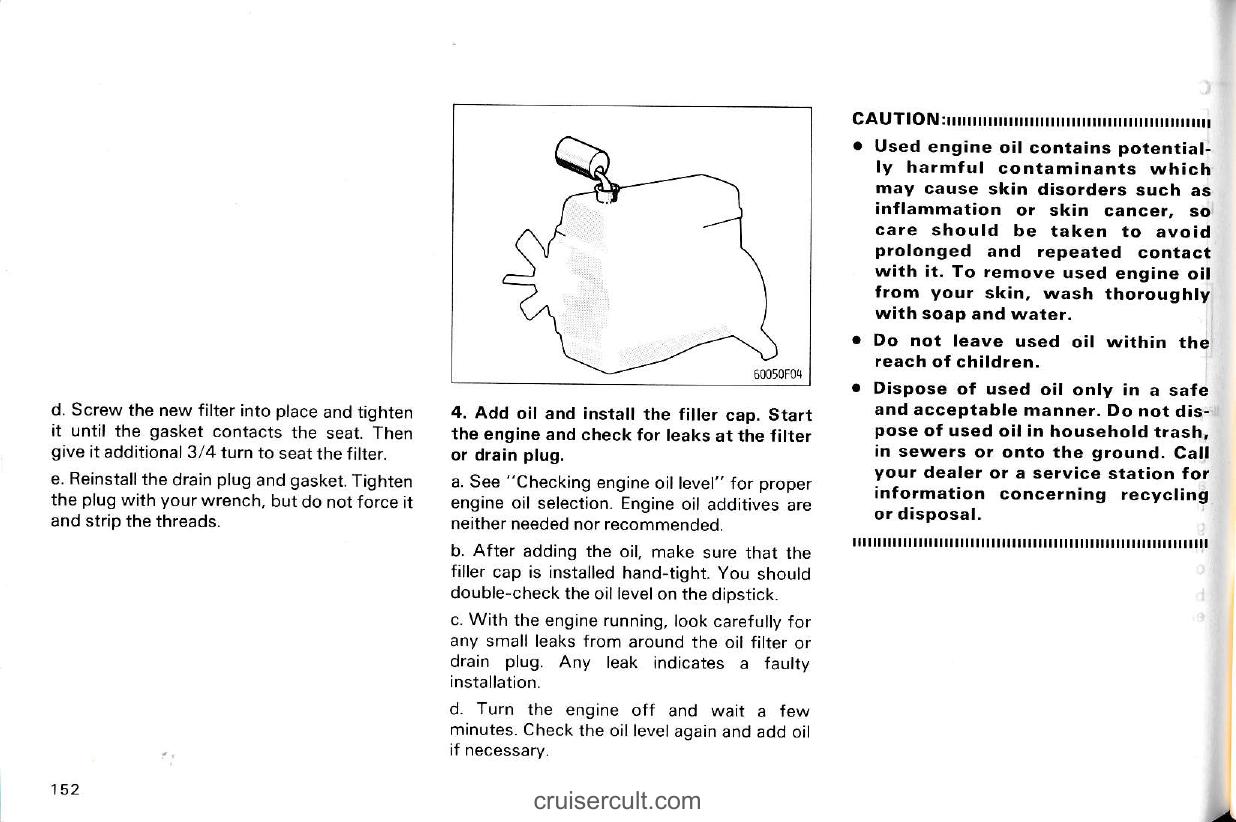

Page 152

d. Screw the new filter into place and tighten it until the gasket contacts the seat. Then give it additional 3/4 turn to seat the filter.

e. Reinstall the drain plug and gasket. Tighten the plug with your wrench, but do not force it and strip the threads.

Add oil and install the filler cap. Start the engine and check for leaks at the filter or drain plug.

a. See "Checking engine oil level" for proper engine oil selection. Engine oil additives are neither needed nor recommended.

b. After adding the oil, make sure that the filler cap is installed hand-tight. You should double-check the oil level on the dipstick.

c. With the engine running, look carefully for any small leaks from around the oil filter or drain plug. Any leak indicates a faulty installation.

d. Turn the engine off and wait a few minutes. Check the oil level again and add oil if necessary.

CAUTION:

Used engine oil contains potentially harmful contaminants which may cause skin disorders such as inflammation or skin cancer, so care should be taken to avoid prolonged and repeated contact with it. To remove used engine oil from your skin, wash thoroughly with soap and water.
Do not leave used oil within the reach of children.
Dispose of used oil only in a safe and acceptable manner. Do not dispose of used oil in household trash, in sewers or onto the ground. Call your dealer or a service station for information concerning recycling or disposal.

Page 153

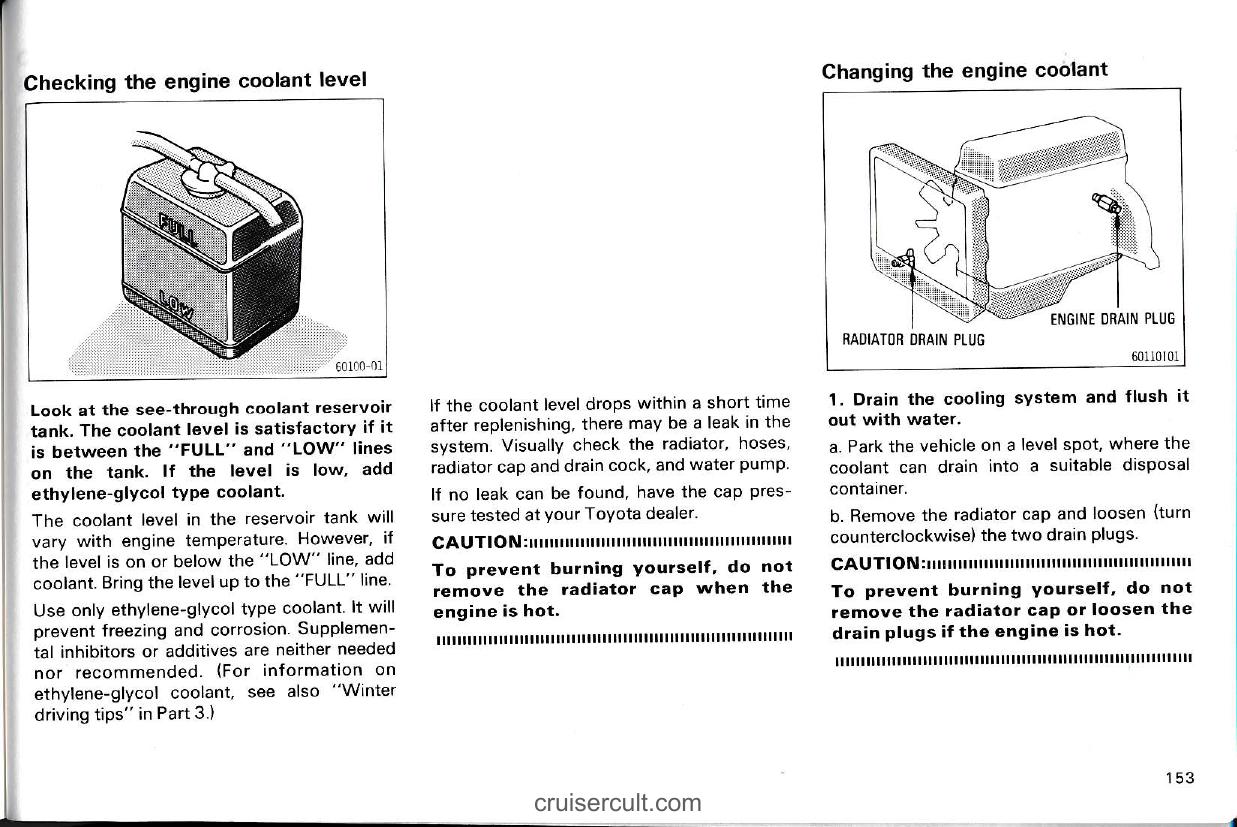

Checking the engine coolant level

Look at the see-through coolant reservoir tank. The coolant level is satisfactory if it is between the "FULL" and "LOW" lines on the tank. If the level is low, add ethylene-glycol type coolant.

The coolant level in the reservoir tank will vary with engine temperature. However, if the level is on or below the "LOW" line, add coolant. Bring the level up to the "FULL" line.

Use only ethylene-glycol type coolant. It will prevent freezing and corrosion. Supplemental inhibitors or additives are neither needed nor recommended. (For information on ethylene-glycol coolant, see also "Winter driving tips" in Part 3.)

If the coolant level drops within a short time after replenishing, there may be a leak in the system. Visually check the radiator, hoses, radiator cap and drain cock, and water pump.

If no leak can be found, have the cap pressure tested at your Toyota dealer.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

To prevent burning yourself, do not remove the radiator cap when the engine is hot.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Changing the engine coolant

(RADIATOR DRAIN PLUG) (ENGINE DRAIN PLUG)

Drain the cooling system and flush it out with water.

a. Park the vehicle on a level spot, where the coolant can drain into a suitable disposal container.

b. Remove the radiator cap and loosen (turn counterclockwise) the two drain plugs.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

To prevent burning yourself, do not remove the radiator cap or loosen the drain plugs if the engine is hot.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

cruisercult.com

153

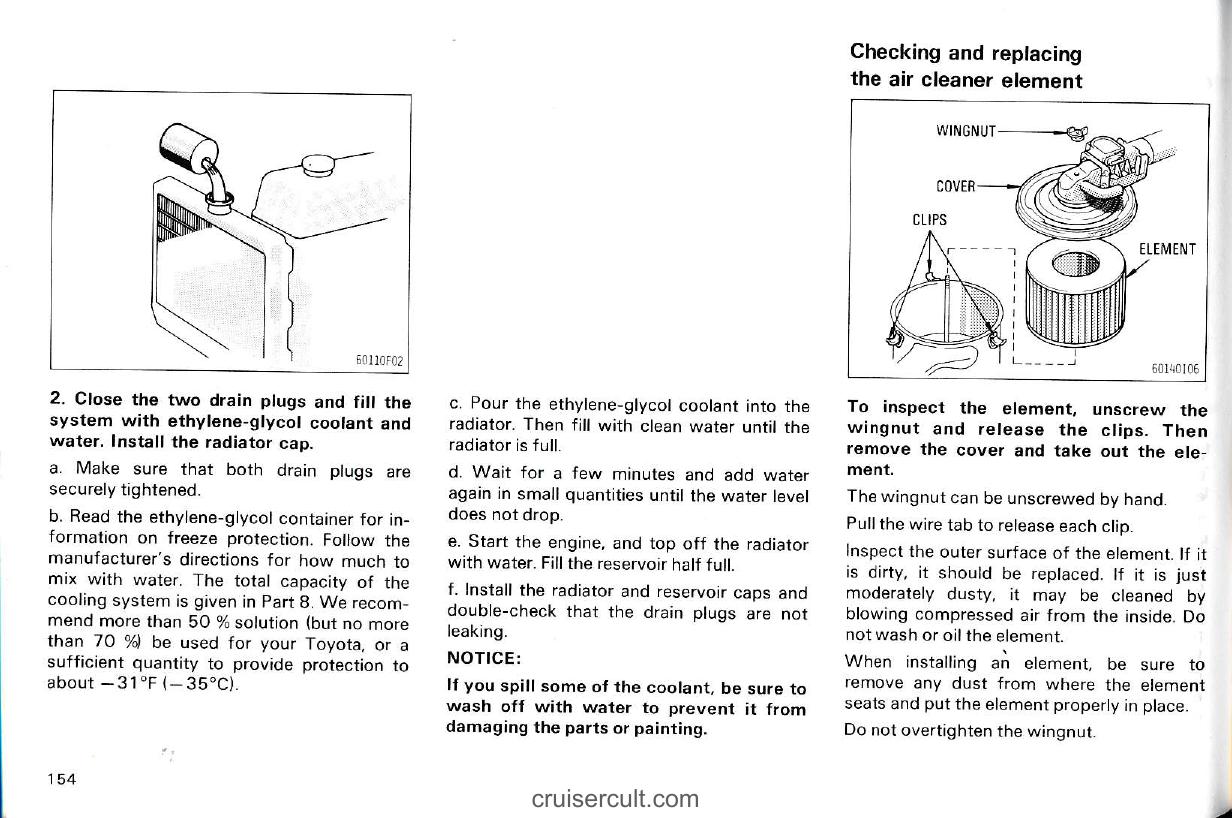

Page 154

2. Close the two drain plugs and fill the system with ethylene-glycol coolant and water. Install the radiator cap.

a. Make sure that both drain plugs are securely tightened.

b. Read the ethylene-glycol container for information on freeze protection. Follow the manufacturer's directions for how much to mix with water. The total capacity of the cooling system is given in Part 8. We recommend more than 50 % solution (but no more than 70 %) be used for your Toyota, or a sufficient quantity to provide protection to about −31°F (−35°C).

c. Pour the ethylene-glycol coolant into the radiator. Then fill with clean water until the radiator is full.

d. Wait for a few minutes and add water again in small quantities until the water level does not drop.

e. Start the engine, and top off the radiator with water. Fill the reservoir half full.

f. Install the radiator and reservoir caps and double-check that the drain plugs are not leaking.

NOTICE:

If you spill some of the coolant, be sure to wash off with water to prevent it from damaging the parts or painting.

Checking and replacing the air cleaner element

WINGNUT
COVER
CLIPS
ELEMENT

To inspect the element, unscrew the wingnut and release the clips. Then remove the cover and take out the element.

The wingnut can be unscrewed by hand.

Pull the wire tab to release each clip.

Inspect the outer surface of the element. If it is dirty, it should be replaced. If it is just moderately dusty, it may be cleaned by blowing compressed air from the inside. Do not wash or oil the element.

When installing an element, be sure to remove any dust from where the element seats and put the element properly in place.

Do not overtighten the wingnut.

154

cruisercult.com

Page 155

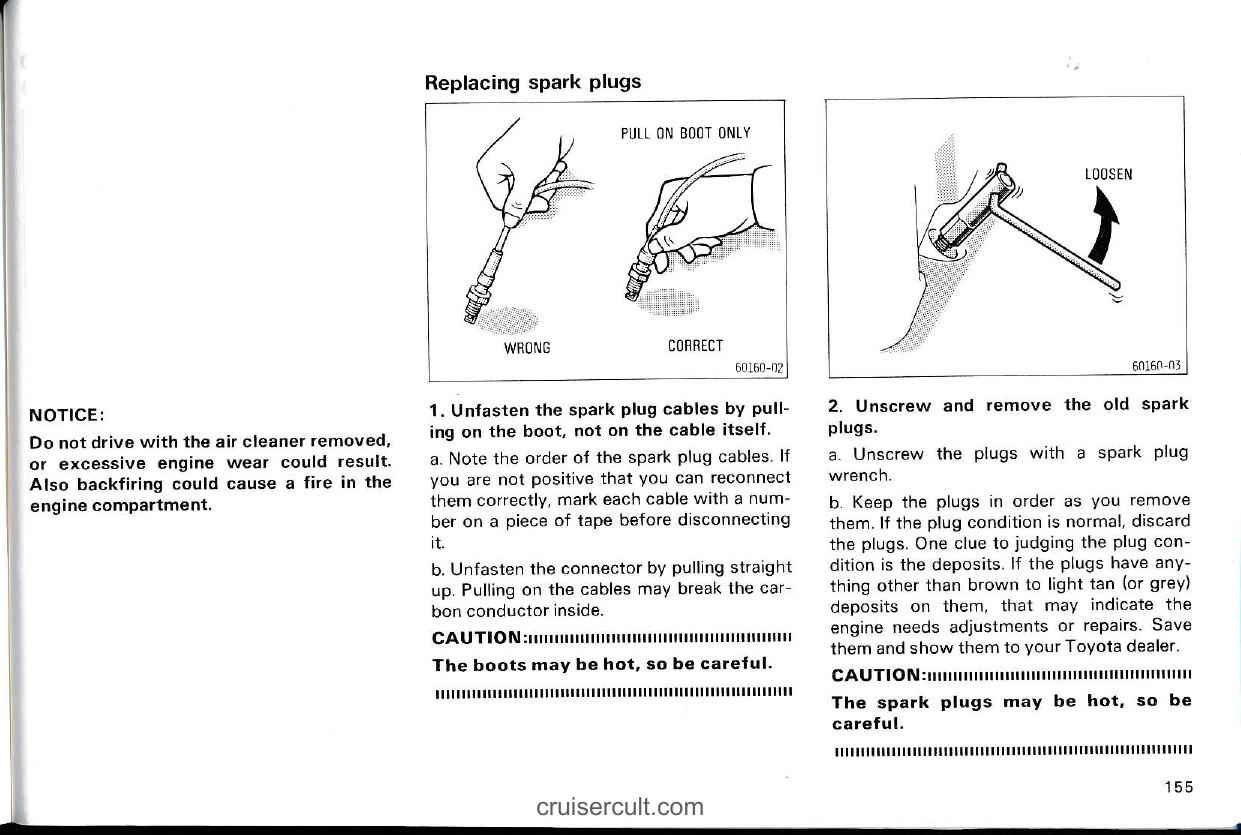

Replacing spark plugs

PULL ON BOOT ONLY
WRONG CORRECT
(60160-02)

LOOSEN
(60160-03)

NOTICE:
Do not drive with the air cleaner removed, or excessive engine wear could result. Also backfiring could cause a fire in the engine compartment.

Unfasten the spark plug cables by pulling on the boot, not on the cable itself.

a. Note the order of the spark plug cables. If you are not positive that you can reconnect them correctly, mark each cable with a number on a piece of tape before disconnecting it.

b. Unfasten the connector by pulling straight up. Pulling on the cables may break the carbon conductor inside.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
The boots may be hot, so be careful.
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Unscrew and remove the old spark plugs.

a. Unscrew the plugs with a spark plug wrench.

b. Keep the plugs in order as you remove them. If the plug condition is normal, discard the plugs. One clue to judging the plug condition is the deposits. If the plugs have anything other than brown to light tan (or grey) deposits on them, that may indicate the engine needs adjustments or repairs. Save them and show them to your Toyota dealer.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
The spark plugs may be hot, so be careful.
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

cruisercult.com

155

Page 156

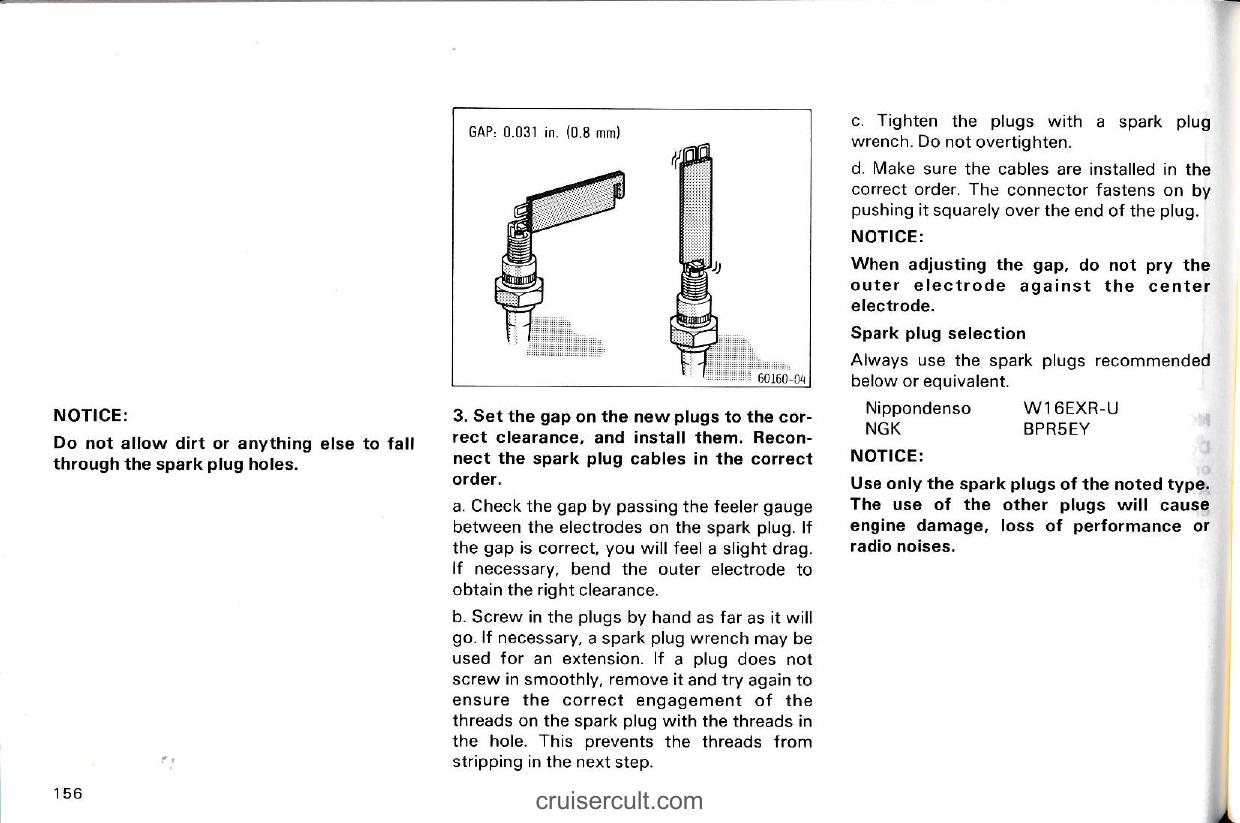

GAP: 0.031 in. (0.8 mm)

![illustration]

NOTICE:

Do not allow dirt or anything else to fall through the spark plug holes.

Set the gap on the new plugs to the correct clearance, and install them. Reconnect the spark plug cables in the correct order.

a. Check the gap by passing the feeler gauge between the electrodes on the spark plug. If the gap is correct, you will feel a slight drag. If necessary, bend the outer electrode to obtain the right clearance.

b. Screw in the plugs by hand as far as it will go. If necessary, a spark plug wrench may be used for an extension. If a plug does not screw in smoothly, remove it and try again to ensure the correct engagement of the threads on the spark plug with the threads in the hole. This prevents the threads from stripping in the next step.

c. Tighten the plugs with a spark plug wrench. Do not overtighten.

d. Make sure the cables are installed in the correct order. The connector fastens on by pushing it squarely over the end of the plug.

NOTICE:

When adjusting the gap, do not pry the outer electrode against the center electrode.

Spark plug selection

Always use the spark plugs recommended below or equivalent.

Nippondenso — W16EXR-U
NGK — BPR5EY

NOTICE:

Use only the spark plugs of the noted type. The use of the other plugs will cause engine damage, loss of performance or radio noises.

156

cruisercult.com

Page 157

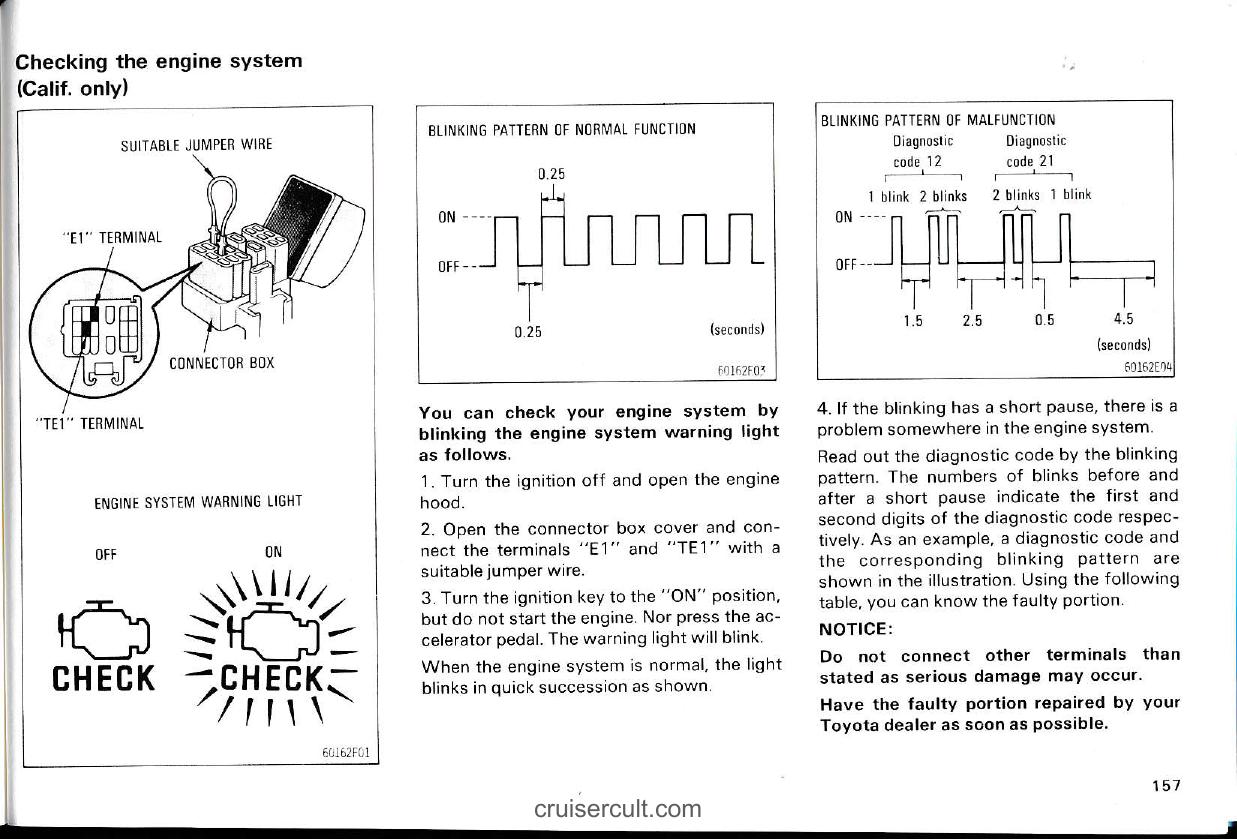

Checking the engine system

(Calif. only)

SUITABLE JUMPER WIRE

"E1" TERMINAL

CONNECTOR BOX

"TE1" TERMINAL

ENGINE SYSTEM WARNING LIGHT

OFF

ON

CHECK

60162F01

BLINKING PATTERN OF NORMAL FUNCTION

   ON
   ┌─┐   ┌─┐   ┌─┐   ┌─┐
   │ │   │ │   │ │   │ │
   └─┘   └─┘   └─┘   └─┘
   OFF

   (each ON and OFF pulse = 0.25 seconds)

60162F03

You can check your engine system by blinking the engine system warning light as follows.

Turn the ignition off and open the engine hood.
Open the connector box cover and connect the terminals "E1" and "TE1" with a suitable jumper wire.
Turn the ignition key to the "ON" position, but do not start the engine. Nor press the accelerator pedal. The warning light will blink.

When the engine system is normal, the light blinks in quick succession as shown.

BLINKING PATTERN OF MALFUNCTION

Diagnostic code 12 Diagnostic code 21

1 blink 2 blinks 2 blinks 1 blink

   ON            (short blinks)
   ┌─┐ ┌─┐        ┌─┐ ┌─┐
   │ │ │ │        │ │ │ │
   └─┘ └─┘        └─┘ └─┘
   OFF
    |   1.5   |  2.5  | 0.5 |      4.5 (seconds)

60162E04

If the blinking has a short pause, there is a problem somewhere in the engine system.

Read out the diagnostic code by the blinking pattern. The numbers of blinks before and after a short pause indicate the first and second digits of the diagnostic code respectively. As an example, a diagnostic code and the corresponding blinking pattern are shown in the illustration. Using the following table, you can know the faulty portion.

NOTICE:

Do not connect other terminals than stated as serious damage may occur.

Have the faulty portion repaired by your Toyota dealer as soon as possible.

157

cruisercult.com

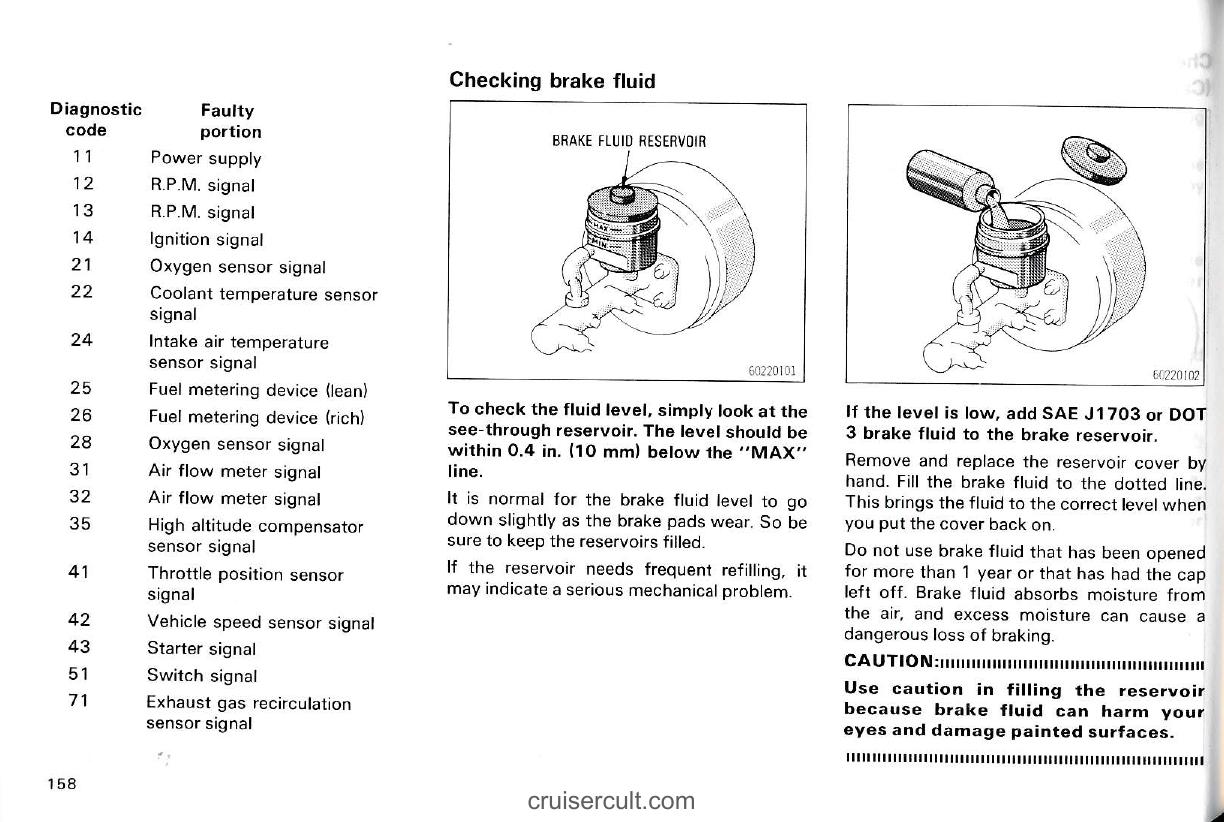

Page 158

Checking brake fluid

Diagnostic code	Faulty portion
11	Power supply
12	R.P.M. signal
13	R.P.M. signal
14	Ignition signal
21	Oxygen sensor signal
22	Coolant temperature sensor signal
24	Intake air temperature sensor signal
25	Fuel metering device (lean)
26	Fuel metering device (rich)
28	Oxygen sensor signal
31	Air flow meter signal
32	Air flow meter signal
35	High altitude compensator sensor signal
41	Throttle position sensor signal
42	Vehicle speed sensor signal
43	Starter signal
51	Switch signal
71	Exhaust gas recirculation sensor signal

BRAKE FLUID RESERVOIR

To check the fluid level, simply look at the see-through reservoir. The level should be within 0.4 in. (10 mm) below the "MAX" line.

It is normal for the brake fluid level to go down slightly as the brake pads wear. So be sure to keep the reservoirs filled.

If the reservoir needs frequent refilling, it may indicate a serious mechanical problem.

Reservoir being filled

If the level is low, add SAE J1703 or DOT 3 brake fluid to the brake reservoir.

Remove and replace the reservoir cover by hand. Fill the brake fluid to the dotted line. This brings the fluid to the correct level when you put the cover back on.

Do not use brake fluid that has been opened for more than 1 year or that has had the cap left off. Brake fluid absorbs moisture from the air, and excess moisture can cause a dangerous loss of braking.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Use caution in filling the reservoir because brake fluid can harm your eyes and damage painted surfaces.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

158

cruisercult.com

Page 159

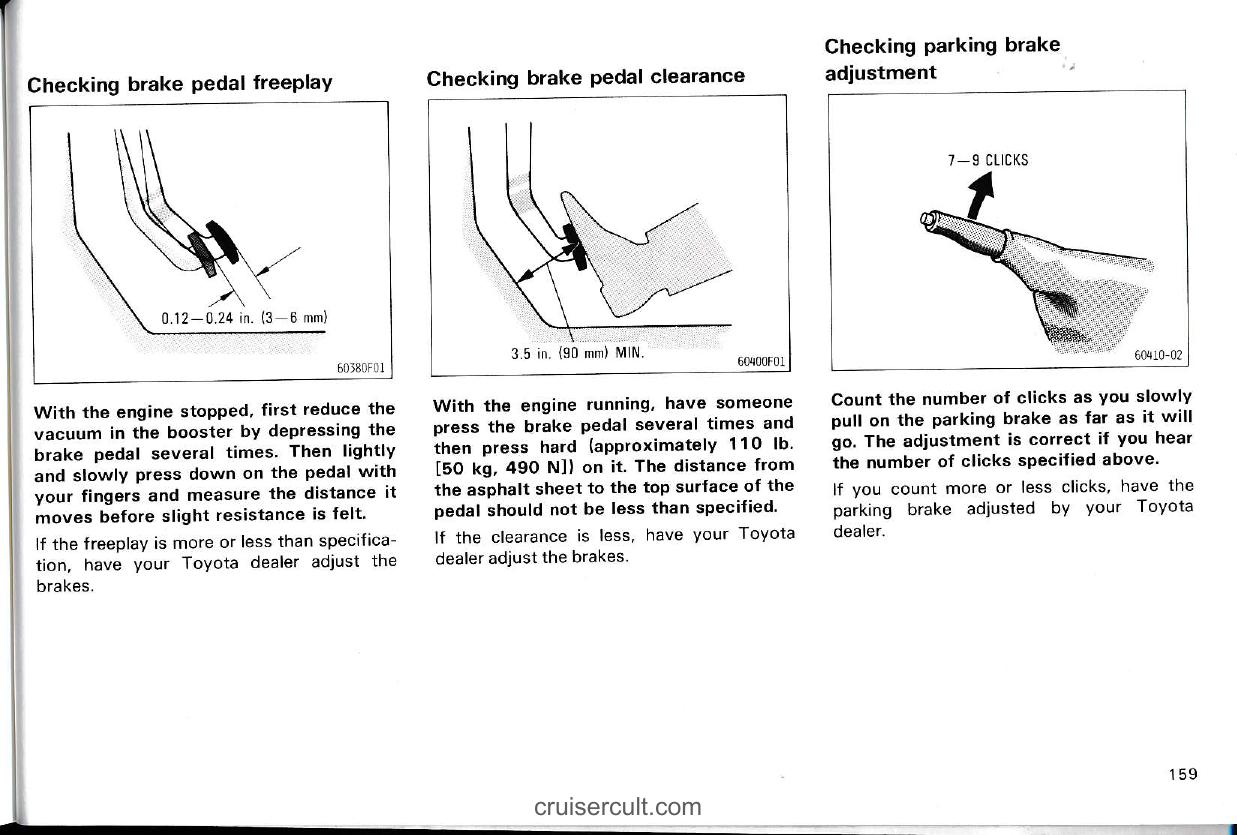

Checking brake pedal freeplay

0.12 - 0.24 in. (3 - 6 mm)
60380F01

With the engine stopped, first reduce the vacuum in the booster by depressing the brake pedal several times. Then lightly and slowly press down on the pedal with your fingers and measure the distance it moves before slight resistance is felt.

If the freeplay is more or less than specification, have your Toyota dealer adjust the brakes.

Checking brake pedal clearance

3.5 in. (90 mm) MIN.
60400F01

With the engine running, have someone press the brake pedal several times and then press hard (approximately 110 lb. [50 kg, 490 N]) on it. The distance from the asphalt sheet to the top surface of the pedal should not be less than specified.

If the clearance is less, have your Toyota dealer adjust the brakes.

Checking parking brake adjustment

7 - 9 CLICKS
60410-02

Count the number of clicks as you slowly pull on the parking brake as far as it will go. The adjustment is correct if you hear the number of clicks specified above.

If you count more or less clicks, have the parking brake adjusted by your Toyota dealer.

cruisercult.com

159

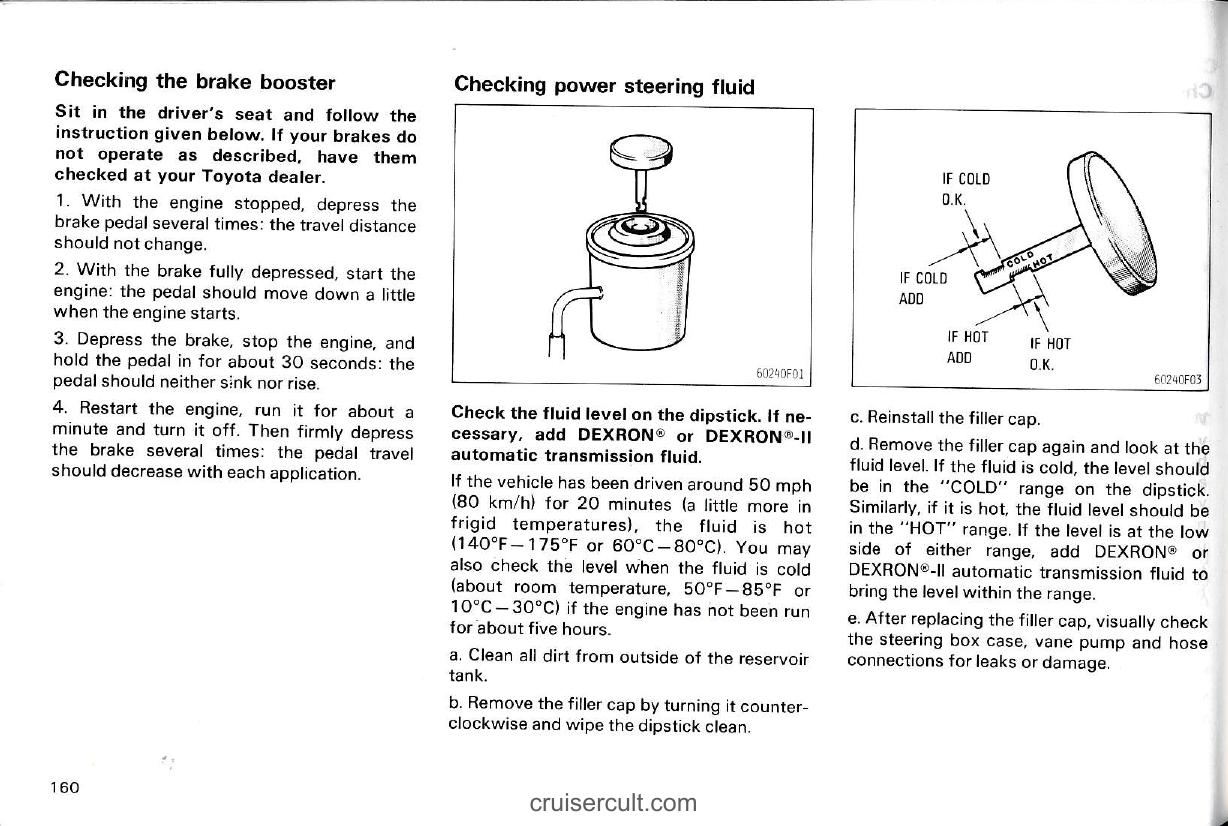

Page 160

Checking the brake booster

Sit in the driver's seat and follow the instruction given below. If your brakes do not operate as described, have them checked at your Toyota dealer.

With the engine stopped, depress the brake pedal several times: the travel distance should not change.
With the brake fully depressed, start the engine: the pedal should move down a little when the engine starts.
Depress the brake, stop the engine, and hold the pedal in for about 30 seconds: the pedal should neither sink nor rise.
Restart the engine, run it for about a minute and turn it off. Then firmly depress the brake several times: the pedal travel should decrease with each application.

Checking power steering fluid

Check the fluid level on the dipstick. If necessary, add DEXRON® or DEXRON®-II automatic transmission fluid.

If the vehicle has been driven around 50 mph (80 km/h) for 20 minutes (a little more in frigid temperatures), the fluid is hot (140°F–175°F or 60°C–80°C). You may also check the level when the fluid is cold (about room temperature, 50°F–85°F or 10°C–30°C) if the engine has not been run for about five hours.

a. Clean all dirt from outside of the reservoir tank.

b. Remove the filler cap by turning it counterclockwise and wipe the dipstick clean.

c. Reinstall the filler cap.

d. Remove the filler cap again and look at the fluid level. If the fluid is cold, the level should be in the "COLD" range on the dipstick. Similarly, if it is hot, the fluid level should be in the "HOT" range. If the level is at the low side of either range, add DEXRON® or DEXRON®-II automatic transmission fluid to bring the level within the range.

e. After replacing the filler cap, visually check the steering box case, vane pump and hose connections for leaks or damage.

Diagram labels (from illustration): IF COLD O.K., IF COLD ADD, IF HOT ADD, IF HOT O.K., COLD, HOT

(60240F01, 60240F03)

160

cruisercult.com

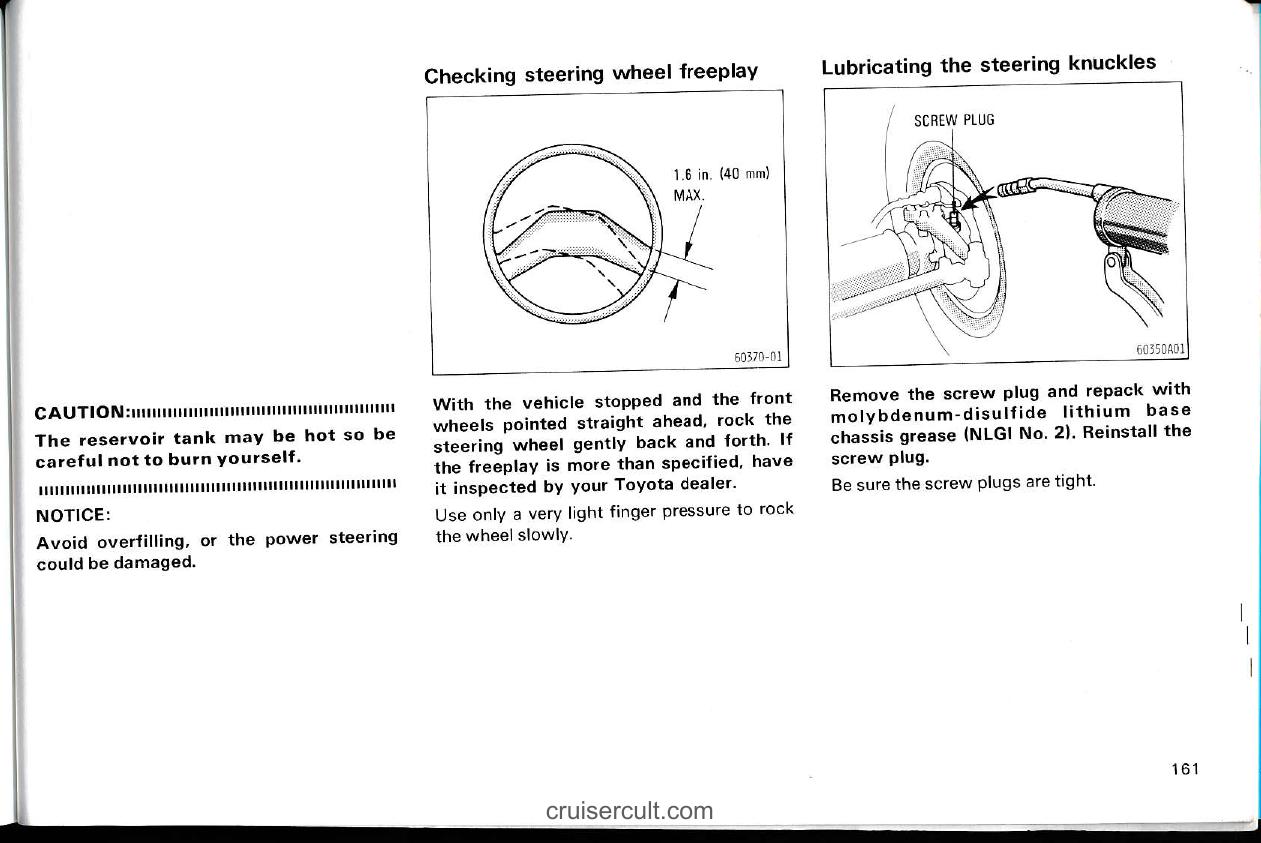

Page 161

Checking steering wheel freeplay

1.6 in. (40 mm) MAX.

With the vehicle stopped and the front wheels pointed straight ahead, rock the steering wheel gently back and forth. If the freeplay is more than specified, have it inspected by your Toyota dealer.

Use only a very light finger pressure to rock the wheel slowly.

50370-01

CAUTION:
The reservoir tank may be hot so be careful not to burn yourself.

NOTICE:
Avoid overfilling, or the power steering could be damaged.

Lubricating the steering knuckles

SCREW PLUG

Remove the screw plug and repack with molybdenum-disulfide lithium base chassis grease (NLGI No. 2). Reinstall the screw plug.

Be sure the screw plugs are tight.

60350A01

cruisercult.com

161

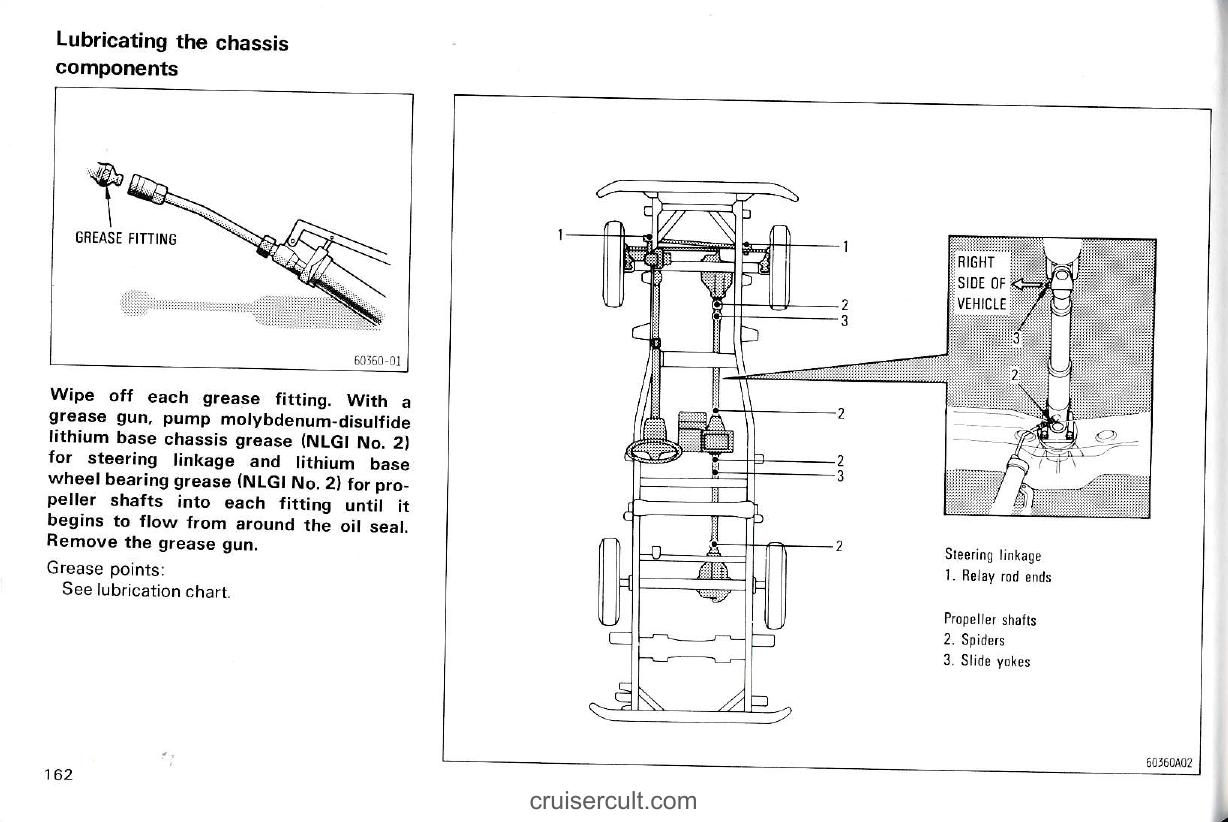

Page 162

Lubricating the chassis components

GREASE FITTING

60360-01

Wipe off each grease fitting. With a grease gun, pump molybdenum-disulfide lithium base chassis grease (NLGI No. 2) for steering linkage and lithium base wheel bearing grease (NLGI No. 2) for propeller shafts into each fitting until it begins to flow from around the oil seal. Remove the grease gun.

Grease points: See lubrication chart.

162

cruisercult.com

RIGHT SIDE OF VEHICLE

Steering linkage 1. Relay rod ends

Propeller shafts 2. Spiders 3. Slide yokes

60360A02

Page 163

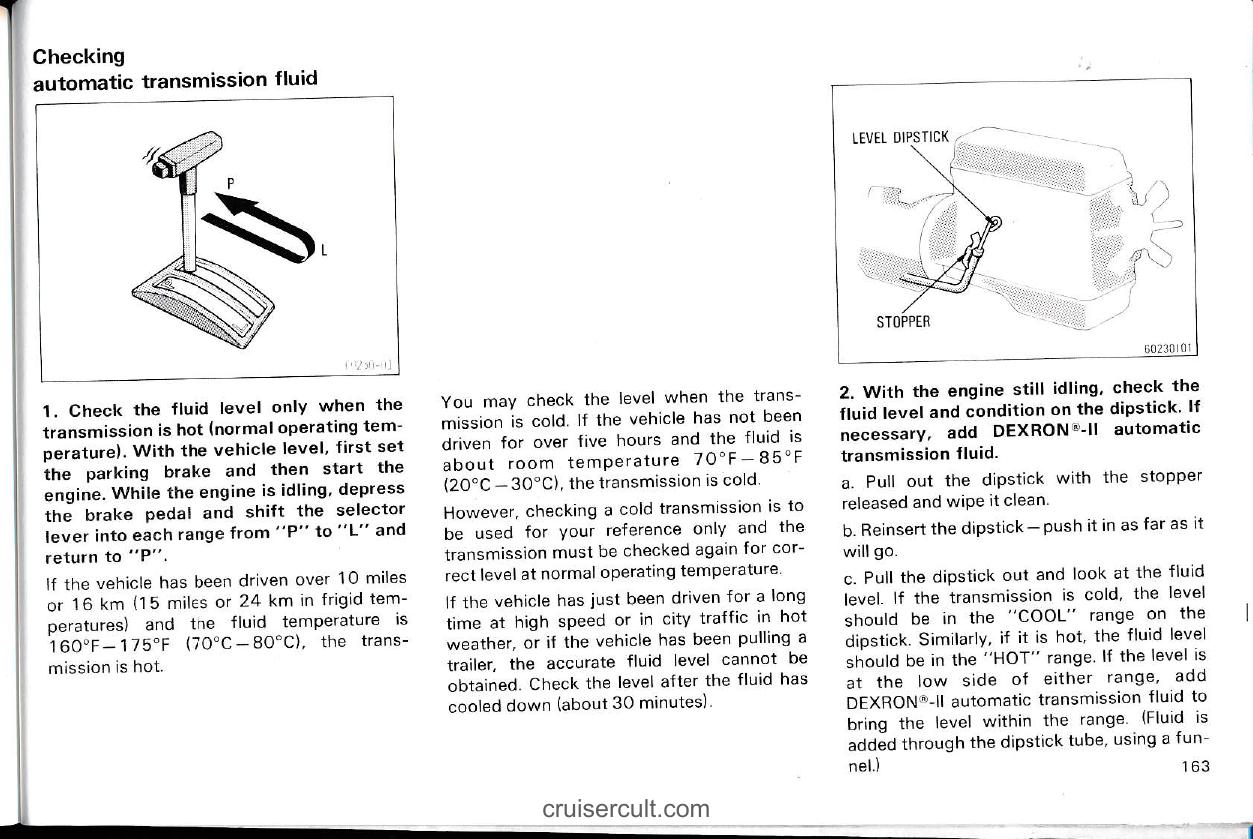

Checking automatic transmission fluid

(Image labels: P, L)
Check the fluid level only when the transmission is hot (normal operating temperature). With the vehicle level, first set the parking brake and then start the engine. While the engine is idling, depress the brake pedal and shift the selector lever into each range from "P" to "L" and return to "P".

If the vehicle has been driven over 10 miles or 16 km (15 miles or 24 km in frigid temperatures) and the fluid temperature is 160°F—175°F (70°C—80°C), the transmission is hot.

You may check the level when the transmission is cold. If the vehicle has not been driven for over five hours and the fluid is about room temperature 70°F—85°F (20°C—30°C), the transmission is cold.

However, checking a cold transmission is to be used for your reference only and the transmission must be checked again for correct level at normal operating temperature.

If the vehicle has just been driven for a long time at high speed or in city traffic in hot weather, or if the vehicle has been pulling a trailer, the accurate fluid level cannot be obtained. Check the level after the fluid has cooled down (about 30 minutes).

(Image labels: LEVEL DIPSTICK, STOPPER)
With the engine still idling, check the fluid level and condition on the dipstick. If necessary, add DEXRON®-II automatic transmission fluid.

a. Pull out the dipstick with the stopper released and wipe it clean.

b. Reinsert the dipstick—push it in as far as it will go.

c. Pull the dipstick out and look at the fluid level. If the transmission is cold, the level should be in the "COOL" range on the dipstick. Similarly, if it is hot, the fluid level should be in the "HOT" range. If the level is at the low side of either range, add DEXRON®-II automatic transmission fluid to bring the level within the range. (Fluid is added through the dipstick tube, using a funnel.)

163

cruisercult.com

Page 164

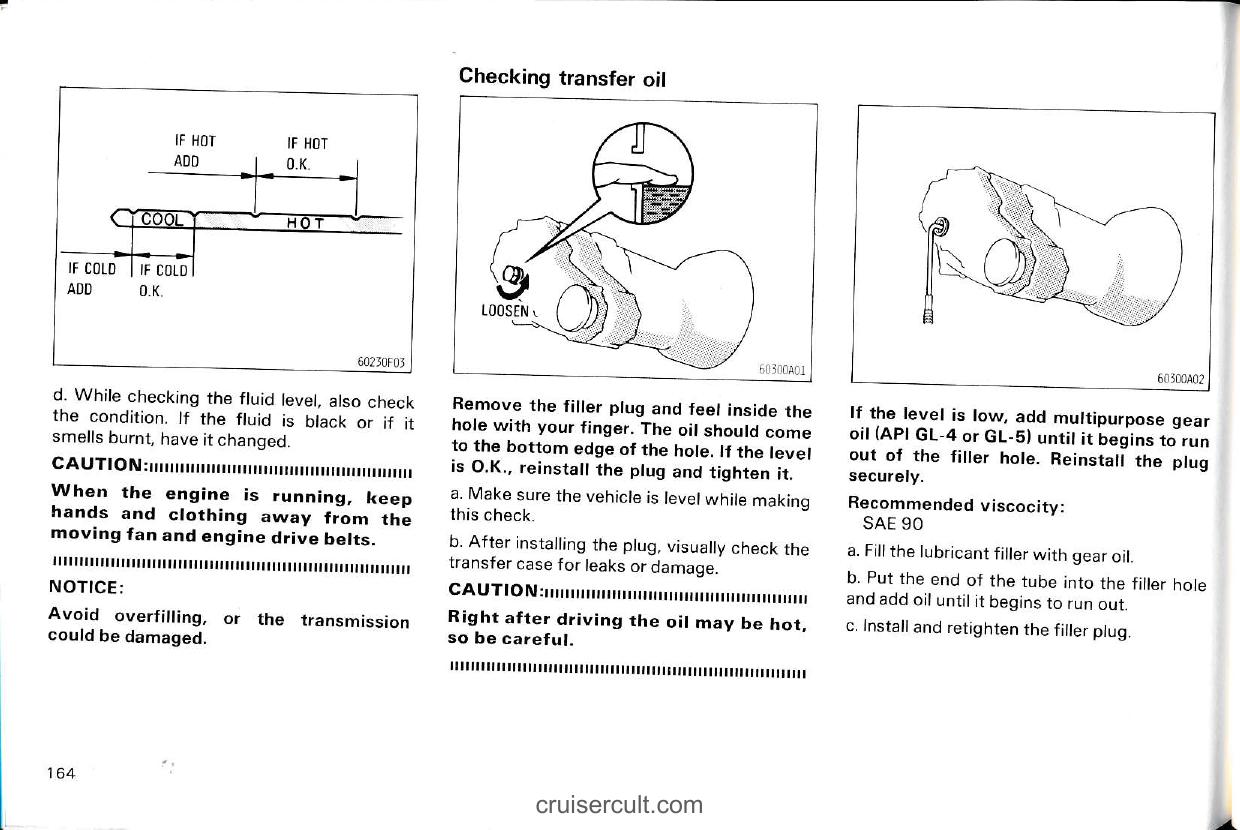

Checking transfer oil

        IF HOT
        ADD            IF HOT
                      O.K.

   COOL    H O T

IF COLD
ADD           IF COLD
              O.K.

d. While checking the fluid level, also check the condition. If the fluid is black or if it smells burnt, have it changed.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

When the engine is running, keep hands and clothing away from the moving fan and engine drive belts.

NOTICE:

Avoid overfilling, or the transmission could be damaged.

Remove the filler plug and feel inside the hole with your finger. The oil should come to the bottom edge of the hole. If the level is O.K., reinstall the plug and tighten it.

a. Make sure the vehicle is level while making this check.

b. After installing the plug, visually check the transfer case for leaks or damage.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Right after driving the oil may be hot, so be careful.

If the level is low, add multipurpose gear oil (API GL-4 or GL-5) until it begins to run out of the filler hole. Reinstall the plug securely.

Recommended viscosity: SAE 90

a. Fill the lubricant filler with gear oil. b. Put the end of the tube into the filler hole and add oil until it begins to run out. c. Install and retighten the filler plug.

164

cruisercult.com

Page 165

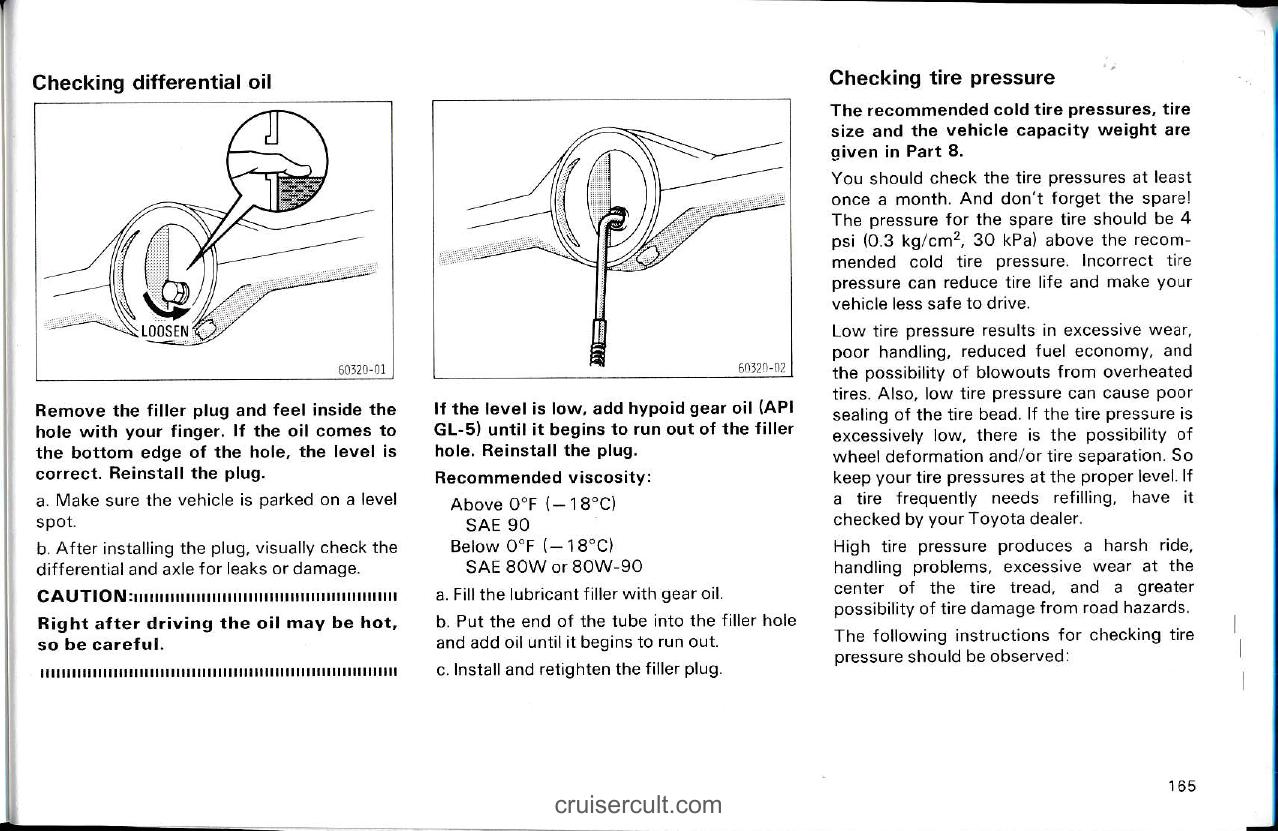

Checking differential oil

Remove the filler plug and feel inside the hole with your finger. If the oil comes to the bottom edge of the hole, the level is correct. Reinstall the plug.

a. Make sure the vehicle is parked on a level spot.

b. After installing the plug, visually check the differential and axle for leaks or damage.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Right after driving the oil may be hot, so be careful.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

If the level is low, add hypoid gear oil (API GL-5) until it begins to run out of the filler hole. Reinstall the plug.

Recommended viscosity:

Above 0°F (−18°C)
SAE 90
Below 0°F (−18°C)
SAE 80W or 80W-90

a. Fill the lubricant filler with gear oil.
b. Put the end of the tube into the filler hole and add oil until it begins to run out.
c. Install and retighten the filler plug.

Checking tire pressure

The recommended cold tire pressures, tire size and the vehicle capacity weight are given in Part 8.

You should check the tire pressures at least once a month. And don't forget the spare! The pressure for the spare tire should be 4 psi (0.3 kg/cm², 30 kPa) above the recommended cold tire pressure. Incorrect tire pressure can reduce tire life and make your vehicle less safe to drive.

Low tire pressure results in excessive wear, poor handling, reduced fuel economy, and the possibility of blowouts from overheated tires. Also, low tire pressure can cause poor sealing of the tire bead. If the tire pressure is excessively low, there is the possibility of wheel deformation and/or tire separation. So keep your tire pressures at the proper level. If a tire frequently needs refilling, have it checked by your Toyota dealer.

High tire pressure produces a harsh ride, handling problems, excessive wear at the center of the tire tread, and a greater possibility of tire damage from road hazards.

The following instructions for checking tire pressure should be observed:

cruisercult.com

165

Page 166

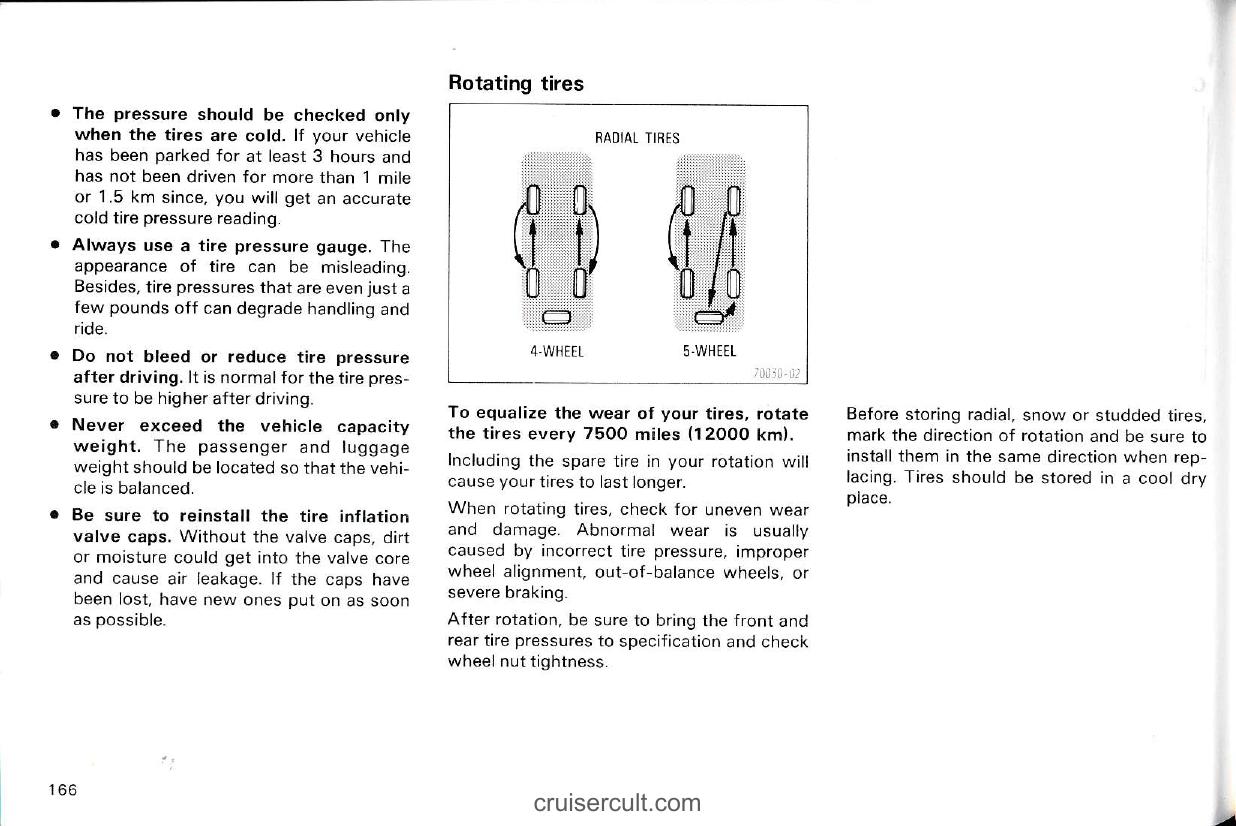

The pressure should be checked only when the tires are cold. If your vehicle has been parked for at least 3 hours and has not been driven for more than 1 mile or 1.5 km since, you will get an accurate cold tire pressure reading.
Always use a tire pressure gauge. The appearance of tire can be misleading. Besides, tire pressures that are even just a few pounds off can degrade handling and ride.
Do not bleed or reduce tire pressure after driving. It is normal for the tire pressure to be higher after driving.
Never exceed the vehicle capacity weight. The passenger and luggage weight should be located so that the vehicle is balanced.
Be sure to reinstall the tire inflation valve caps. Without the valve caps, dirt or moisture could get into the valve core and cause air leakage. If the caps have been lost, have new ones put on as soon as possible.

Rotating tires

[RADIAL TIRES]

4-WHEEL 5-WHEEL

70030-02

To equalize the wear of your tires, rotate the tires every 7500 miles (12000 km).

Including the spare tire in your rotation will cause your tires to last longer.

When rotating tires, check for uneven wear and damage. Abnormal wear is usually caused by incorrect tire pressure, improper wheel alignment, out-of-balance wheels, or severe braking.

After rotation, be sure to bring the front and rear tire pressures to specification and check wheel nut tightness.

Before storing radial, snow or studded tires, mark the direction of rotation and be sure to install them in the same direction when replacing. Tires should be stored in a cool dry place.

166

cruisercult.com

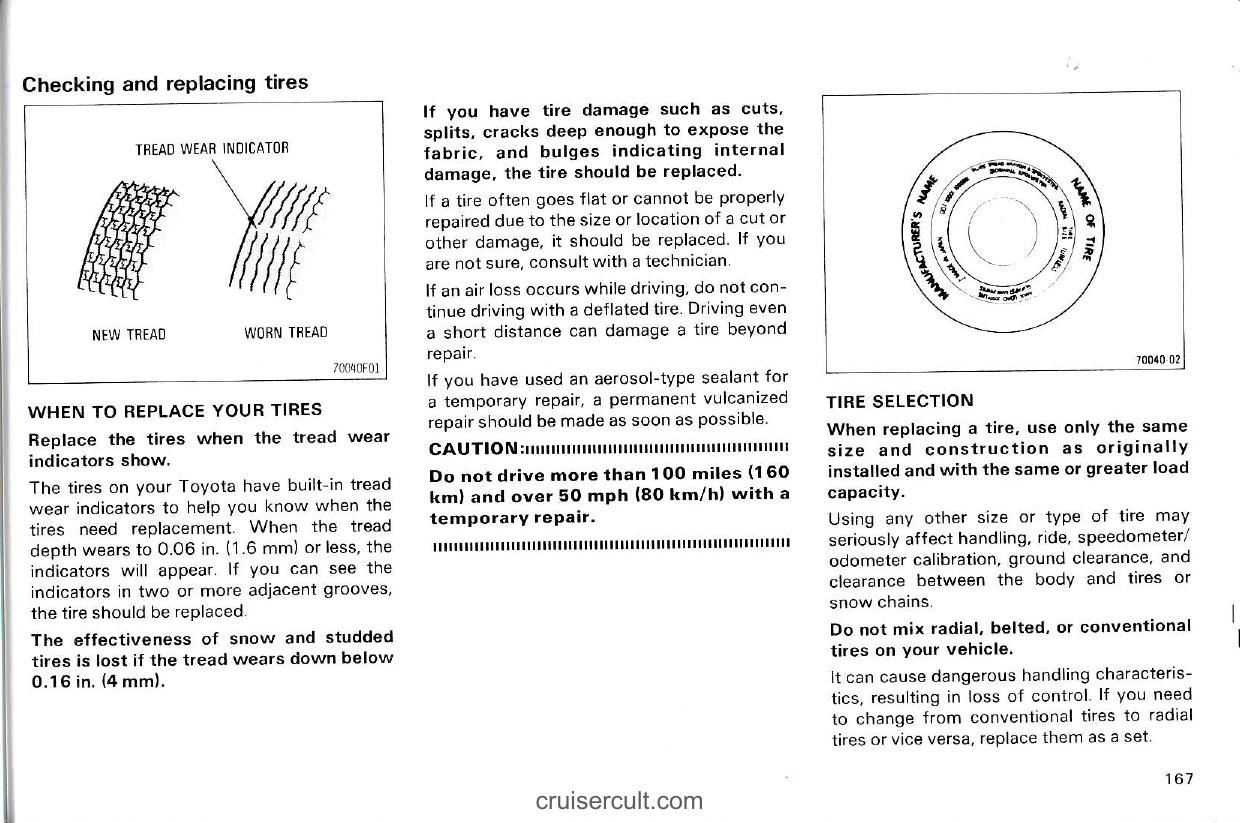

Page 167

Checking and replacing tires

TREAD WEAR INDICATOR

NEW TREAD

WORN TREAD

70040F01

WHEN TO REPLACE YOUR TIRES

Replace the tires when the tread wear indicators show.

The tires on your Toyota have built-in tread wear indicators to help you know when the tires need replacement. When the tread depth wears to 0.06 in. (1.6 mm) or less, the indicators will appear. If you can see the indicators in two or more adjacent grooves, the tire should be replaced.

The effectiveness of snow and studded tires is lost if the tread wears down below 0.16 in. (4 mm).

If you have tire damage such as cuts, splits, cracks deep enough to expose the fabric, and bulges indicating internal damage, the tire should be replaced.

If a tire often goes flat or cannot be properly repaired due to the size or location of a cut or other damage, it should be replaced. If you are not sure, consult with a technician.

If an air loss occurs while driving, do not continue driving with a deflated tire. Driving even a short distance can damage a tire beyond repair.

If you have used an aerosol-type sealant for a temporary repair, a permanent vulcanized repair should be made as soon as possible.

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Do not drive more than 100 miles (160 km) and over 50 mph (80 km/h) with a temporary repair.

70040-02

TIRE SELECTION

When replacing a tire, use only the same size and construction as originally installed and with the same or greater load capacity.

Using any other size or type of tire may seriously affect handling, ride, speedometer/odometer calibration, ground clearance, and clearance between the body and tires or snow chains.

Do not mix radial, belted, or conventional tires on your vehicle.

It can cause dangerous handling characteristics, resulting in loss of control. If you need to change from conventional tires to radial tires or vice versa, replace them as a set.

cruisercult.com

167

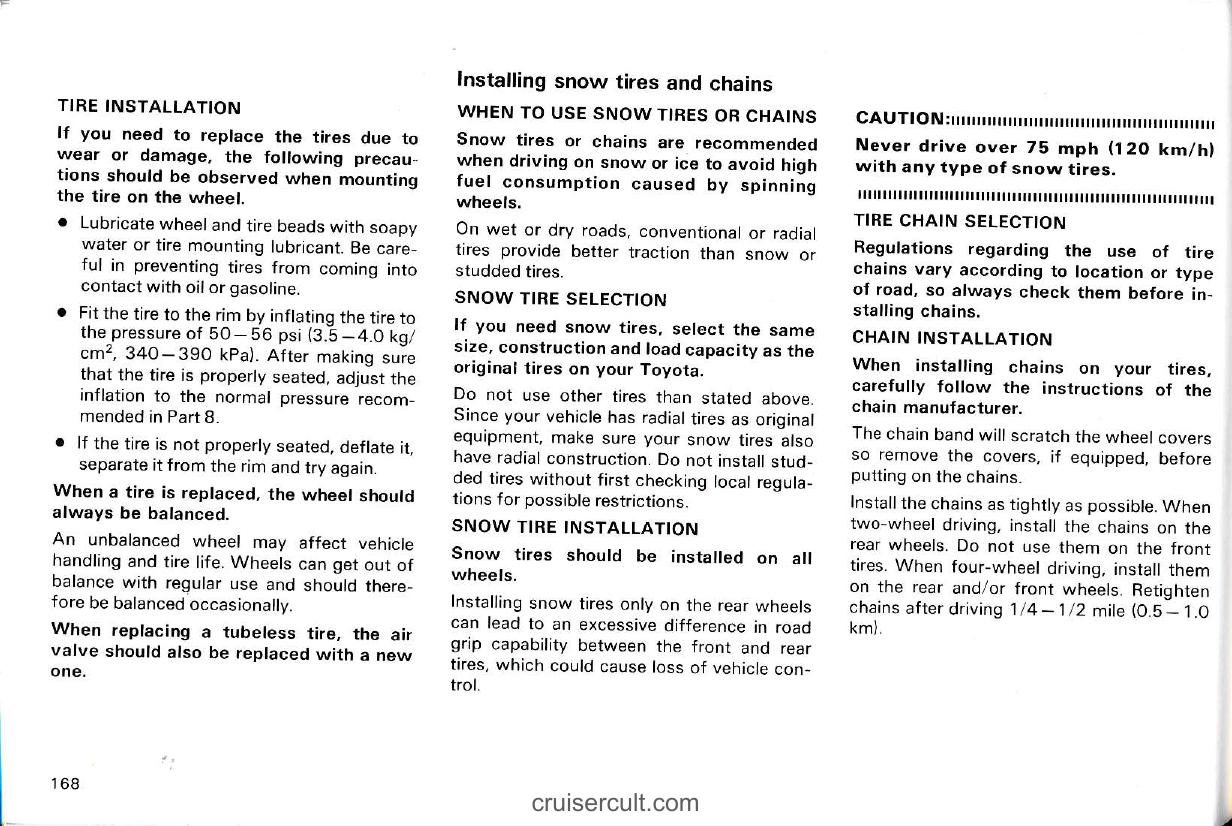

Page 168

TIRE INSTALLATION

If you need to replace the tires due to wear or damage, the following precautions should be observed when mounting the tire on the wheel.

Lubricate wheel and tire beads with soapy water or tire mounting lubricant. Be careful in preventing tires from coming into contact with oil or gasoline.
Fit the tire to the rim by inflating the tire to the pressure of 50 — 56 psi (3.5 — 4.0 kg/ cm², 340 — 390 kPa). After making sure that the tire is properly seated, adjust the inflation to the normal pressure recommended in Part 8.
If the tire is not properly seated, deflate it, separate it from the rim and try again.

When a tire is replaced, the wheel should always be balanced.

An unbalanced wheel may affect vehicle handling and tire life. Wheels can get out of balance with regular use and should therefore be balanced occasionally.

When replacing a tubeless tire, the air valve should also be replaced with a new one.

Installing snow tires and chains

WHEN TO USE SNOW TIRES OR CHAINS

Snow tires or chains are recommended when driving on snow or ice to avoid high fuel consumption caused by spinning wheels.

On wet or dry roads, conventional or radial tires provide better traction than snow or studded tires.

SNOW TIRE SELECTION

If you need snow tires, select the same size, construction and load capacity as the original tires on your Toyota.

Do not use other tires than stated above. Since your vehicle has radial tires as original equipment, make sure your snow tires also have radial construction. Do not install studded tires without first checking local regulations for possible restrictions.

SNOW TIRE INSTALLATION

Snow tires should be installed on all wheels.

Installing snow tires only on the rear wheels can lead to an excessive difference in road grip capability between the front and rear tires, which could cause loss of vehicle control.

CAUTION:

Never drive over 75 mph (120 km/h) with any type of snow tires.

TIRE CHAIN SELECTION

Regulations regarding the use of tire chains vary according to location or type of road, so always check them before installing chains.

CHAIN INSTALLATION

When installing chains on your tires, carefully follow the instructions of the chain manufacturer.

The chain band will scratch the wheel covers so remove the covers, if equipped, before putting on the chains.

Install the chains as tightly as possible. When two-wheel driving, install the chains on the rear wheels. Do not use them on the front tires. When four-wheel driving, install them on the rear and/or front wheels. Retighten chains after driving 1/4 — 1/2 mile (0.5 — 1.0 km).

168

cruisercult.com

Page 169

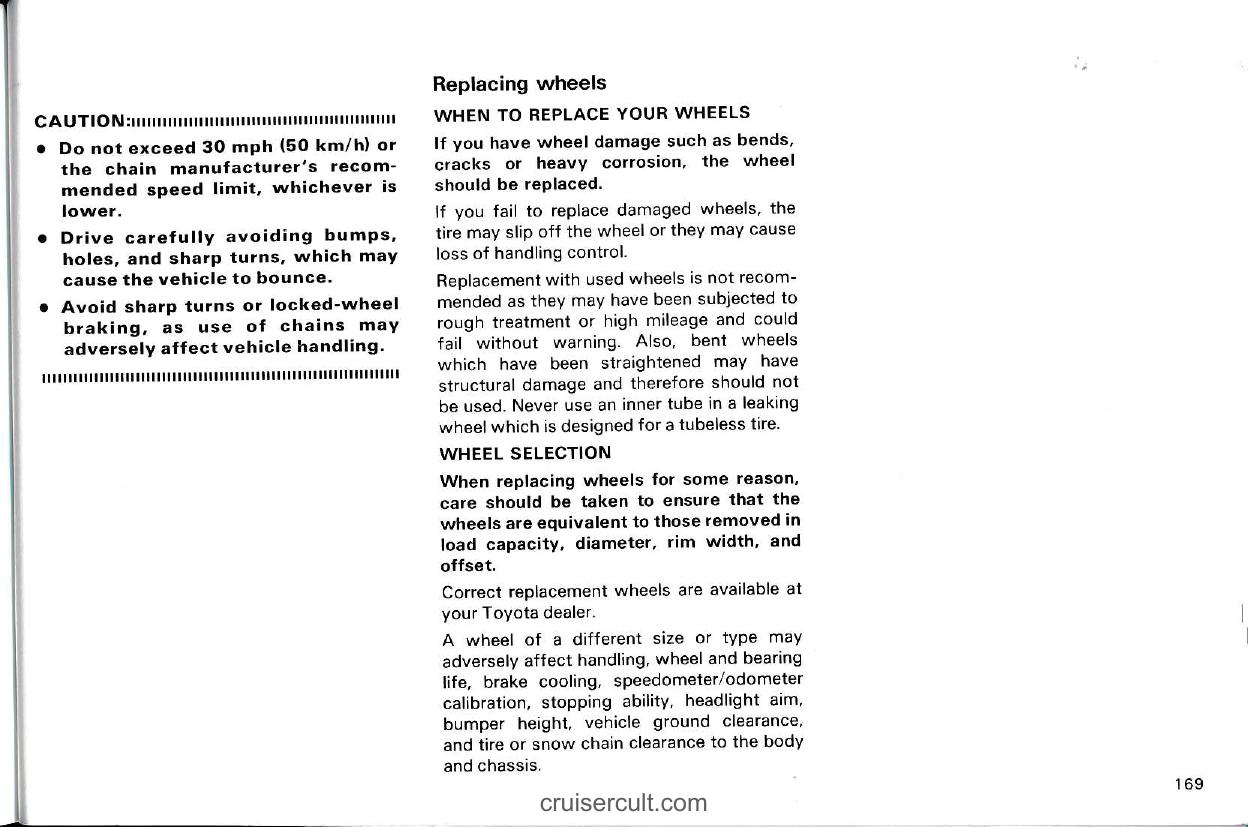

Replacing wheels

WHEN TO REPLACE YOUR WHEELS

If you have wheel damage such as bends, cracks or heavy corrosion, the wheel should be replaced.

If you fail to replace damaged wheels, the tire may slip off the wheel or they may cause loss of handling control.

Replacement with used wheels is not recommended as they may have been subjected to rough treatment or high mileage and could fail without warning. Also, bent wheels which have been straightened may have structural damage and therefore should not be used. Never use an inner tube in a leaking wheel which is designed for a tubeless tire.

WHEEL SELECTION

When replacing wheels for some reason, care should be taken to ensure that the wheels are equivalent to those removed in load capacity, diameter, rim width, and offset.

Correct replacement wheels are available at your Toyota dealer.

A wheel of a different size or type may adversely affect handling, wheel and bearing life, brake cooling, speedometer/odometer calibration, stopping ability, headlight aim, bumper height, vehicle ground clearance, and tire or snow chain clearance to the body and chassis.

CAUTION:
- Do not exceed 30 mph (50 km/h) or the chain manufacturer's recommended speed limit, whichever is lower.
- Drive carefully avoiding bumps, holes, and sharp turns, which may cause the vehicle to bounce.
- Avoid sharp turns or locked-wheel braking, as use of chains may adversely affect vehicle handling.

cruisercult.com

169

Page 170

170

cruisercult.com

Page 171

Part 7 DO-IT-YOURSELF MAINTENANCE—

Chapter 7-3 Electrical component

Checking battery condition and fluid level
Battery recharging precautions
Checking and replacing fuses
Checking the circuit breakers
Checking the fusible links
Replacing the windshield wiper blades
Replacing the rear wiper blade
Adding washer fluid
Replacing sealed beam headlight units
Replacing light bulbs

cruisercult.com

171

Page 172

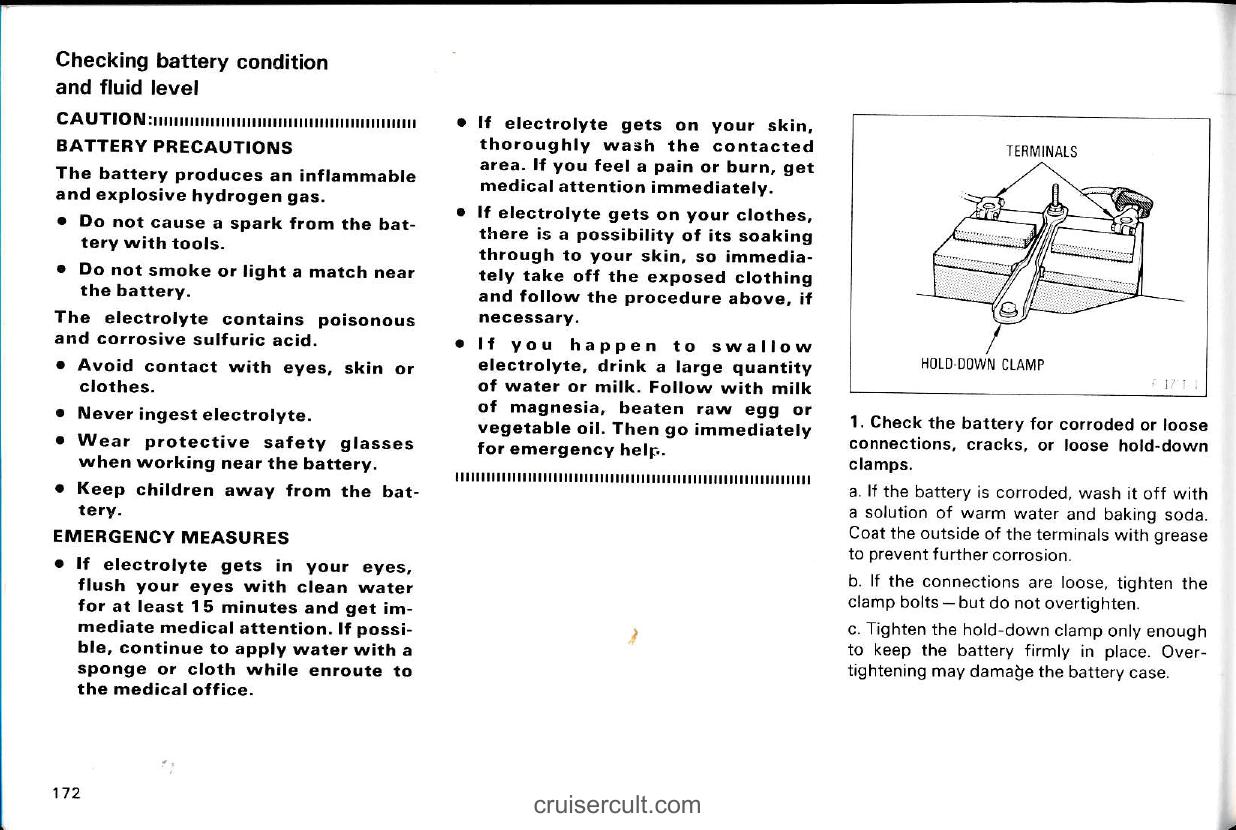

Checking battery condition and fluid level

CAUTION:!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

BATTERY PRECAUTIONS

The battery produces an inflammable and explosive hydrogen gas. - Do not cause a spark from the battery with tools. - Do not smoke or light a match near the battery.

The electrolyte contains poisonous and corrosive sulfuric acid. - Avoid contact with eyes, skin or clothes. - Never ingest electrolyte. - Wear protective safety glasses when working near the battery. - Keep children away from the battery.

EMERGENCY MEASURES

If electrolyte gets in your eyes, flush your eyes with clean water for at least 15 minutes and get immediate medical attention. If possible, continue to apply water with a sponge or cloth while enroute to the medical office.
If electrolyte gets on your skin, thoroughly wash the contacted area. If you feel a pain or burn, get medical attention immediately.
If electrolyte gets on your clothes, there is a possibility of its soaking through to your skin, so immediately take off the exposed clothing and follow the procedure above, if necessary.
If you happen to swallow electrolyte, drink a large quantity of water or milk. Follow with milk of magnesia, beaten raw egg or vegetable oil. Then go immediately for emergency help.

TERMINALS

HOLD-DOWN CLAMP

Check the battery for corroded or loose connections, cracks, or loose hold-down clamps.

a. If the battery is corroded, wash it off with a solution of warm water and baking soda. Coat the outside of the terminals with grease to prevent further corrosion.

b. If the connections are loose, tighten the clamp bolts — but do not overtighten.

c. Tighten the hold-down clamp only enough to keep the battery firmly in place. Overtightening may damage the battery case.

172

cruisercult.com

Page 173

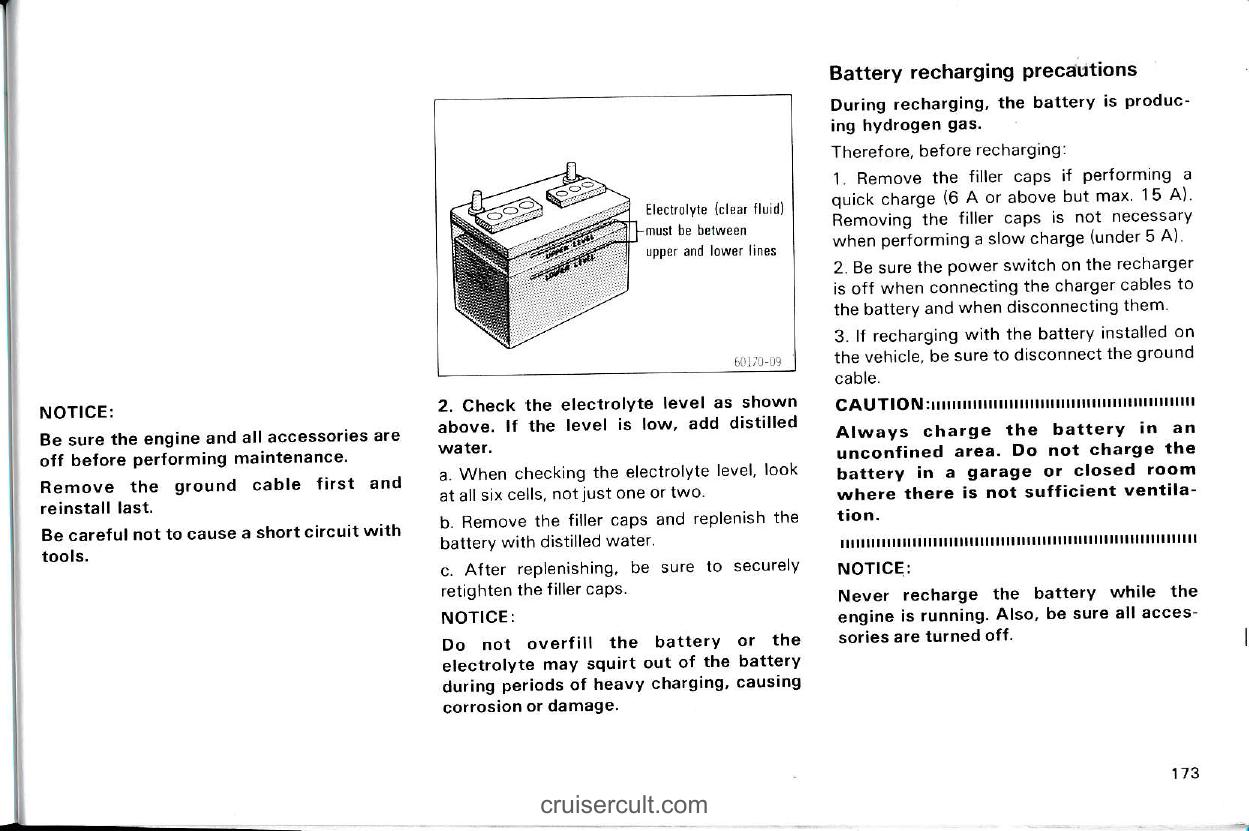

NOTICE

Be sure the engine and all accessories are off before performing maintenance.

Remove the ground cable first and reinstall last.

Be careful not to cause a short circuit with tools.

Battery diagram showing electrolyte level

Electrolyte (clear fluid) must be between upper and lower lines
(60170-09)

2. Check the electrolyte level as shown above. If the level is low, add distilled water.

a. When checking the electrolyte level, look at all six cells, not just one or two.

b. Remove the filler caps and replenish the battery with distilled water.

c. After replenishing, be sure to securely retighten the filler caps.

NOTICE:
Do not overfill the battery or the electrolyte may squirt out of the battery during periods of heavy charging, causing corrosion or damage.

Battery recharging precautions

During recharging, the battery is producing hydrogen gas.

Therefore, before recharging:

Remove the filler caps if performing a quick charge (6 A or above but max. 15 A). Removing the filler caps is not necessary when performing a slow charge (under 5 A).
Be sure the power switch on the recharger is off when connecting the charger cables to the battery and when disconnecting them.
If recharging with the battery installed on the vehicle, be sure to disconnect the ground cable.

CAUTION:
Always charge the battery in an unconfined area. Do not charge the battery in a garage or closed room where there is not sufficient ventilation.

NOTICE:
Never recharge the battery while the engine is running. Also, be sure all accessories are turned off.

cruisercult.com

173

Page 174

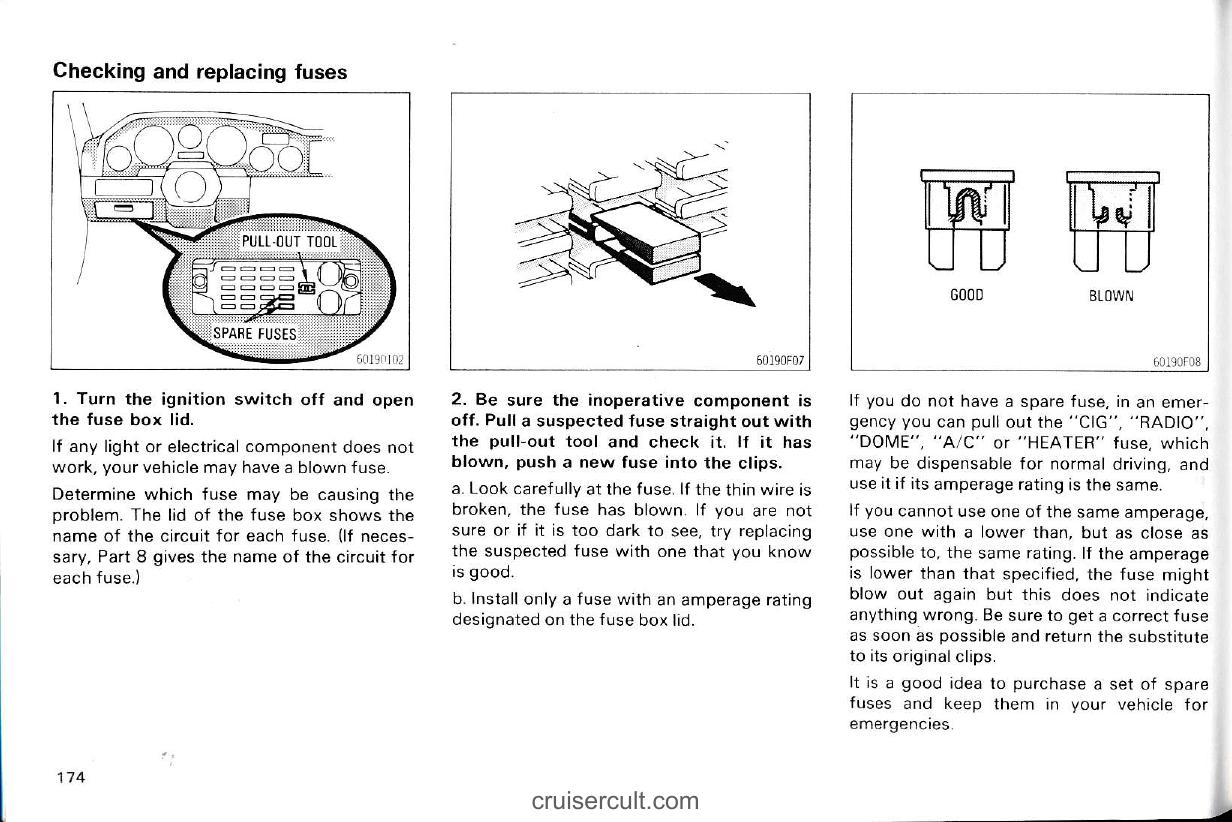

Checking and replacing fuses

(Pull-out tool / spare fuses illustration) PULL-OUT TOOL
SPARE FUSES
60190102

Turn the ignition switch off and open the fuse box lid.
If any light or electrical component does not work, your vehicle may have a blown fuse.
Determine which fuse may be causing the problem. The lid of the fuse box shows the name of the circuit for each fuse. (If necessary, Part 8 gives the name of the circuit for each fuse.)
Be sure the inoperative component is off. Pull a suspected fuse straight out with the pull-out tool and check it. If it has blown, push a new fuse into the clips.
60190F07

a. Look carefully at the fuse. If the thin wire is broken, the fuse has blown. If you are not sure or if it is too dark to see, try replacing the suspected fuse with one that you know is good.
b. Install only a fuse with an amperage rating designated on the fuse box lid.

(Good / Blown fuse illustration)
GOOD BLOWN
60190F08

If you do not have a spare fuse, in an emergency you can pull out the "CIG", "RADIO", "DOME", "A/C" or "HEATER" fuse, which may be dispensable for normal driving, and use it if its amperage rating is the same.

If you cannot use one of the same amperage, use one with a lower than, but as close as possible to, the same rating. If the amperage is lower than that specified, the fuse might blow out again but this does not indicate anything wrong. Be sure to get a correct fuse as soon as possible and return the substitute to its original clips.

It is a good idea to purchase a set of spare fuses and keep them in your vehicle for emergencies.

174

cruisercult.com

Page 175

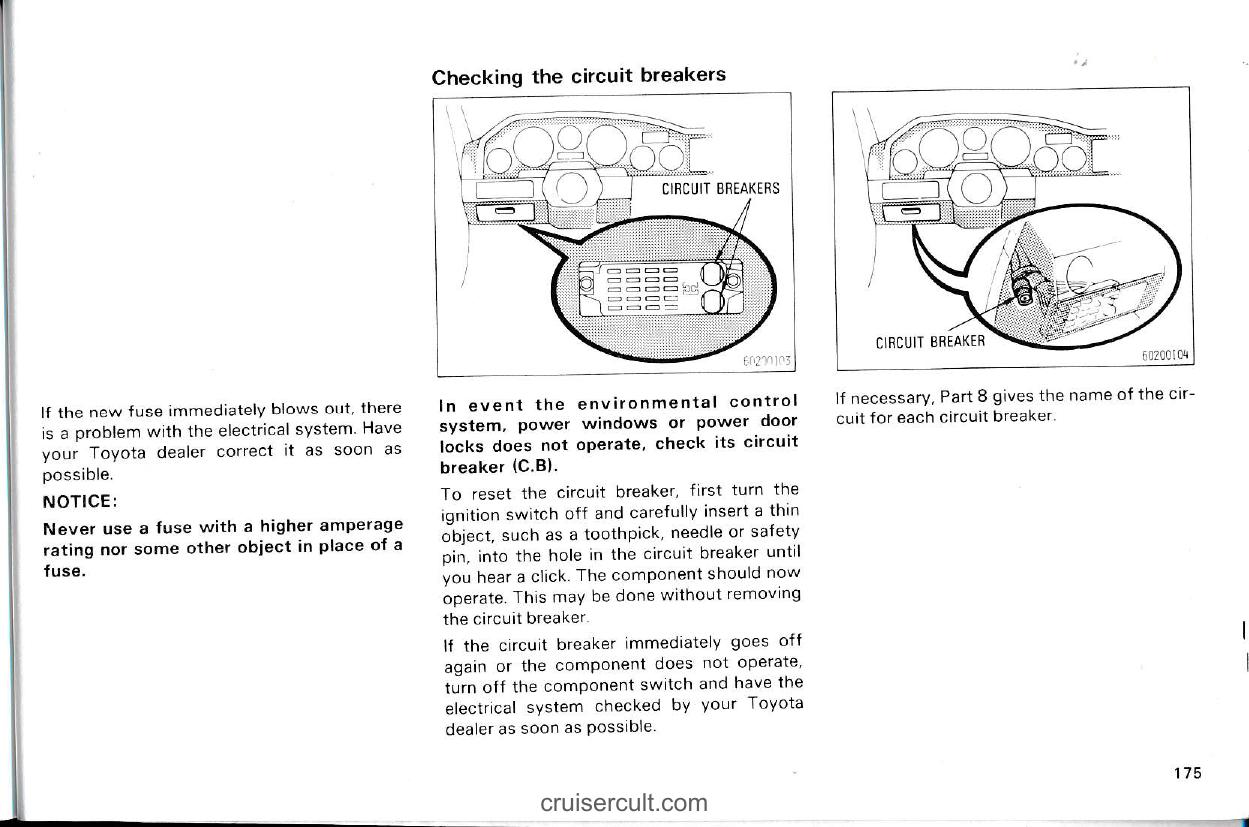

Checking the circuit breakers

If the new fuse immediately blows out, there is a problem with the electrical system. Have your Toyota dealer correct it as soon as possible.

NOTICE:

Never use a fuse with a higher amperage rating nor some other object in place of a fuse.

In event the environmental control system, power windows or power door locks does not operate, check its circuit breaker (C.B).

To reset the circuit breaker, first turn the ignition switch off and carefully insert a thin object, such as a toothpick, needle or safety pin, into the hole in the circuit breaker until you hear a click. The component should now operate. This may be done without removing the circuit breaker.

If the circuit breaker immediately goes off again or the component does not operate, turn off the component switch and have the electrical system checked by your Toyota dealer as soon as possible.

If necessary, Part 8 gives the name of the circuit for each circuit breaker.

cruisercult.com

175

Page 176

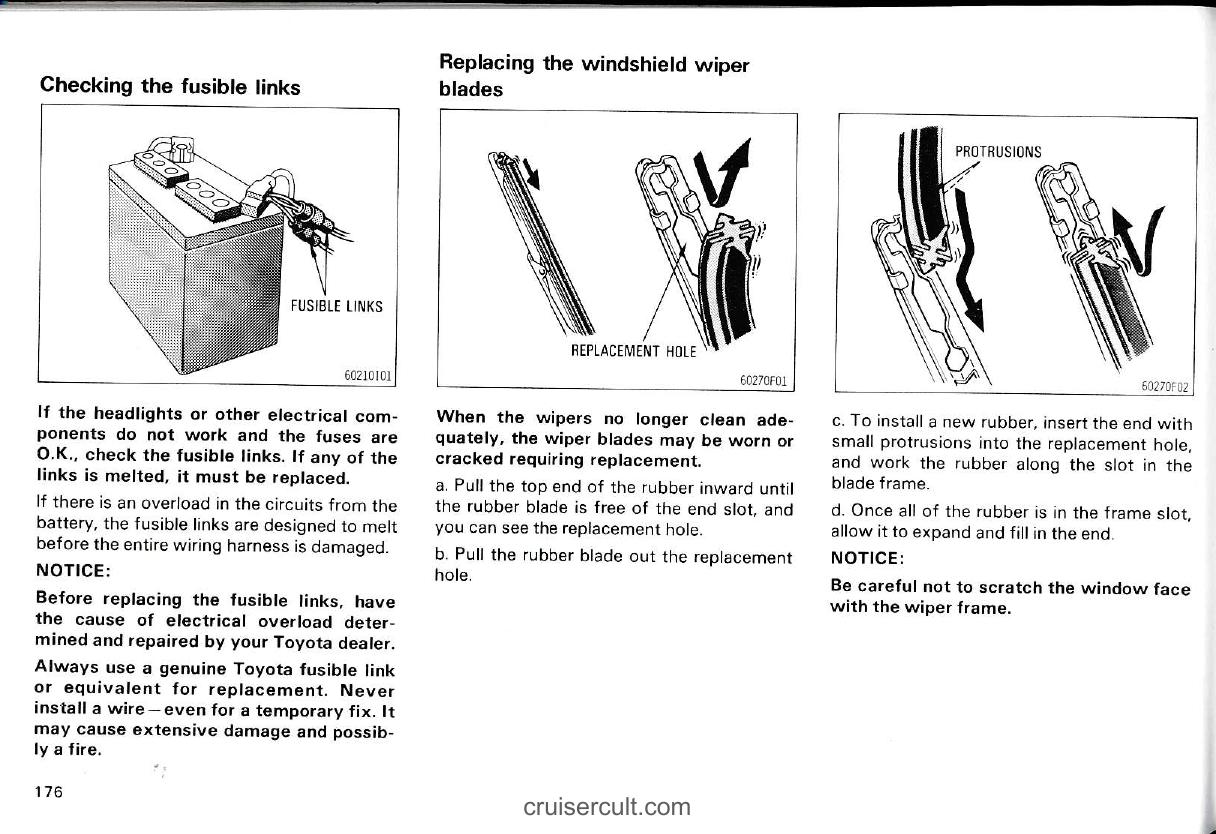

Checking the fusible links

FUSIBLE LINKS

If the headlights or other electrical components do not work and the fuses are O.K., check the fusible links. If any of the links is melted, it must be replaced.

If there is an overload in the circuits from the battery, the fusible links are designed to melt before the entire wiring harness is damaged.

NOTICE:

Before replacing the fusible links, have the cause of electrical overload determined and repaired by your Toyota dealer.

Always use a genuine Toyota fusible link or equivalent for replacement. Never install a wire — even for a temporary fix. It may cause extensive damage and possibly a fire.

Replacing the windshield wiper blades

REPLACEMENT HOLE PROTRUSIONS

When the wipers no longer clean adequately, the wiper blades may be worn or cracked requiring replacement.

a. Pull the top end of the rubber inward until the rubber blade is free of the end slot, and you can see the replacement hole.

b. Pull the rubber blade out the replacement hole.

c. To install a new rubber, insert the end with small protrusions into the replacement hole, and work the rubber along the slot in the blade frame.

d. Once all of the rubber is in the frame slot, allow it to expand and fill in the end.

NOTICE:

Be careful not to scratch the window face with the wiper frame.

176

cruisercult.com

Page 177

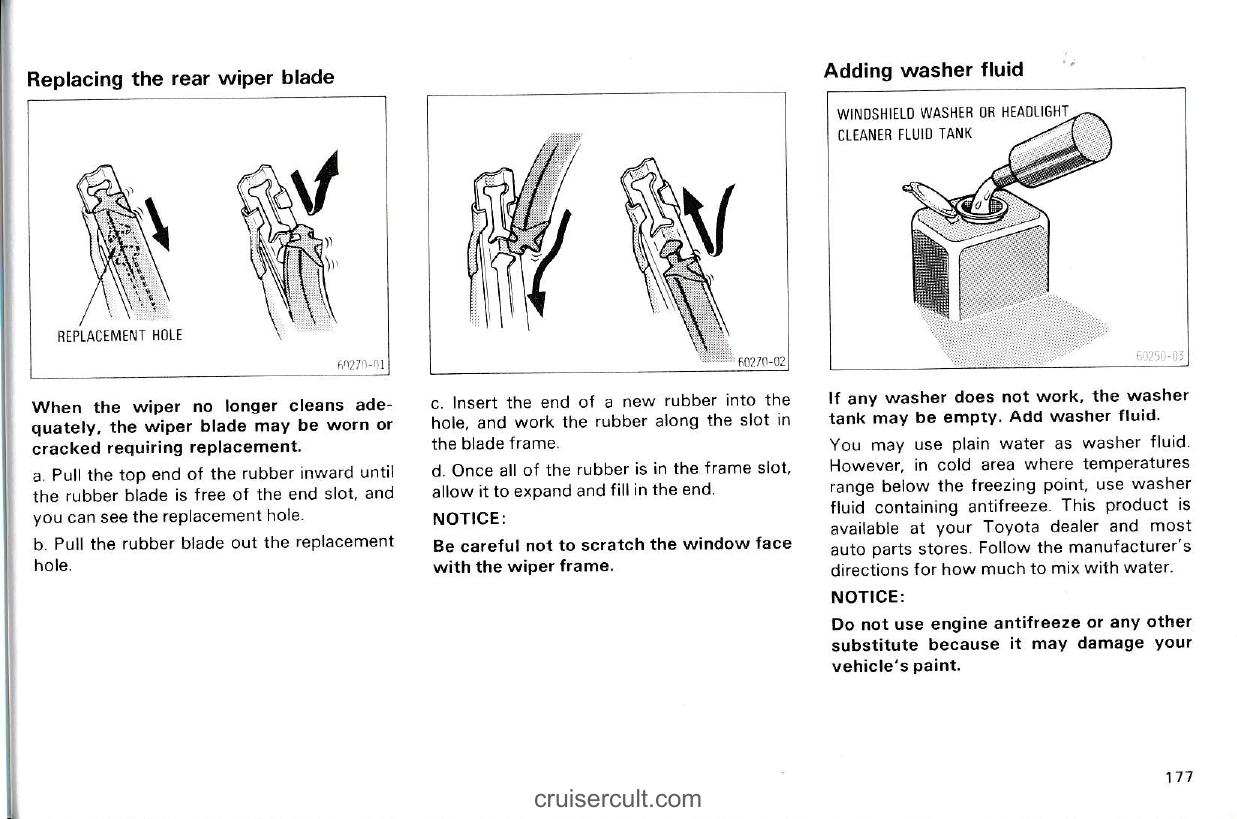

Replacing the rear wiper blade

(REPLACEMENT HOLE)

When the wiper no longer cleans adequately, the wiper blade may be worn or cracked requiring replacement.

a. Pull the top end of the rubber inward until the rubber blade is free of the end slot, and you can see the replacement hole.
b. Pull the rubber blade out the replacement hole.

c. Insert the end of a new rubber into the hole, and work the rubber along the slot in the blade frame.
d. Once all of the rubber is in the frame slot, allow it to expand and fill in the end.

NOTICE:
Be careful not to scratch the window face with the wiper frame.

Adding washer fluid

(WINDSHIELD WASHER OR HEADLIGHT CLEANER FLUID TANK)

If any washer does not work, the washer tank may be empty. Add washer fluid.

You may use plain water as washer fluid. However, in cold area where temperatures range below the freezing point, use washer fluid containing antifreeze. This product is available at your Toyota dealer and most auto parts stores. Follow the manufacturer's directions for how much to mix with water.

NOTICE:

Do not use engine antifreeze or any other substitute because it may damage your vehicle's paint.

cruisercult.com

177

Page 178

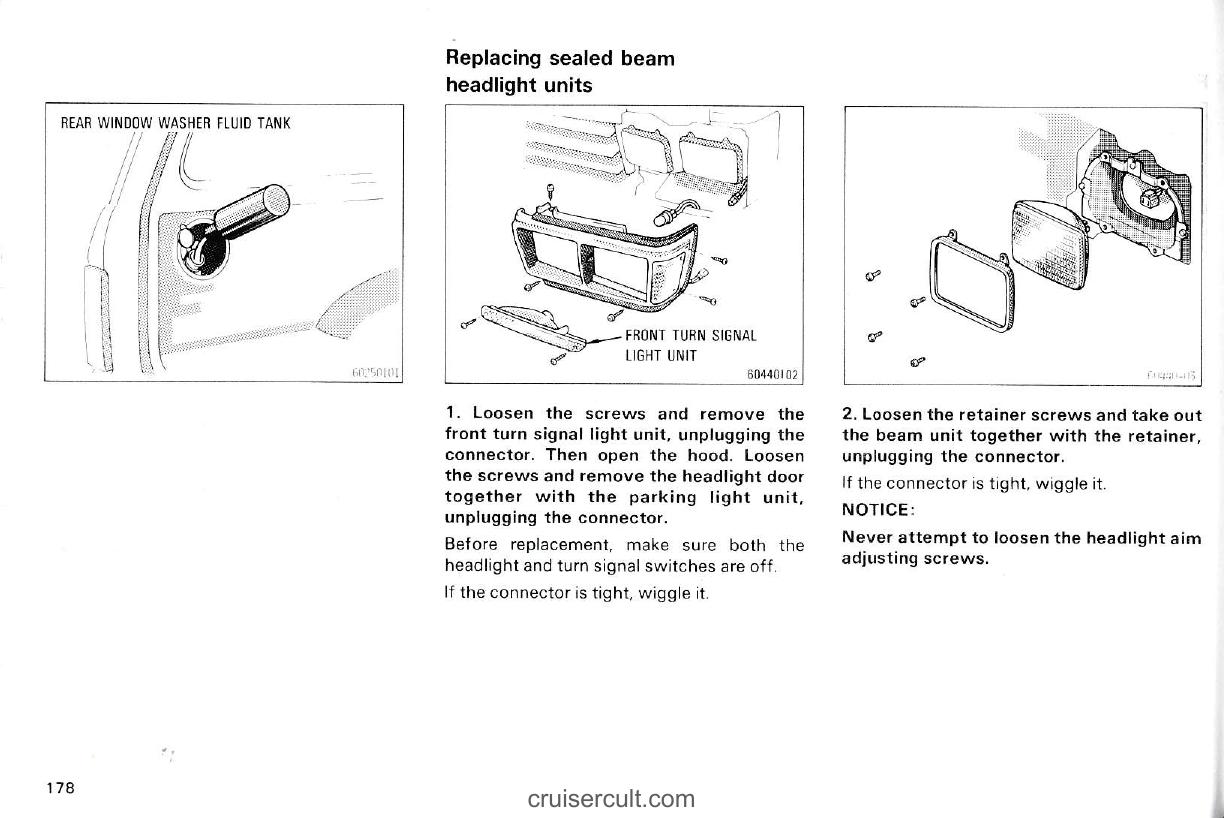

Replacing sealed beam headlight units

REAR WINDOW WASHER FLUID TANK

(image)

(image label: FRONT TURN SIGNAL LIGHT UNIT)

Loosen the screws and remove the front turn signal light unit, unplugging the connector. Then open the hood. Loosen the screws and remove the headlight door together with the parking light unit, unplugging the connector.

Before replacement, make sure both the headlight and turn signal switches are off.

If the connector is tight, wiggle it.

Loosen the retainer screws and take out the beam unit together with the retainer, unplugging the connector.

If the connector is tight, wiggle it.

NOTICE:

Never attempt to loosen the headlight aim adjusting screws.

178

cruisercult.com

Page 179

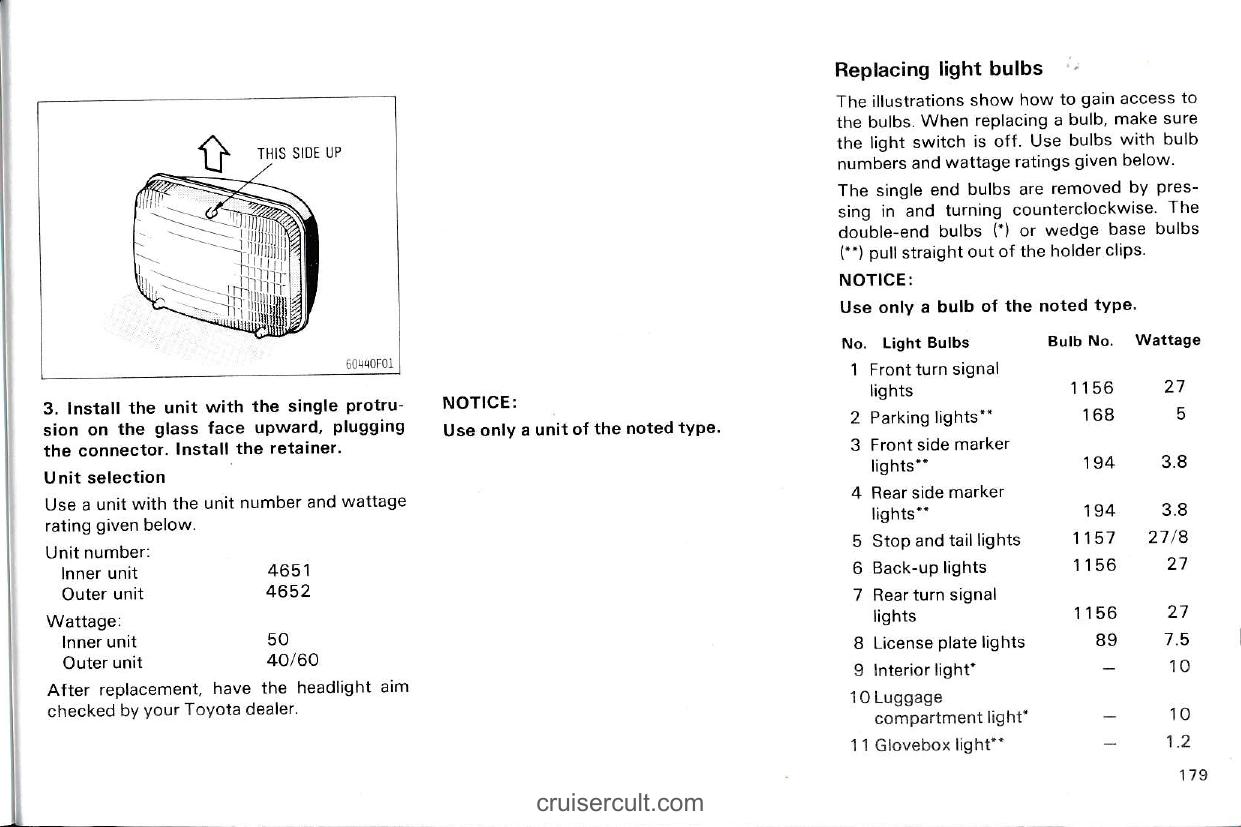

THIS SIDE UP

60440F01

Install the unit with the single protrusion on the glass face upward, plugging the connector. Install the retainer.

Unit selection
Use a unit with the unit number and wattage rating given below.

Unit number:
Inner unit 4651
Outer unit 4652

Wattage:
Inner unit 50
Outer unit 40/60

After replacement, have the headlight aim checked by your Toyota dealer.

NOTICE:
Use only a unit of the noted type.

cruisercult.com

Replacing light bulbs

The illustrations show how to gain access to the bulbs. When replacing a bulb, make sure the light switch is off. Use bulbs with bulb numbers and wattage ratings given below.

The single end bulbs are removed by pressing in and turning counterclockwise. The double-end bulbs () or wedge base bulbs (*) pull straight out of the holder clips.

NOTICE:
Use only a bulb of the noted type.

No.	Light Bulbs	Bulb No.	Wattage
1	Front turn signal lights	1156	27
2	Parking lights**	168	5
3	Front side marker lights**	194	3.8
4	Rear side marker lights**	194	3.8
5	Stop and tail lights	1157	27/8
6	Back-up lights	1156	27
7	Rear turn signal lights	1156	27
8	License plate lights	89	7.5
9	Interior light*	—	10
10	Luggage compartment light*	—	10
11	Glovebox light**	—	1.2

179

Page 180

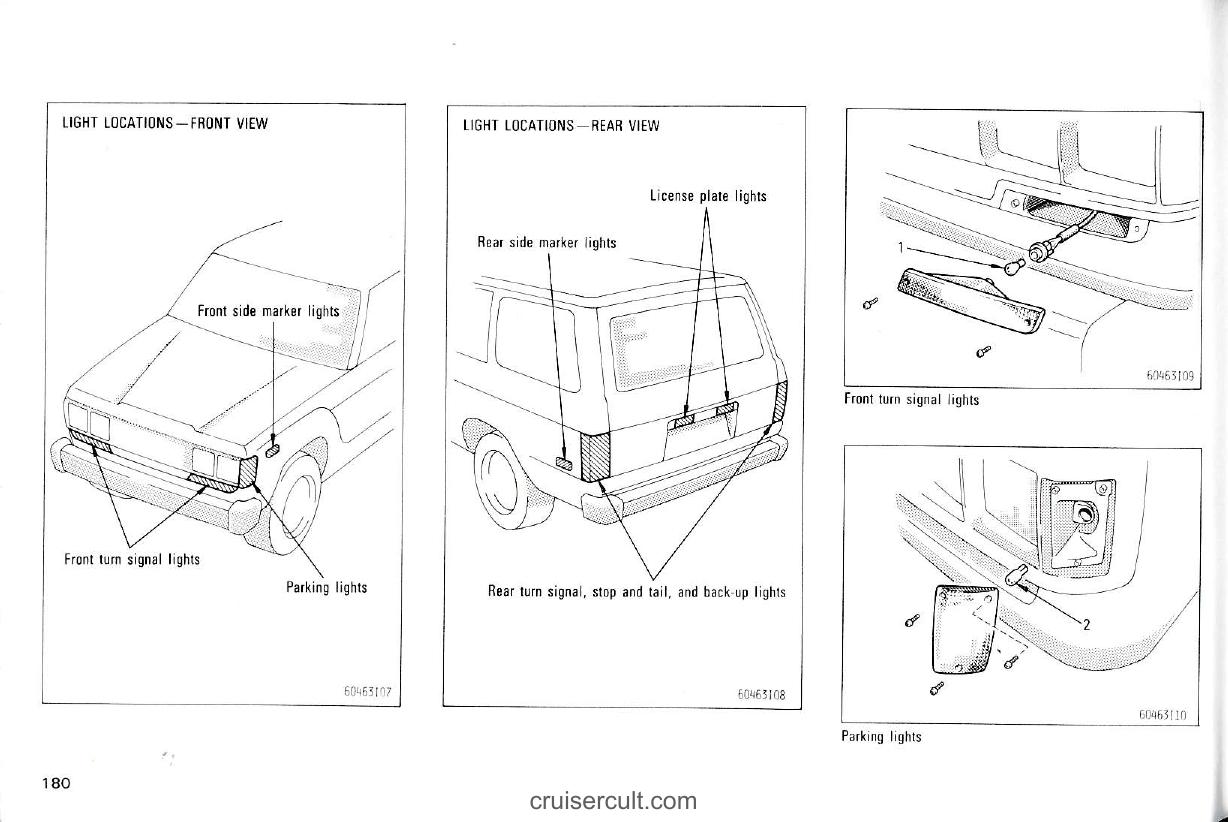

LIGHT LOCATIONS — FRONT VIEW

Front side marker lights
Front turn signal lights
Parking lights

60463107

LIGHT LOCATIONS — REAR VIEW

License plate lights
Rear side marker lights
Rear turn signal, stop and tail, and back-up lights

60463108

Front turn signal lights

1

60463109

Parking lights

2

60463110

180

cruisercult.com

Page 181

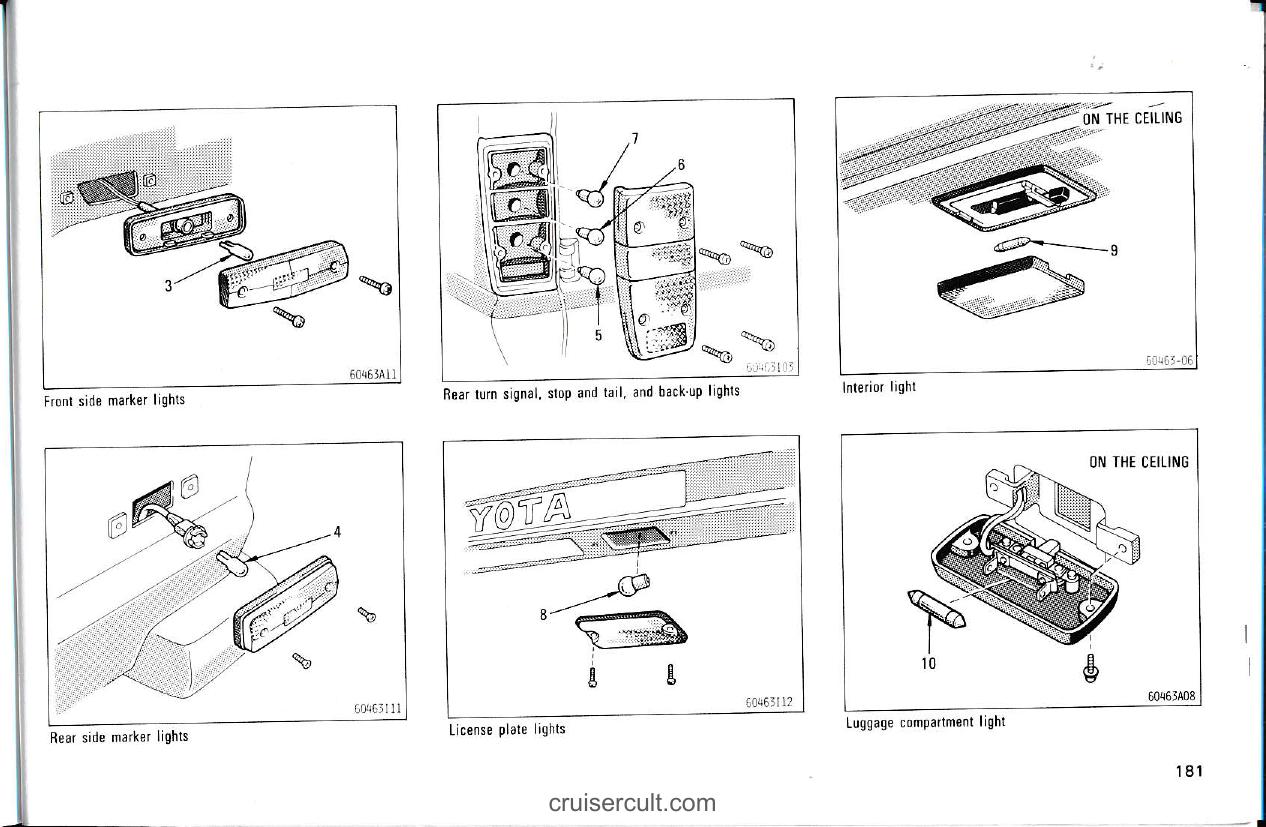

Front side marker lights

3
60463A11

Rear turn signal, stop and tail, and back-up lights

5 6 7
60463-03

Interior light

ON THE CEILING
9
50463-06

Rear side marker lights

4
60463111

License plate lights

8
YOTA
60463112

Luggage compartment light

ON THE CEILING
10
60463A08

cruisercult.com

181

Page 182

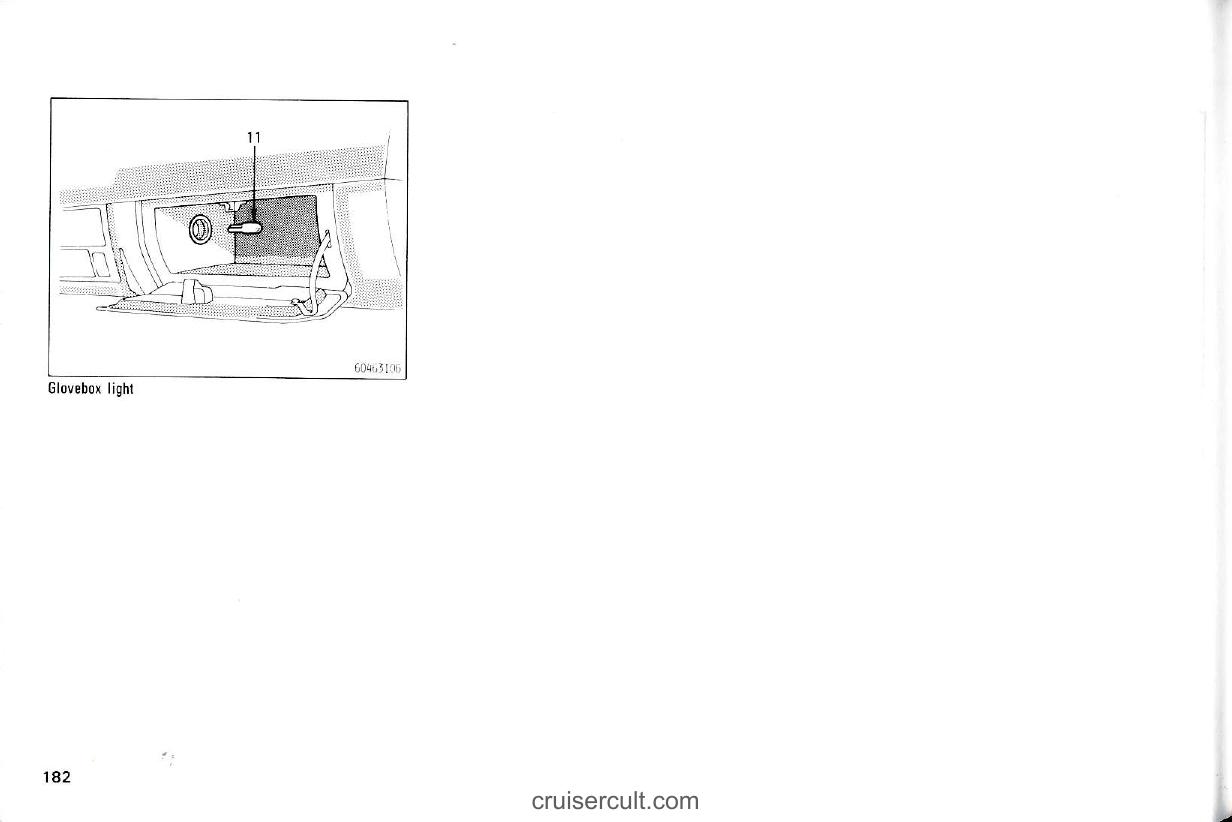

11
Glovebox light
60463106
182
cruisercult.com

Page 183

Part 8 SPECIFICATIONS

Dimensions and weight
Engine
Fuel
Service specifications
Fuses and circuit breakers

cruisercult.com

183

Page 184

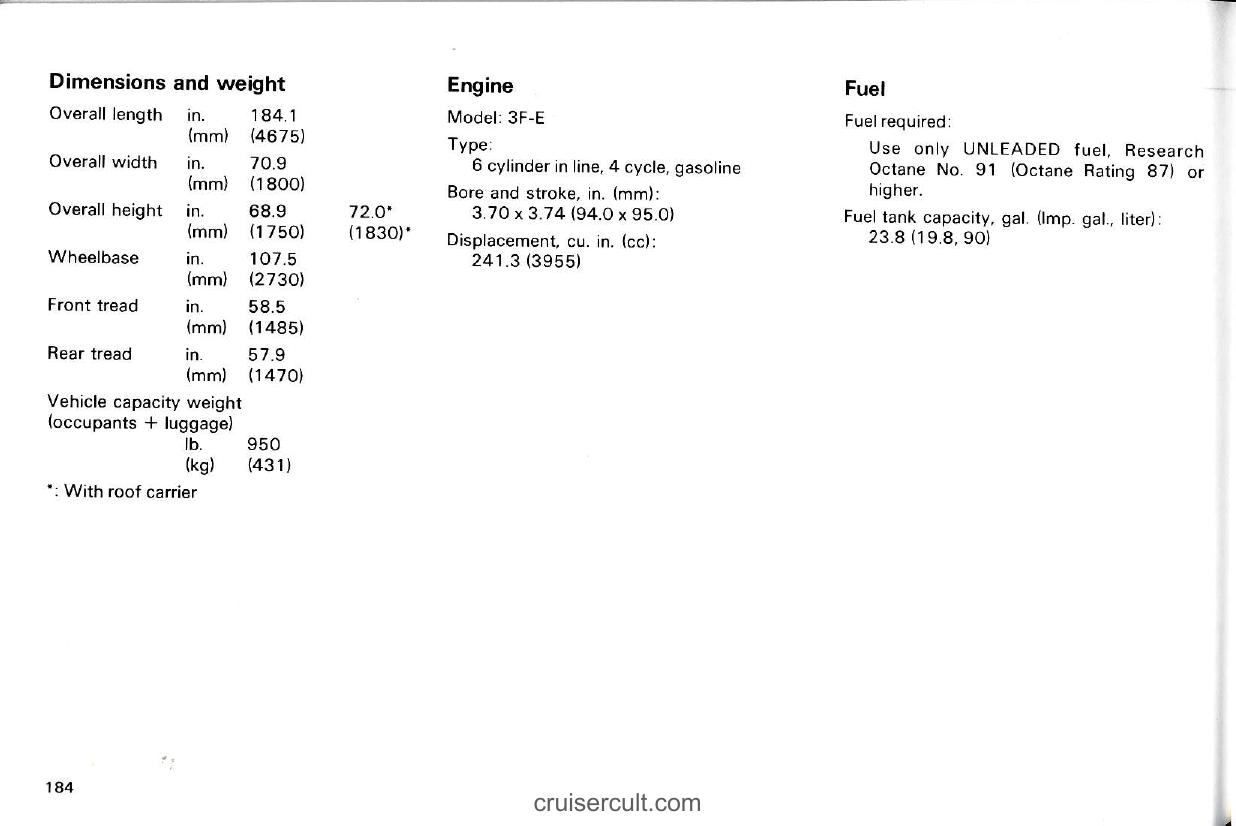

Dimensions and weight

Overall length
in. 184.1
(mm) (4675)
Overall width
in. 70.9
(mm) (1800)
Overall height
in. 68.9 72.0*
(mm) (1750) (1830)*
Wheelbase
in. 107.5
(mm) (2730)
Front tread
in. 58.5
(mm) (1485)
Rear tread
in. 57.9
(mm) (1470)
Vehicle capacity weight (occupants + luggage)
lb. 950
(kg) (431)
*: With roof carrier

Engine

Model: 3F-E
Type:
6 cylinder in line, 4 cycle, gasoline
Bore and stroke, in. (mm):
3.70 x 3.74 (94.0 x 95.0)
Displacement, cu. in. (cc):
241.3 (3955)

Fuel

Fuel required:
Use only UNLEADED fuel, Research Octane No. 91 (Octane Rating 87) or higher.
Fuel tank capacity, gal. (Imp. gal., liter):
23.8 (19.8, 90)

184

cruisercult.com

Page 185

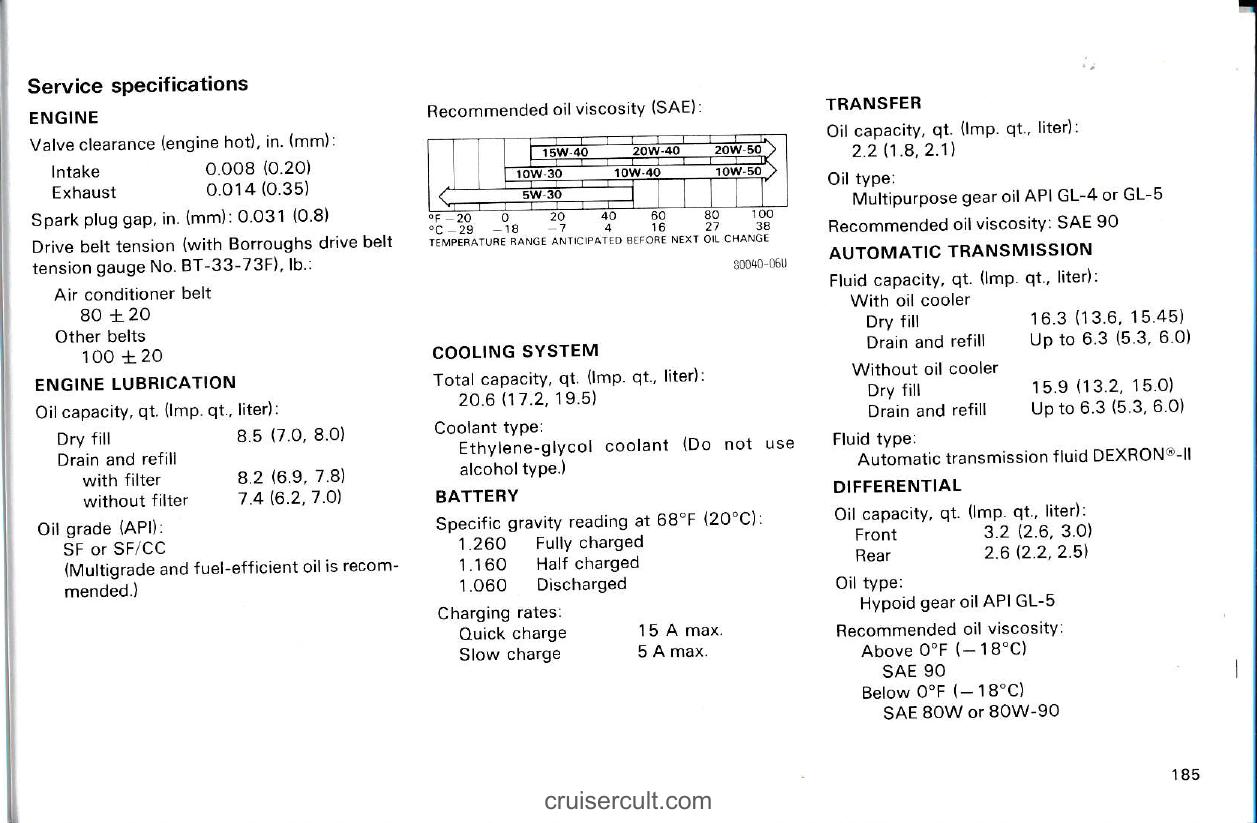

Service specifications

ENGINE

Valve clearance (engine hot), in. (mm):
Intake: 0.008 (0.20)
Exhaust: 0.014 (0.35)
Spark plug gap, in. (mm): 0.031 (0.8)
Drive belt tension (with Burroughs drive belt tension gauge No. BT-33-73F), lb.:
Air conditioner belt: 80 ± 20
Other belts: 100 ± 20

ENGINE LUBRICATION

Oil capacity, qt. (Imp. qt., liter):
Dry fill: 8.5 (7.0, 8.0)
Drain and refill:
- with filter: 8.2 (6.9, 7.8)
- without filter: 7.4 (6.2, 7.0)
Oil grade (API): SF or SF/CC
(Multigrade and fuel-efficient oil is recommended.)

Recommended oil viscosity (SAE):

5W-30
10W-30, 10W-40, 10W-50
15W-40, 20W-40, 20W-50

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE - °F: -20, 0, 20, 40, 60, 80, 100 - °C: -29, -18, -7, 4, 16, 27, 38

80040-06U

COOLING SYSTEM

Total capacity, qt. (Imp. qt., liter): 20.6 (17.2, 19.5)
Coolant type: Ethylene-glycol coolant (Do not use alcohol type.)

BATTERY

Specific gravity reading at 68°F (20°C):
1.260: Fully charged
1.160: Half charged
1.060: Discharged
Charging rates:
Quick charge: 15 A max.
Slow charge: 5 A max.

TRANSFER

Oil capacity, qt. (Imp. qt., liter): 2.2 (1.8, 2.1)
Oil type: Multipurpose gear oil API GL-4 or GL-5
Recommended oil viscosity: SAE 90

AUTOMATIC TRANSMISSION

Fluid capacity, qt. (Imp. qt., liter):
With oil cooler:
- Dry fill: 16.3 (13.6, 15.45)
- Drain and refill: Up to 6.3 (5.3, 6.0)
Without oil cooler:
- Dry fill: 15.9 (13.2, 15.0)
- Drain and refill: Up to 6.3 (5.3, 6.0)
Fluid type: Automatic transmission fluid DEXRON®-II

DIFFERENTIAL

Oil capacity, qt. (Imp. qt., liter):
Front: 3.2 (2.6, 3.0)
Rear: 2.6 (2.2, 2.5)
Oil type: Hypoid gear oil API GL-5
Recommended oil viscosity:
Above 0°F (−18°C): SAE 90
Below 0°F (−18°C): SAE 80W or 80W-90

cruisercult.com

185

Page 186

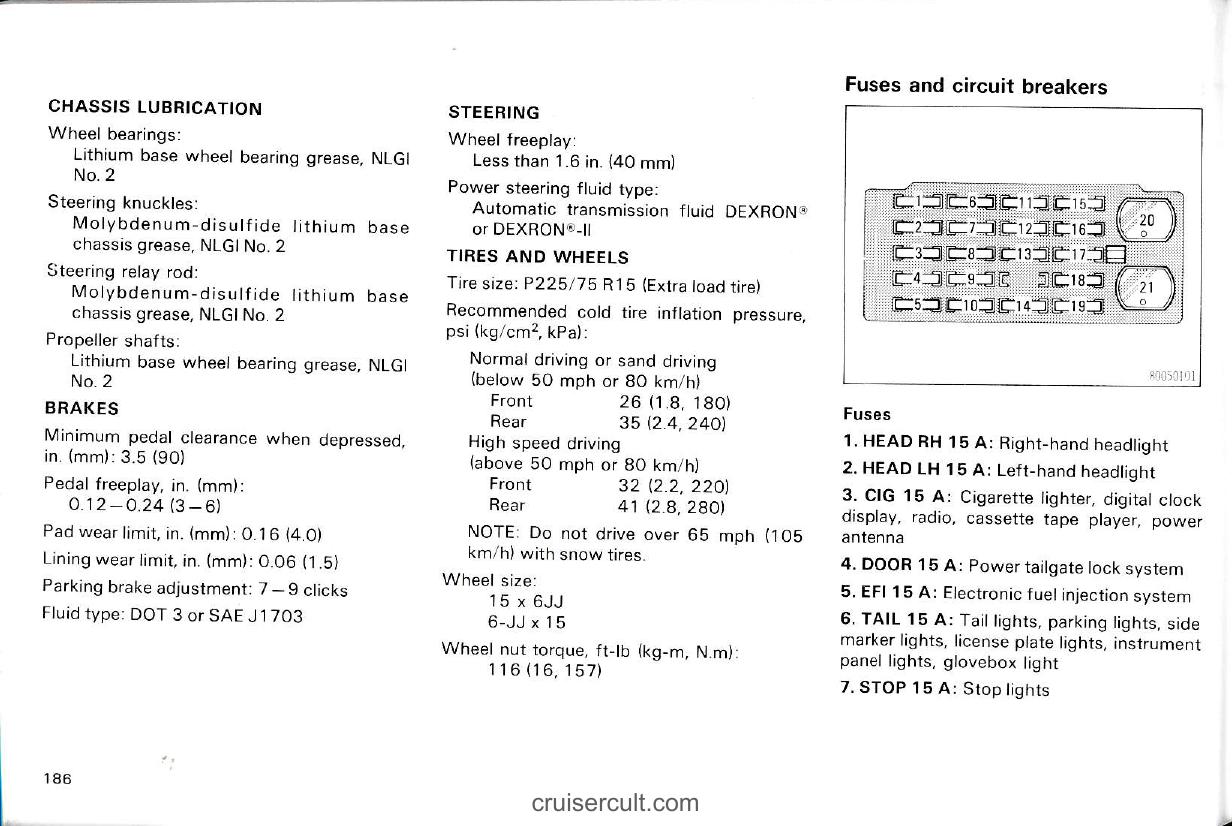

Page content not yet processed

Page 187

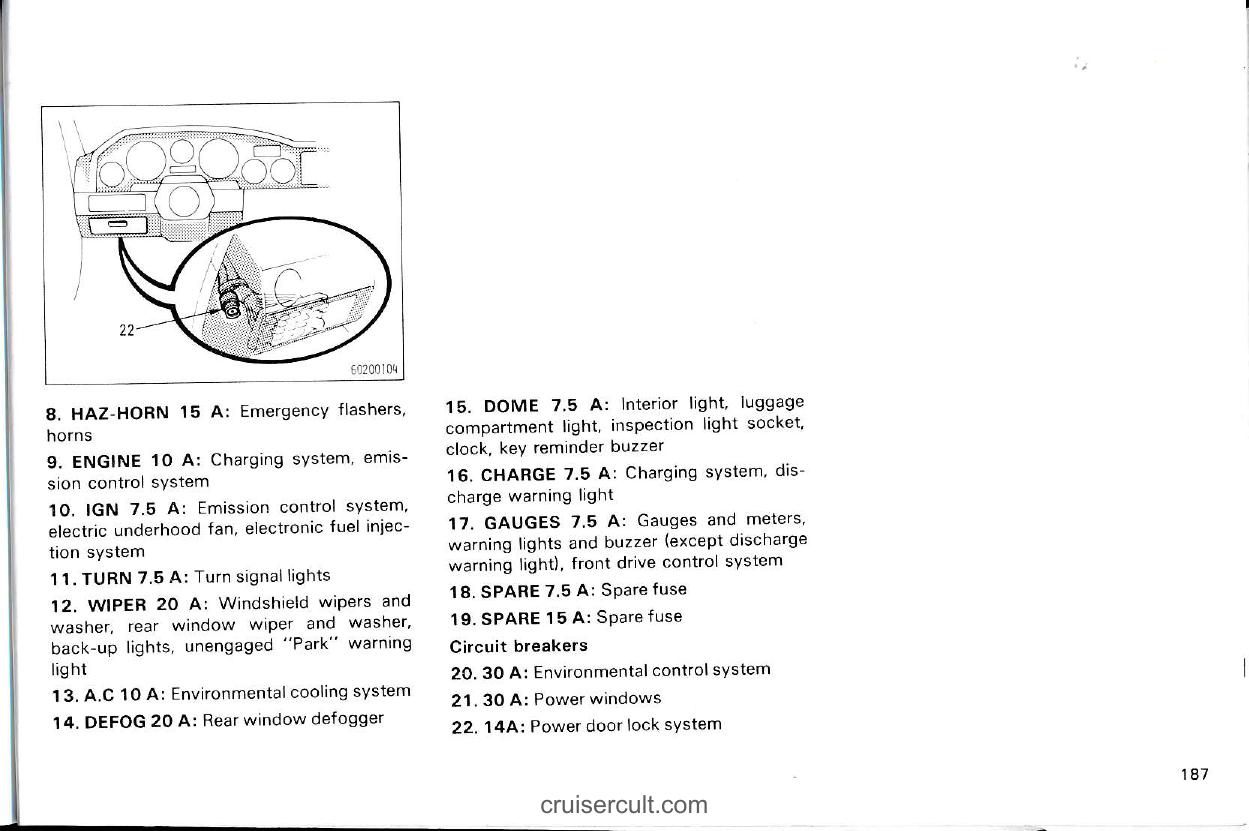

1. HAZ-HORN 15 A: Emergency flashers, horns
1. ENGINE 10 A: Charging system, emission control system
1. IGN 7.5 A: Emission control system, electric underhood fan, electronic fuel injection system
1. TURN 7.5 A: Turn signal lights
1. WIPER 20 A: Windshield wipers and washer, rear window wiper and washer, back-up lights, unengaged "Park" warning light
1. A.C 10 A: Environmental cooling system
1. DEFOG 20 A: Rear window defogger
1. DOME 7.5 A: Interior light, luggage compartment light, inspection light socket, clock, key reminder buzzer
1. CHARGE 7.5 A: Charging system, discharge warning light
1. GAUGES 7.5 A: Gauges and meters, warning lights and buzzer (except discharge warning light), front drive control system
1. SPARE 7.5 A: Spare fuse
1. SPARE 15 A: Spare fuse

Circuit breakers - 20. 30 A: Environmental control system - 21. 30 A: Power windows - 22. 14 A: Power door lock system

cruisercult.com

187

Page 188

188
cruisercult.com

Page 189

Part 9 INDEX

cruisercult.com

189

Page 190

A

Adding washer fluid ............................ 177
Adjustment
Front seat position .......................... 14
Front seatback angle ........................ 14
Seat belt .................................... 17,18
Air cleaner .................................... 154
Air conditioner controls ....................... 72
Antenna switch, Power .......................... 52
Anti-glare inside rear view mirror .............. 24
Anti-theft steering column lock ................. 38
Appearance care
Cleaning the interior ........................ 128
Protecting your Toyota from corrosion .......... 126
Washing and waxing ........................... 127
Automatic transmission
Driving with an automatic transmission ........ 39
Fluid level .................................. 163
Shift pattern ................................ 39
Shifting speed ............................... 39
Automatic transmission fluid temperature warning light ... 34
Auxiliary catch, Engine hood .................... 10

B

Battery
Checking battery condition and fluid level ... 172
Fluid level .................................. 172
Gas caution .................................. 172
Handling safety .............................. 172
Recharging precautions ....................... 173
Winter driving tips .......................... 105
Before starting the engine ...................... 102
Brake system ................................... 97
Brake system warning light ...................... 34
Brakes
Booster ...................................... 160
Fluid level .................................. 158
Parking ...................................... 47
Parking brake adjustment ..................... 159
Parking brake reminder light ................. 47
Pedal clearance .............................. 159
Pedal freeplay ............................... 159
Pedal travel ................................ 159
Break-in tips .................................. 93
Brightness control .............................. 27

C

Car audio, Before operating .................... 50
Carbon monoxide caution ........................ 95
Cassette tape player ........................... 58,61,64
Cassette tape player operating tips ............. 50
Catalytic converter ............................ 94
Changing the engine coolant .................... 153
Changing the engine oil and filter .............. 151
Chassis lubrication
Lubricating the chassis components ........... 162
Checking and replacing fuses .................... 174
Checking brake fluid ........................... 158
Checking fusible links ........................ 176
Checking the brake booster ..................... 160
Checking the engine oil level .................. 150
Checking the engine system ..................... 157
Child restraint ................................. 20
Child restraint precautions ..................... 20
Cigarette lighter and ashtray ................... 89
Circuit breakers ............................... 175
Cleaning the interior .......................... 128
Clock .......................................... 88
Cold weather
Operation .................................... 105
Controls, Instrument panel ...................... 2,4
Cooling system
Coolant level ................................ 153
Engine overheating ........................... 116
Radiator and reservoir ........................ 153
Radiator cap .................................. 116
Winter driving tips ........................... 105
Corrosion prevention .......................... 126

D

Defogger, Rear window .......................... 29
Differential
Differential locks ........................... 45
Oil level .................................... 165
Dimmer switch, Headlight ....................... 26
Directional signals ............................ 26
Discharge warning light ........................ 34
Do-it-yourself maintenance
Parts and tools .............................. 146
Does your vehicle need repairing? ............ 135
Door locks ...................................... 6,7
Driving
Automatic transmission ........................ 39
Driving tips .................................. 102
Driving tips in various conditions ............ 103
Driving with an automatic transmission ........ 39
Economical driving ............................ 110

Page 191

Page content not yet processed

Page 192

Page content not yet processed

Page 193

Page content not yet processed

Page 194

U

Unengaged "Park" warning light ............ 34

V

Voltmeter ................................. 33

W

Warning buzzers ............................ 34
Warning lights ............................. 34
Washer fluid
Adding washer fluid ...................... 177
Washing and waxing .......................... 127
Windshield wiper and washer switch .......... 28
Winter driving tips .......................... 105
Wiper
Blades ................................... 176,177

194

cruisercult.com

Page 195

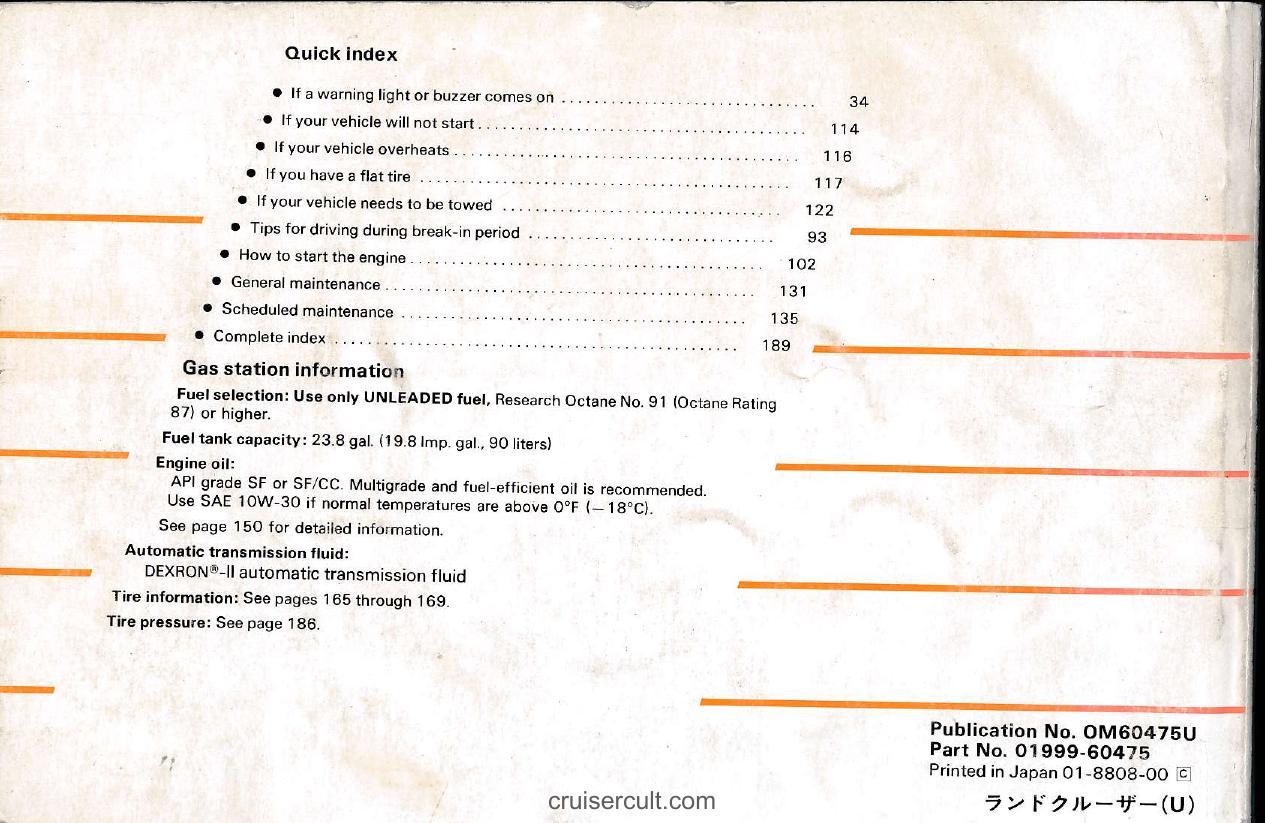

Quick index

If a warning light or buzzer comes on ...................................................... 34
If your vehicle will not start .......................................................... 114
If your vehicle overheats .......................................................... 116
If you have a flat tire ............................................................ 117
If your vehicle needs to be towed ........................................... 122
Tips for driving during break-in period .................................... 93
How to start the engine ......................................................... 102
General maintenance ............................................................ 131
Scheduled maintenance ......................................................... 135
Complete index ................................................................. 189

Gas station information

Fuel selection: Use only UNLEADED fuel, Research Octane No. 91 (Octane Rating 87) or higher.

Fuel tank capacity: 23.8 gal. (19.8 Imp. gal., 90 liters)

Engine oil:
API grade SF or SF/CC. Multigrade and fuel-efficient oil is recommended.
Use SAE 10W-30 if normal temperatures are above 0°F (−18°C).

See page 150 for detailed information.

Automatic transmission fluid:
DEXRON®-II automatic transmission fluid

Tire information: See pages 165 through 169.

Tire pressure: See page 186.

cruisercult.com

ランドクルーザー (U)

1989 FJ62 Owner's Manual

Cover Page 1

TOYOTA

1989 Owner's Manual

LAND CRUISER

Cover Page 2

WE REALLY CARE ABOUT YOU — PLEASE BUCKLE UP

Cover Page 3

Foreword

Cover Page 4

New vehicle warranty

Installation of a mobile two-way radio system

Your responsibility for maintenance

On-pavement and off-road driving tips

Modification of your Toyota

Cover Page 5

Table of Contents

Part 1: Operation of Instruments and Controls

Part 2: Information Before Driving Your Toyota (page 91)

Part 3: Starting and Driving (page 101)

Part 4: In Case of an Emergency (page 113)

Part 5: Corrosion Prevention and Appearance Care (page 125)

Part 6: Vehicle Maintenance and Care (page 129)

Part 7: Do-It-Yourself Maintenance

Part 8: Specifications (page 183)

Part 9: Index (page 189)

Cover Page 6

Page 1

Part 1 OPERATION OF INSTRUMENTS AND CONTROLS—

Chapter 1-1 Overview of instruments and controls

Page 2

Instrument panel overview

Page 3

Extracted text

Page 4

Instrument cluster overview

Page 5

Part 1 OPERATION OF INSTRUMENTS AND CONTROLS—

Chapter 1-2 Key and Doors

Page 6

Key

The key works in every lock.

KEY NUMBER PLATE

Doors — Locking with key

Page 7

Page 8

Power window switches

Page 9

OPERATING THE PASSENGERS' WINDOWS

Tailgate —

Page 10

Hood

Page 11

Fuel tank cap

Page 12

Page 13

Part 1 OPERATION OF INSTRUMENTS AND CONTROLS—

Chapter 1-3 Seats, Seat belts, Steering wheel and Mirrors

Page 14

Front seats —

Adjusting seat position

Adjusting seatback angle

Page 15

Fold-down rear seat

Page 16

Headrests

Seat belts —

— Seat belt precautions

Page 17

Page 18

-2-point type seat belt

To release the belt, press the buckle-release button and allow the belt to retract.

Sit well back in the seat and straight up. To fasten your belt, insert the tab into the buckle.

Remove excess length of the belt and adjust the belt position.

Page 19

— Seat belt extender

Page 20

Child restraint—

—Child restraint precautions

—Child restraint system
